FSJ: Gladiator, Full Size Wagoneer, Grand Wagoneer & J-Truck Wiring Diagrams Page

This page now contains 1962-65 (230), 1965-68 (327), 1965-71 (232), 1969-71 (350), 1973, 1974, 1976, 1978, 1979, 1981, 1983, 1984/85, 1986, 1988 & 1990.


TIPS: You can "Right-Click" and do a "Save As" on the link to save these to your hard drive. I recommend using a graphics program rather than your web browser for the best clarity, (I use PaintShopPro). Use the graphic program's "Page Setup" and click the "Fit to Page" setting and you should get some decent printouts on standard 8-1/2" x 11" paper as long as you have a decent printer.

You will need a WinZip type program to uncompress the files marked as WinZip File .

I'm still looking for wiring JPG's or GIF's to fill in missing years.  If you have complete scans for years not listed below, or factory hard copies please email me.
Questions, comments or requests email Ryan



Due to numerous email requests I have added this section for the Small Jeep Information
Small Jeep Pages

Motorcraft Distributor Wiring (Compliments of Jim Blair)

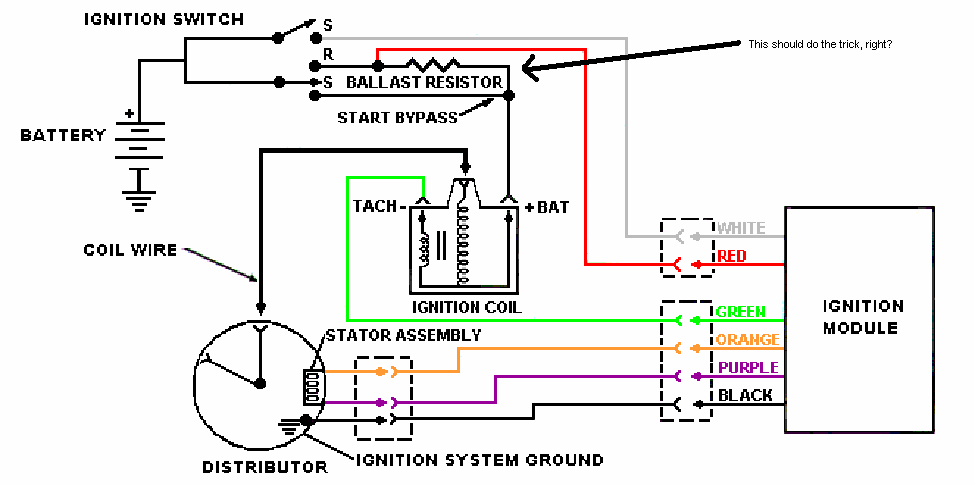

Motorcraft Distributor Wiring

Converting an overhead console to work on older FSJ's (Compliments of Allen)

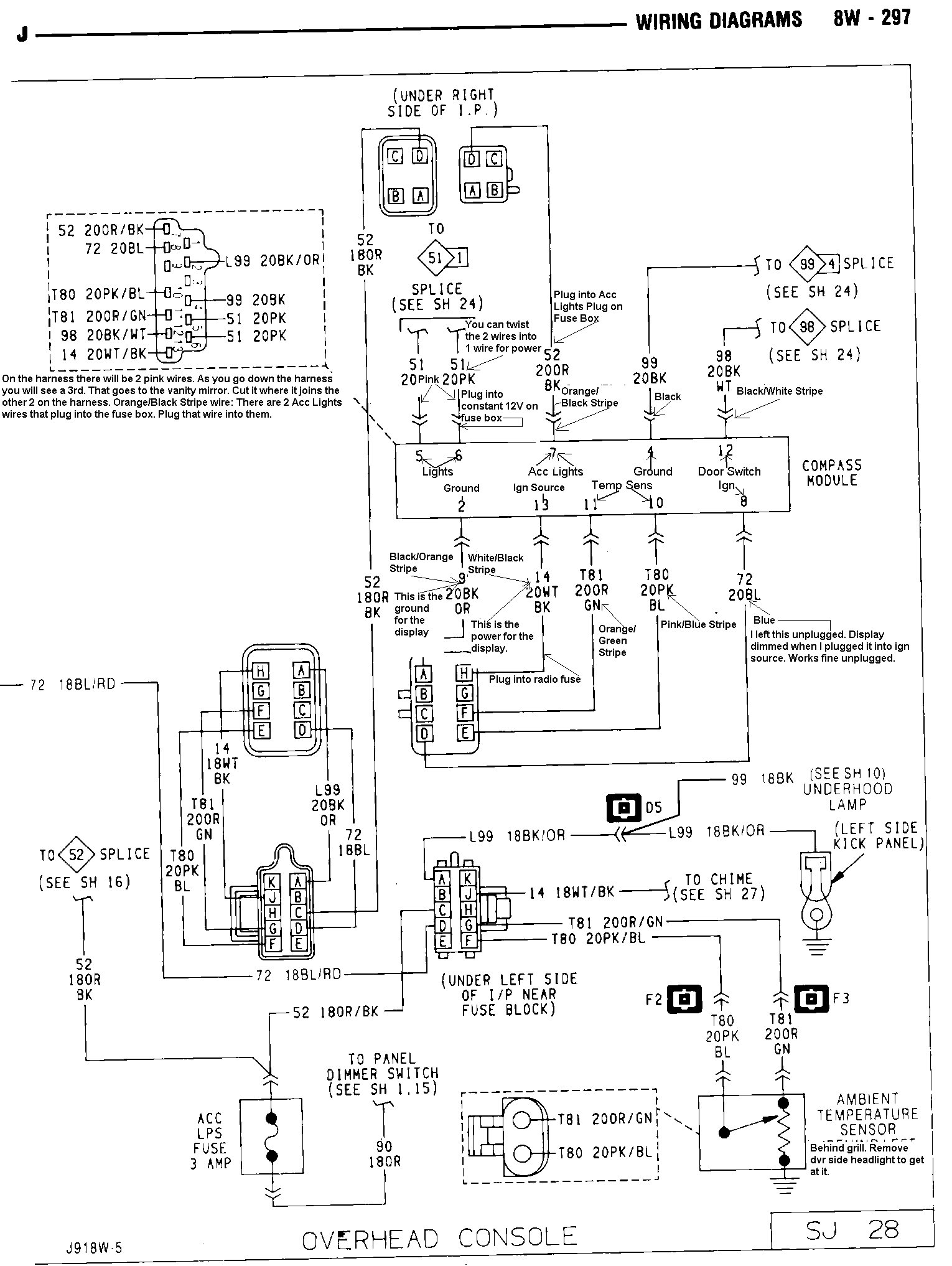

91 console wiring conversion
Link to Allens tech site

Jacobs Ignition Run-On Fix
Jacobs Ignition Run-On Fix

Most Recent Requested Files (From Factory MR 253 Manual)
1984-1986 Fuse Block These cover most of the 80's up until 86 or later

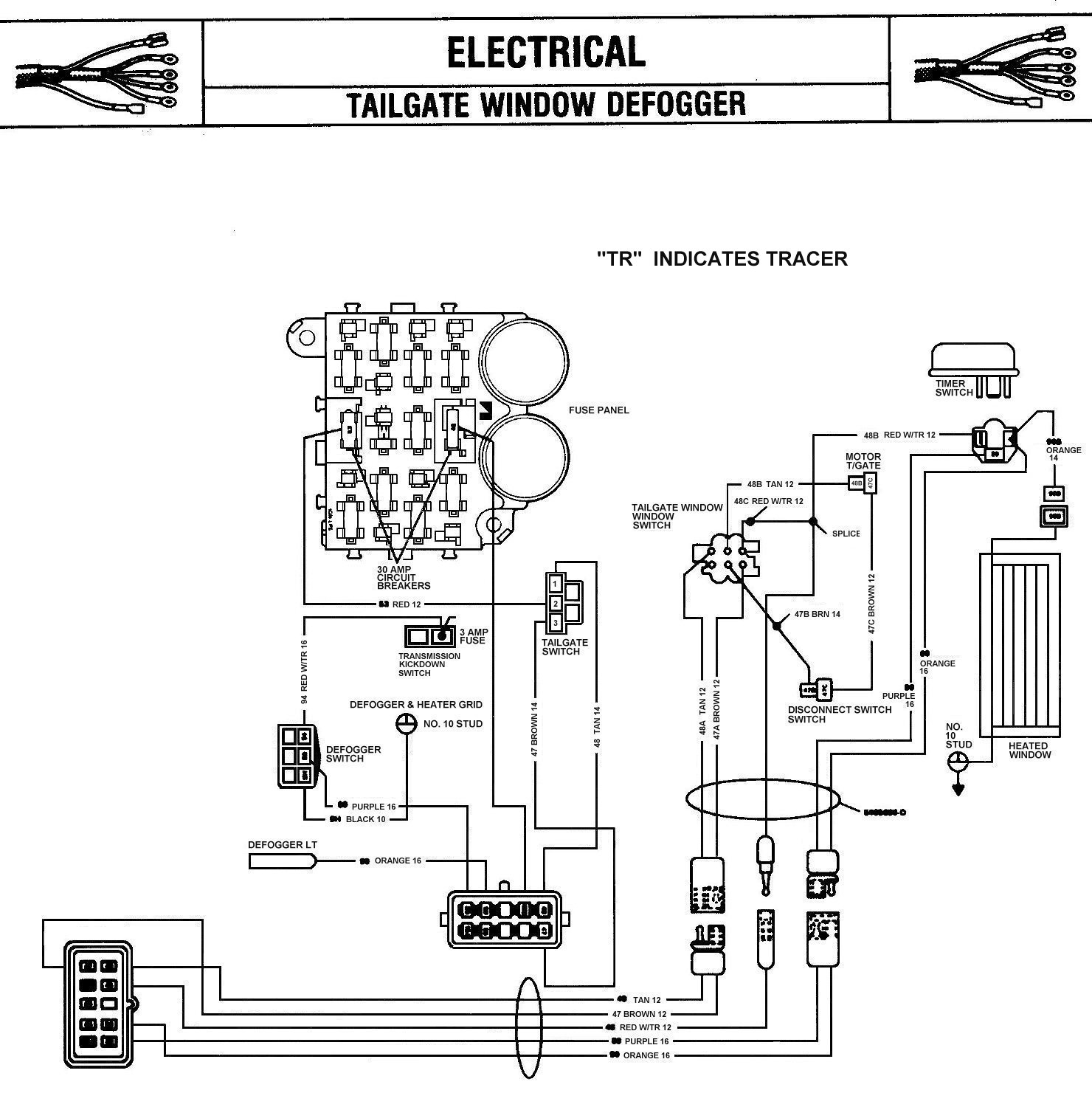

1984 - 1986 Rear Window Defroster

1962-1965 230 Tornado wiring diagrams compliments of Joe Schaefer

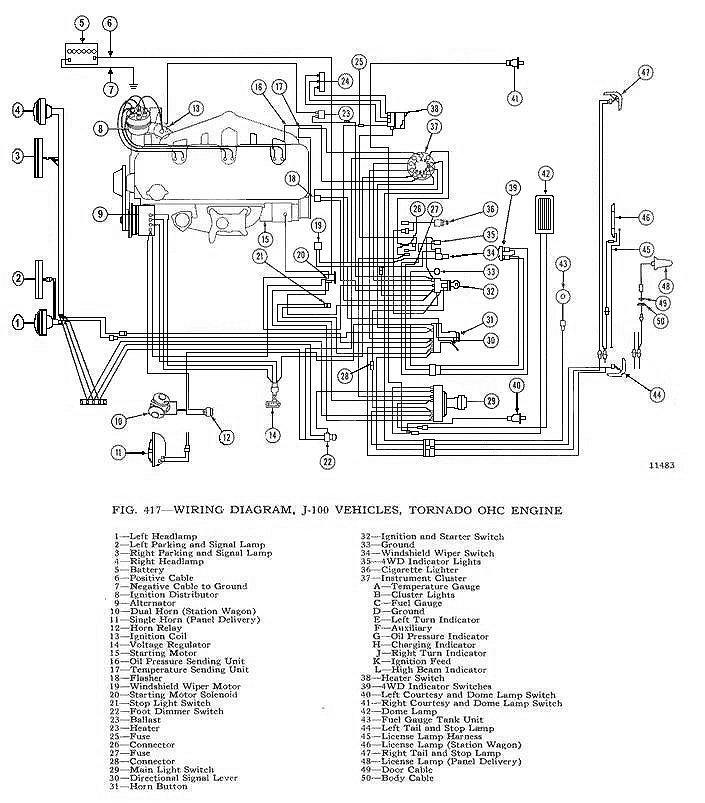

62-65_230_WiringDiagram.jpg 230 Tornado Wiring Diagram
62-65_230_WiringDiagramKey.doc Wiring Key in MS Word format
62-65_230_WiringDiagramKey.xls Wiring Key in Excel format
62-65_230_WiringDiagrams.zip Complete set in 1 WinZip File (approx 128K)
1965-1968 327 wiring diagrams compliments of Joe Schaefer

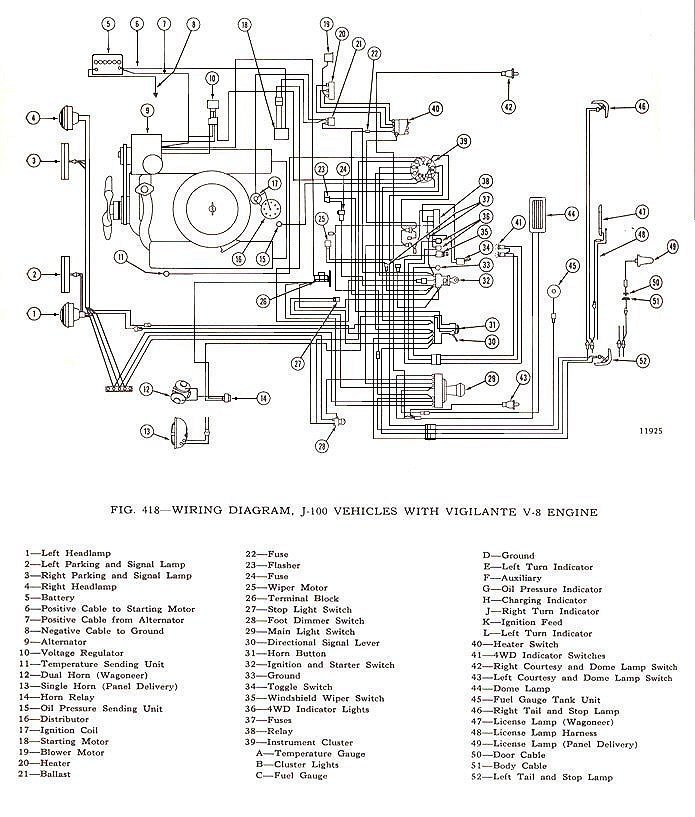

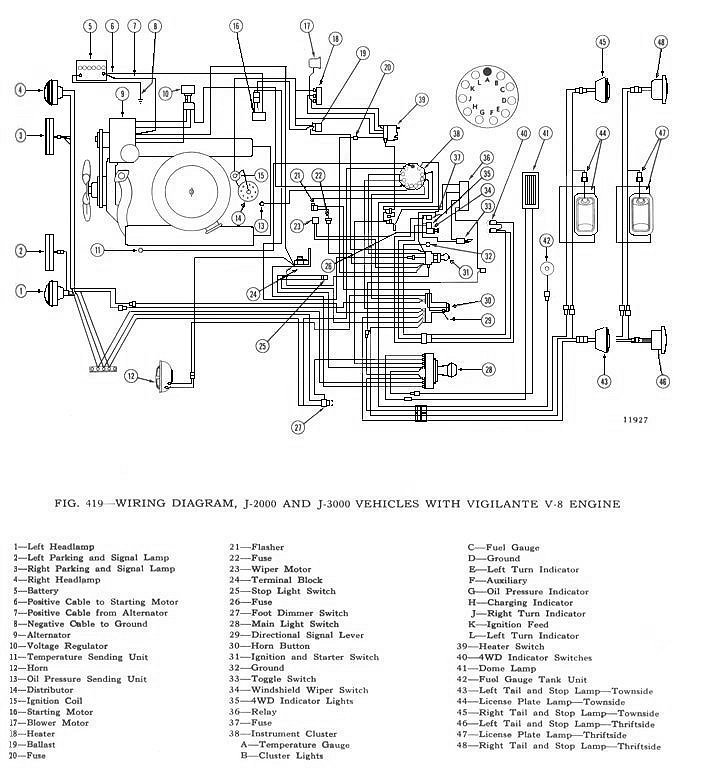

65-68_327_WiringDiagrams.zip Complete set in 1 WinZip File (approx 255K)

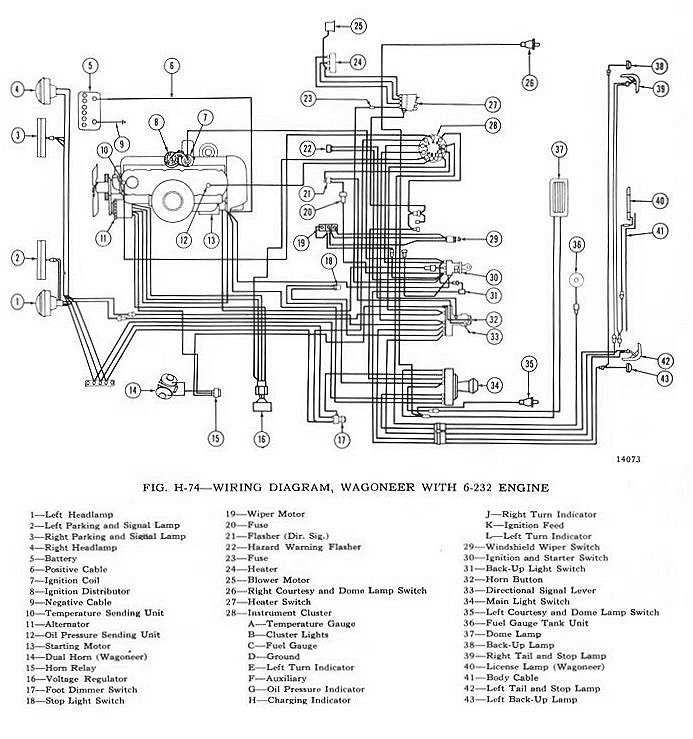

1965-1971 232 wiring diagrams compliments of Joe Schaefer

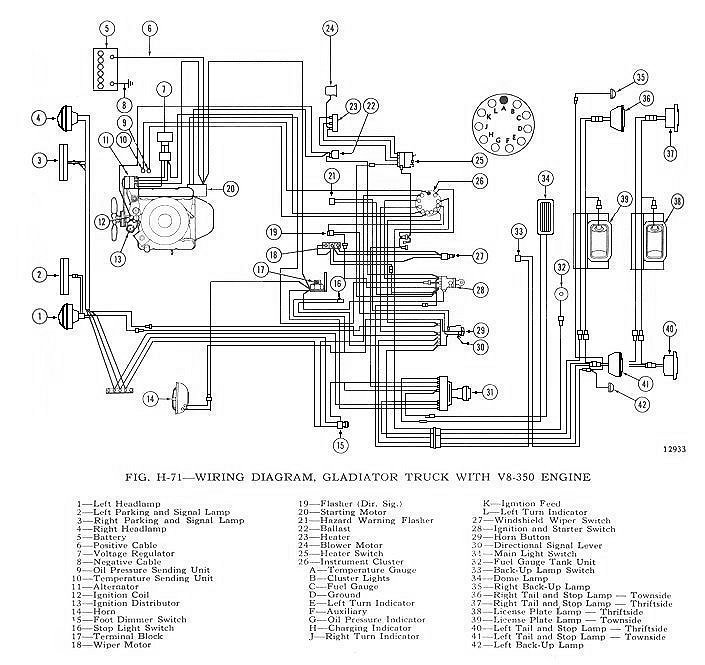

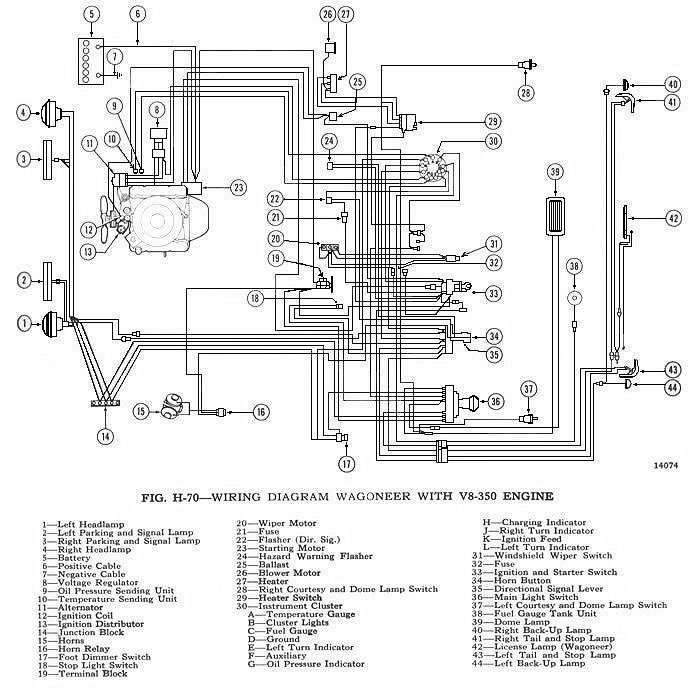

1969-1971 350 Gladiator wiring diagrams IN COLOR compliments of Victor Rangel
1968 J3000 with 327 compliments of Justin
68 J3000 w/327
1972 Wagoneer wiring diagrams compliments of Joe Schaefer

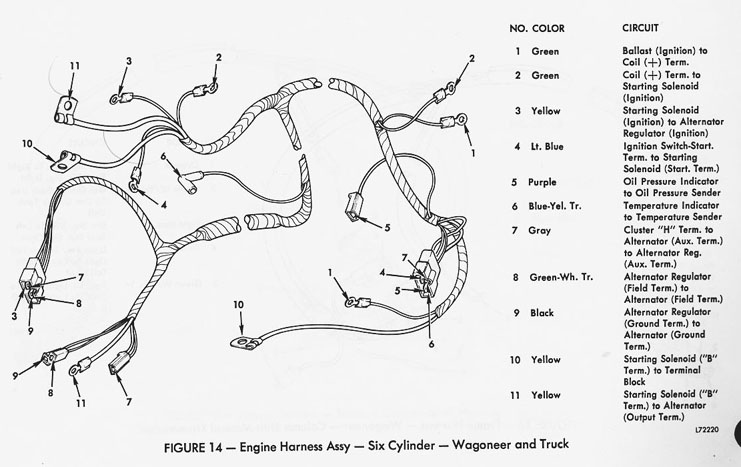

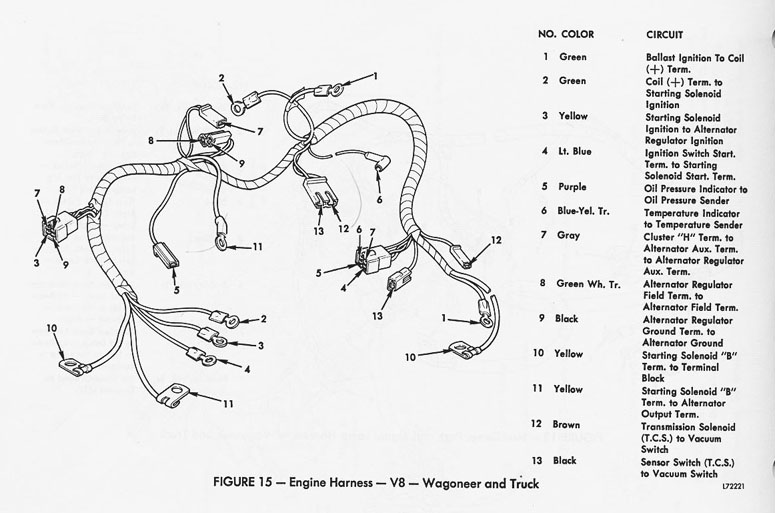

72 258 Wiring 72 360 Wiring

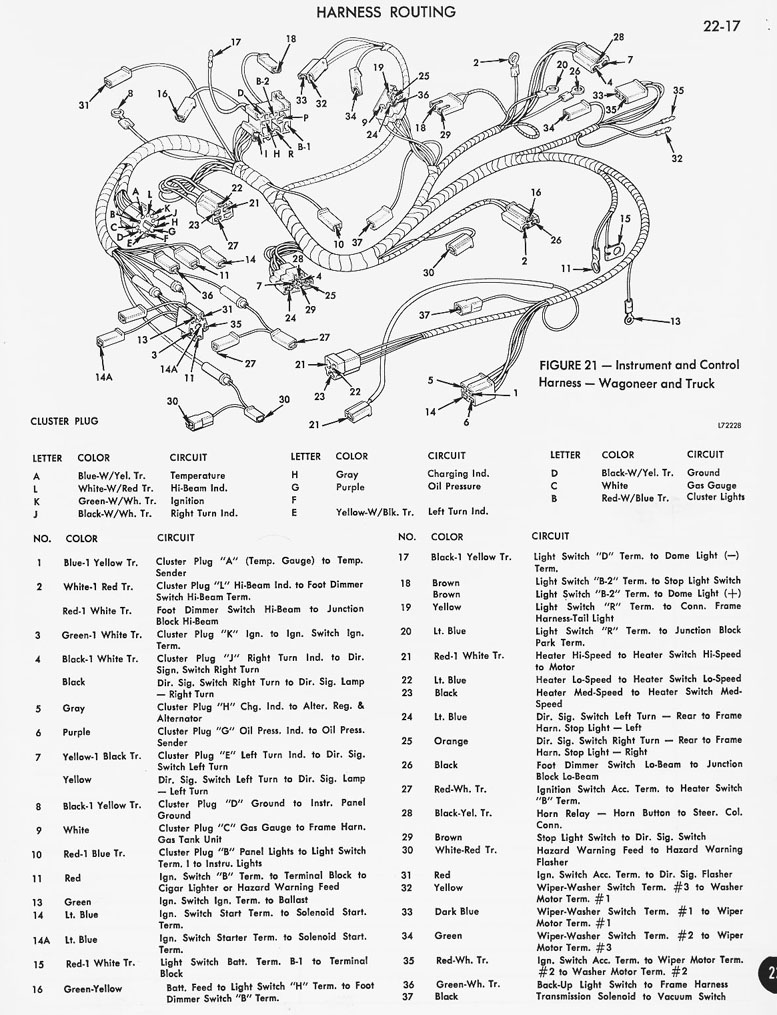

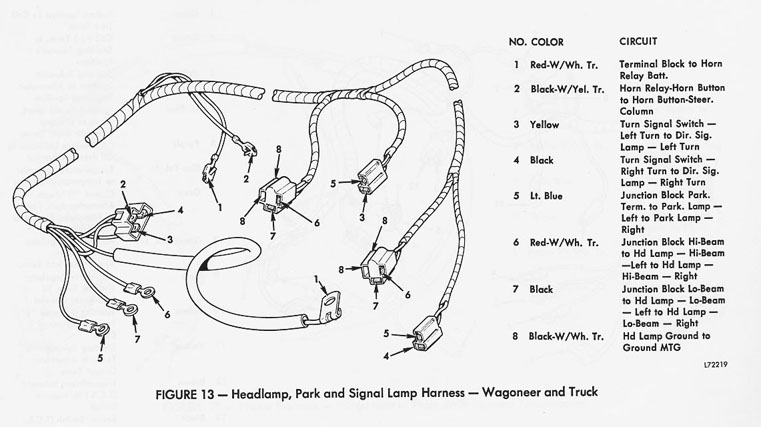

72 Dash Wiring 72 Lamp Wiring

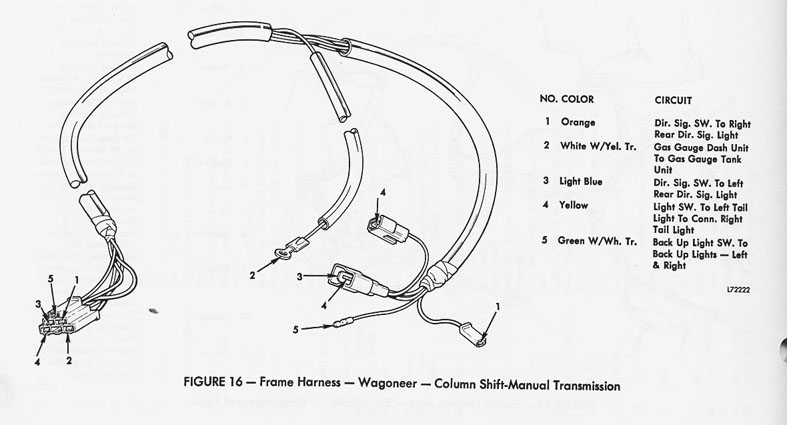

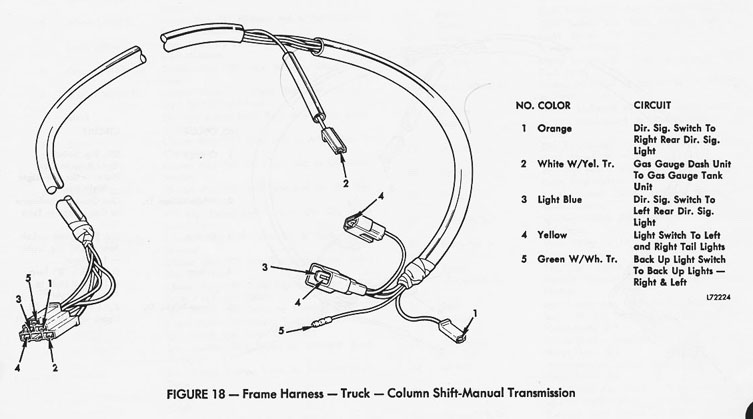

72 Truck Column 72 Wagoneer Column

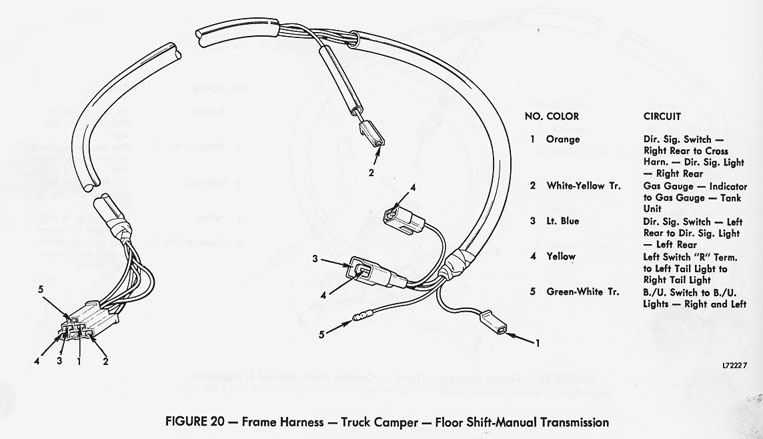

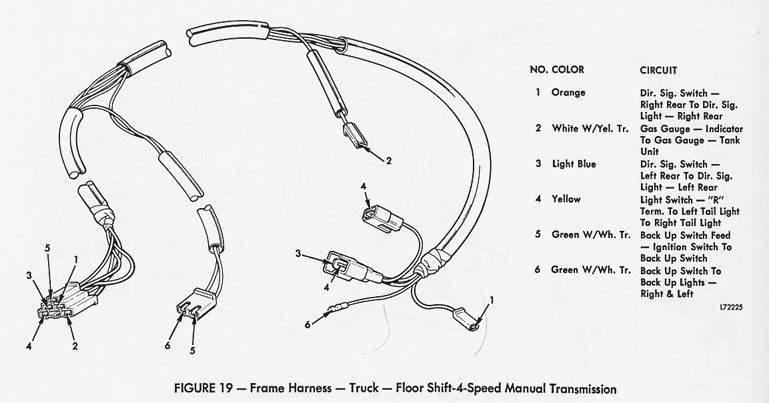

72 - 4 Speed Camper Wiring 72 - 4 Speed Wiring

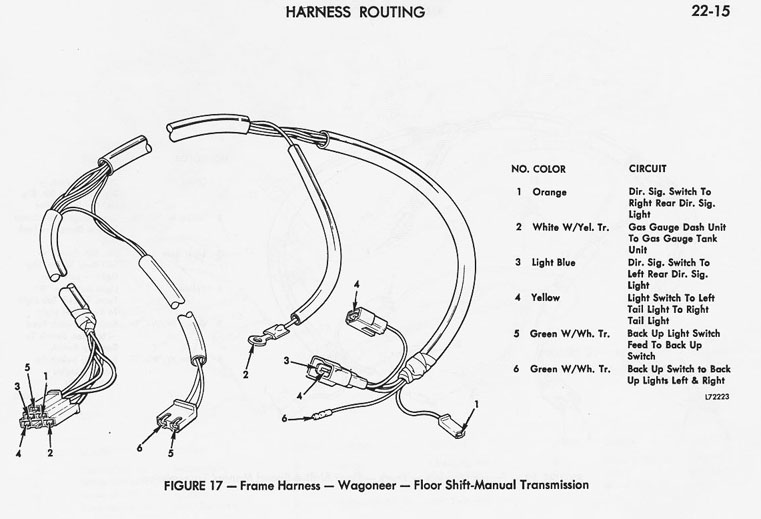

72 Wagoneer Floor 72 FSJ Wiring Diagrams.zip Complete set in 1 WinZip File (approx 720K)
1973 Wagoneer wiring diagrams compliments of Patrick VacendaK

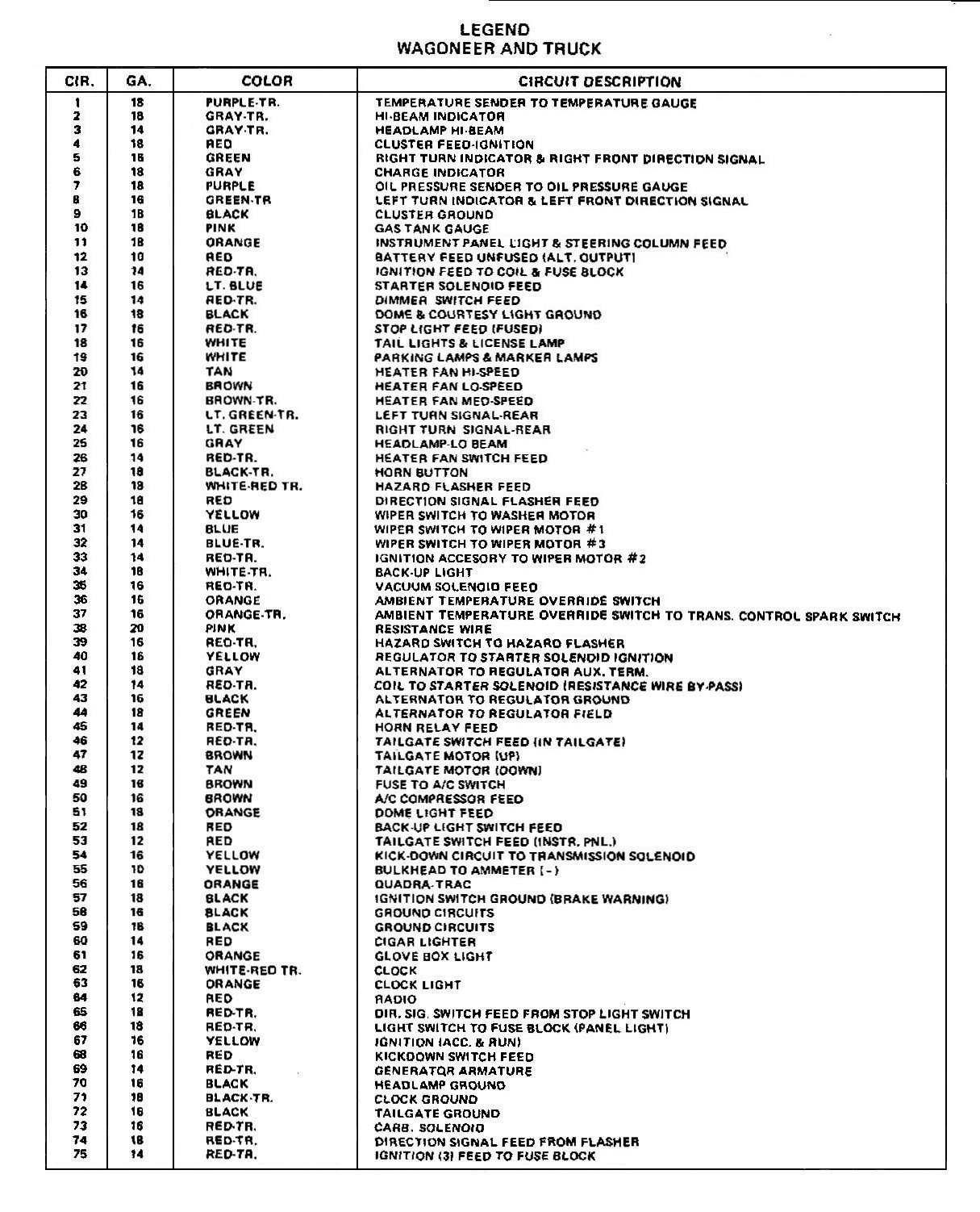

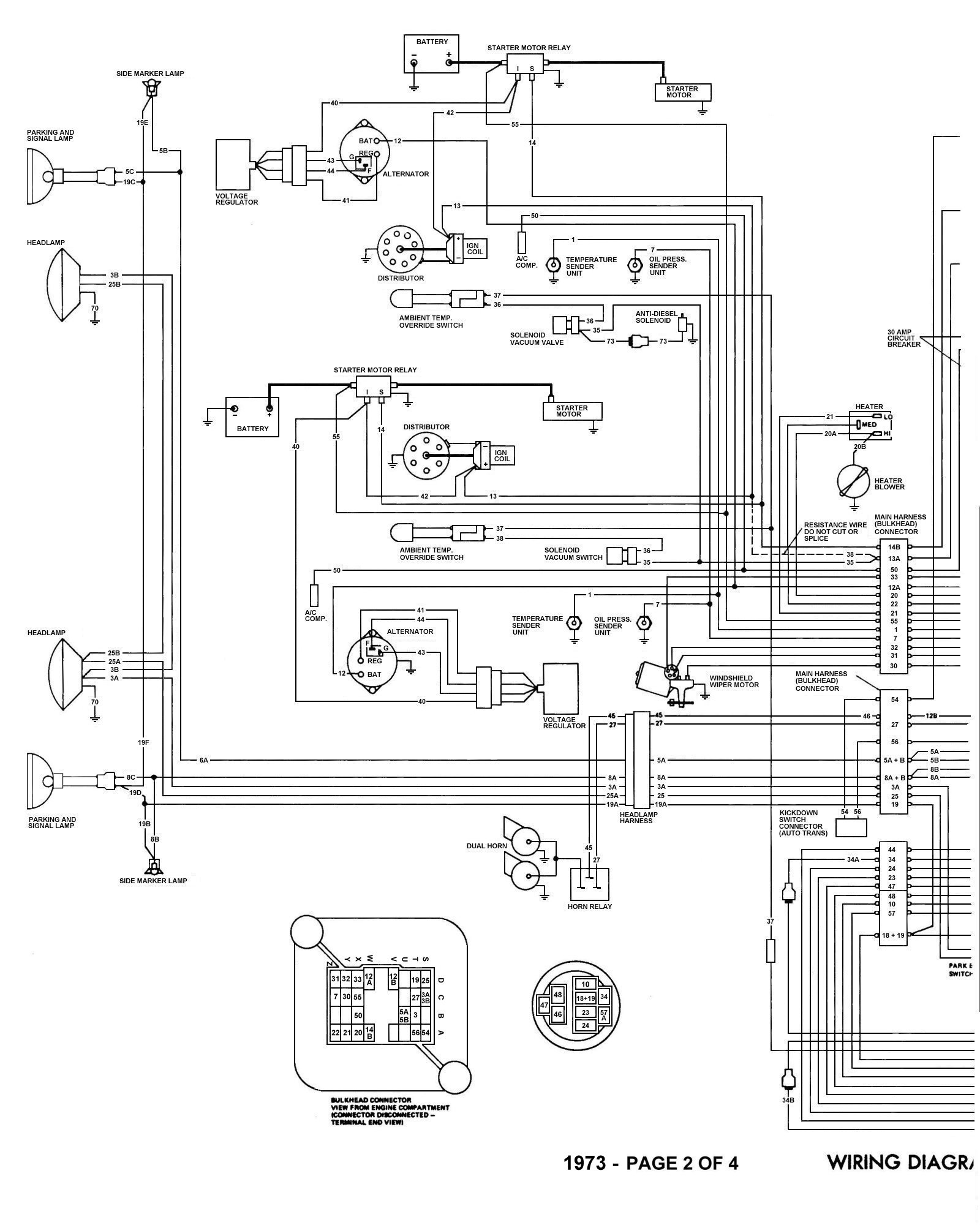

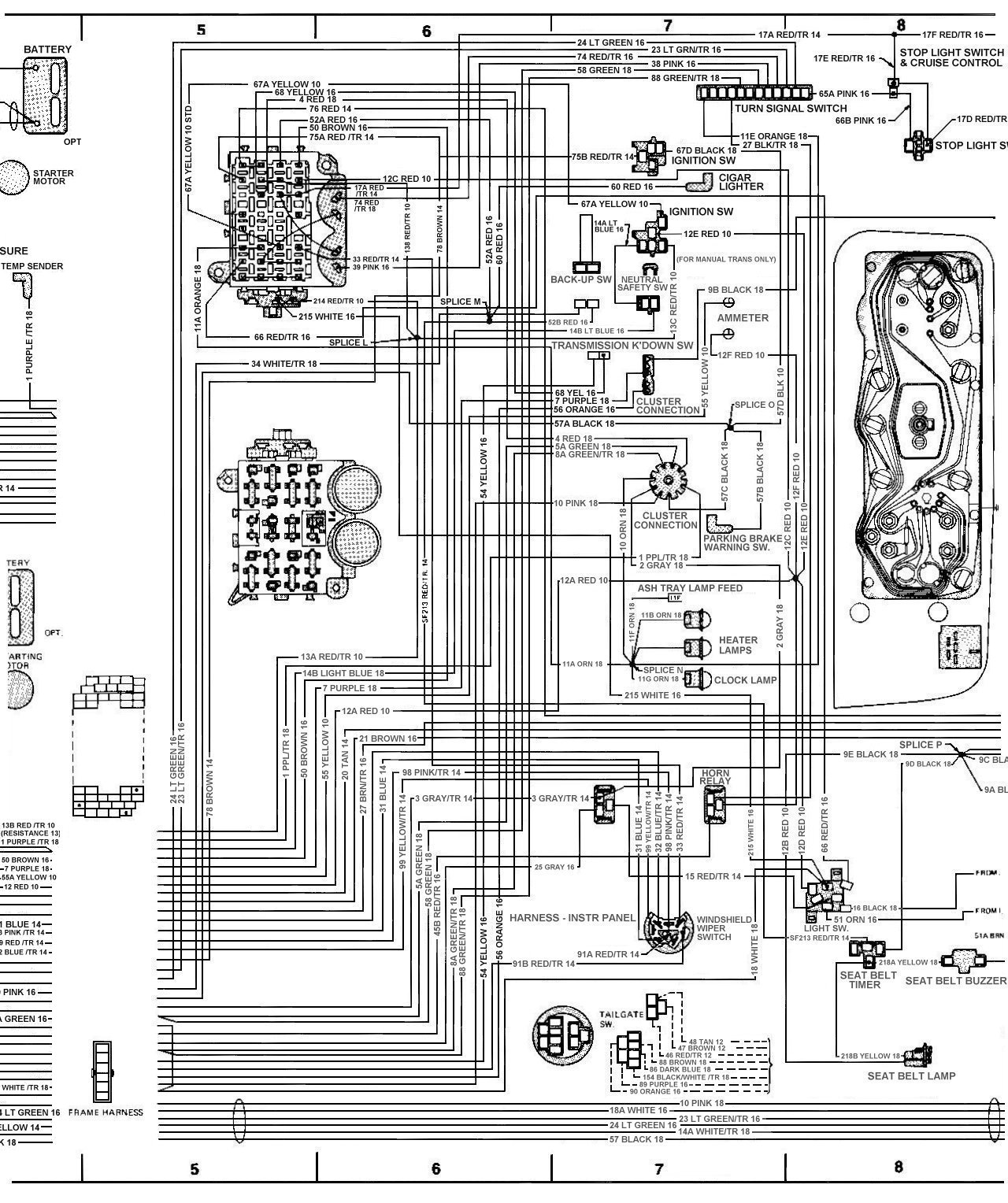

73_FSJ_WiringDiagramPage1.jpg 73_FSJ_WiringDiagramPage2.jpg

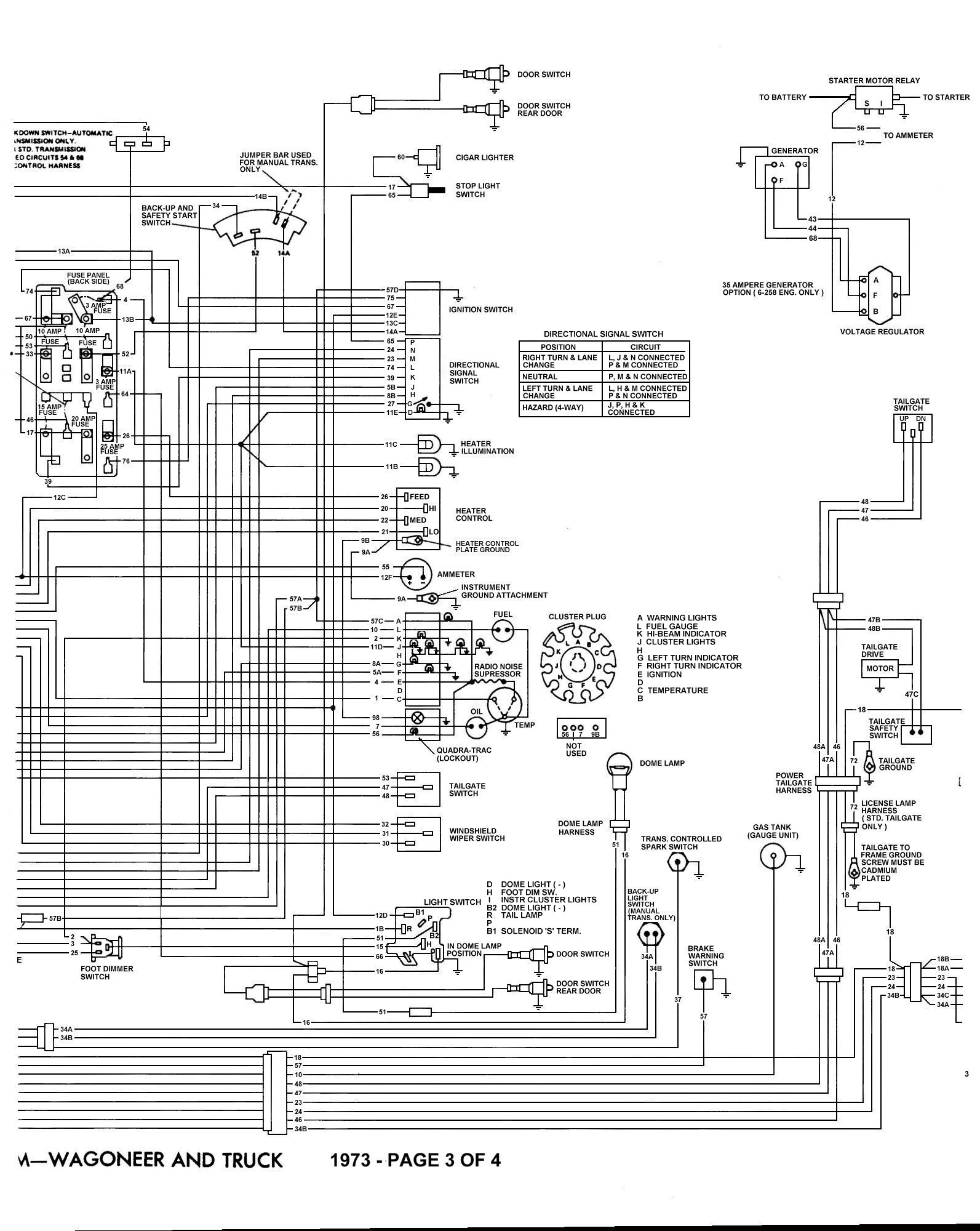

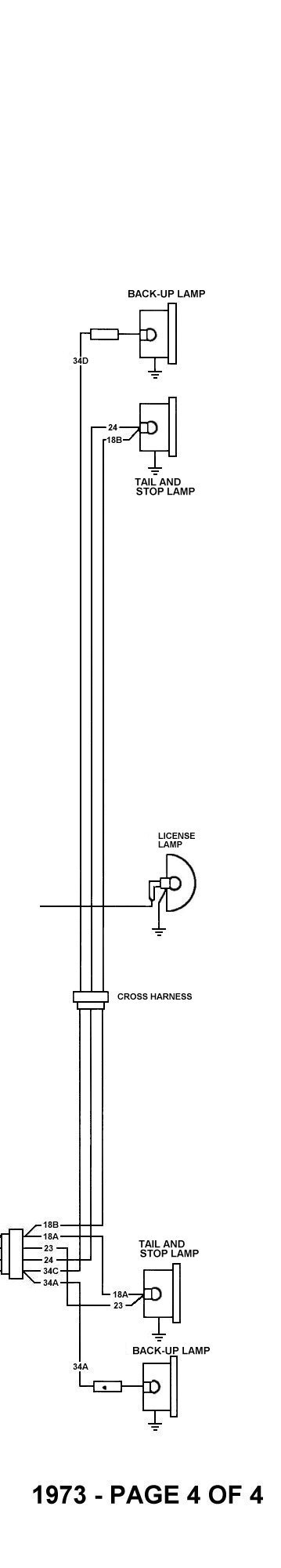

73_FSJ_WiringDiagramPage3.jpg 73_FSJ_WiringDiagramPage4.jpg
73_FSJ_WiringDiagram.zip Complete set in 1 WinZip File (approx 854K)
1974 Wagoneer wiring diagrams compliments of Michel Balea

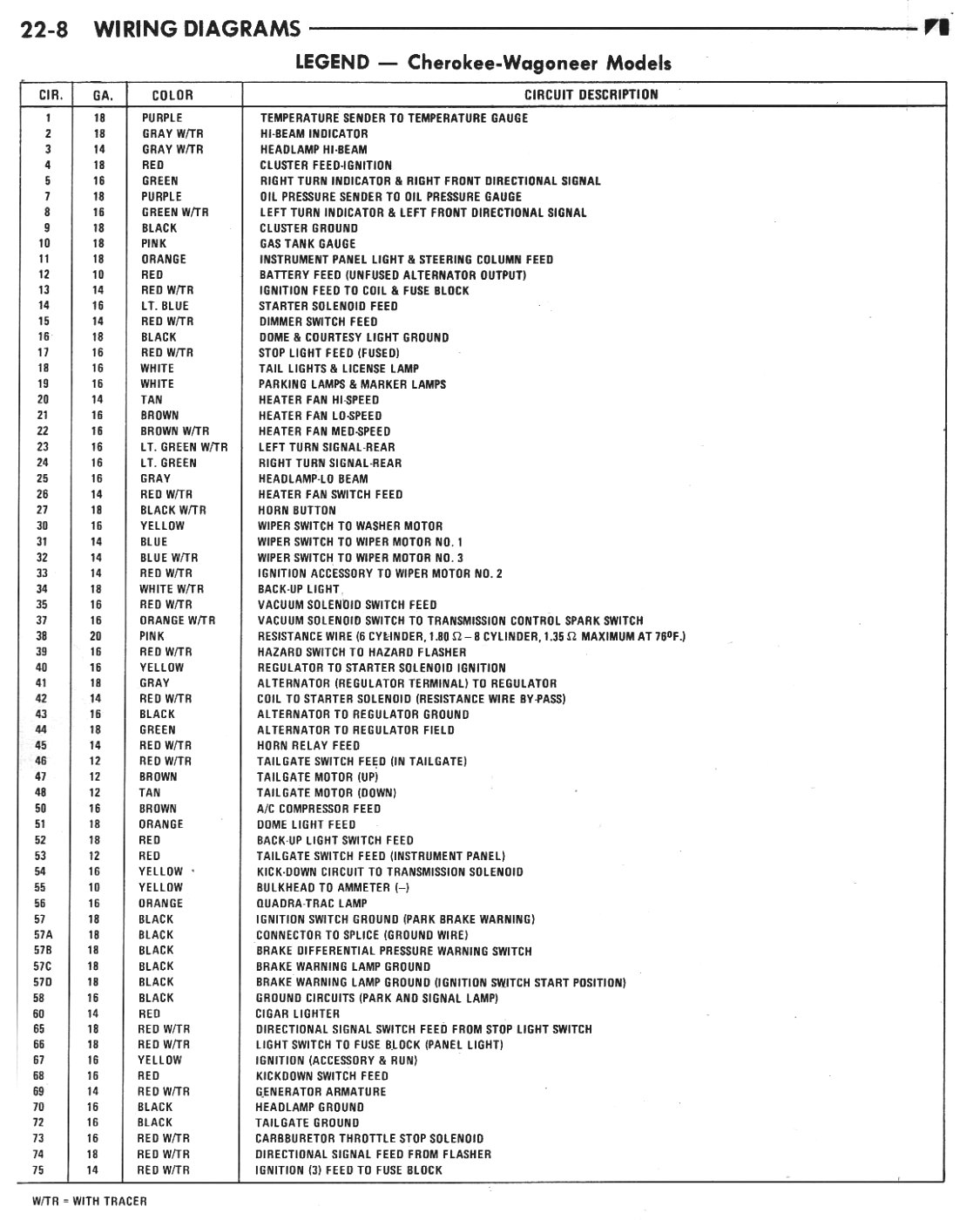

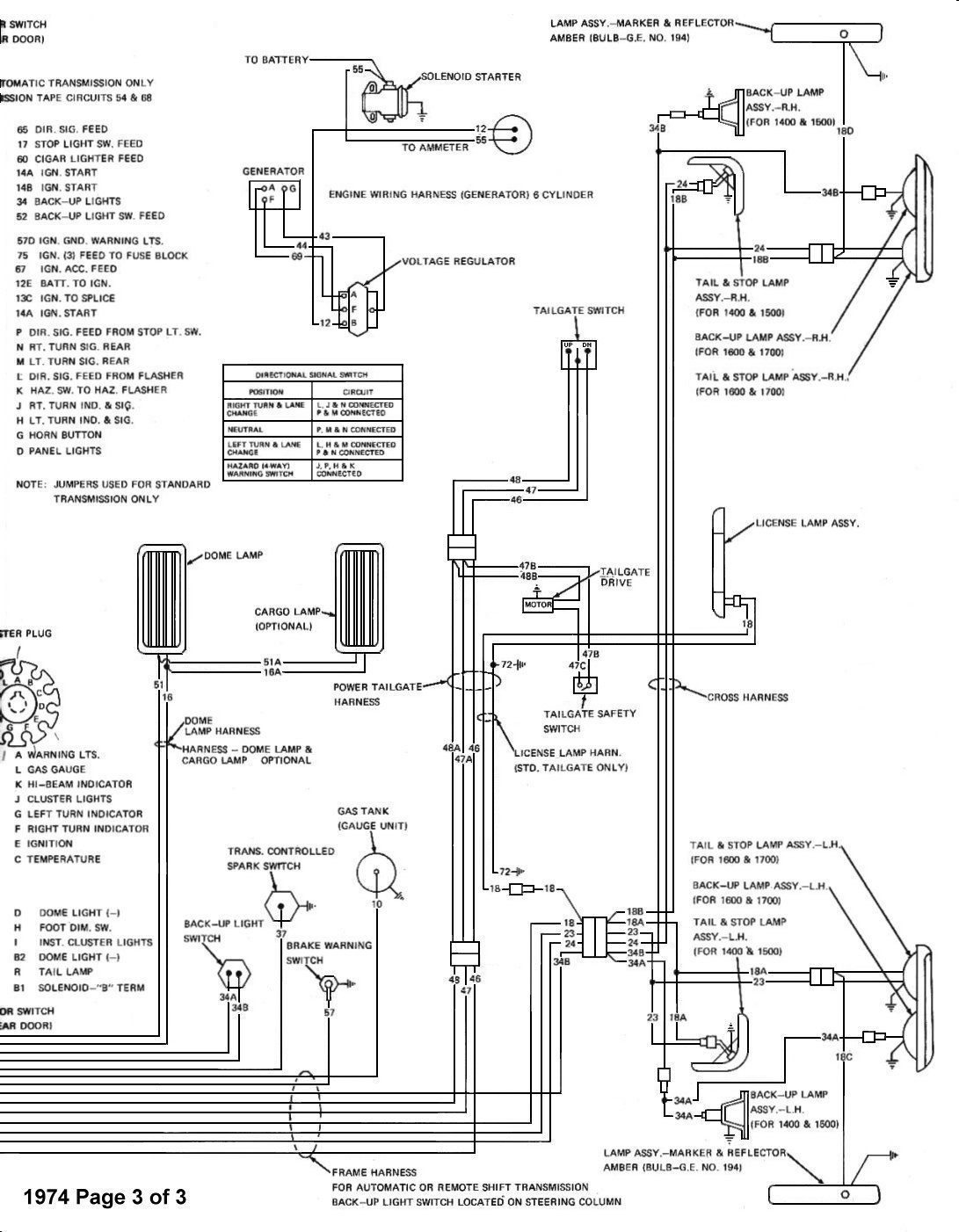

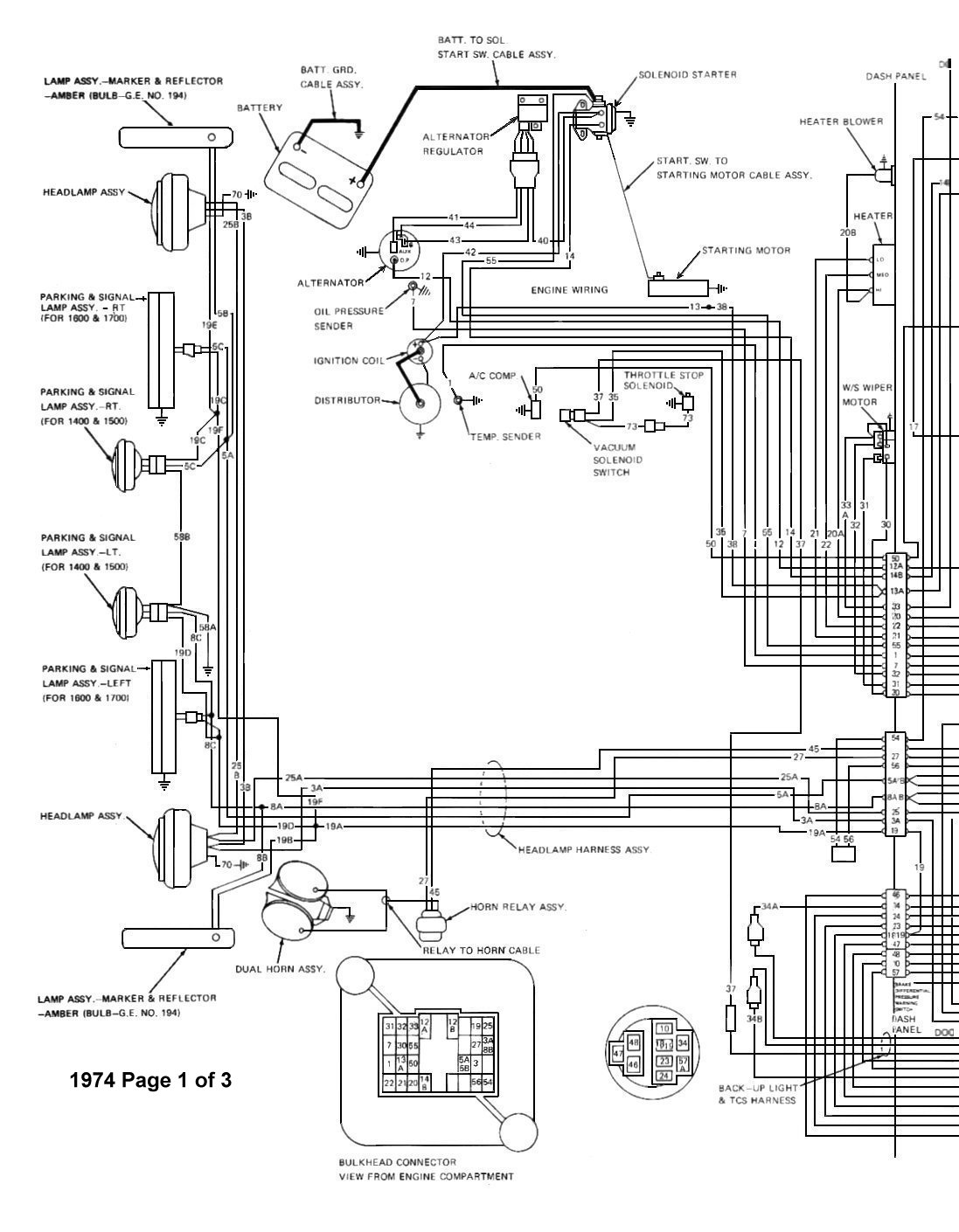

74_FSJ_WiringDiagramLegend.jpeg 74_FSJ_WiringDiagramPage1.jpg

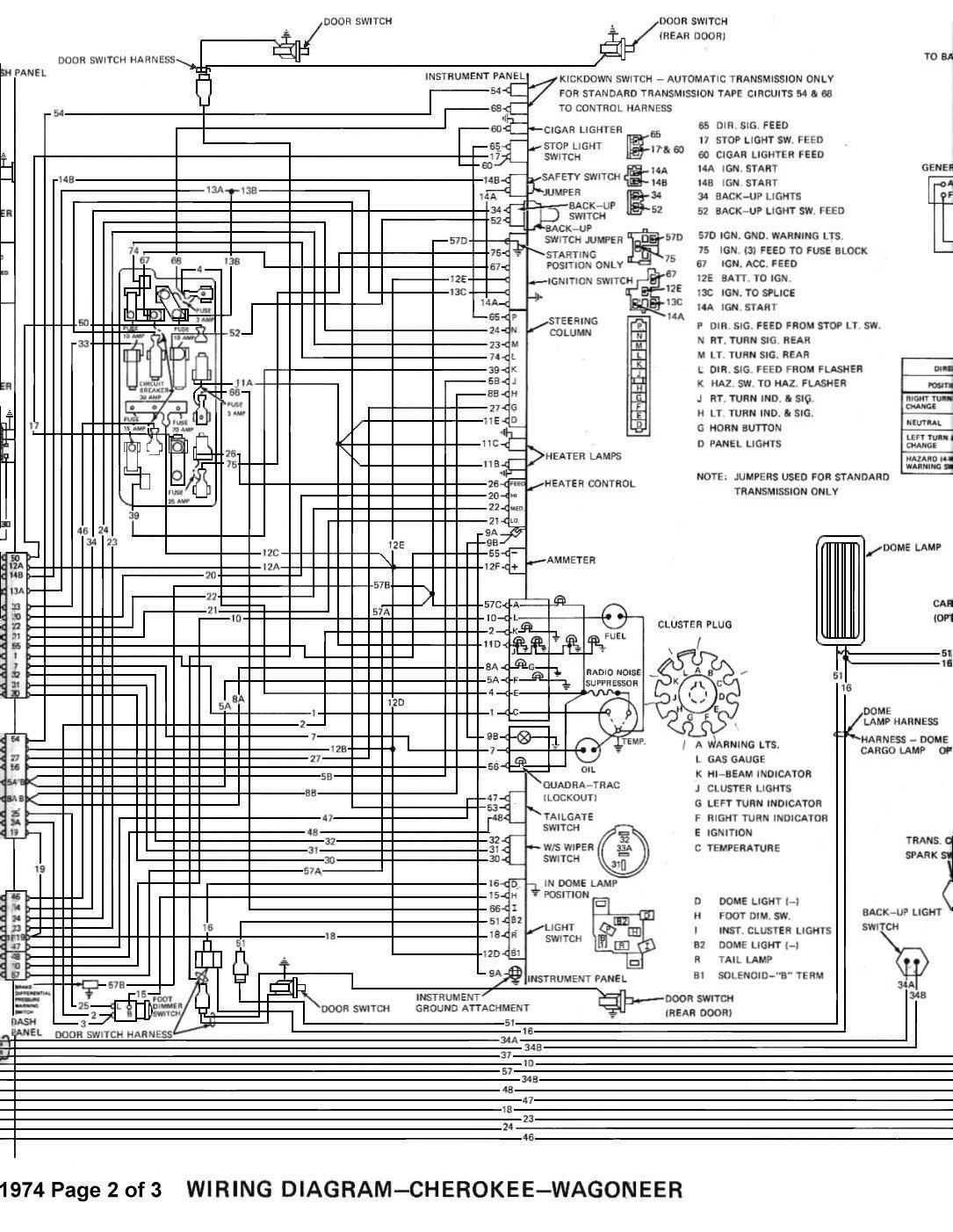

74_FSJ_WiringDiagramPage2.jpg 74_FSJ_WiringDiagramPage3.jpg
74_FSJ_WiringDiagrams.zip Complete set in 1 WinZip File (approx 865K)
1976 Wagoneer wiring diagrams compliments of Joe Gorfinkle

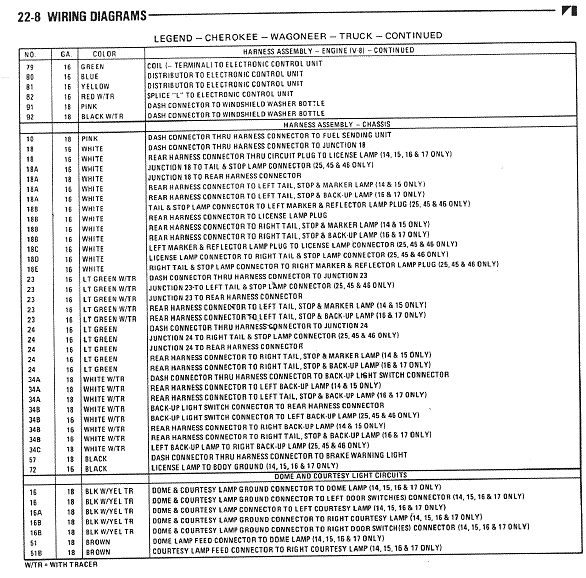

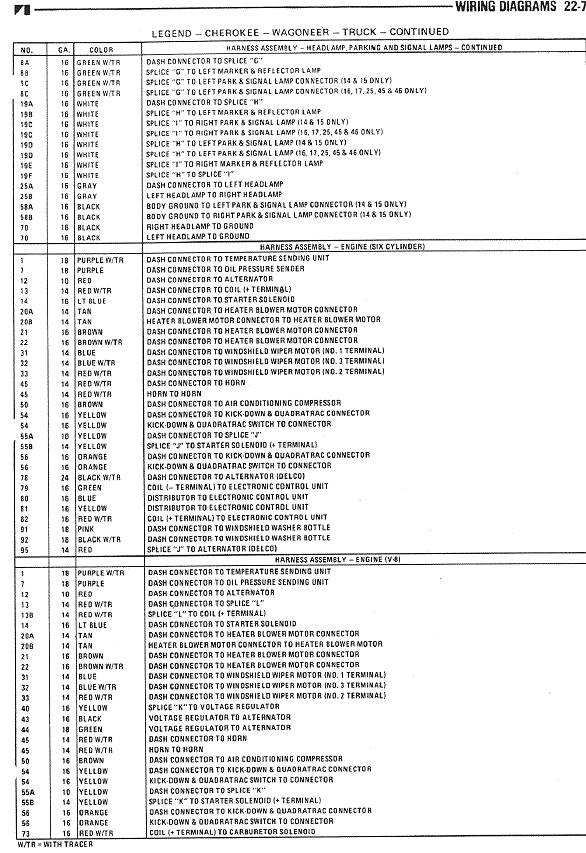

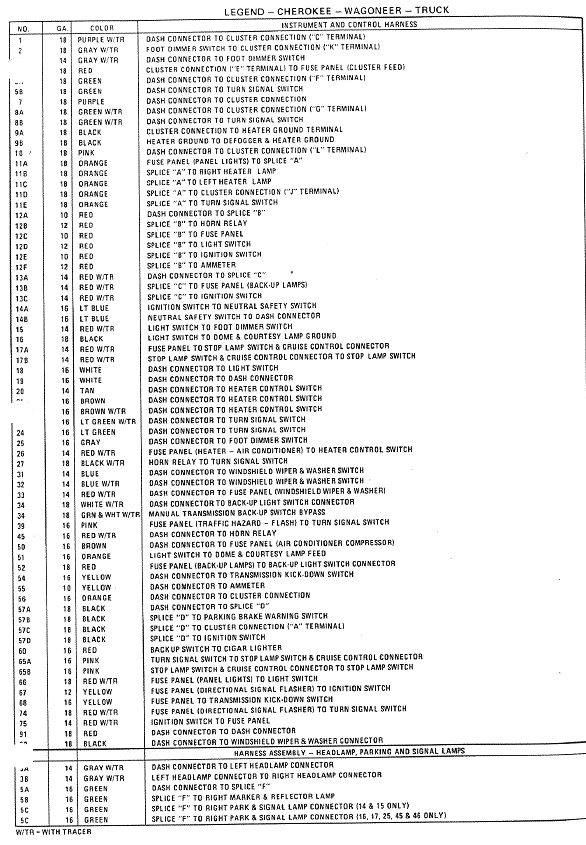

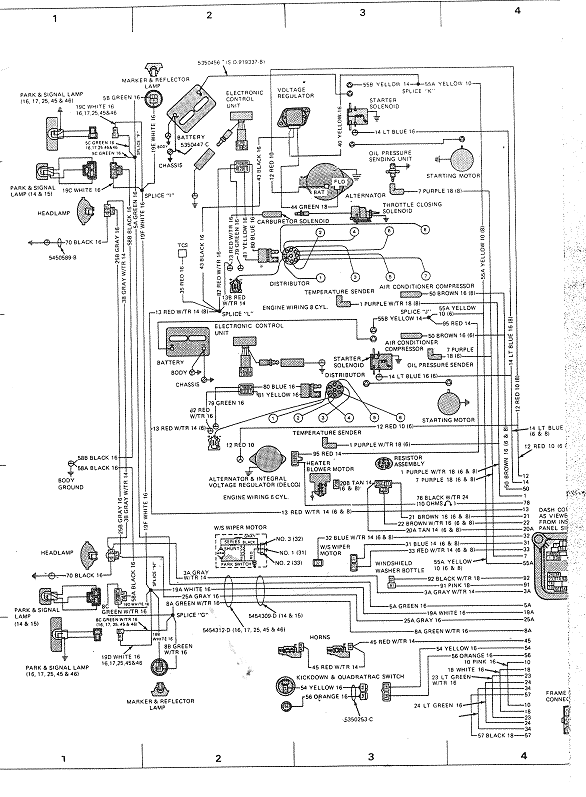

WiringHarnessA WireLegend1

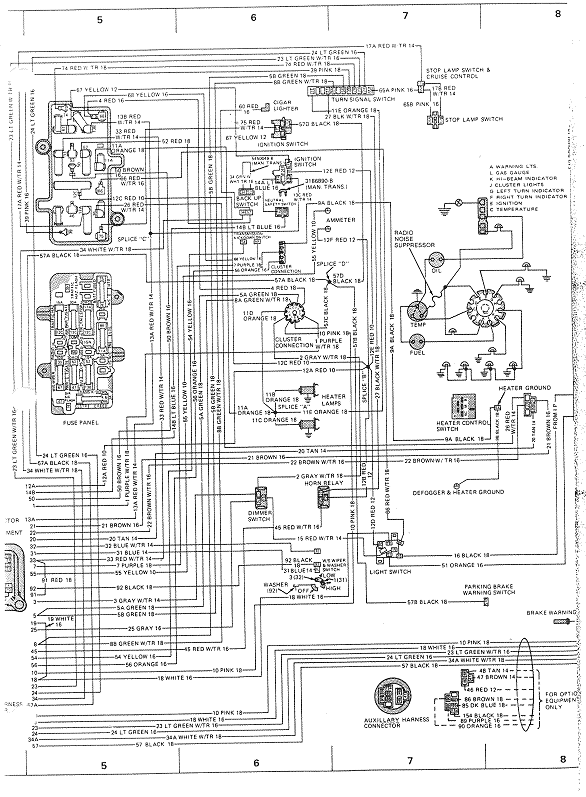

WiringHarnessB WireLegend2

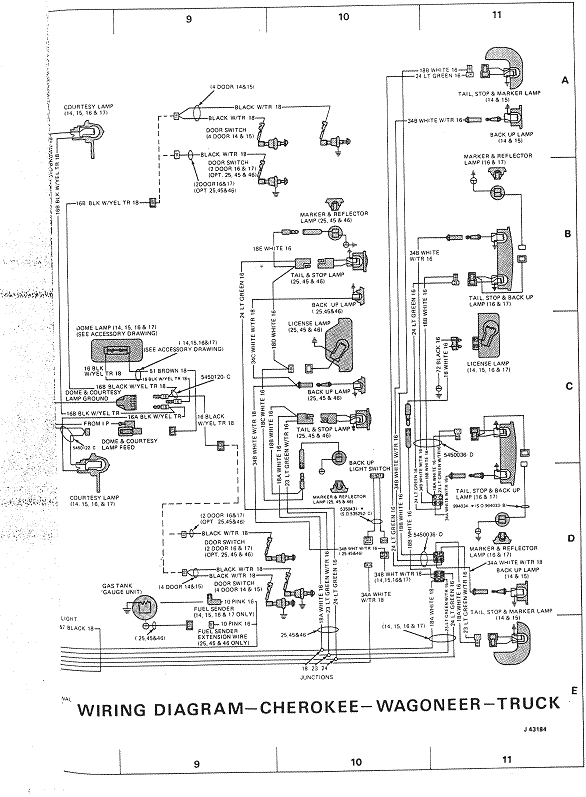

WiringHarnessC WireLegend3

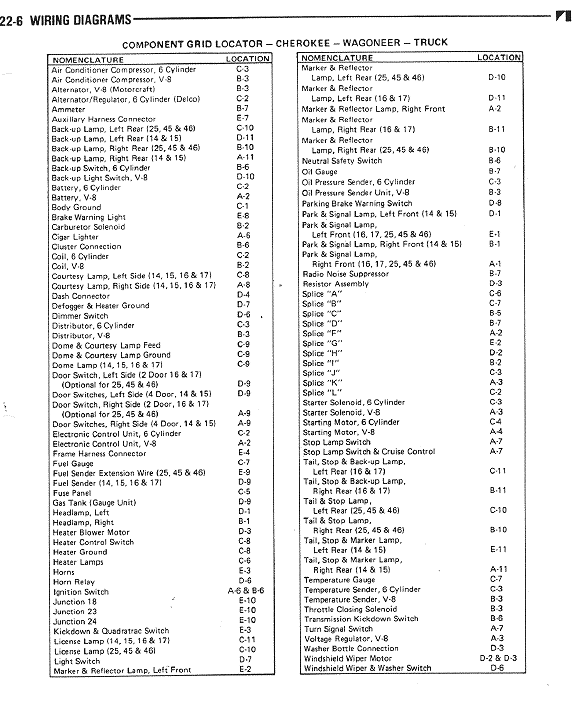

WiringLocator 76_FSJ_WiringDiagram.zip Complete set in 1 WinZip File (approx 781K)
1977 CJ-Cherokee-Wagoneer- J Truck Wiring Diagram - Note, these are in both TIF & GIF formats.
TIF Format GIF Format

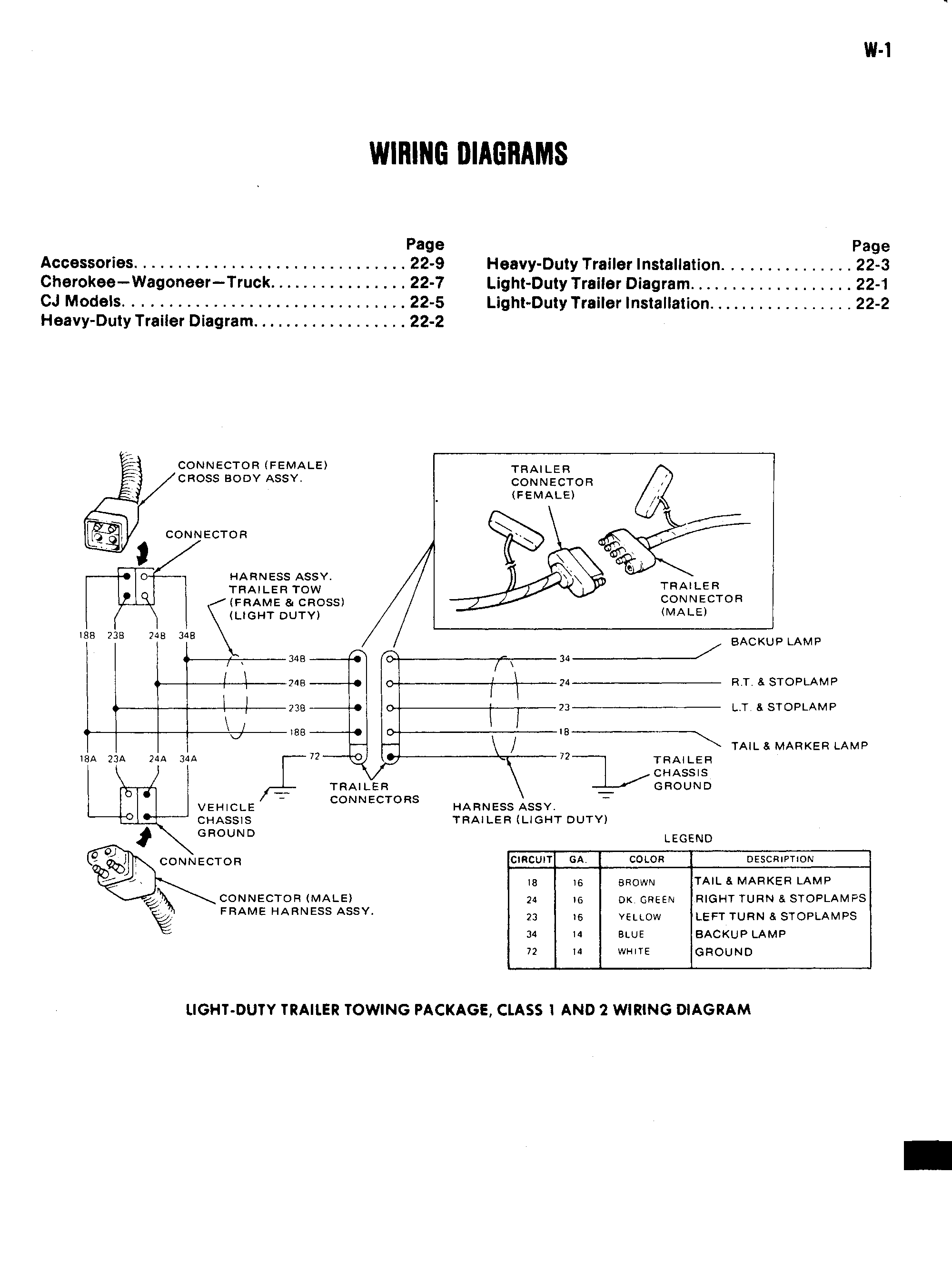

Page W-01 Page W-01 Trailer Towing Wiring - Class 1 & 2

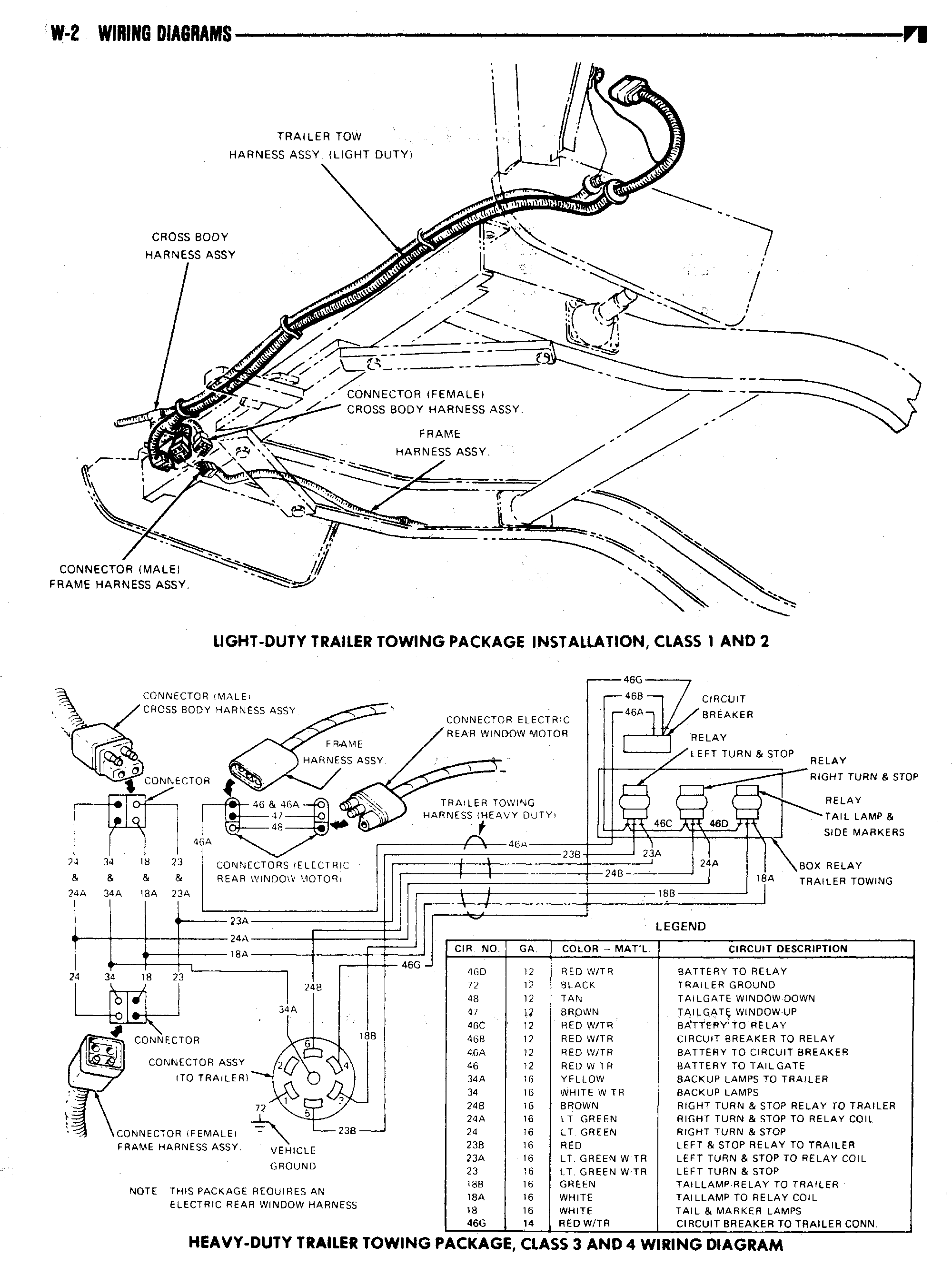

Page W-02 Page W-02 Trailer Towing Wiring - Class 1 & 2 + Class 3 & 4

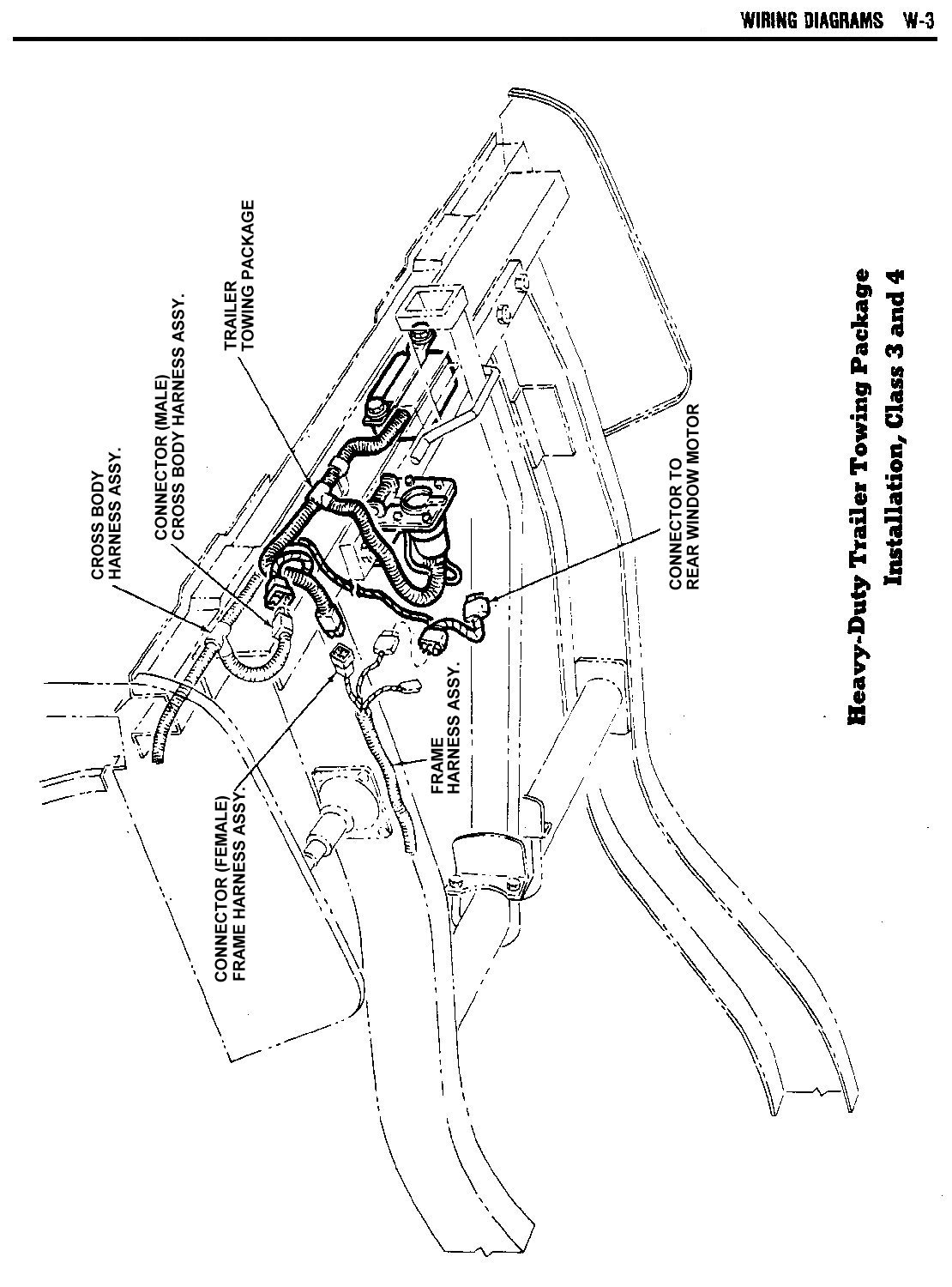

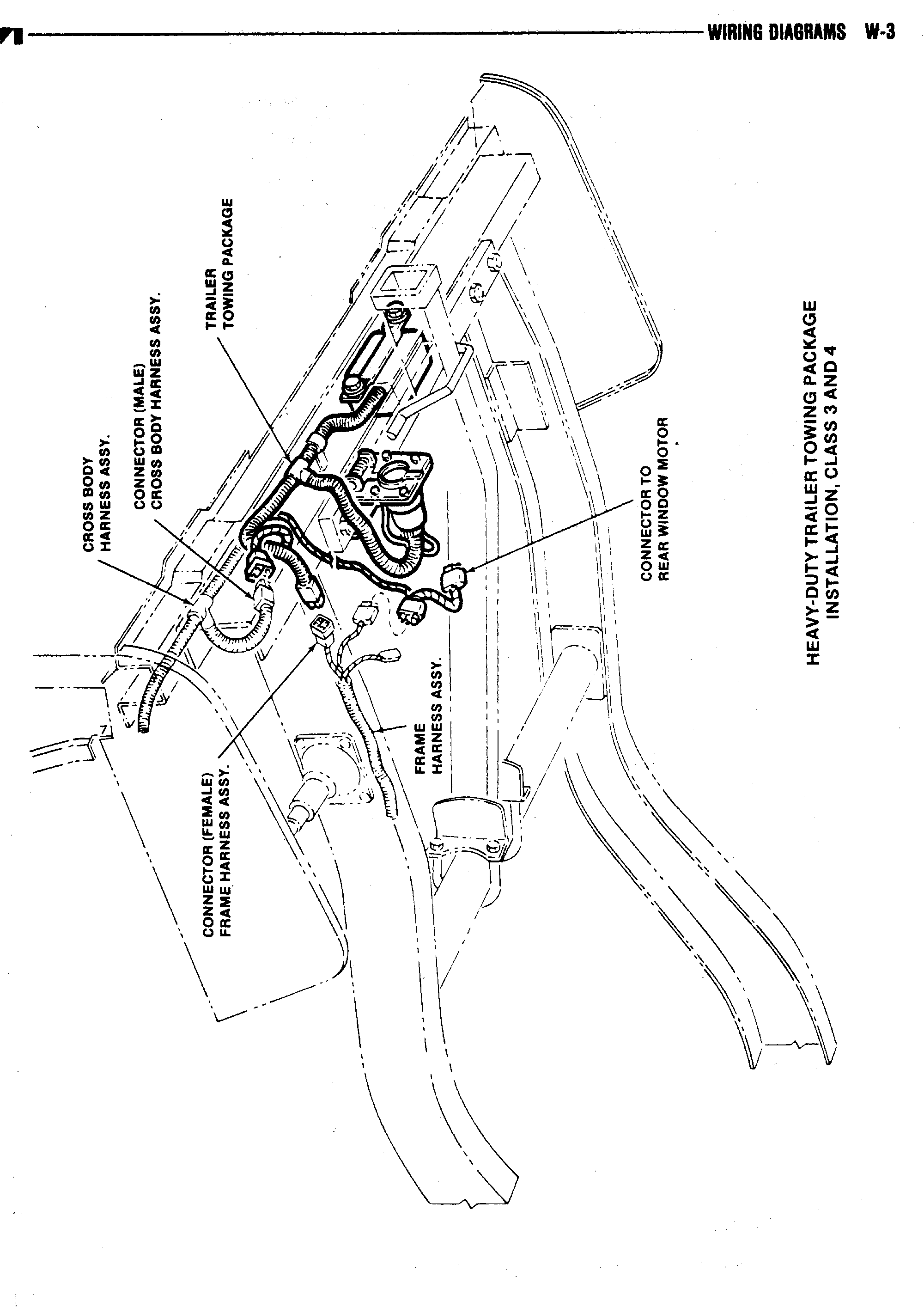

Page W-03 Page W-03 Trailer Towing Wiring - Class 3 & 4

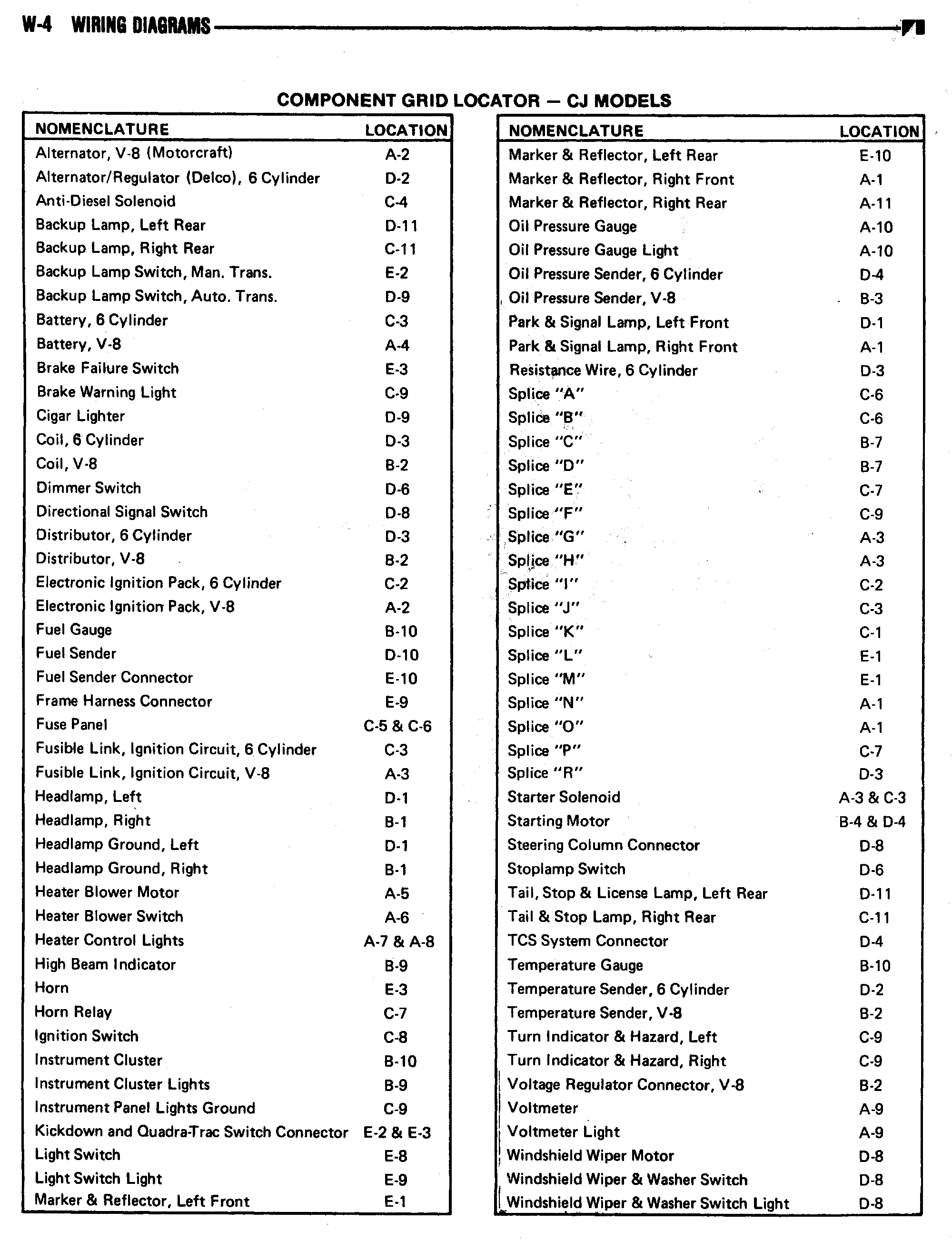

Page W-04 Page W-04 Component Grid - CJ

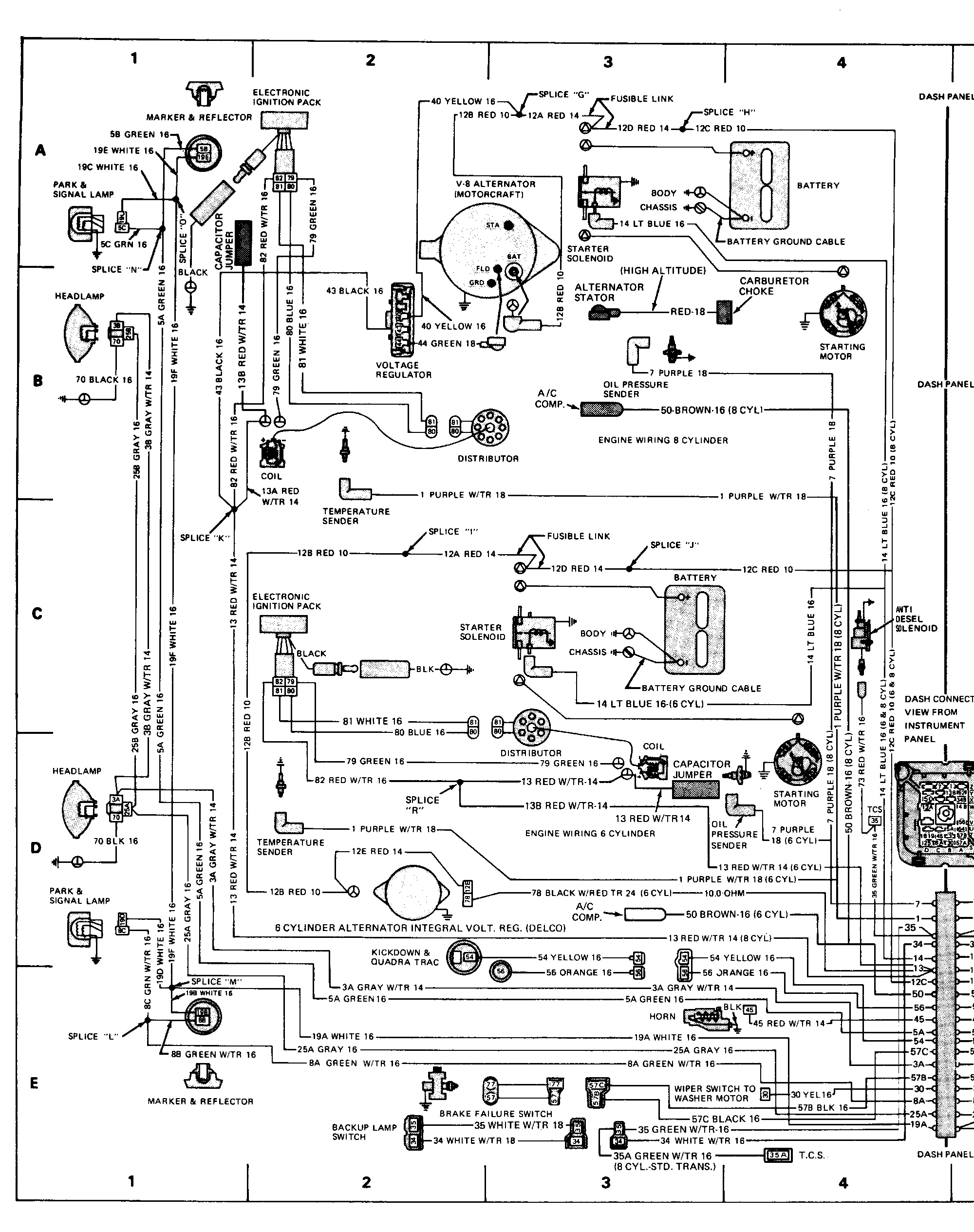

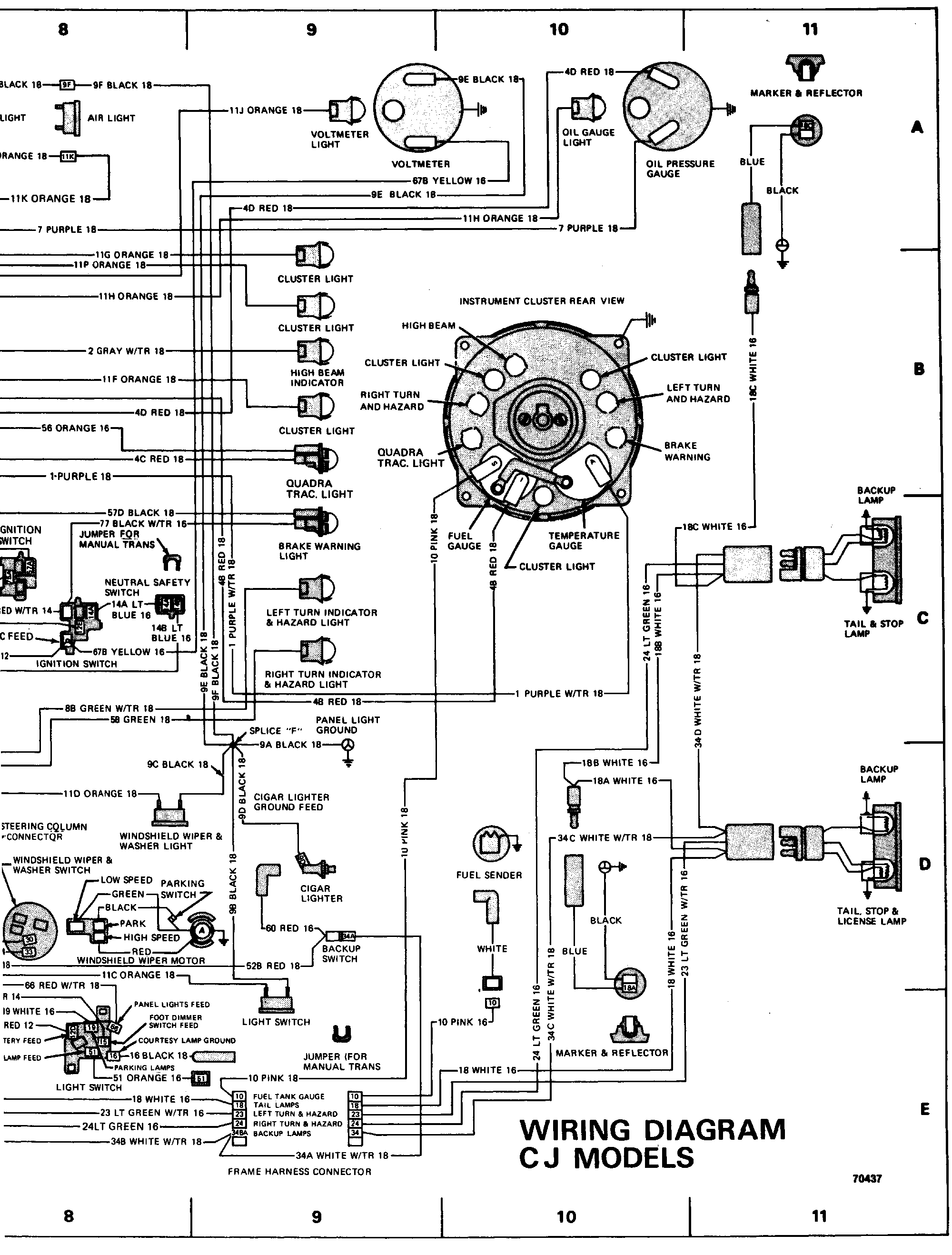

Page W-05a Page W-05a CJ wiring

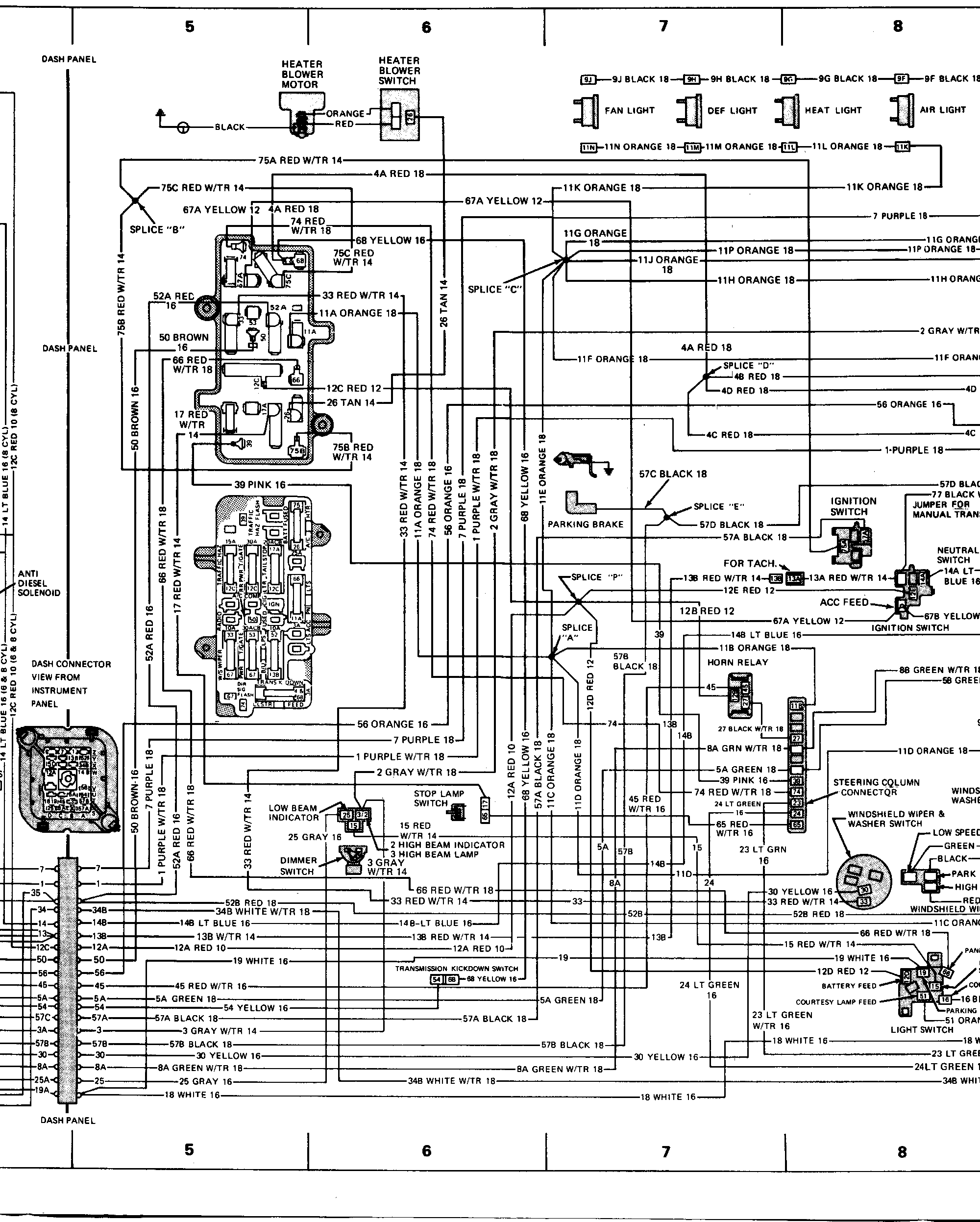

Page W-05b Page W-05b CJ Wiring
Page W-05c Page W-05c CJ Wiring

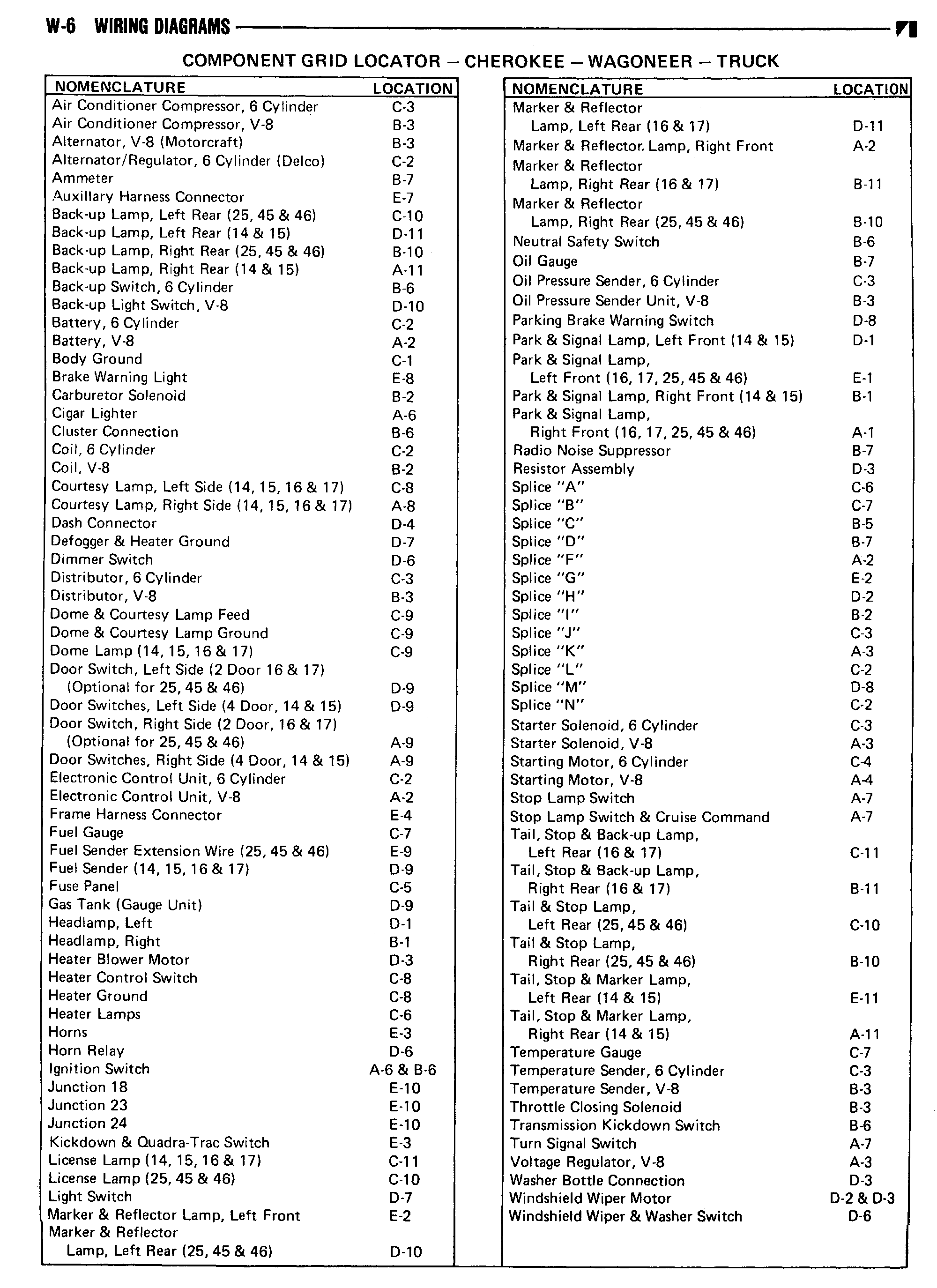

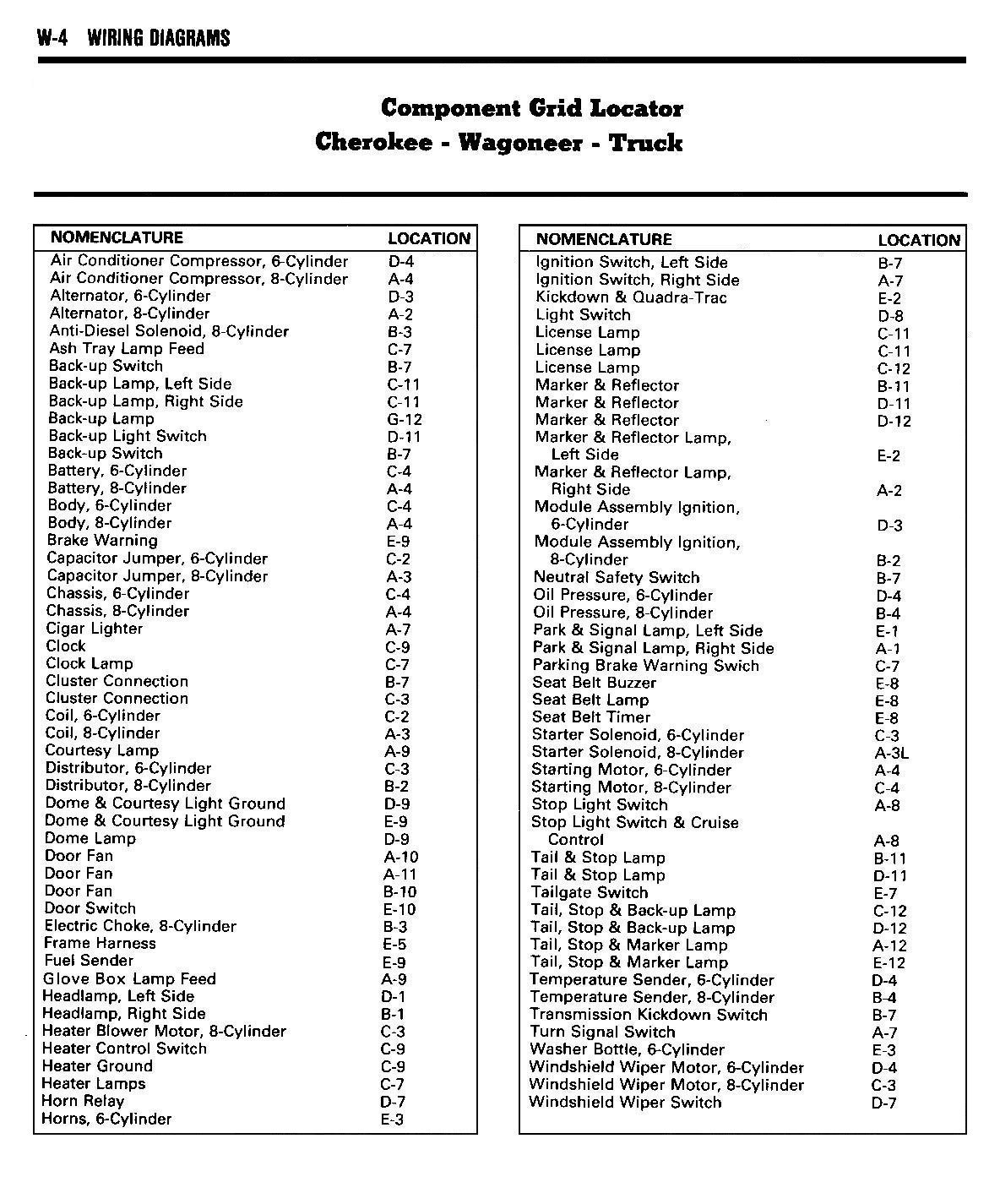

Page W-06 Page W-06 Component Grid Locator - Cherokee, Wagoneer & Truck

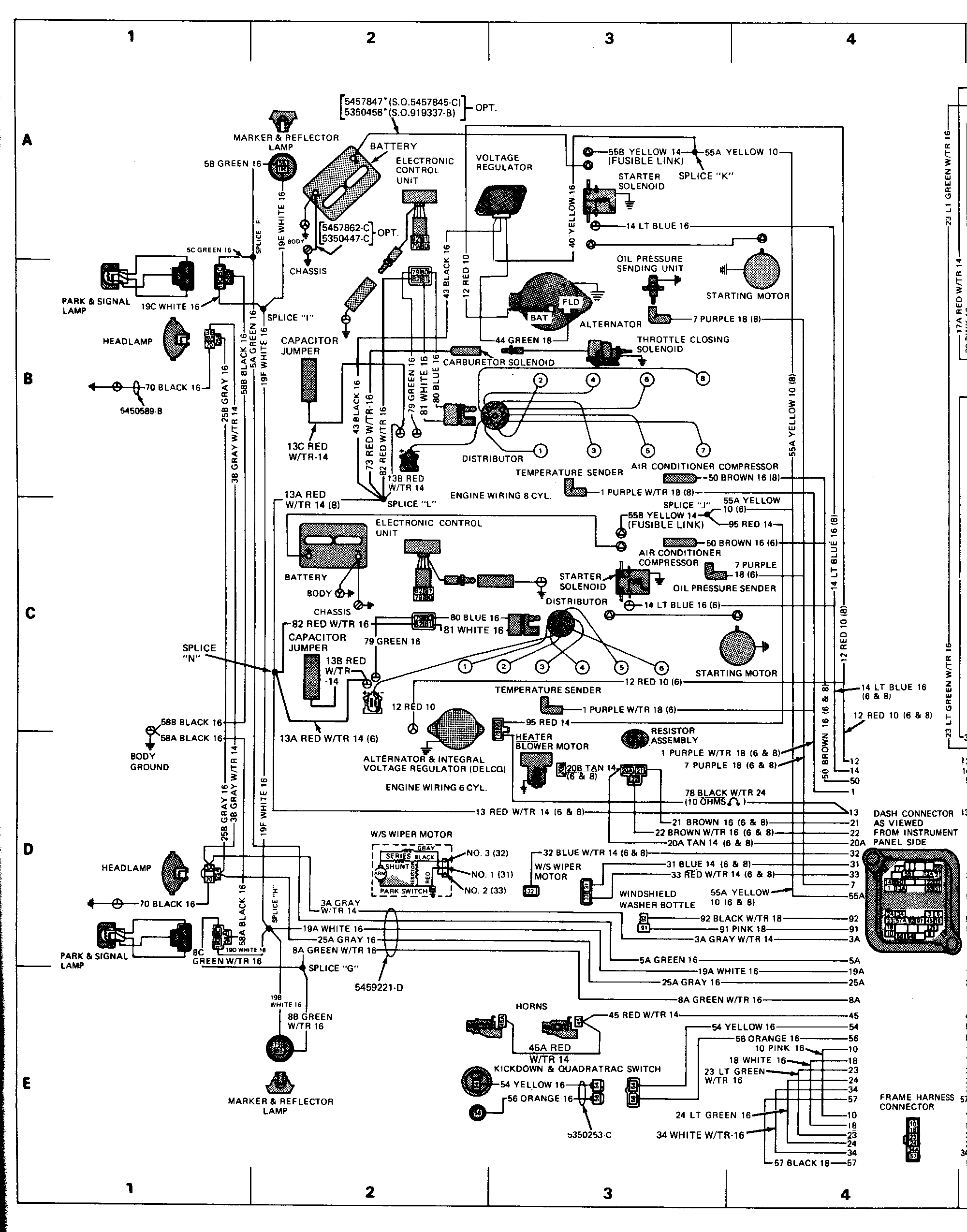

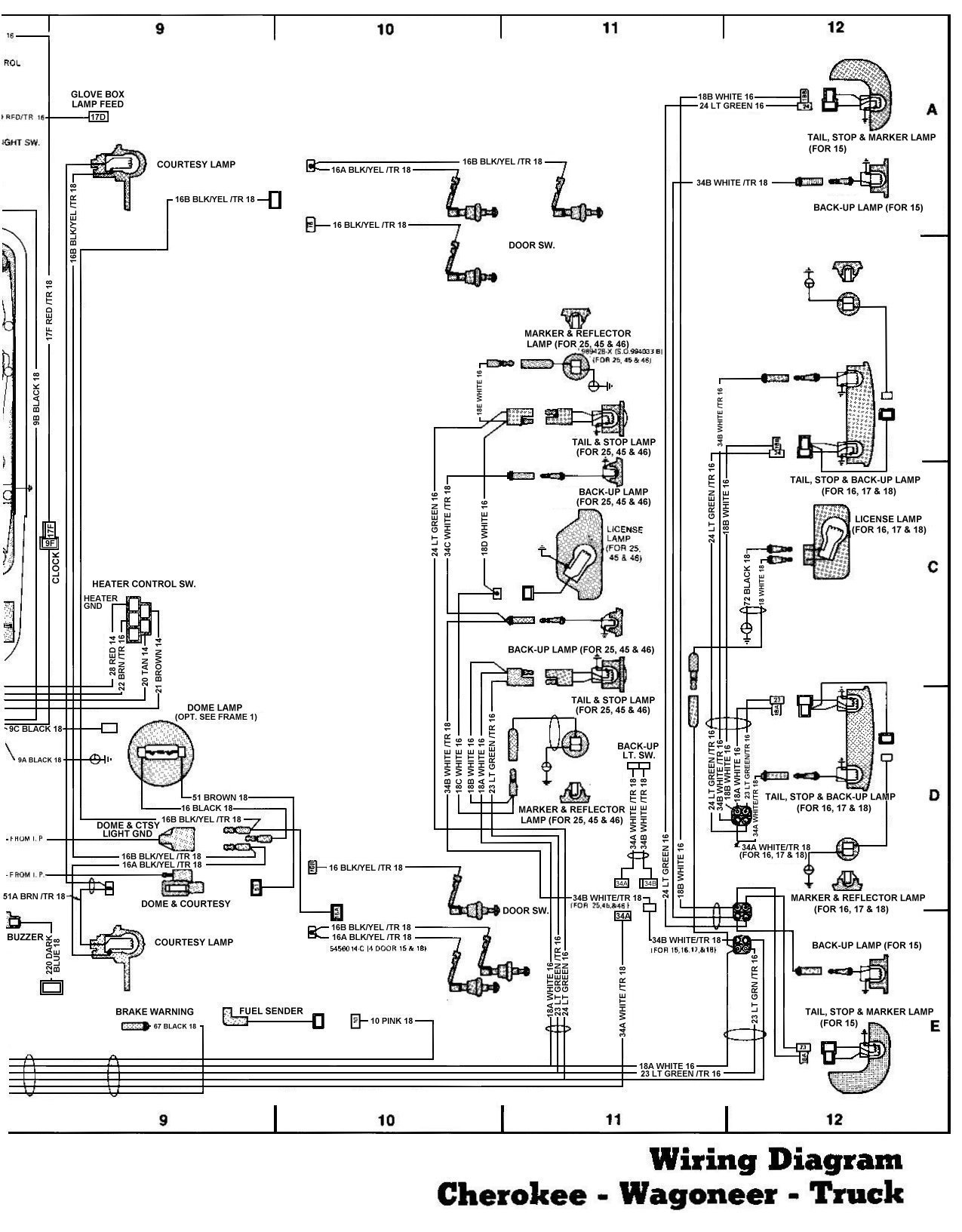

Page W-07a Page W-07a Cherokee, Wagoneer & Truck Wiring

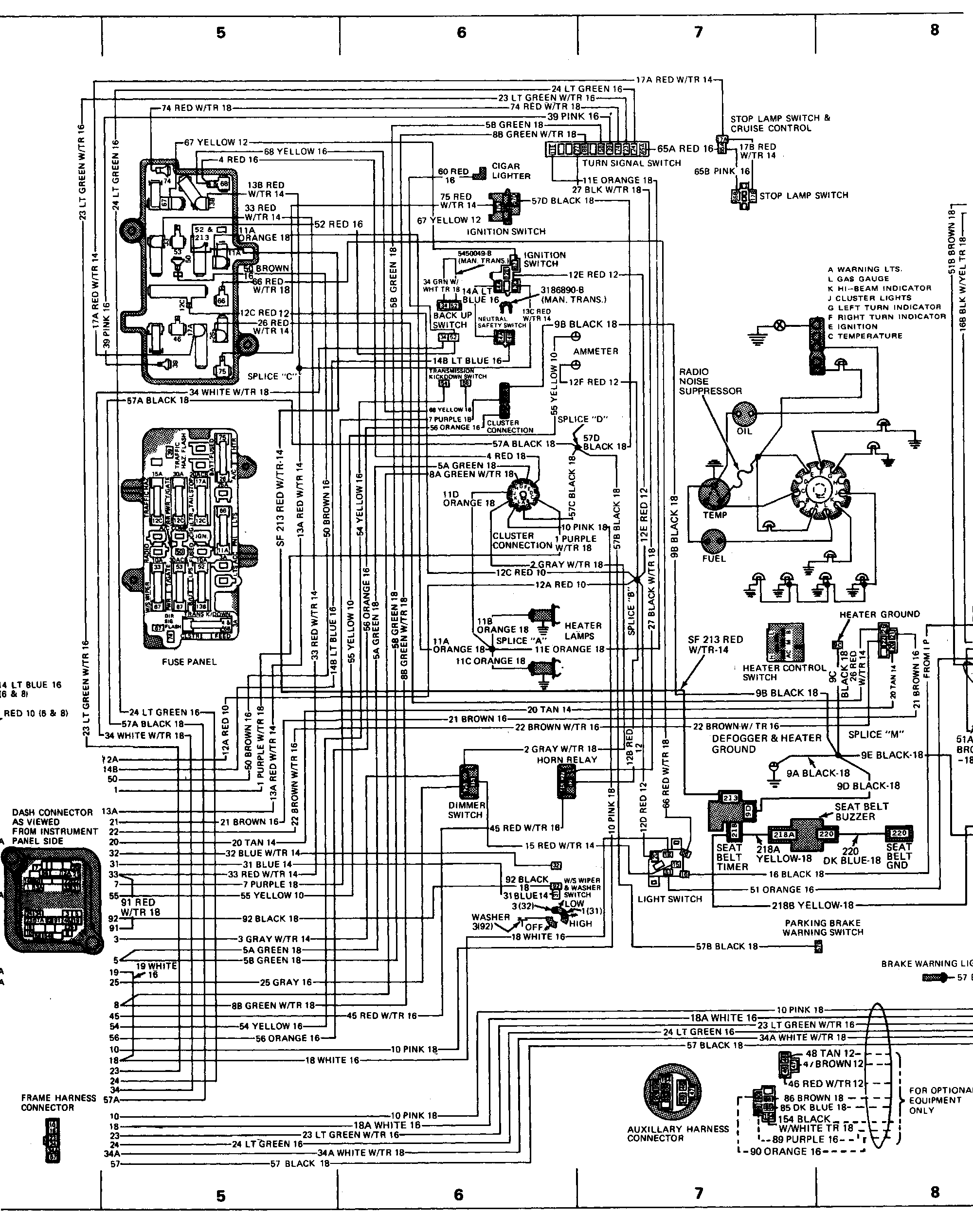

Page W-07b Page w_07b Cherokee, Wagoneer & Truck Wiring

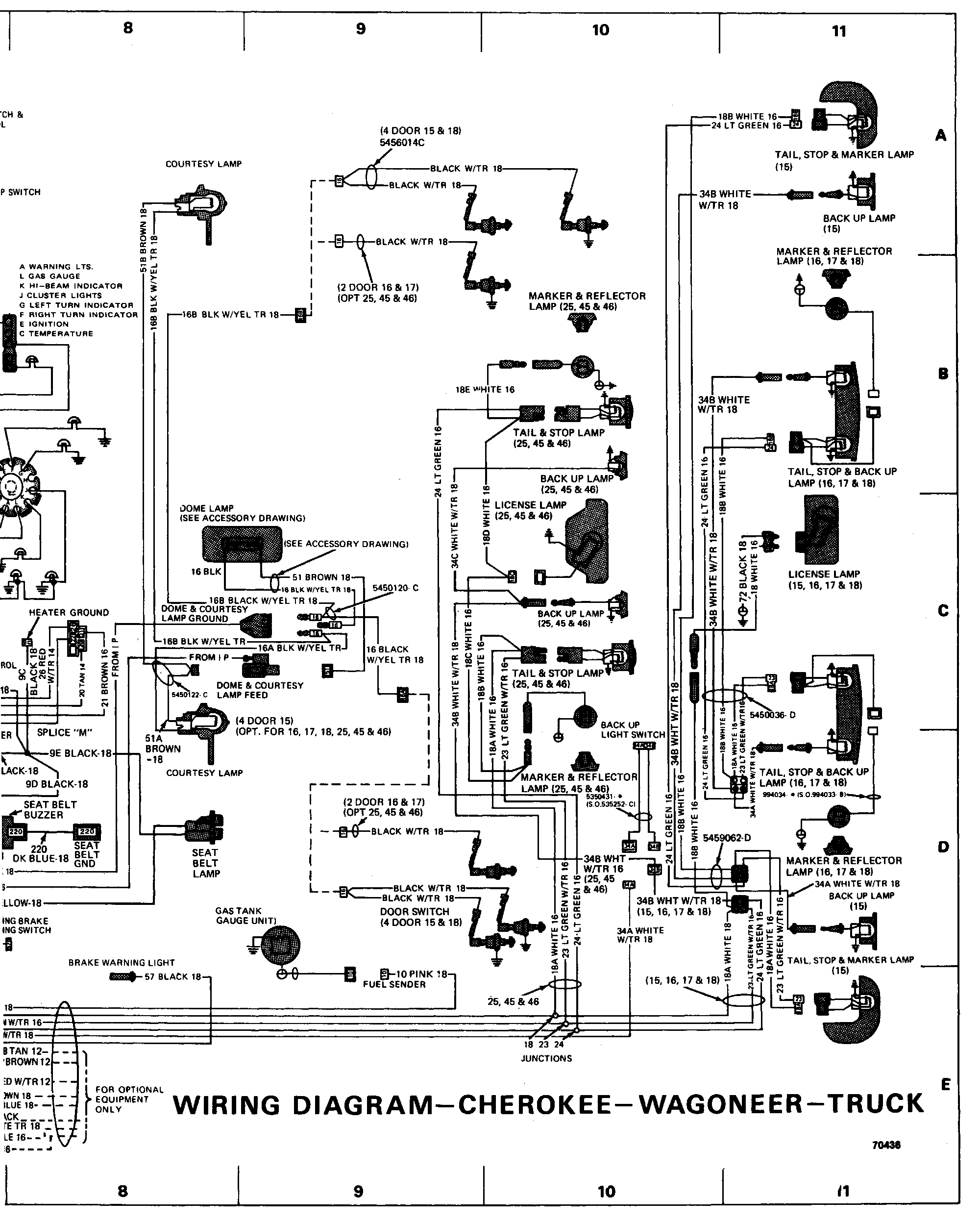

Page W-07c Page W-07c Cherokee, Wagoneer & Truck Wiring
There is not a Page W-08

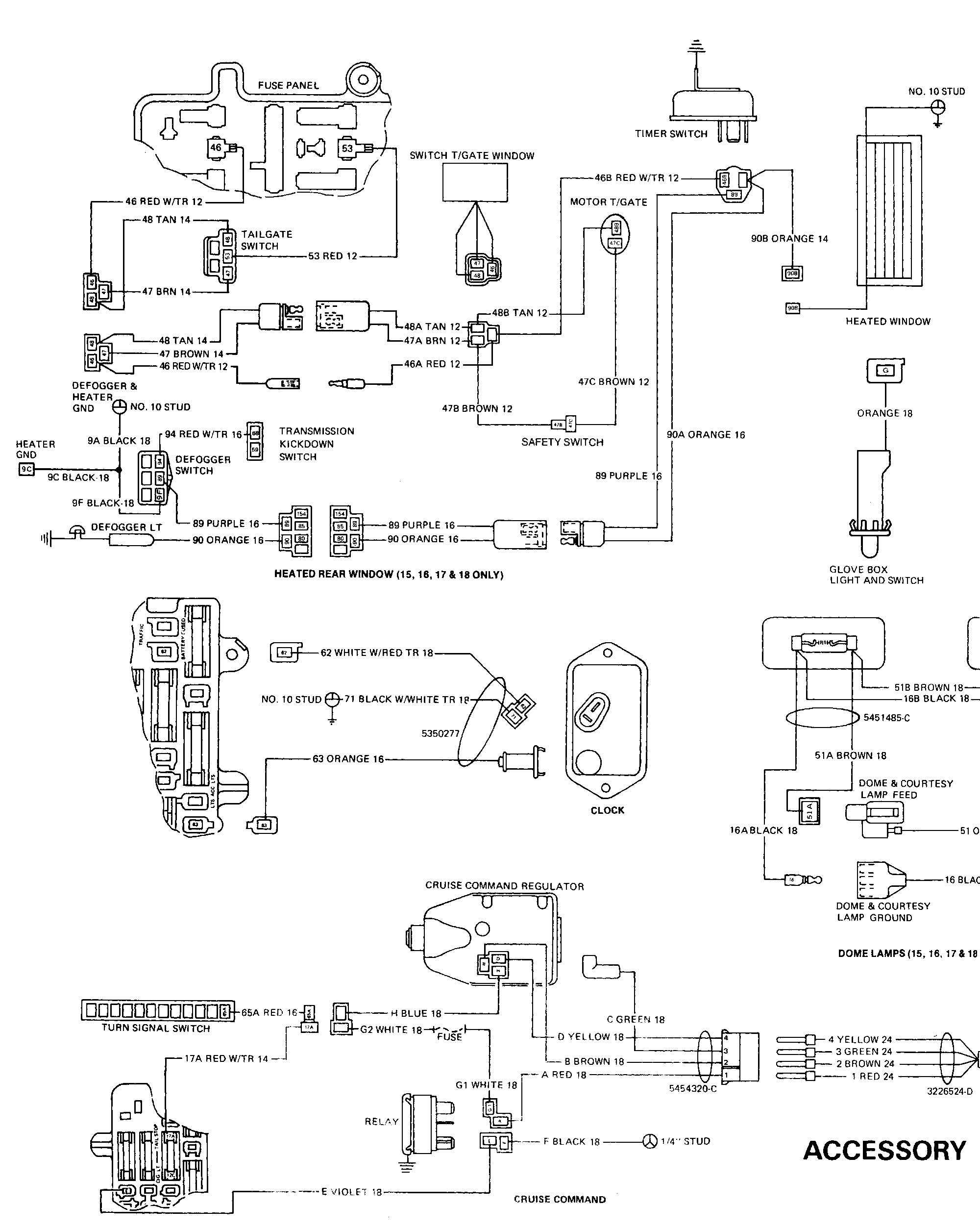

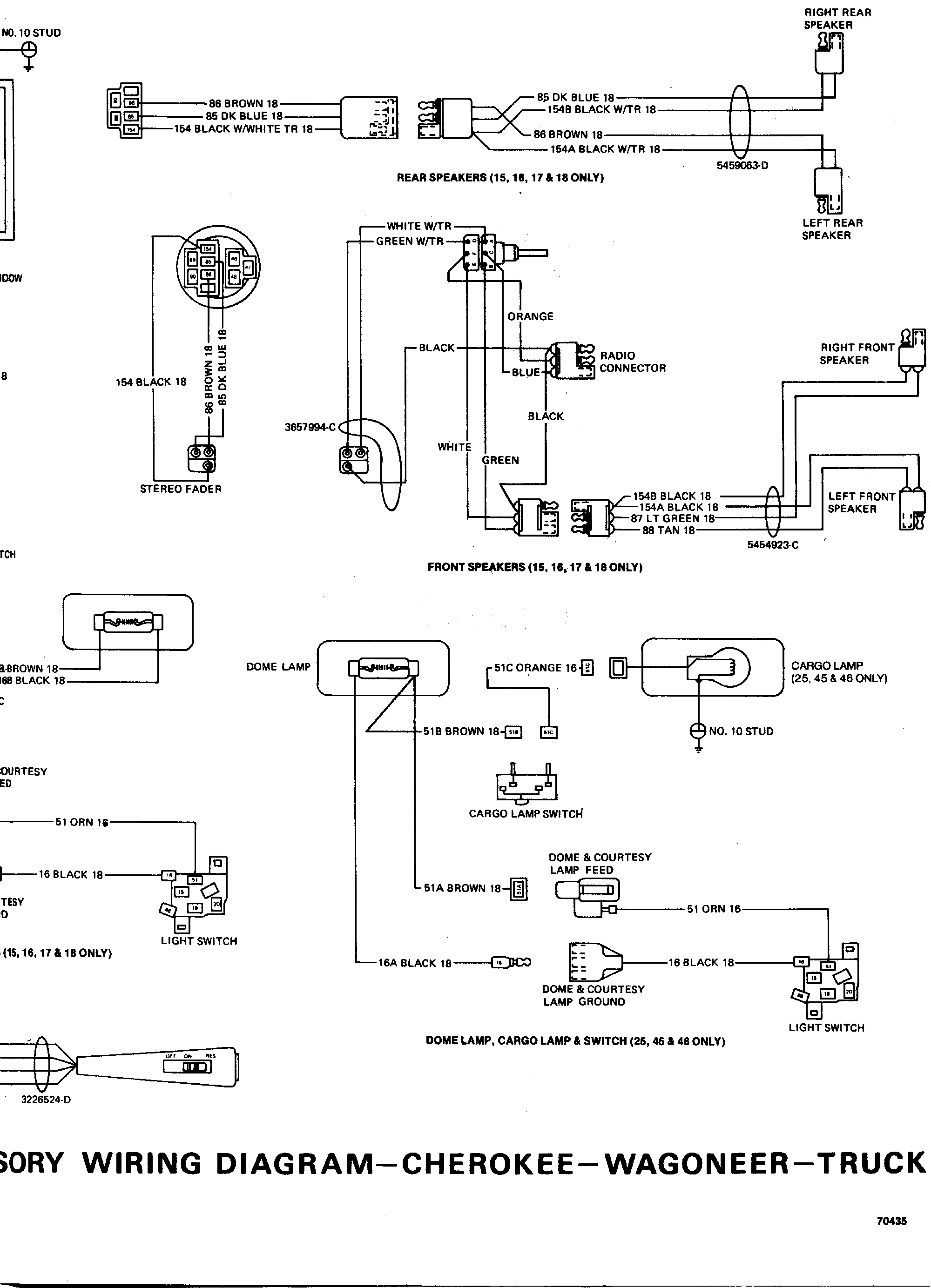

Page W-09a Page W-09a Accessory Wiring - Cherokee, Wagoneer & Truck
Page W-09b Page W-09b Accessory Wiring - Cherokee, Wagoneer & Truck

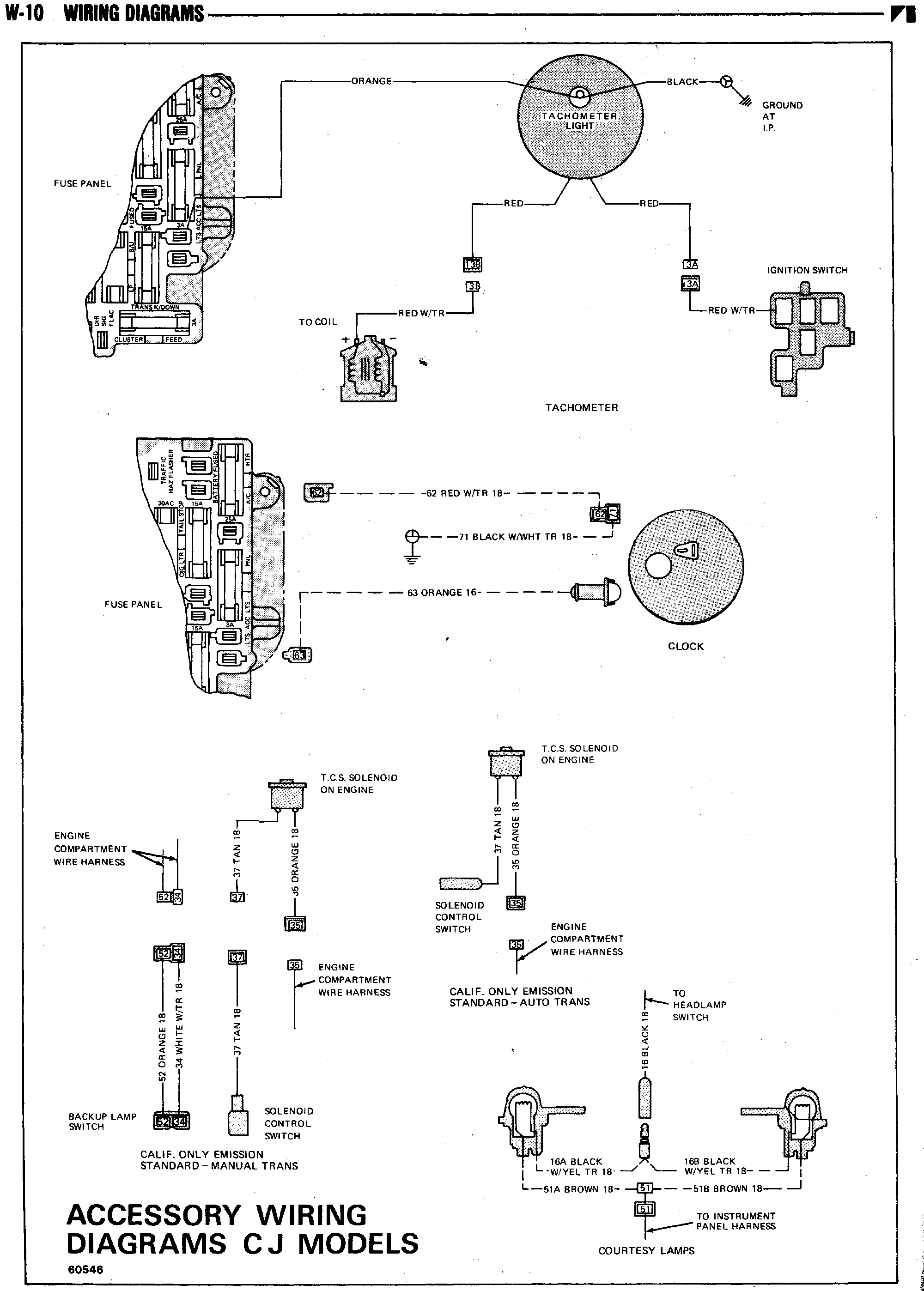

Page W-10 Page W-10 Accessory Wiring - CJ
77_wiring_gif_zip Complete set in a WinZip file in GIF Format (approx 1.7 megs)
77_wiring_tif.zip Complete set in a WinZip file in TIF Format (approx 1.8 megs)

1978 Cherokee-Wagoneer- J Truck Wiring Diagram Compliments of John Lamont Spanish Fort, AL Note: These diagrams are scanned with overlaps as needed to tape facing pages together

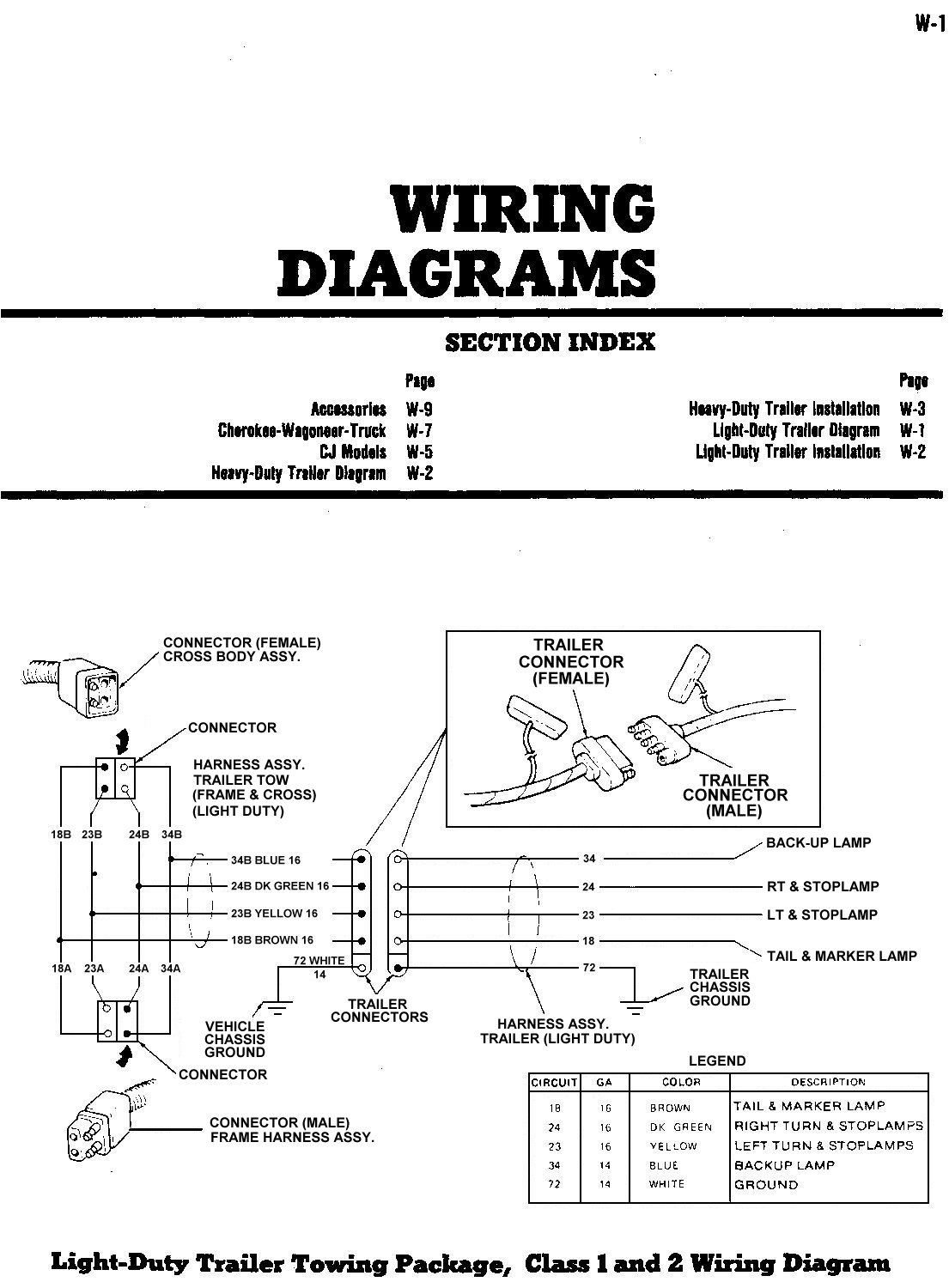

78_FSJ_WiringDiagramPage1 Light Duty Trailer Wiring

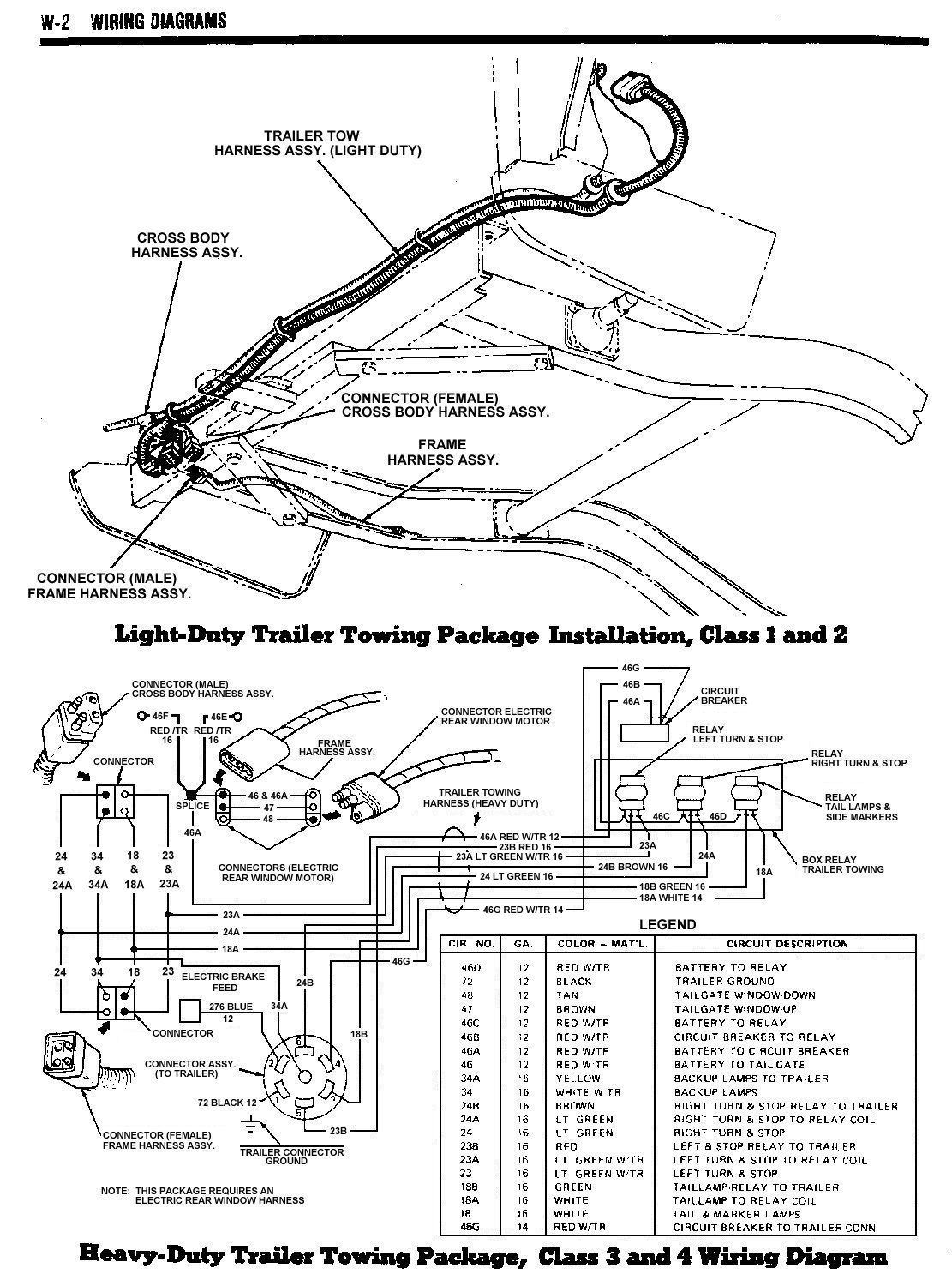

78_FSJ_WiringDiagramPage2 Trailer Wiring Class 1 & 2
78_FSJ_WiringDiagramPage3 Trailer Wiring Class 3 & 4

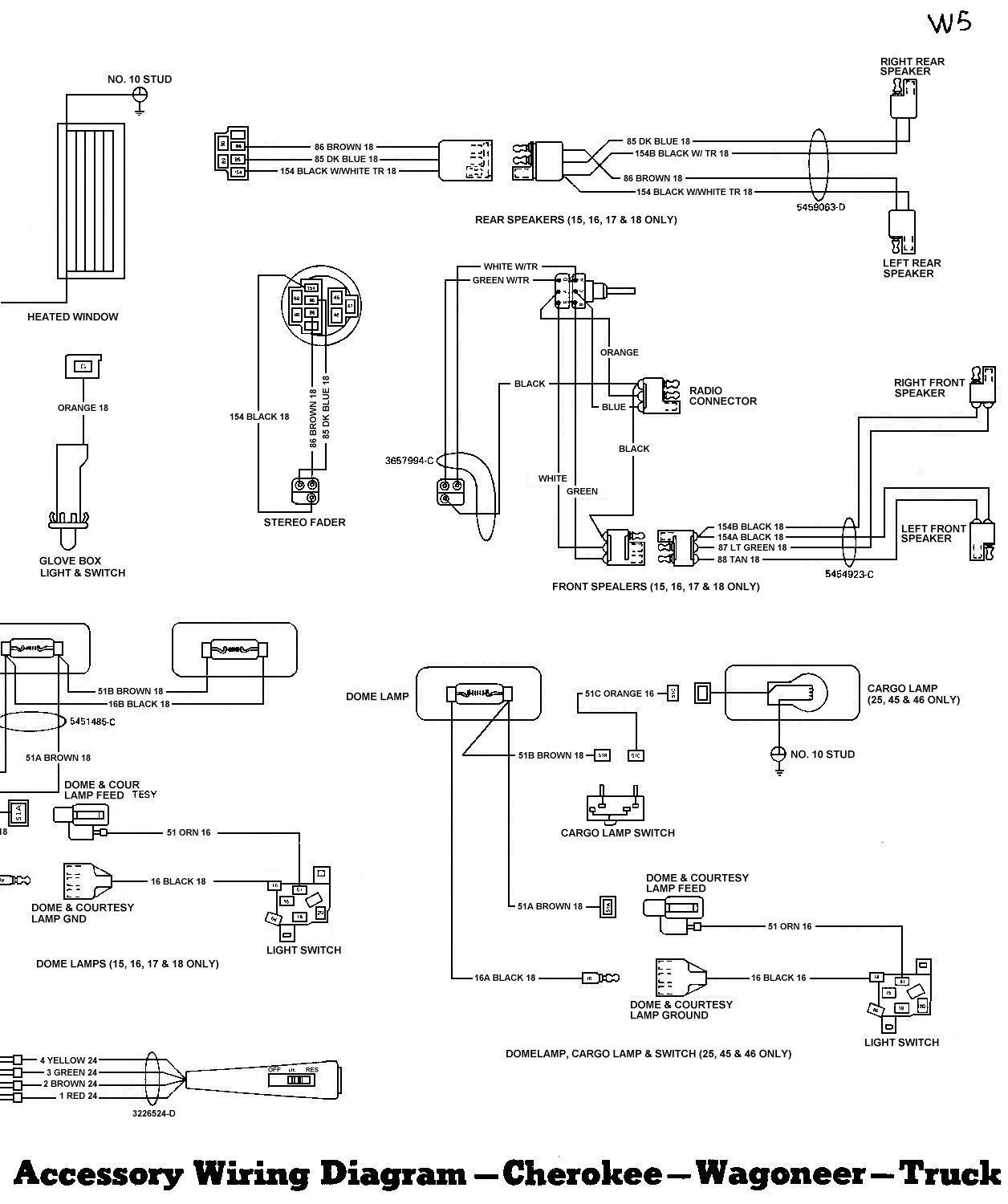

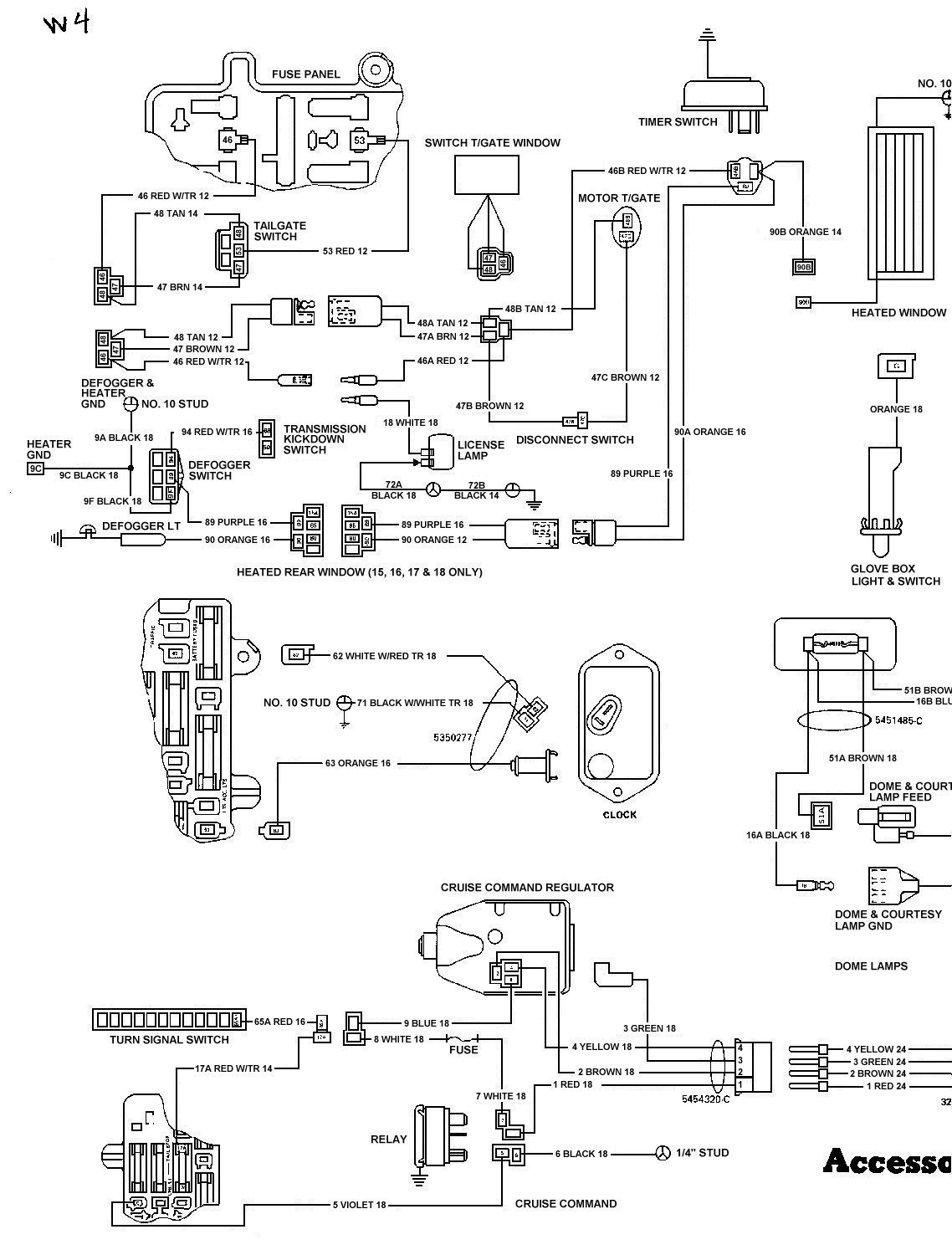

78_FSJ_WiringDiagramPage4 Accessory Wiring #1
78_FSJ_WiringDiagramPage5 Accessory Wiring #2

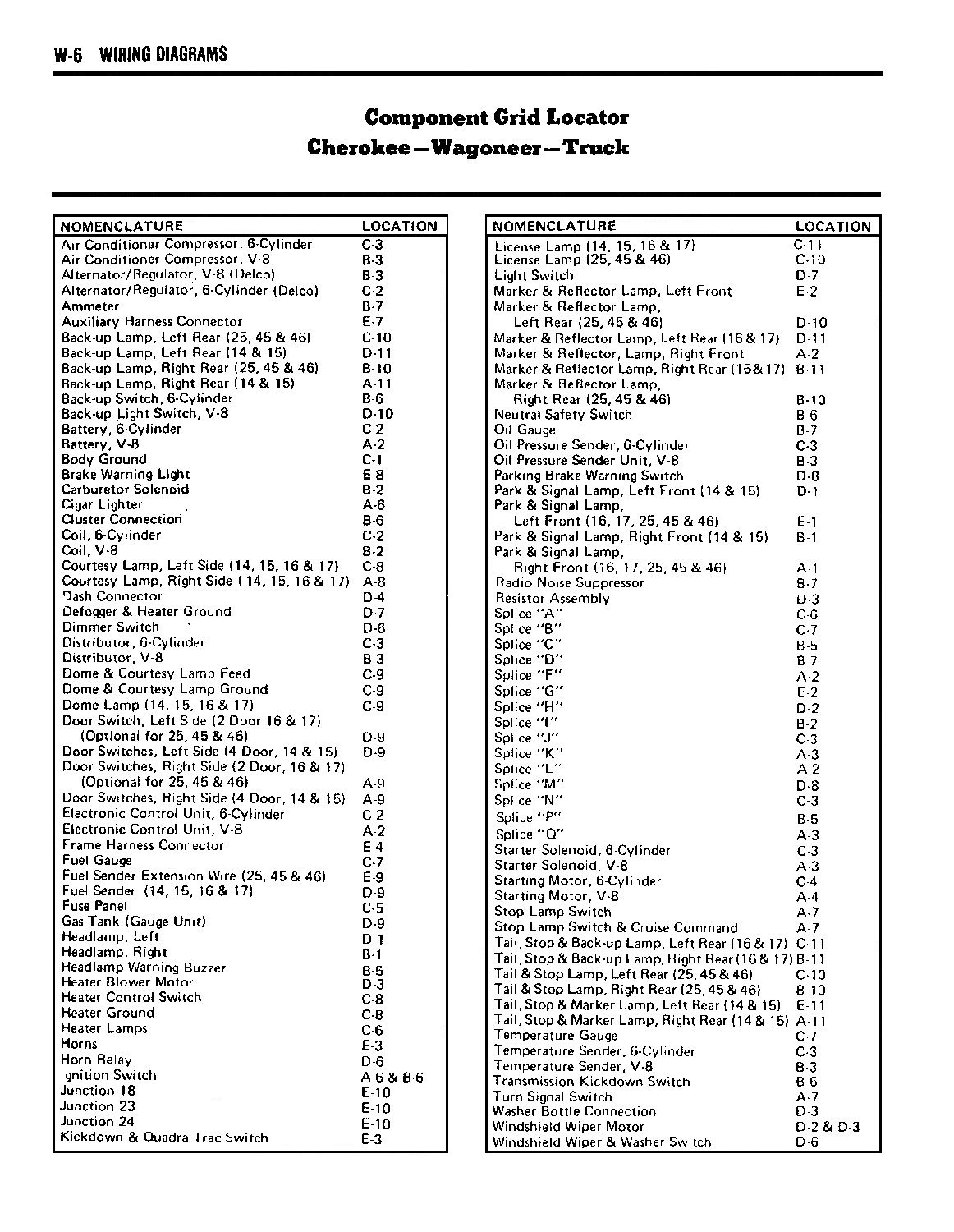

78_FSJ_WiringDiagramPage6 Component Grid Locator

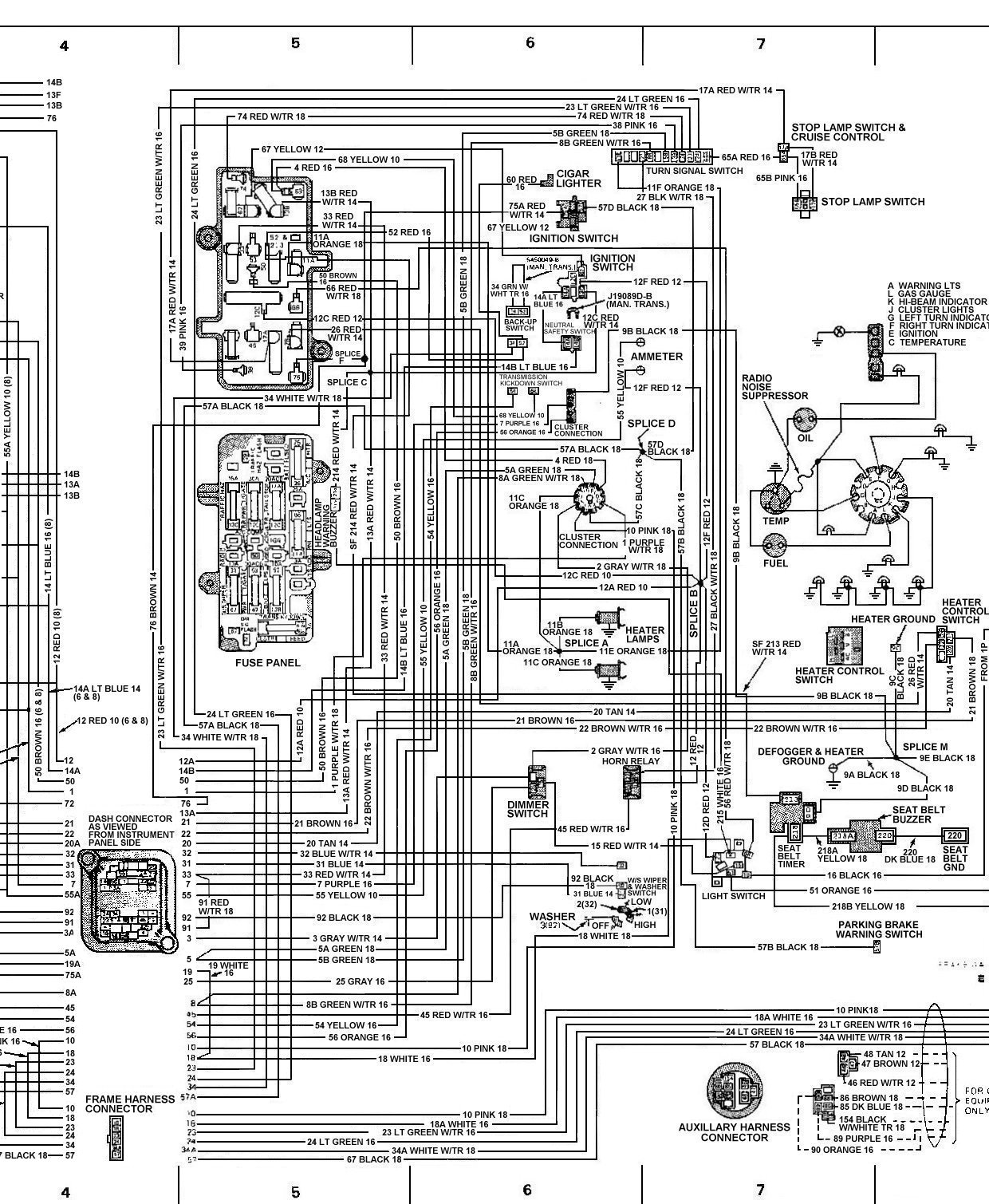

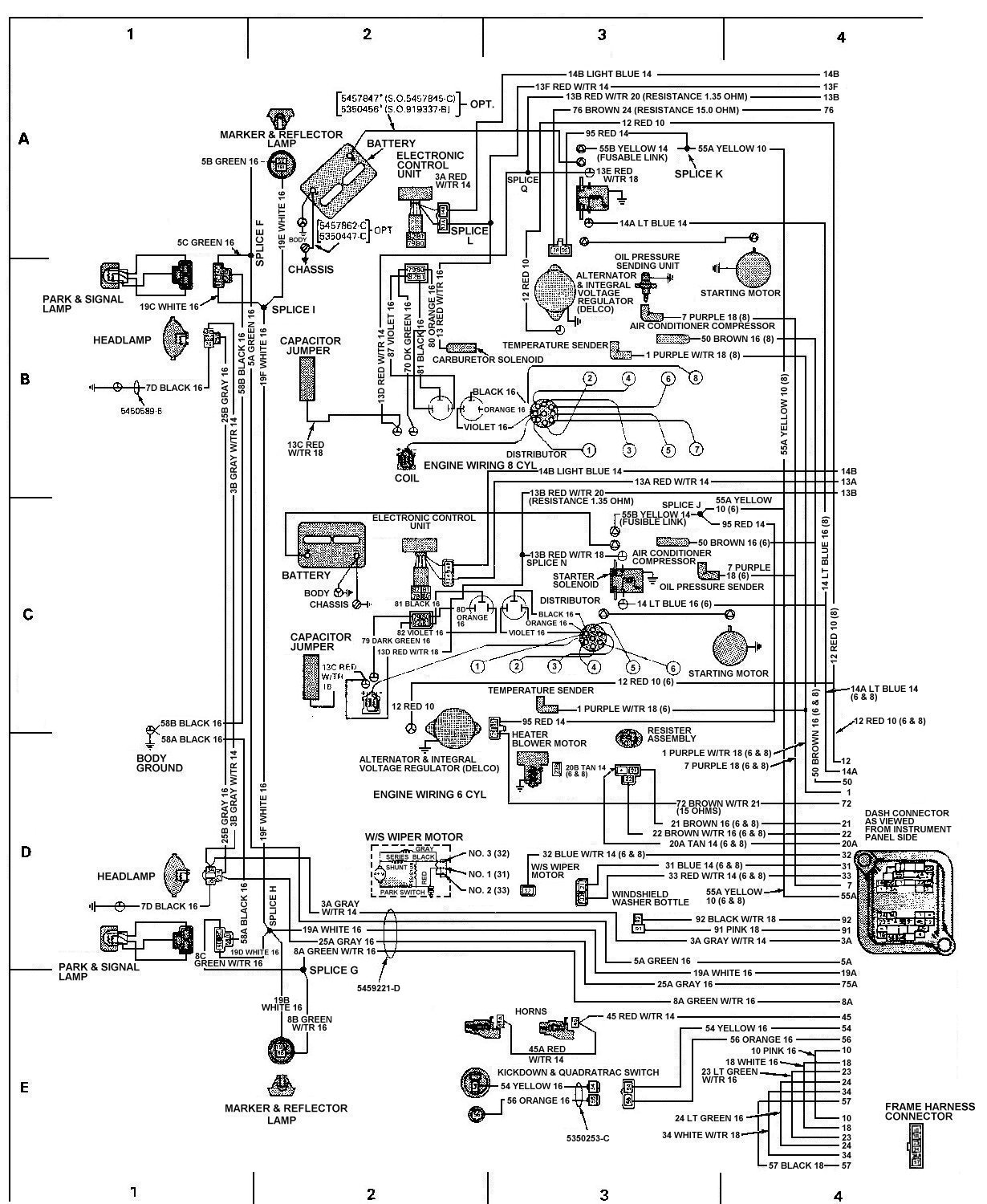

78_FSJ_WiringDiagramPage7 Wiring Diagram #1

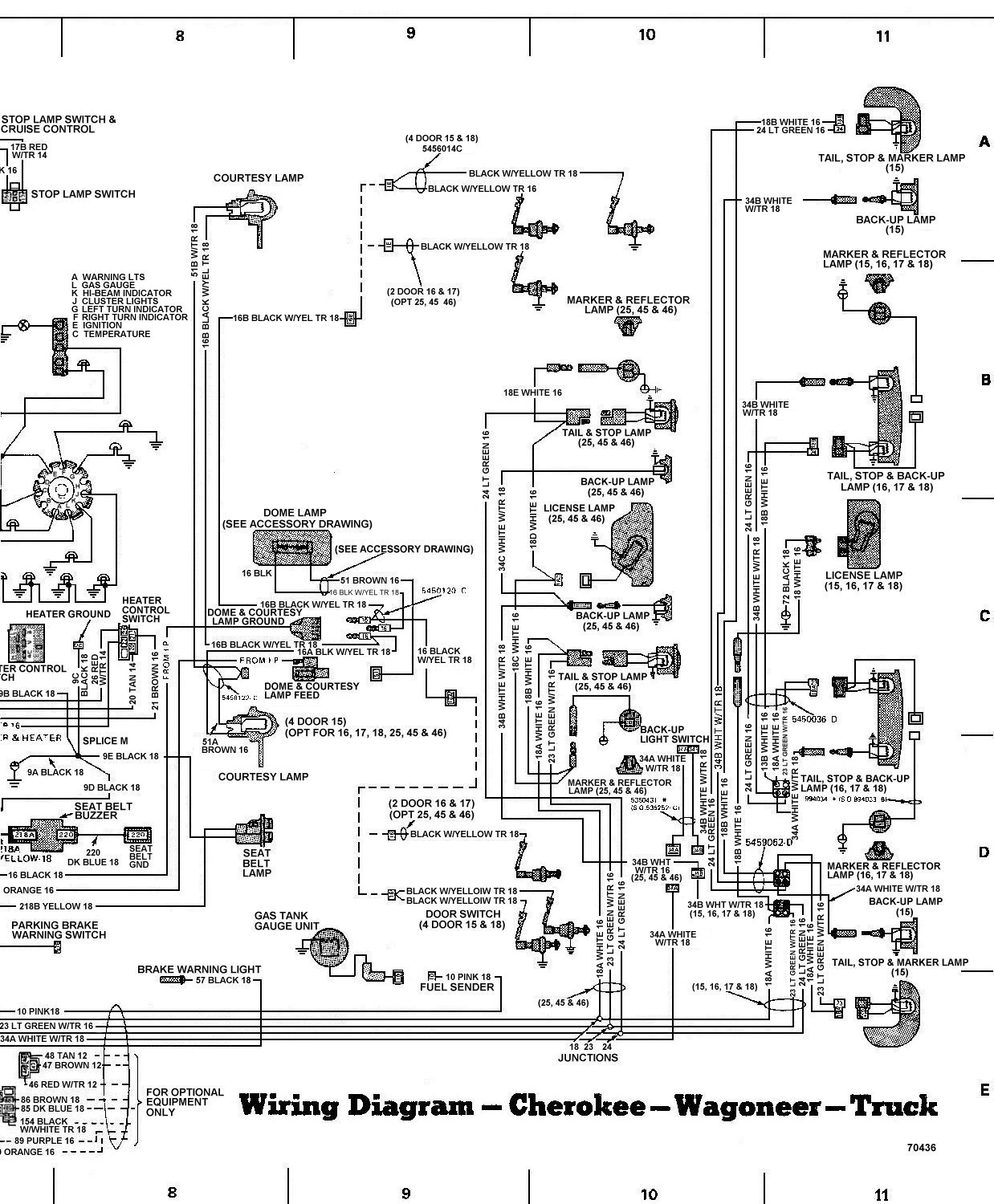

78_FSJ_WiringDiagramPage8 Wiring Diagram #2
Wiring Diagram #3

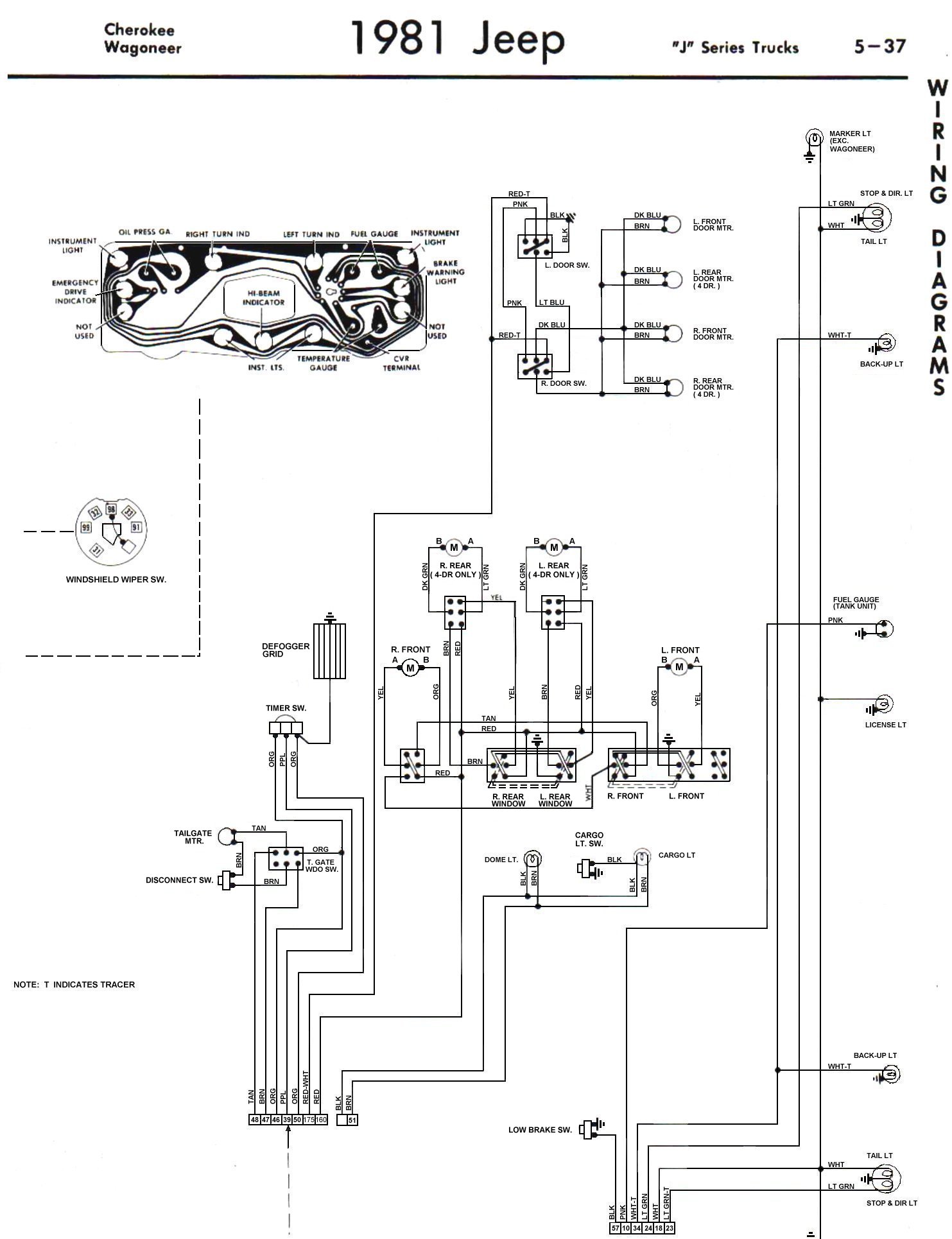

78_FSJ_WiringDiagram.zipComplete set in 1 WinZip File (approx 2.667 Meg)
1979 Wagoneer wiring diagrams compliments of Dave

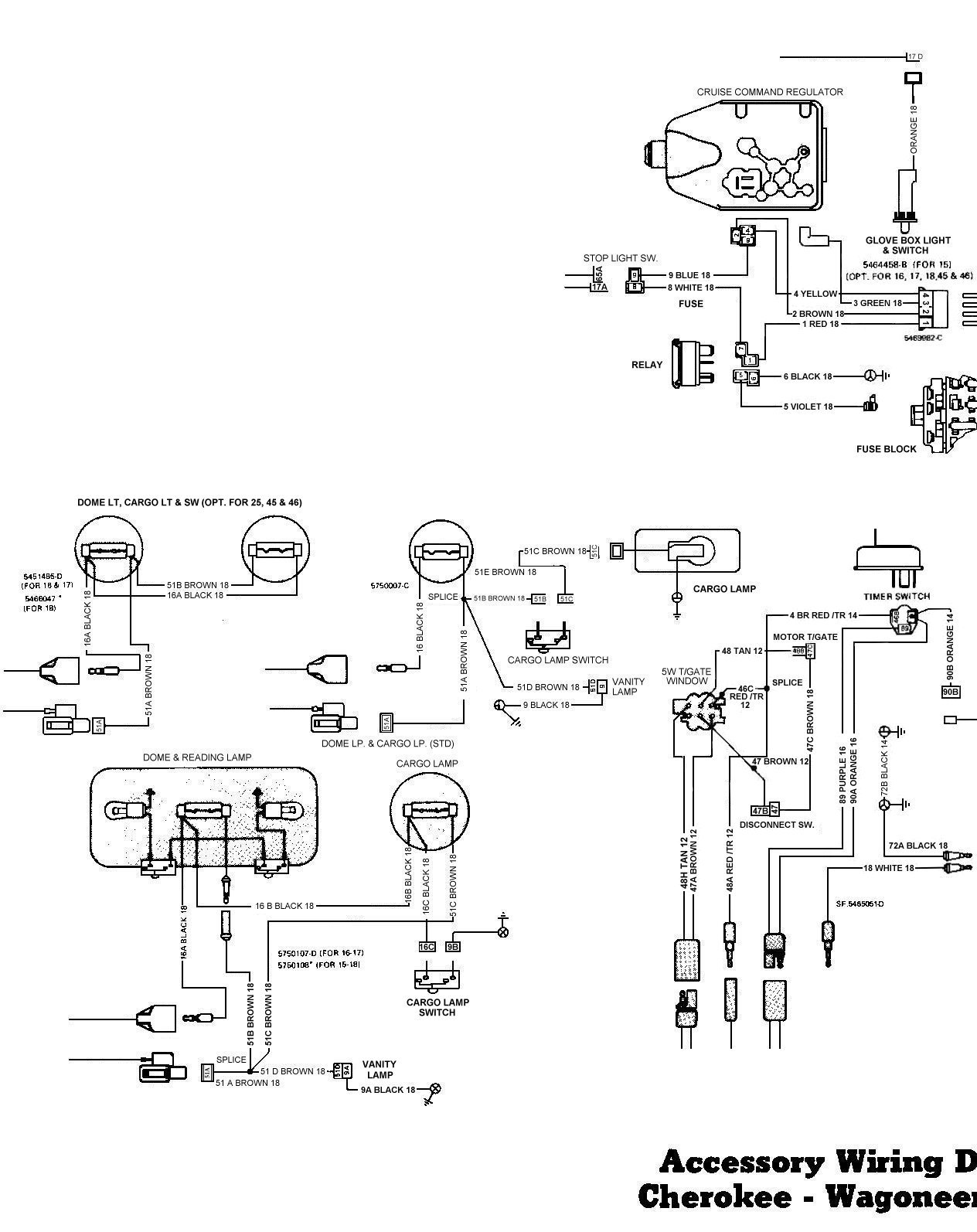

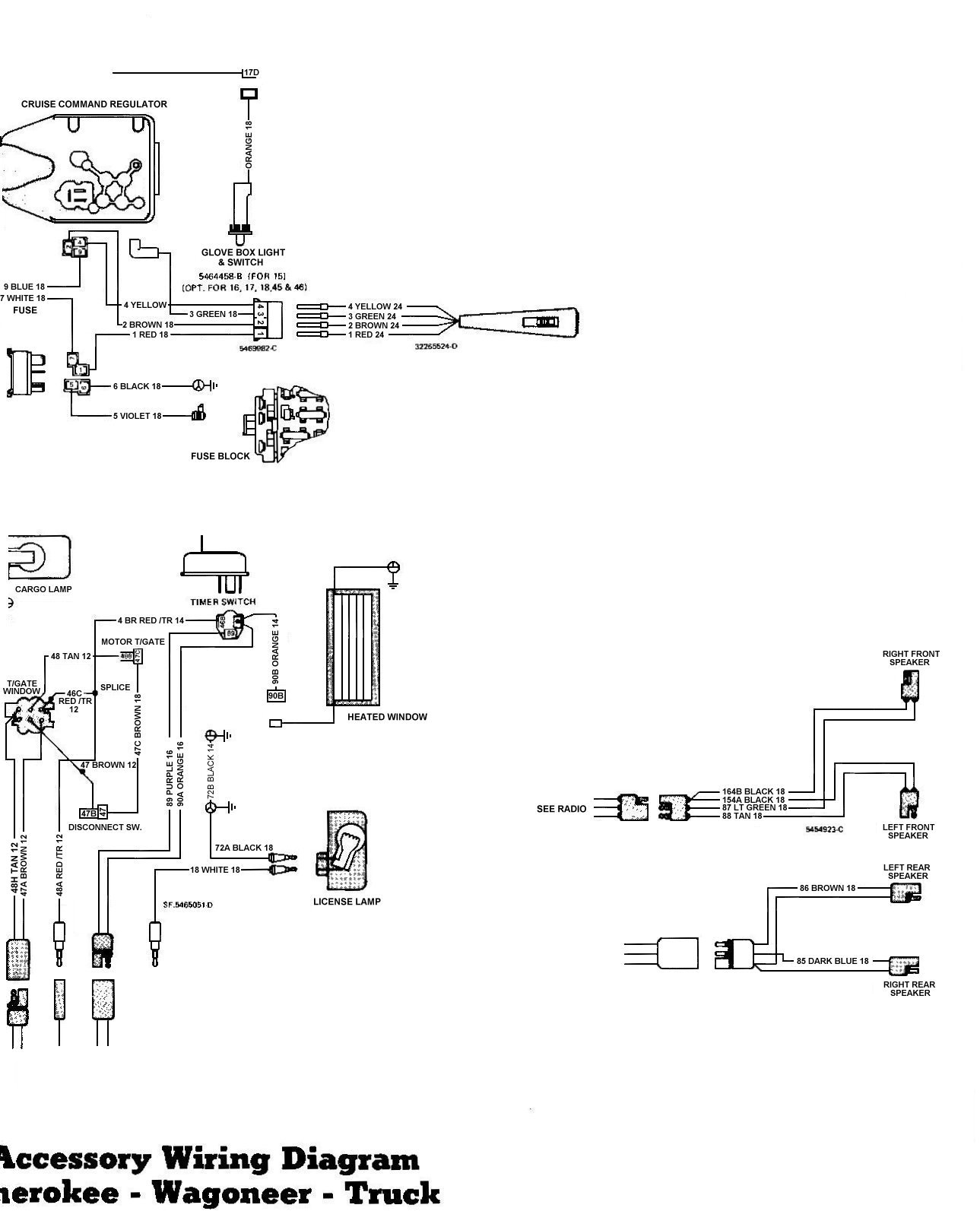

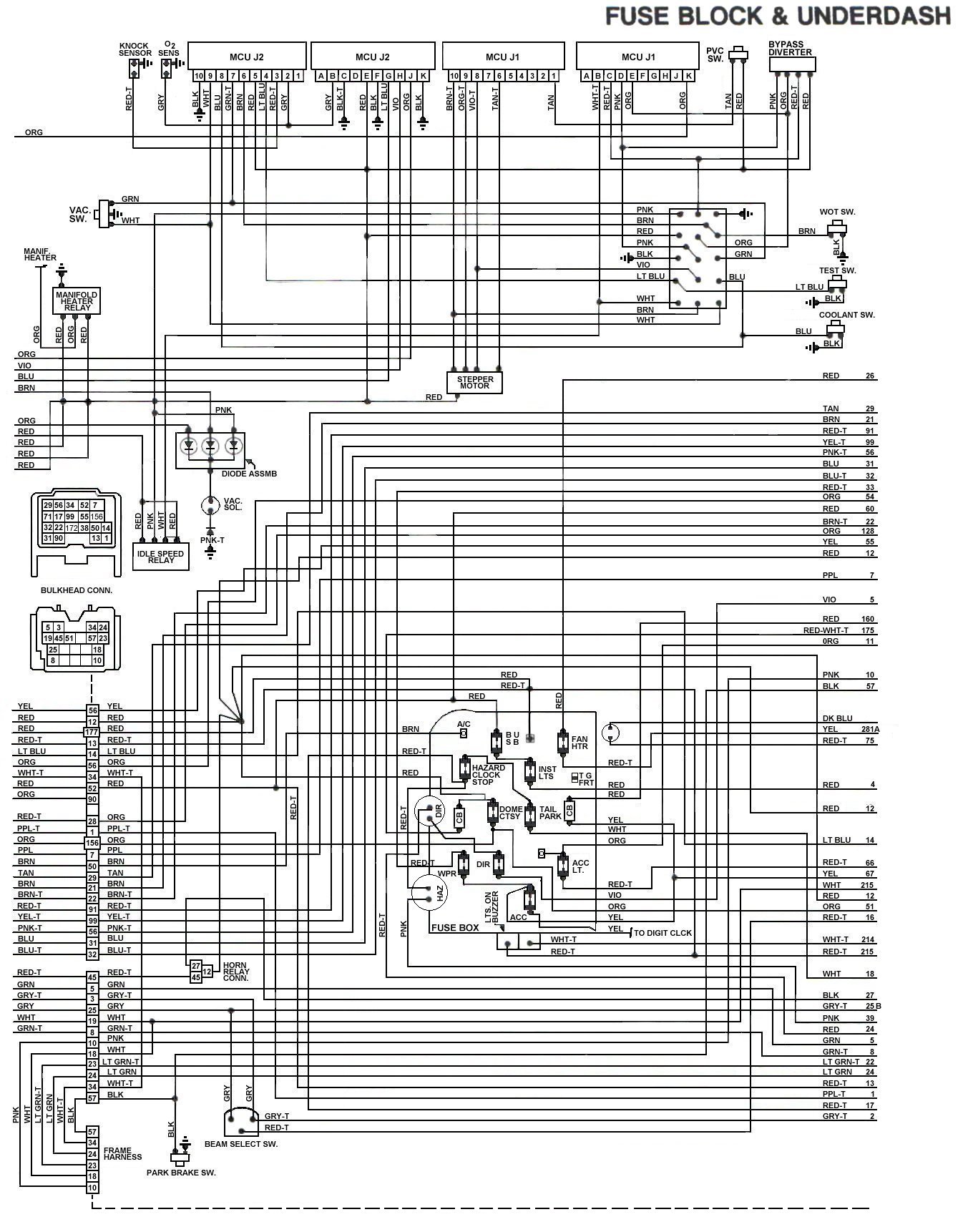

Wiring Accessories Page 1 Wiring Accessories Page 2

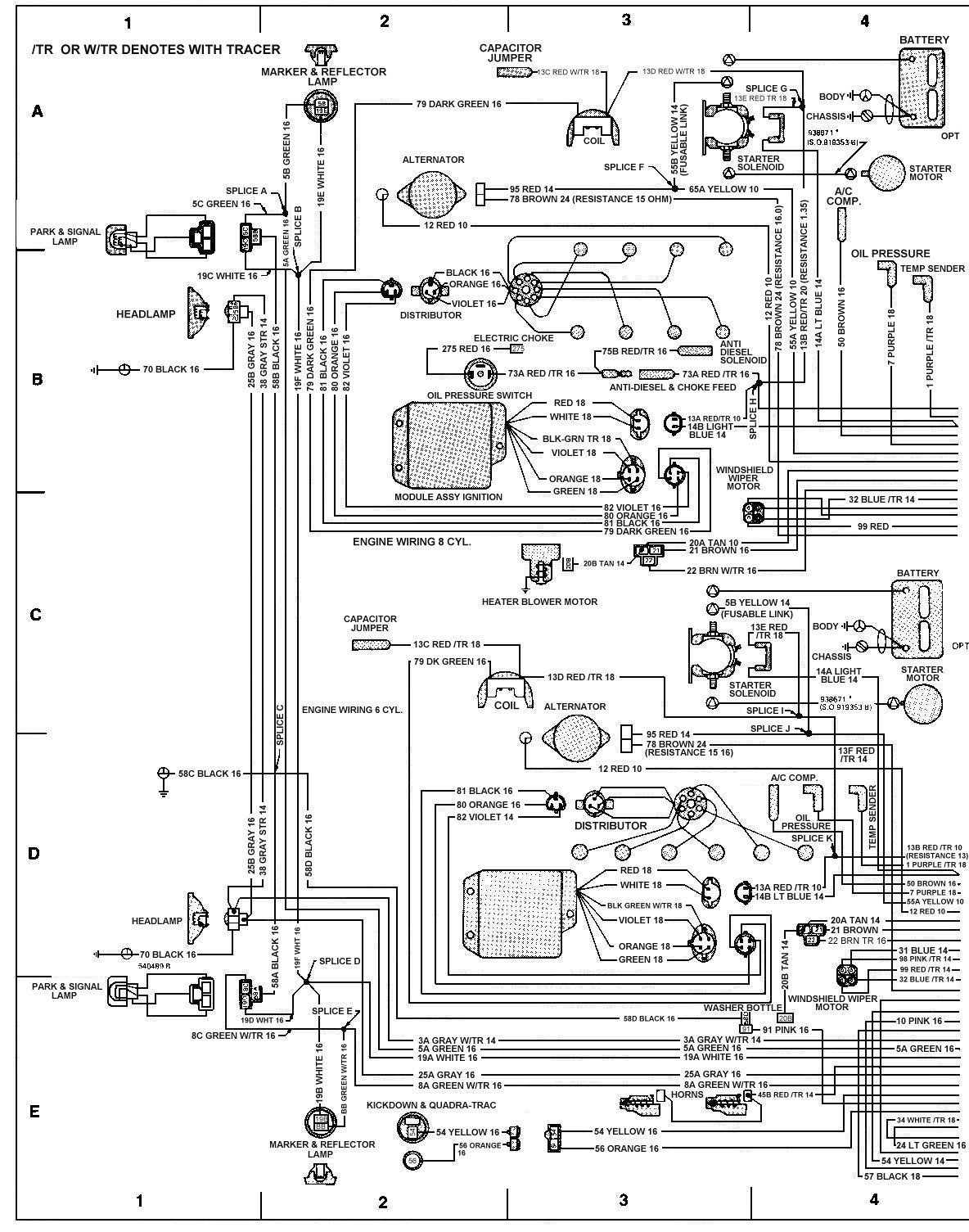

Wiring Page 1 Wiring Page 2
Wiring Page 3 Wiring Page 4

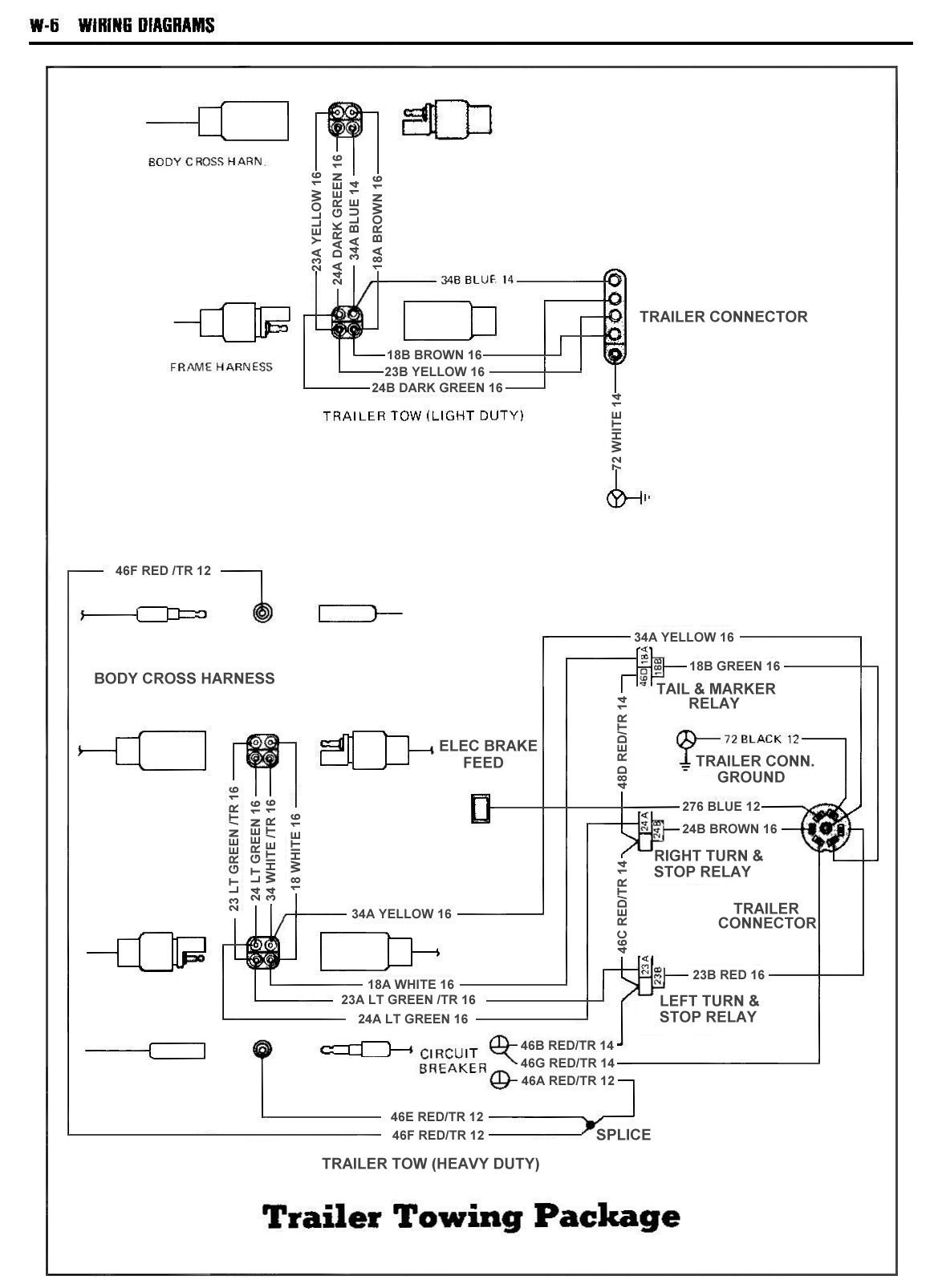

Trailer Wiring 79_FSJ_WiringDiagram in 1 WinZip File Complete set in 1 WinZip File (approx 1.7 Meg)
1980 Wagoneer/Cherokee/J10 wiring diagrams compliments of Dave Spaulding

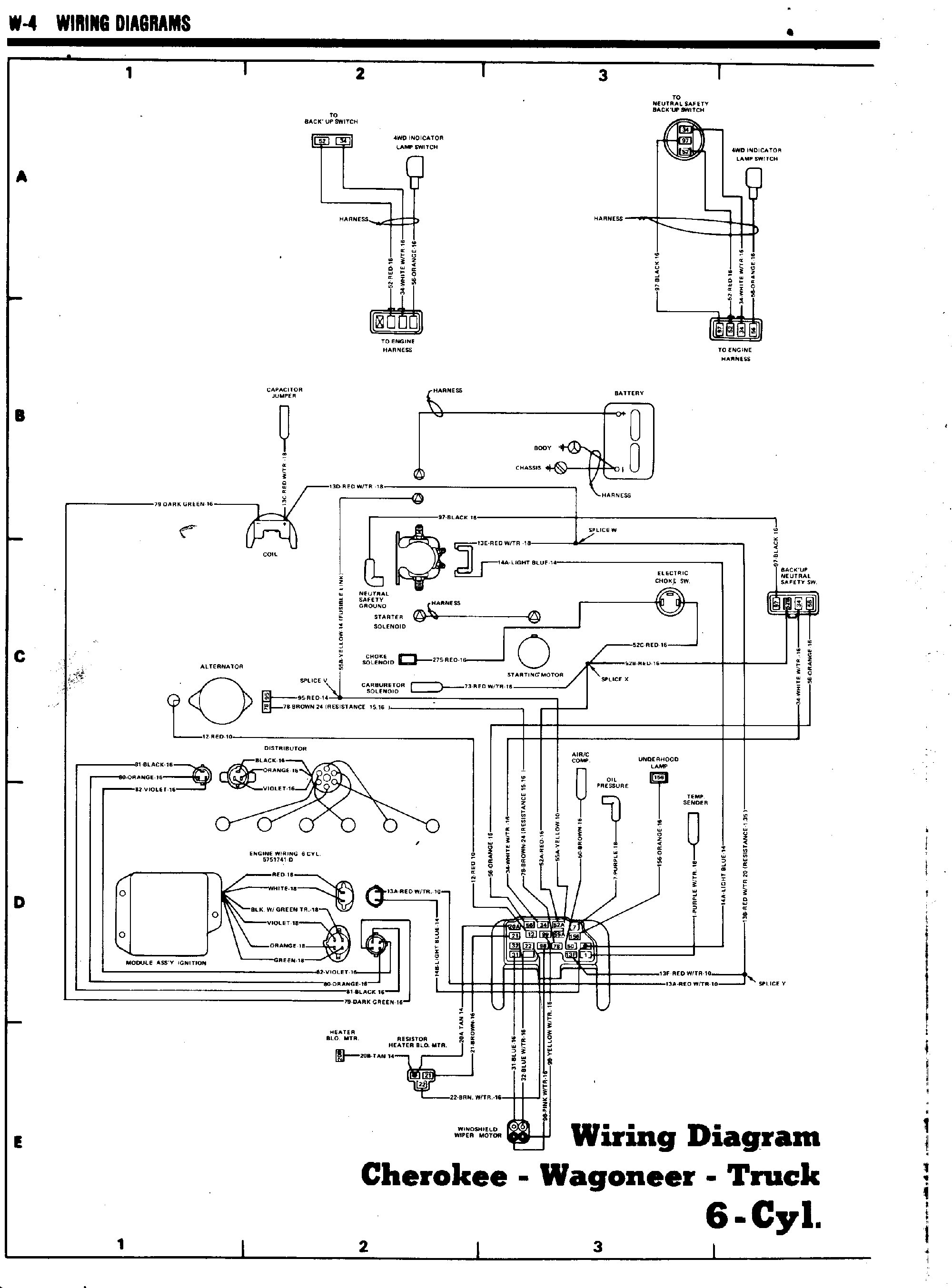

Cherokee/Wagoneer/J10 - 6 Cyl

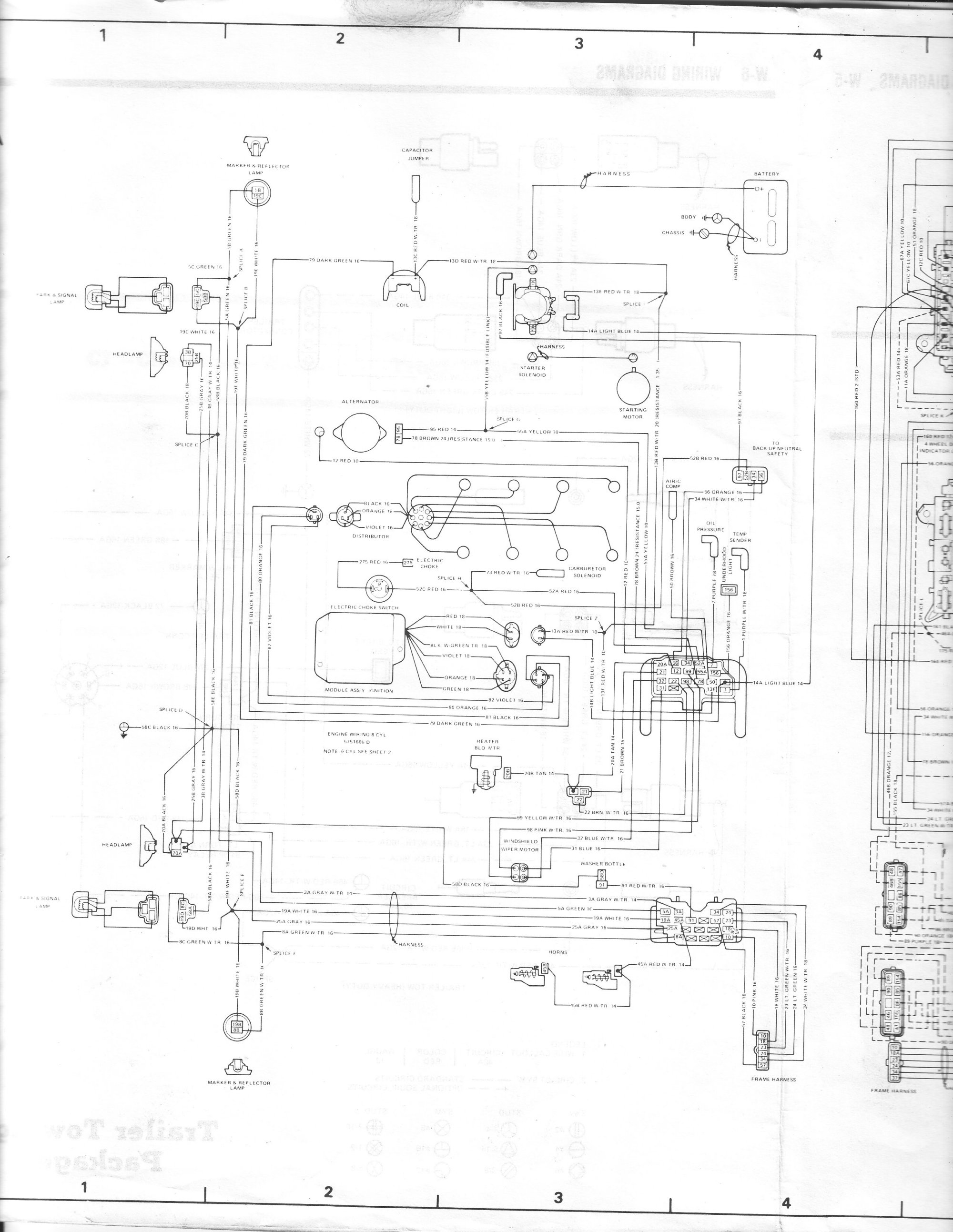

Cherokee/Wagoneer/J10 - 8 Cyl - Page 1

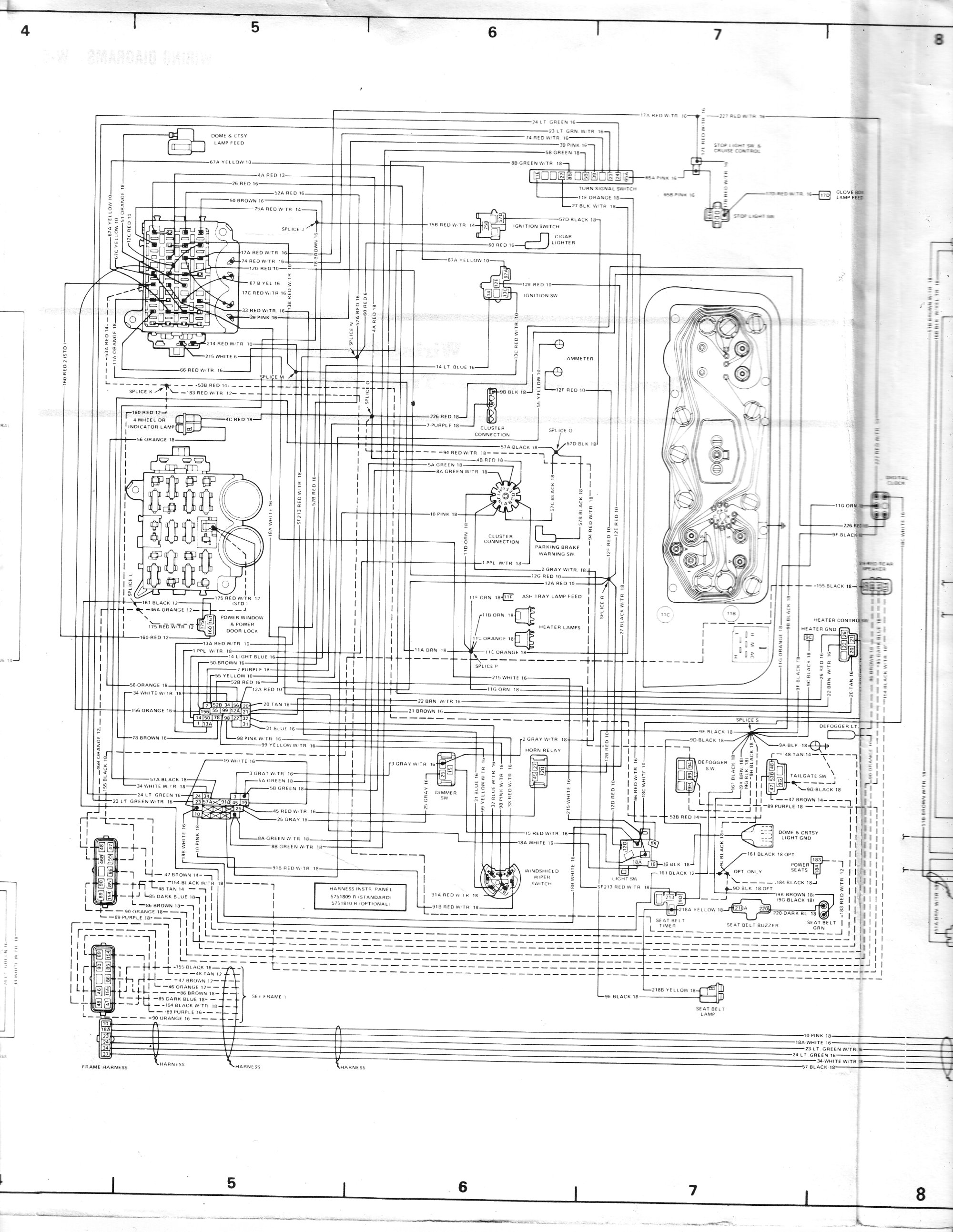

Cherokee/Wagoneer/J10 - 8 Cyl - Page 2

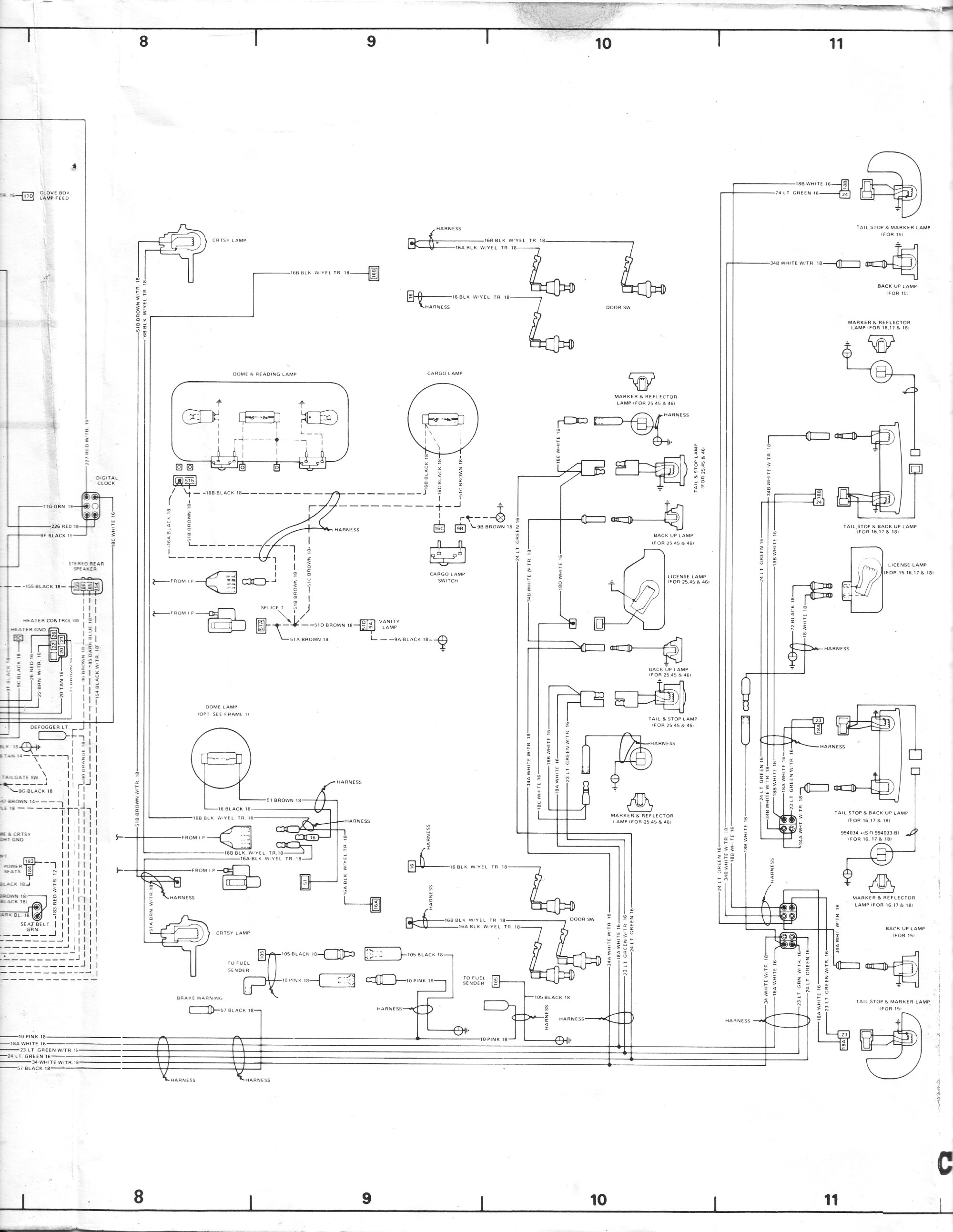

Cherokee/Wagoneer/J10 - 8 Cyl - Page 3

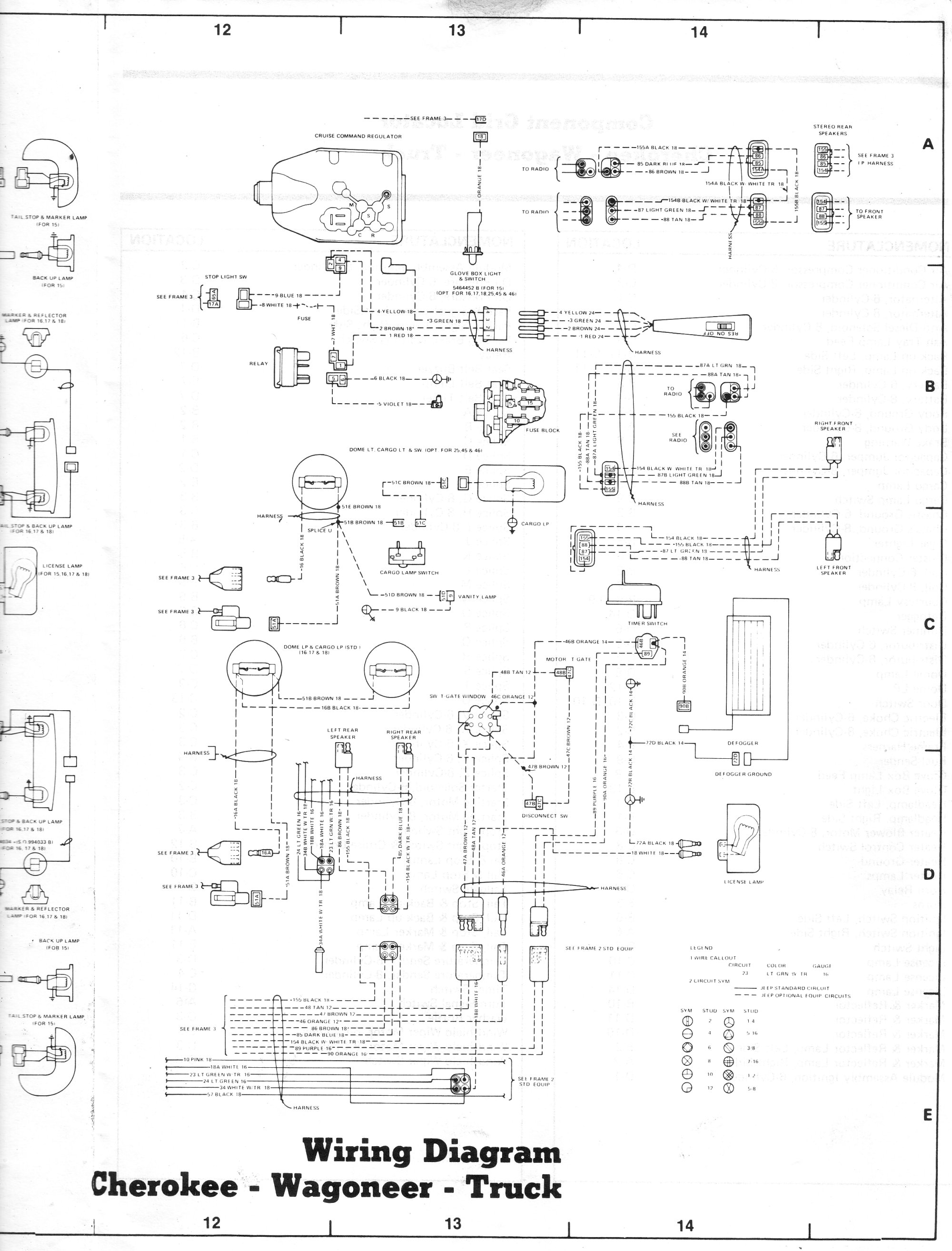

Cherokee/Wagoneer/J10 - 8 Cyl - Page 4

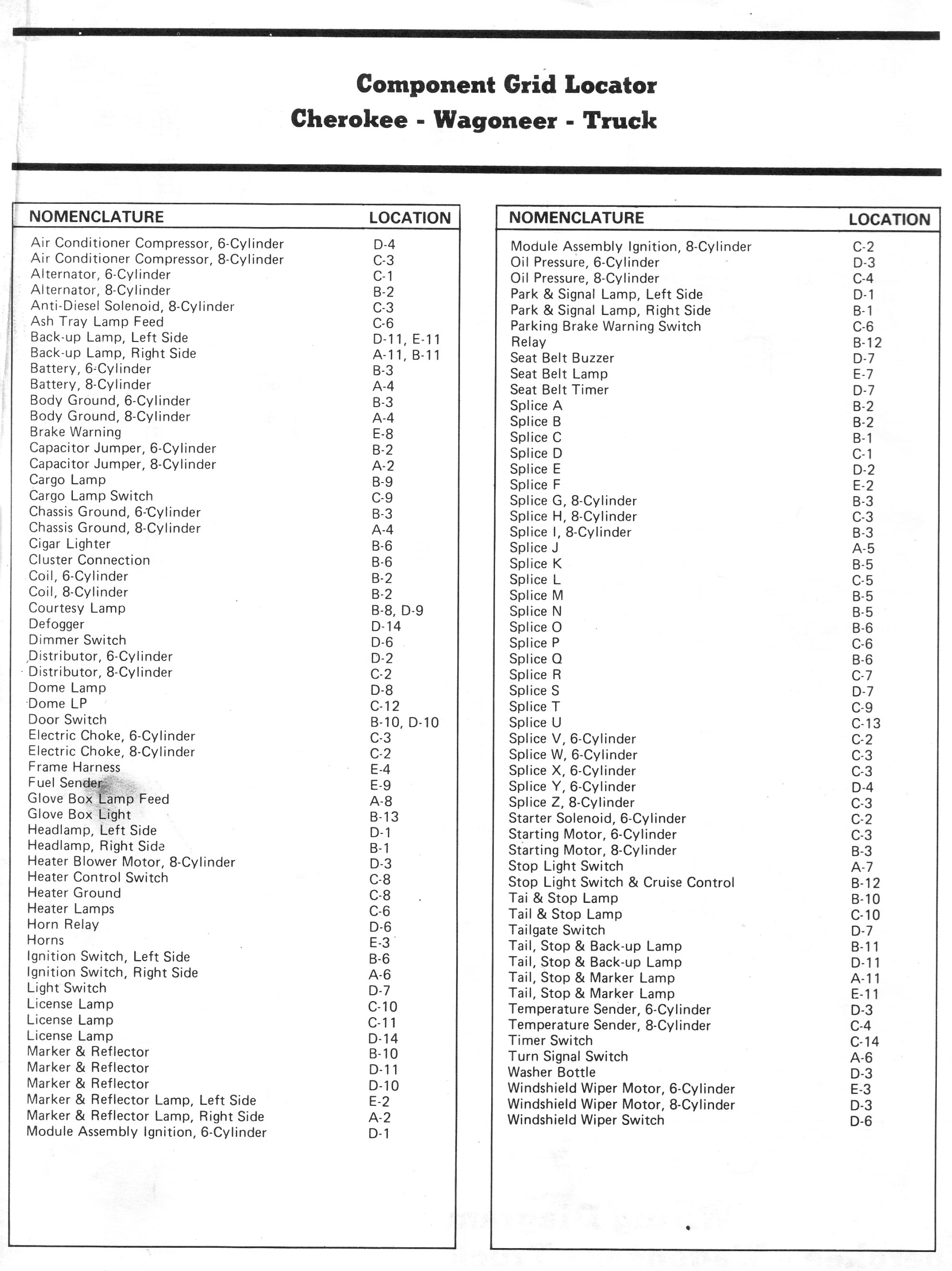

Cherokee/Wagoneer/J10 - Grid Locator

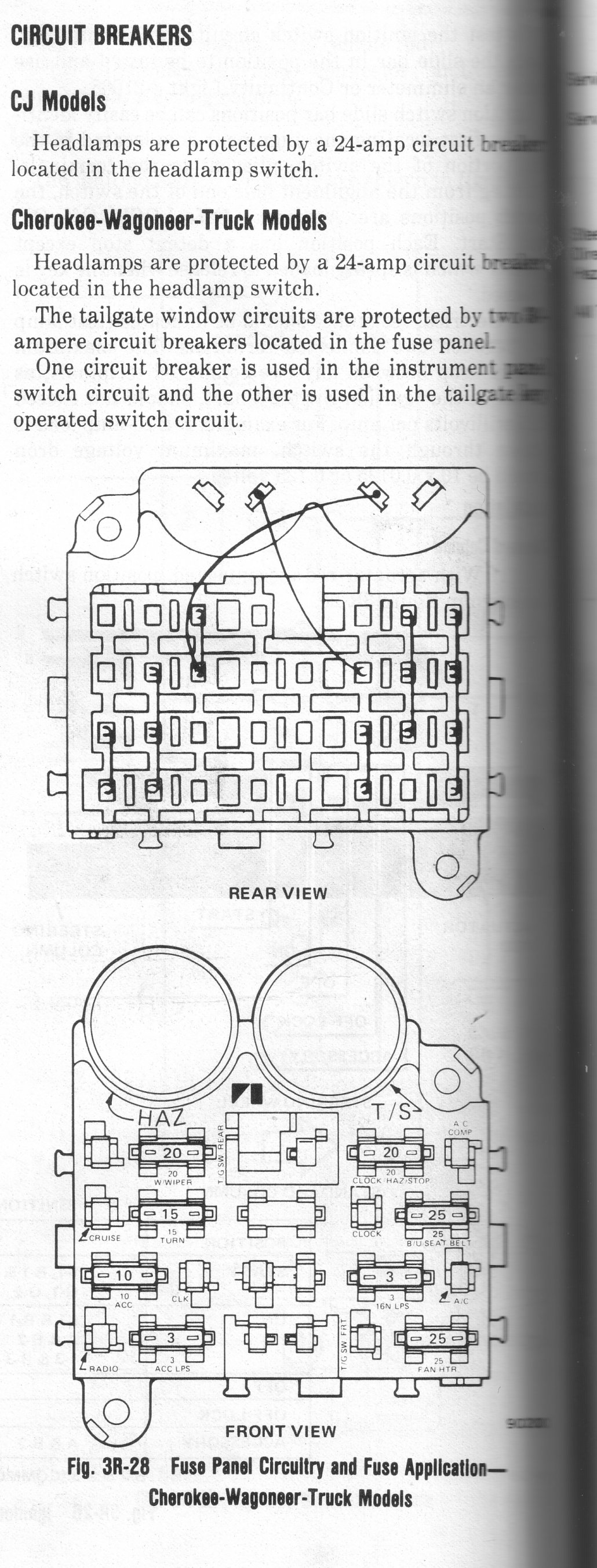

Cherokee/Wagoneer/J10 - Fuse Panel

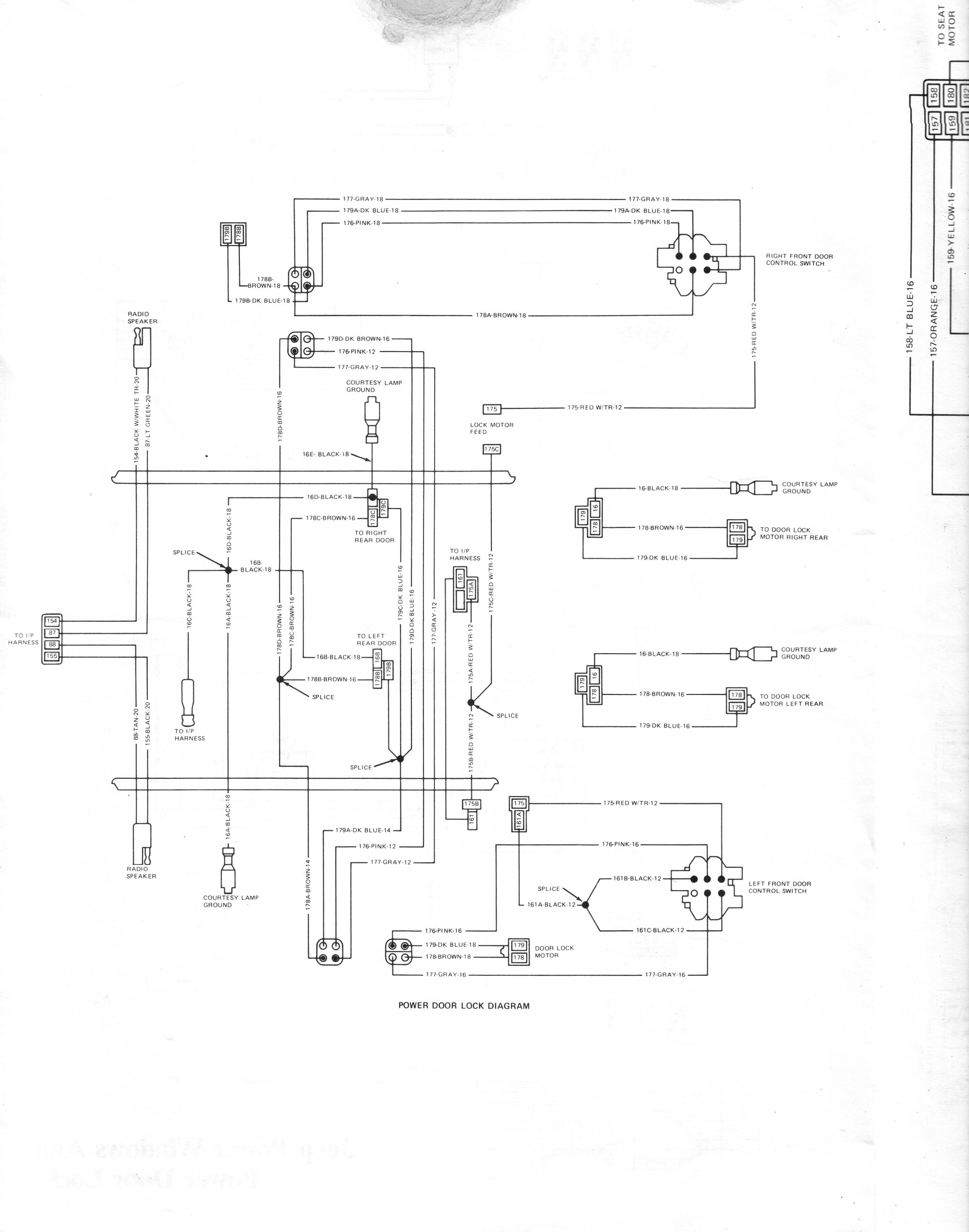

Cherokee/Wagoneer - Power Door Locks

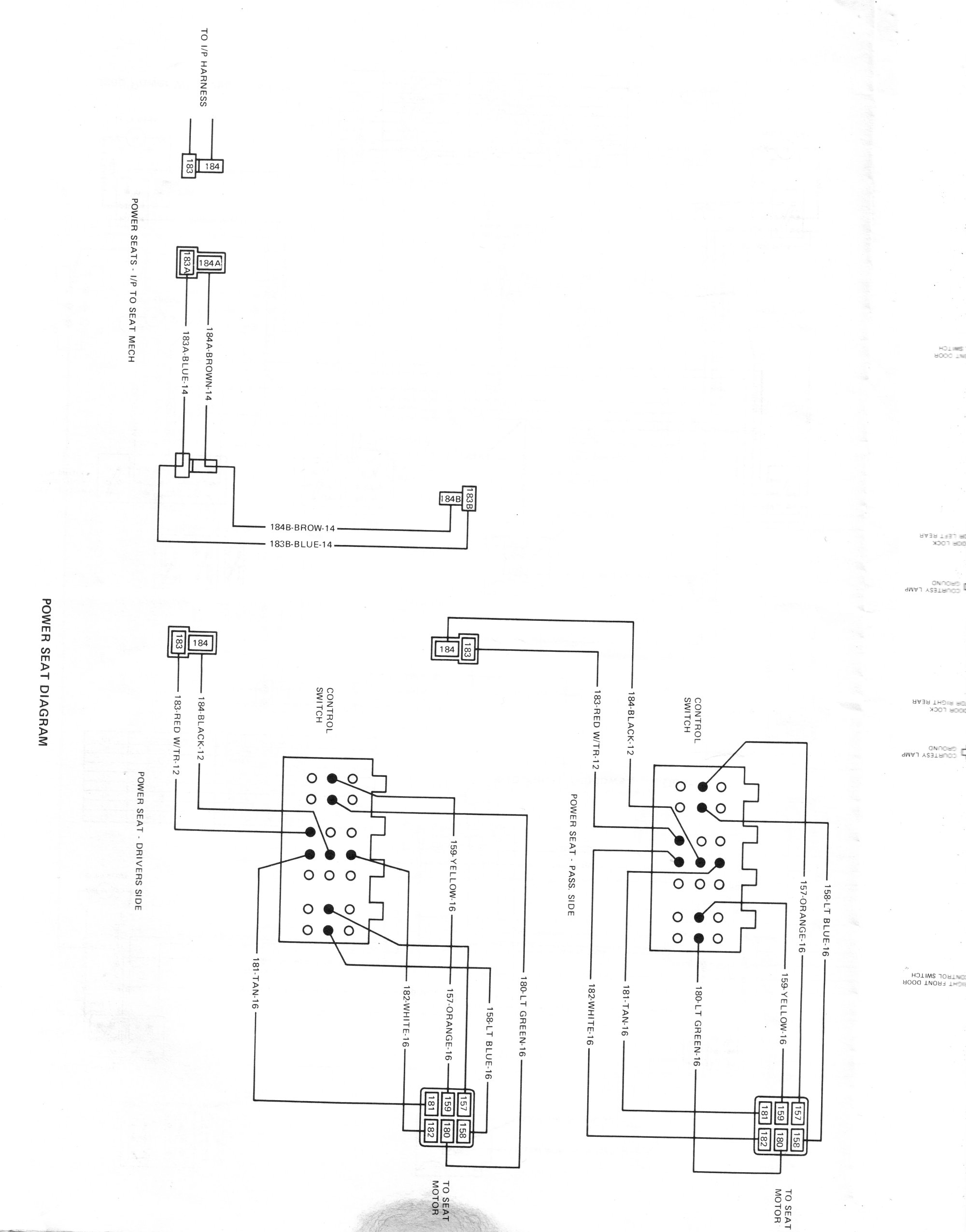

Cherokee/Wagoneer - Power Seats

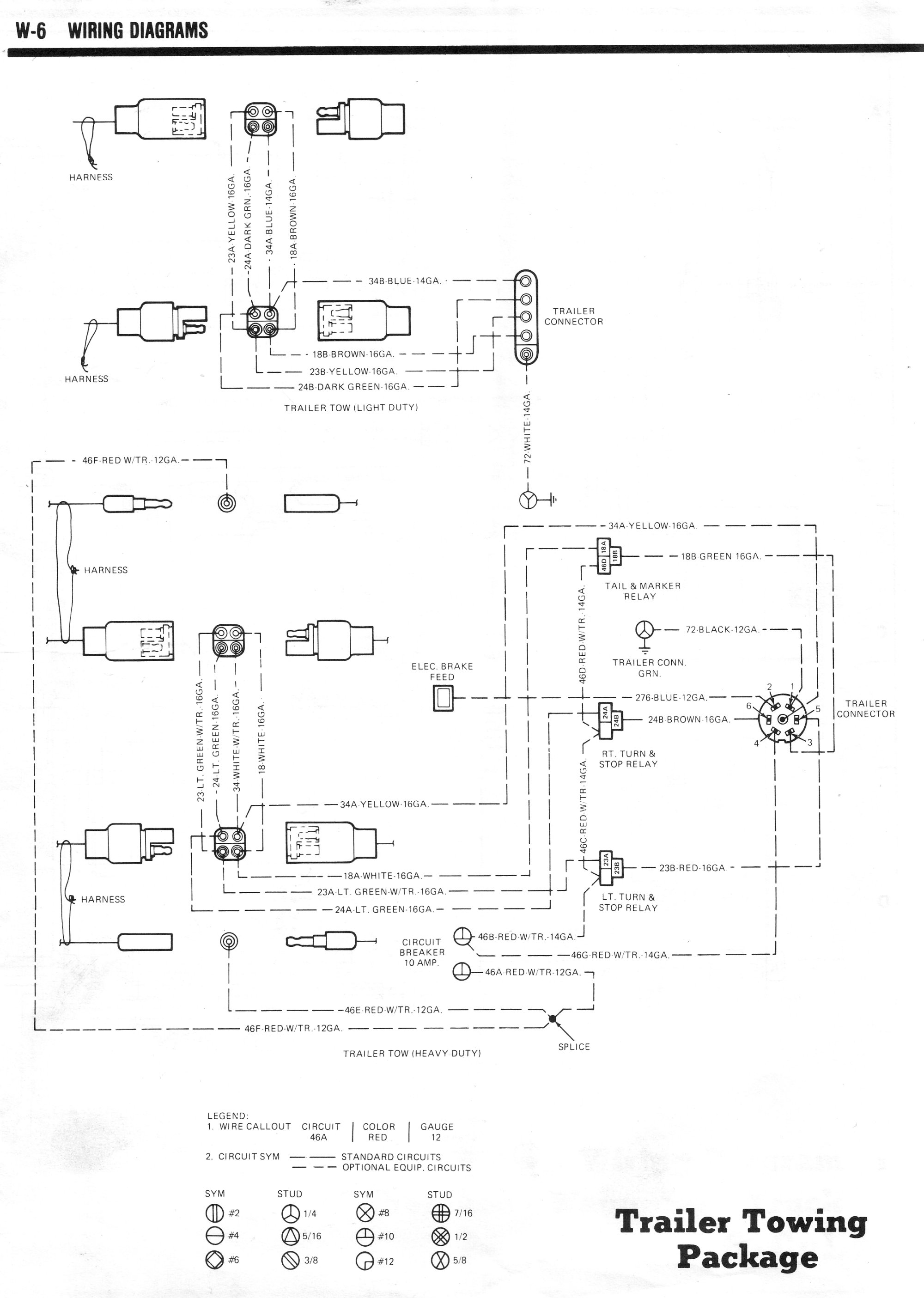

Cherokee/Wagoneer/J10 - Trailer Towing Package

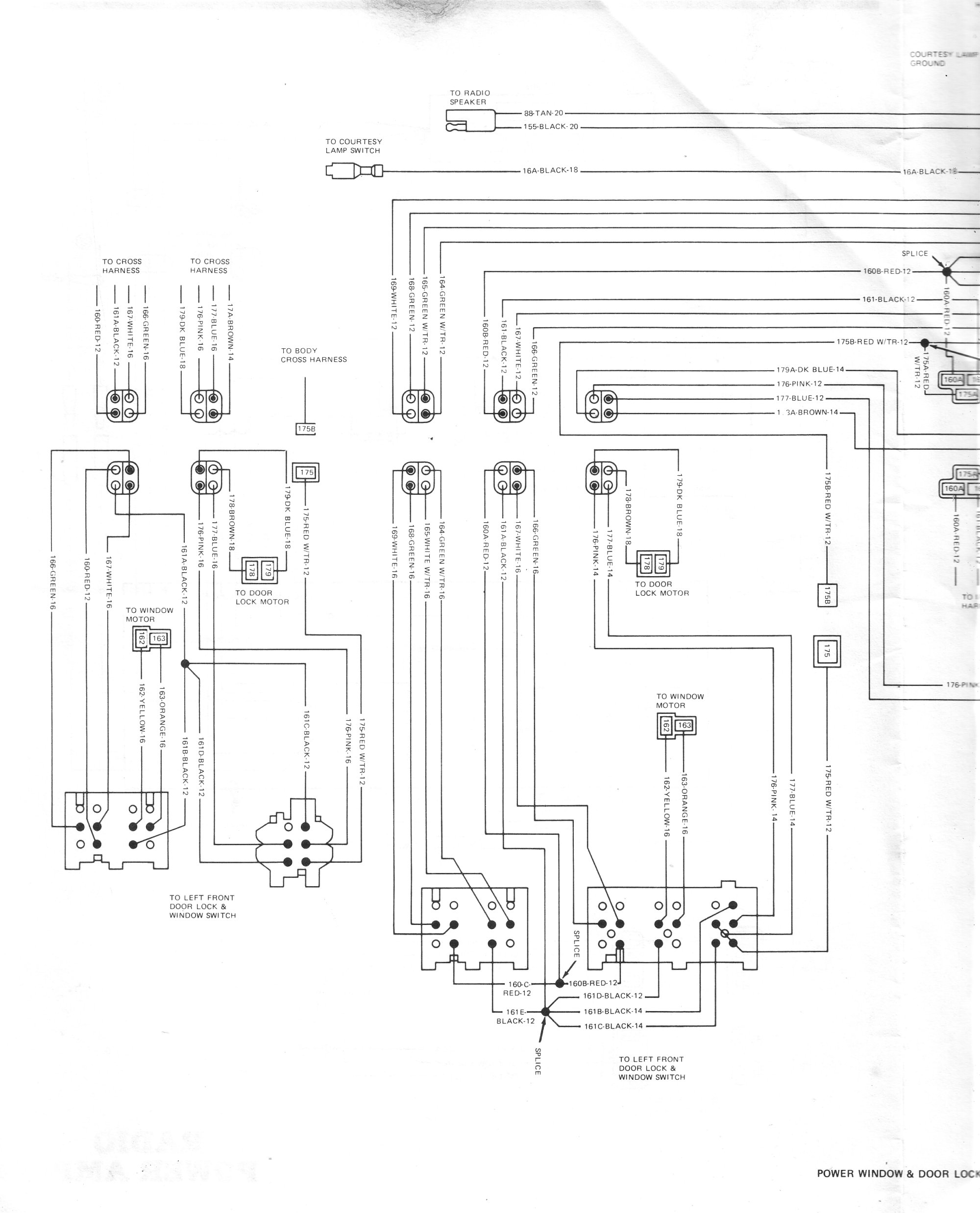

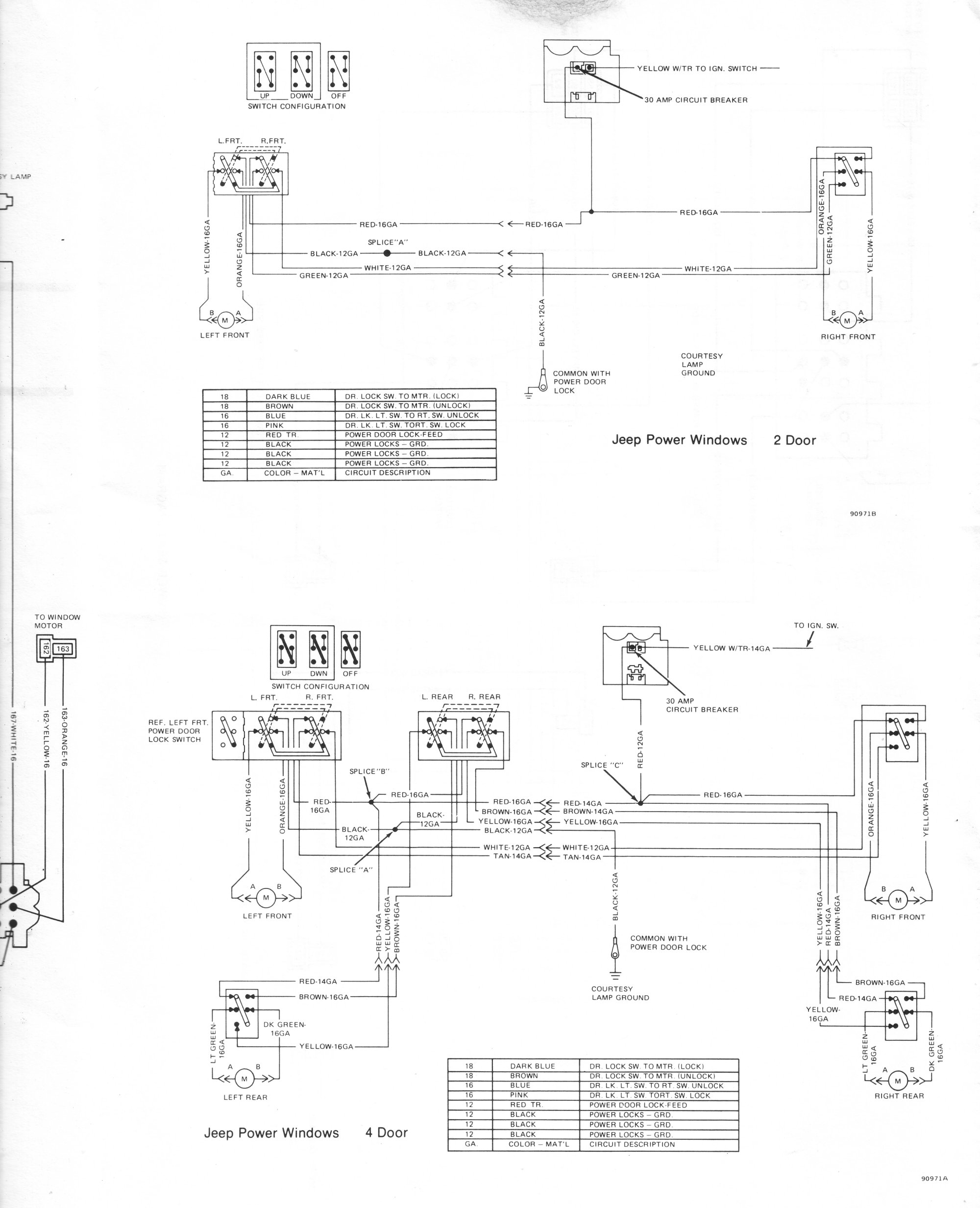

Cherokee/Wagoneer - Electric Windows & Doors - Page 1

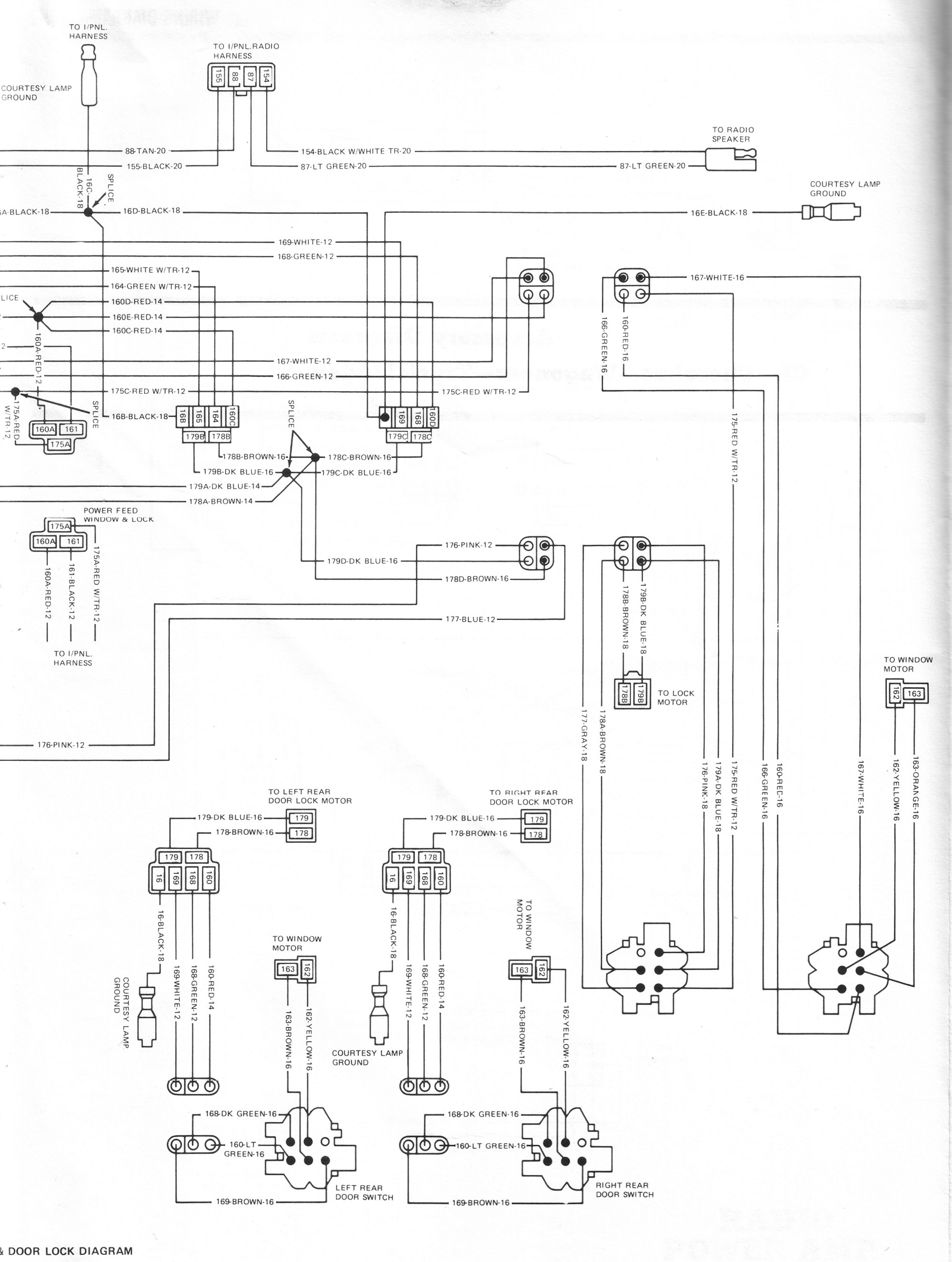

Cherokee/Wagoneer - Electric Windows & Doors - Page 2
Cherokee/Wagoneer - Electric Windows & Doors - Page 3

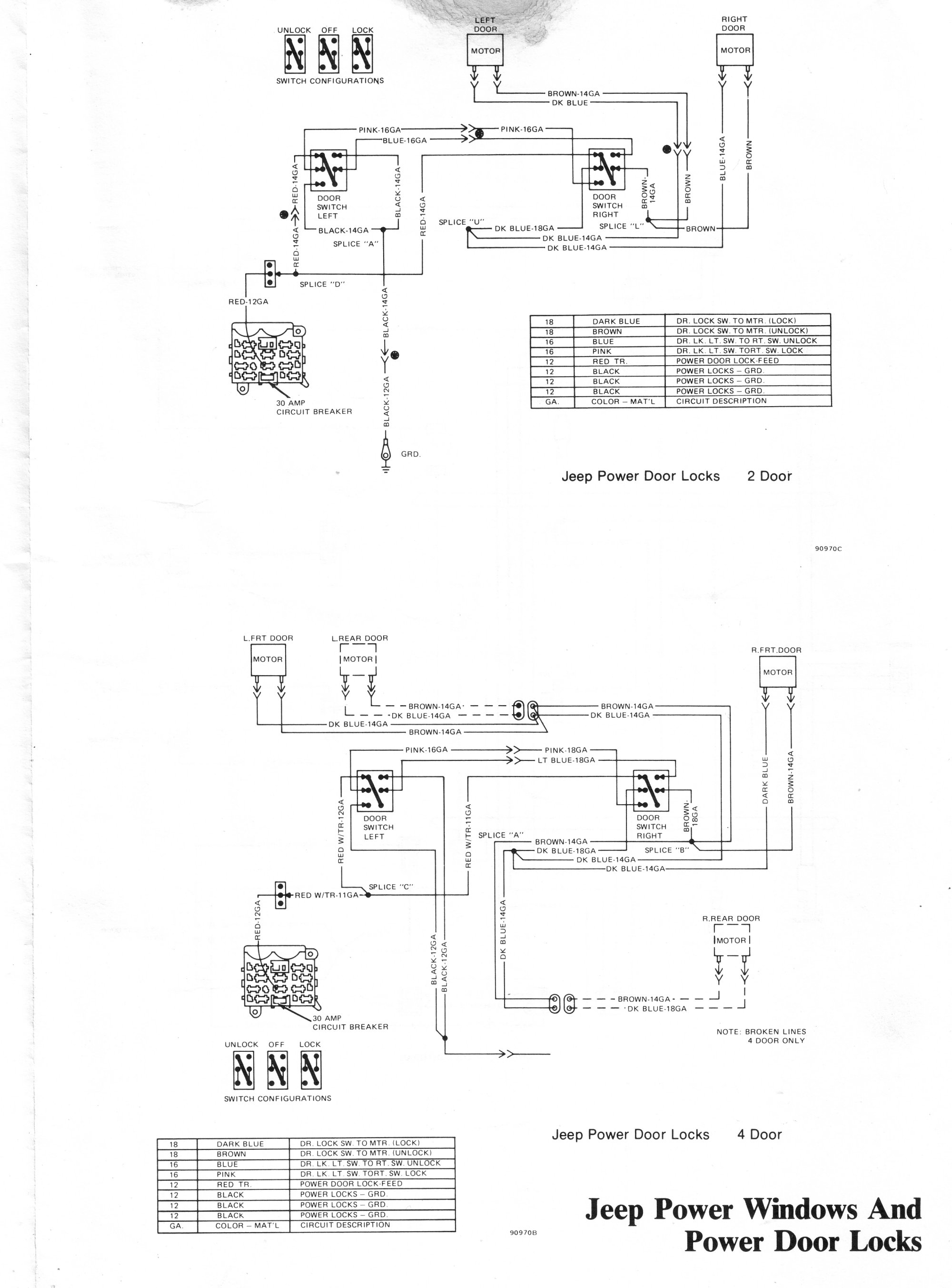

Cherokee/Wagoneer - Electric Windows & Doors - Page 4
1980 Electrical Diagrams- Complete set in 1 WinZip File (approx 6Meg)

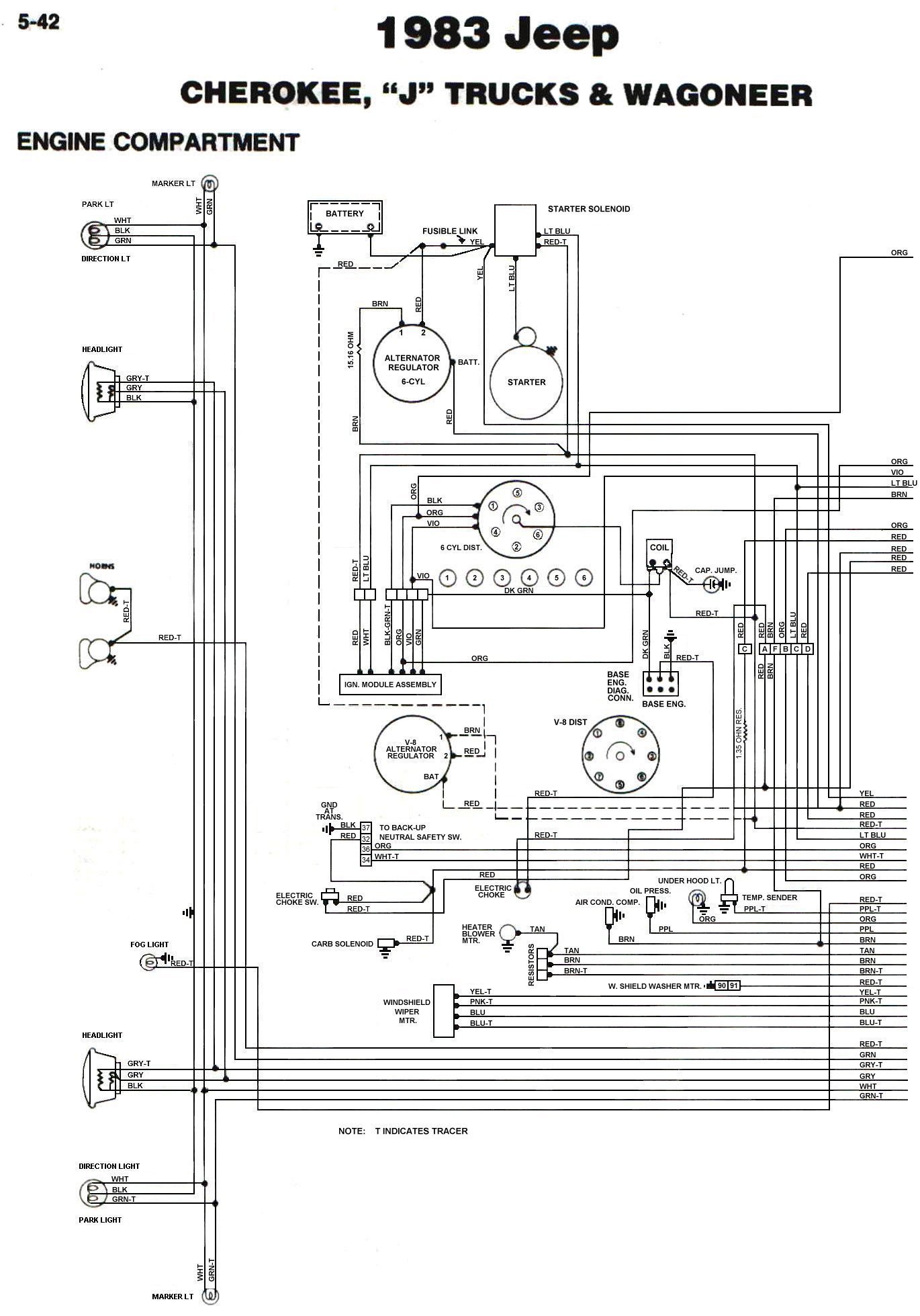

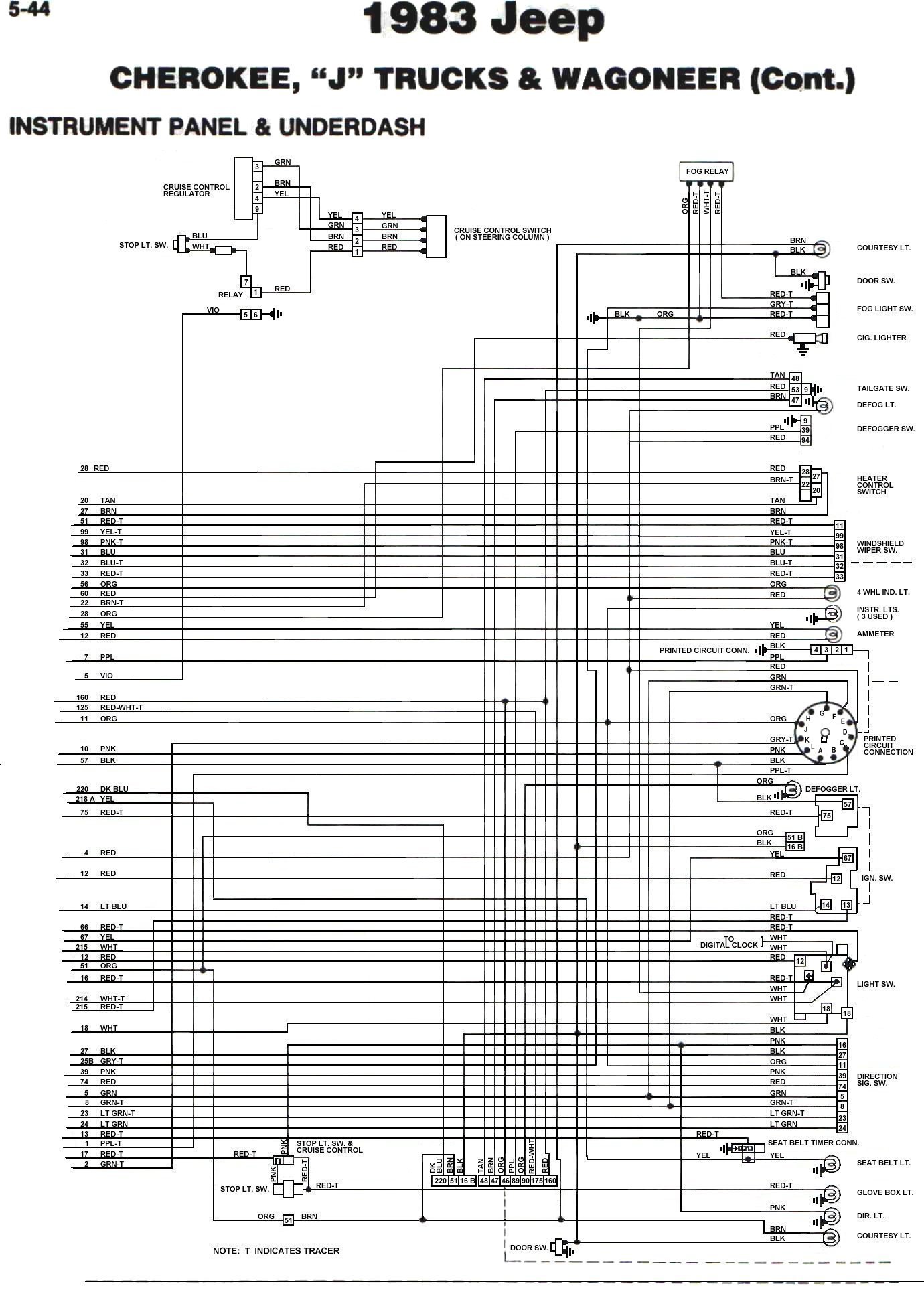

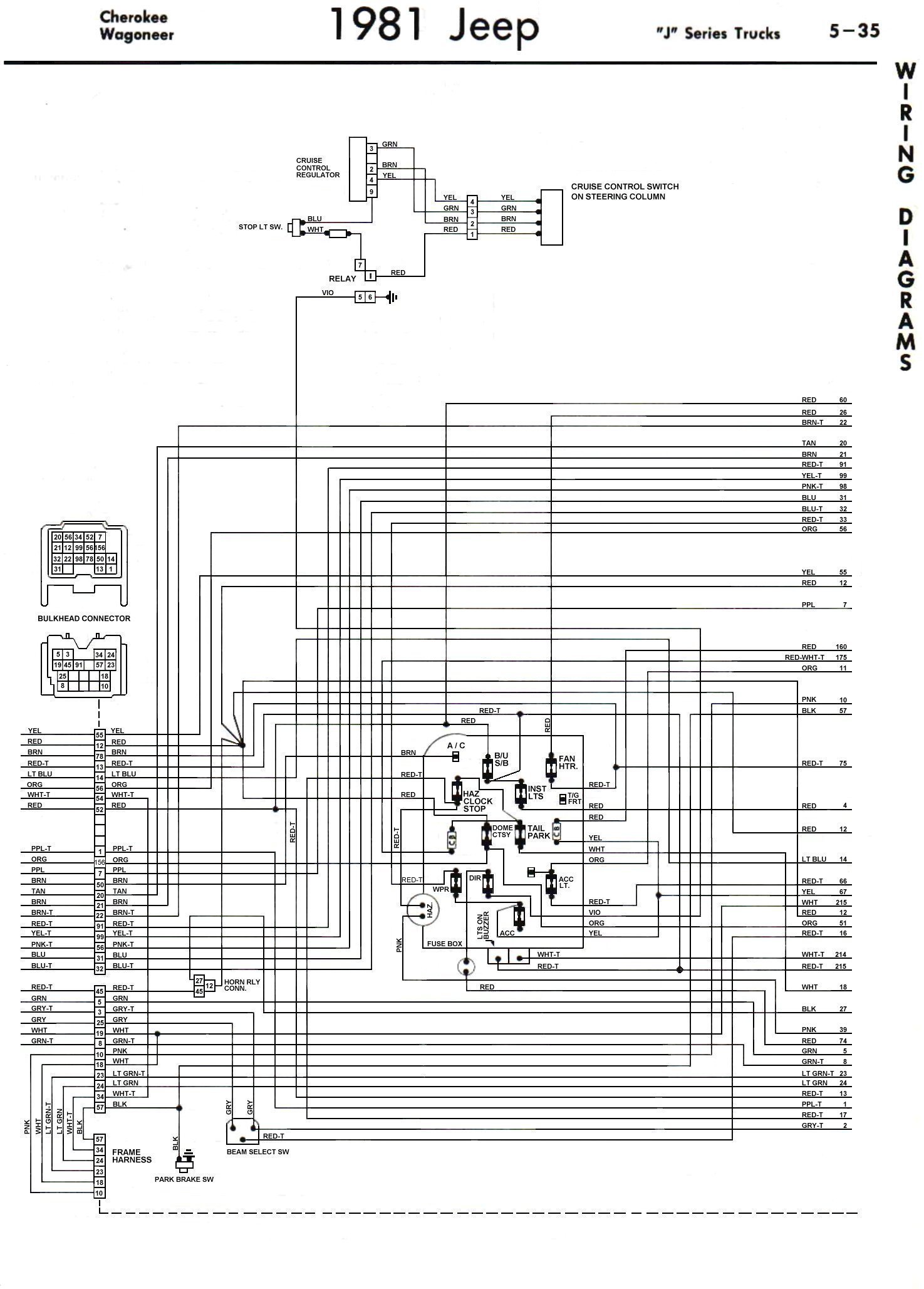

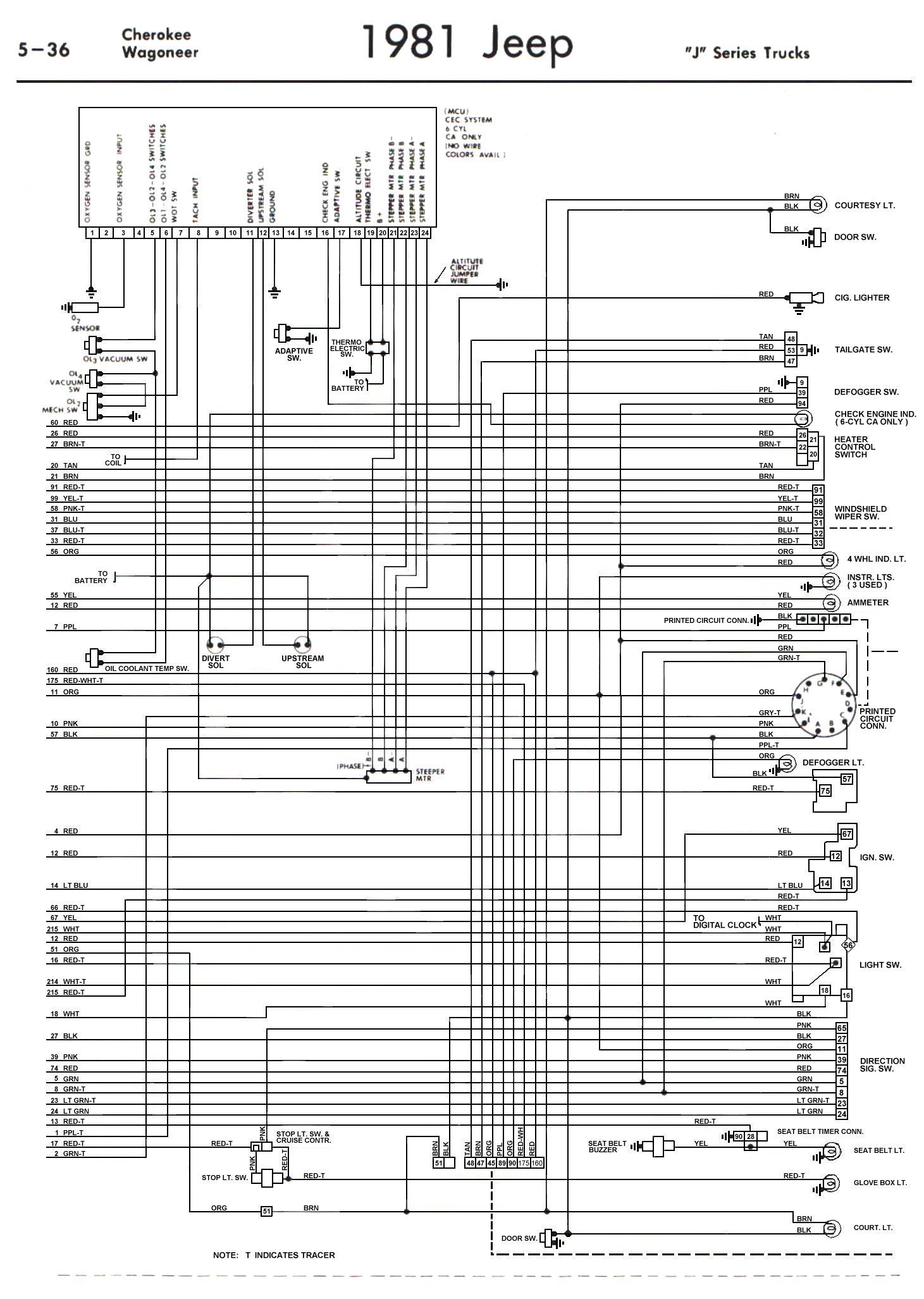

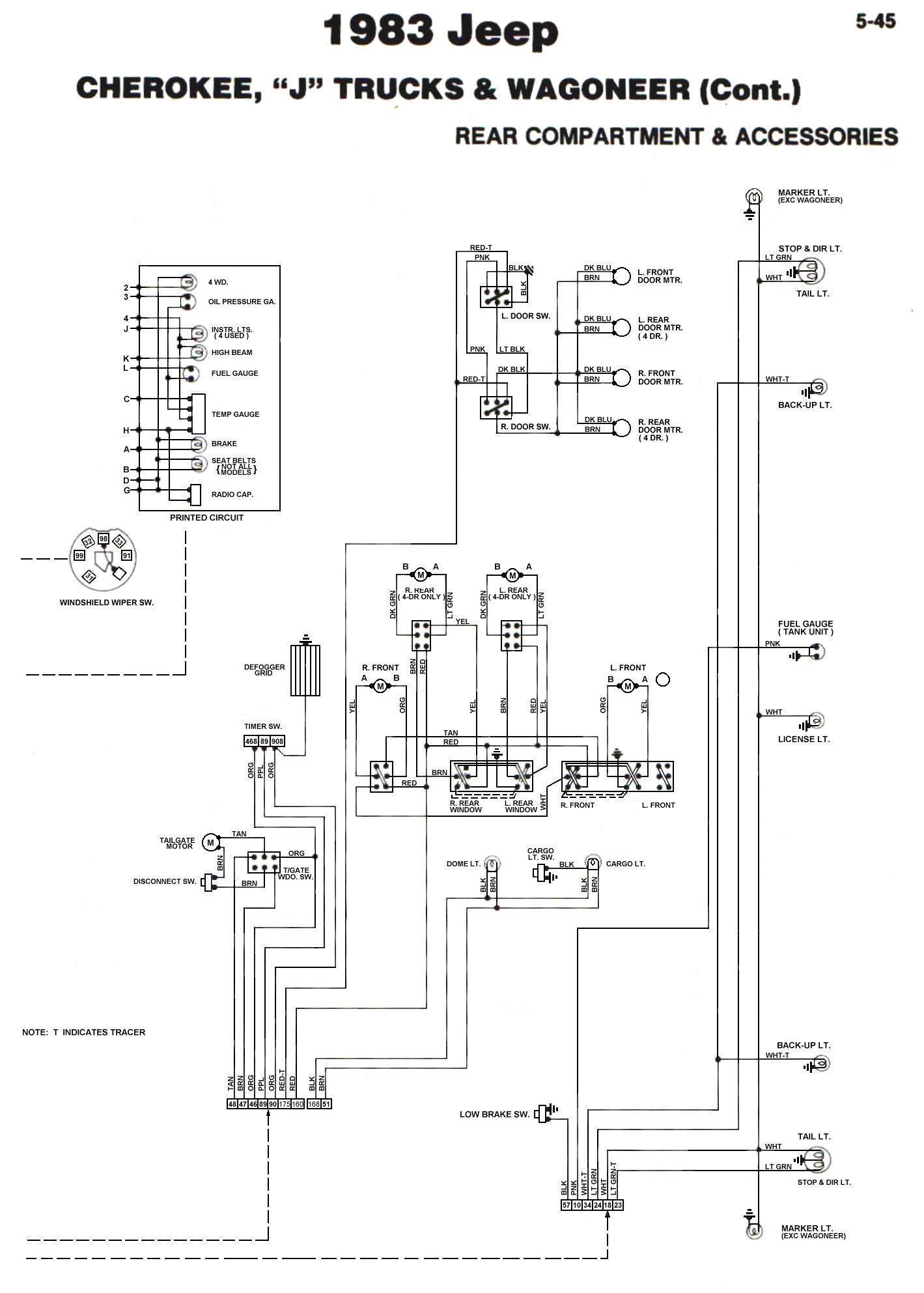

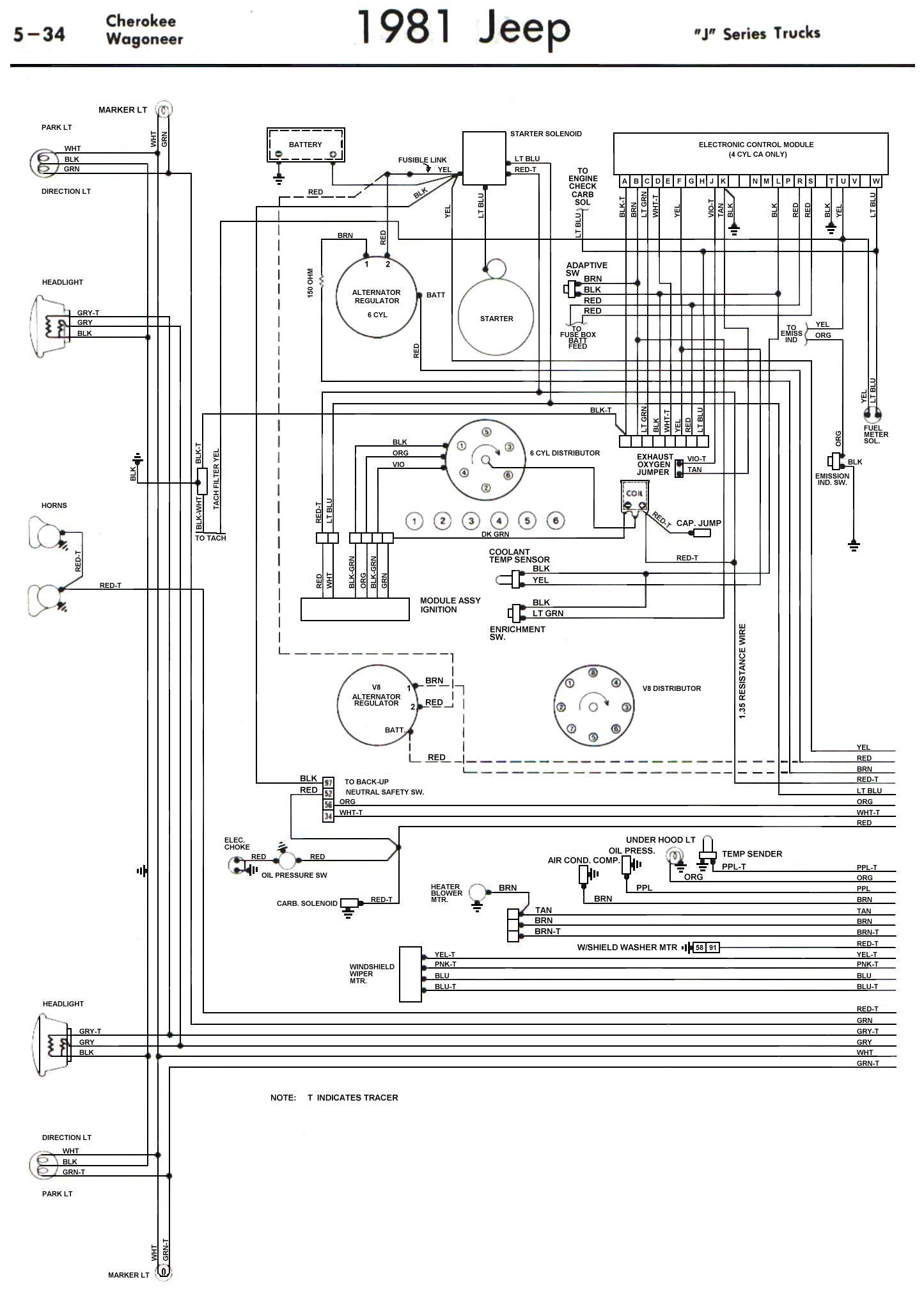

1984/1985 J Truck & Grand Wagoneer Factory wiring diagram
Note: These diagrams are scanned from the 11" x 5' or so long & split into overlapping diagrams so they can be printed & pasted together.

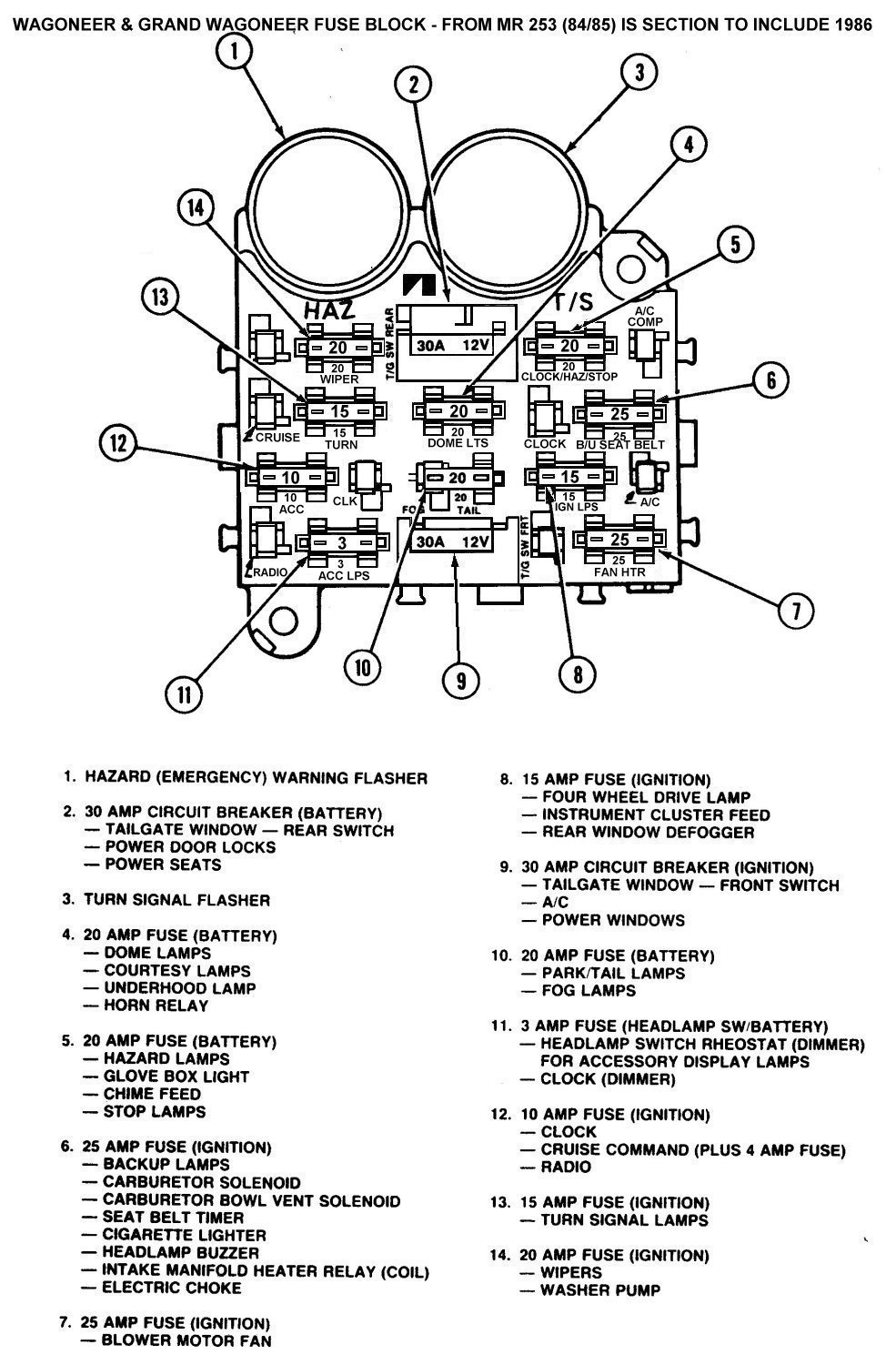

1984-1986 Fuse Block 1984-1986 Fuse Block
Tailgate Window Defogger Tailgate Window Defroster

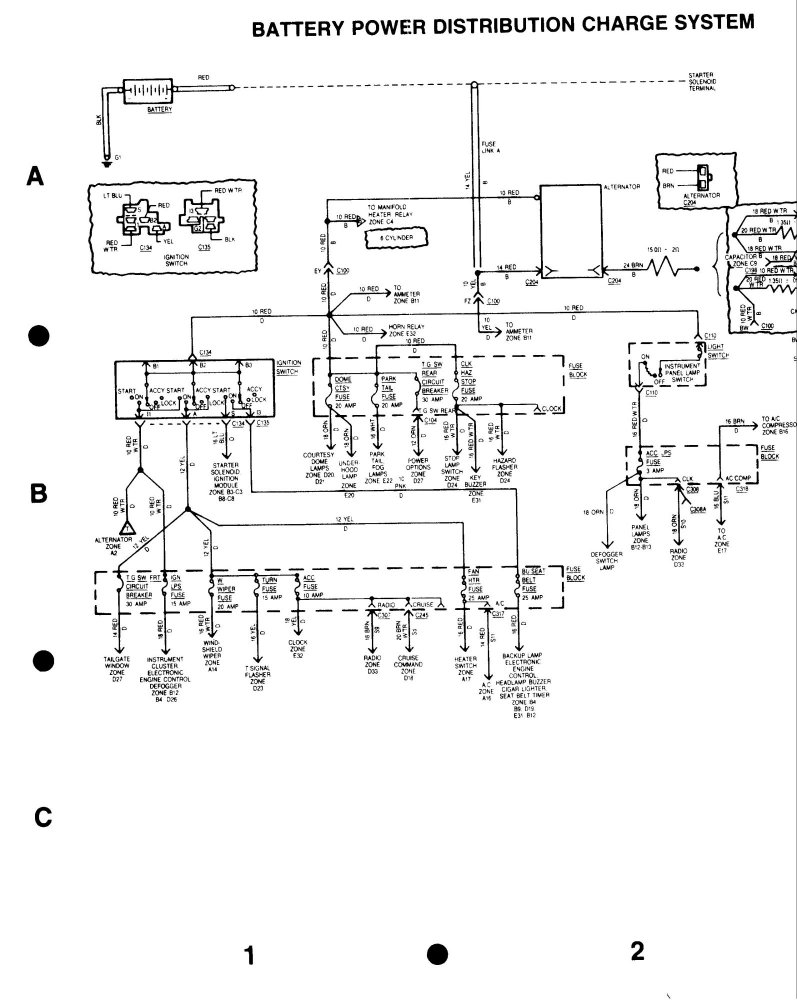

84_85_FSJ_WiringDiagramPage1 Battery Power Distribution-Charge System

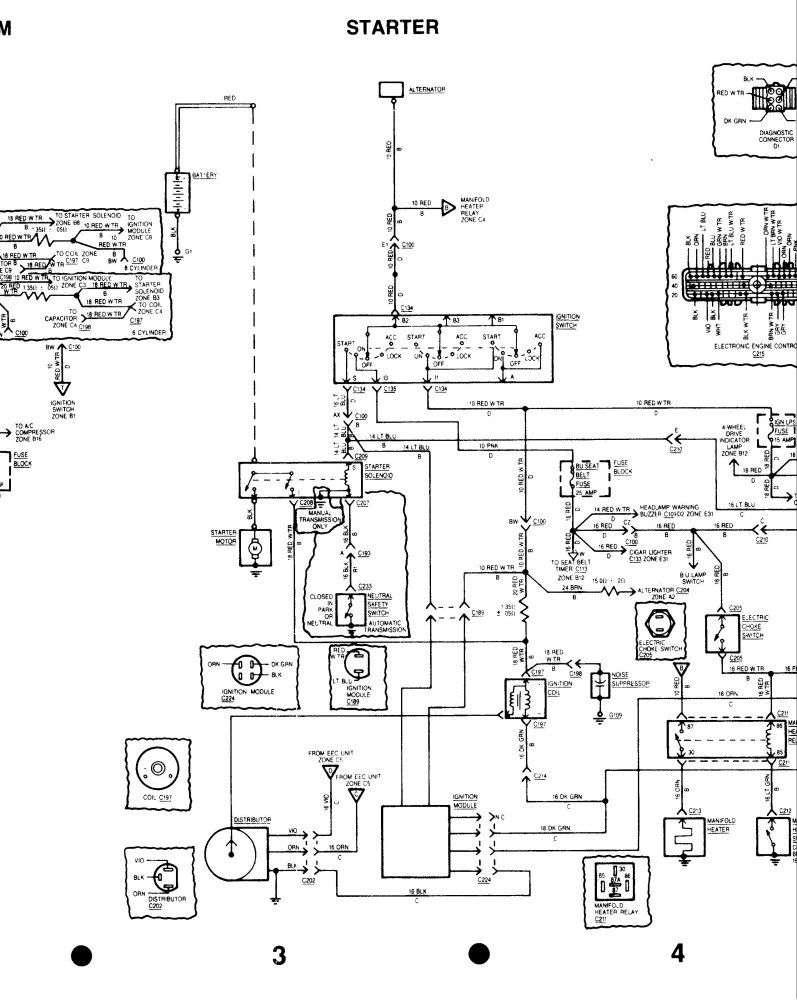

84_85_FSJ_WiringDiagramPage2 Starter

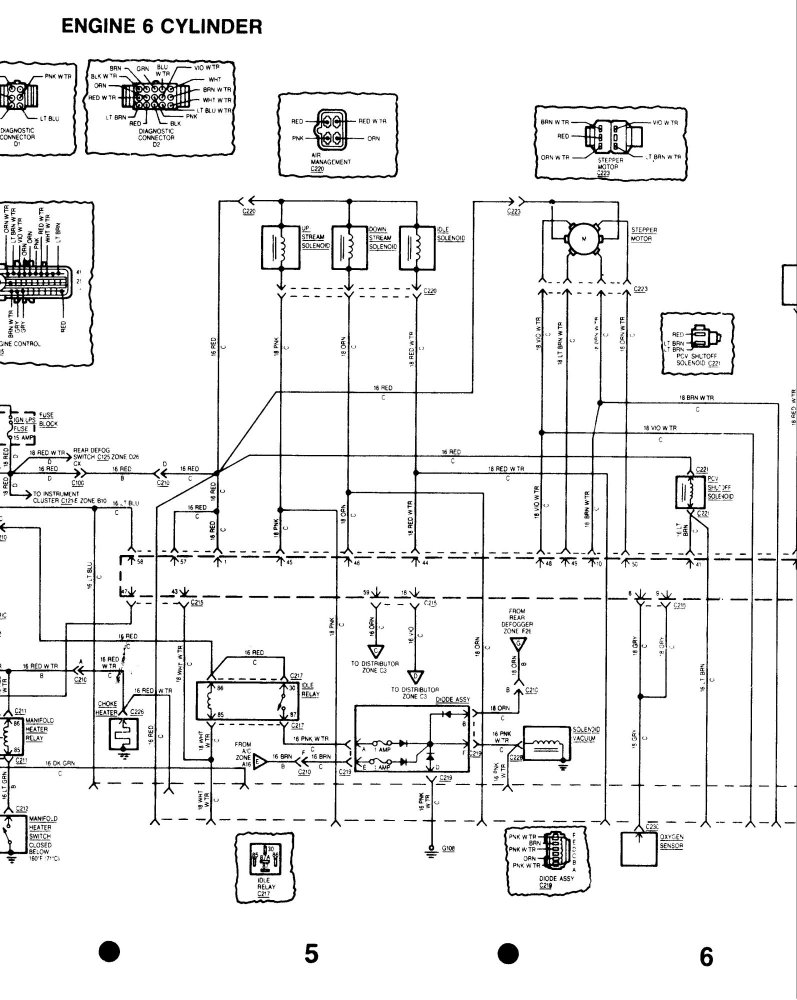

84_85_FSJ_WiringDiagramPage3 Engine 6 Cylinder

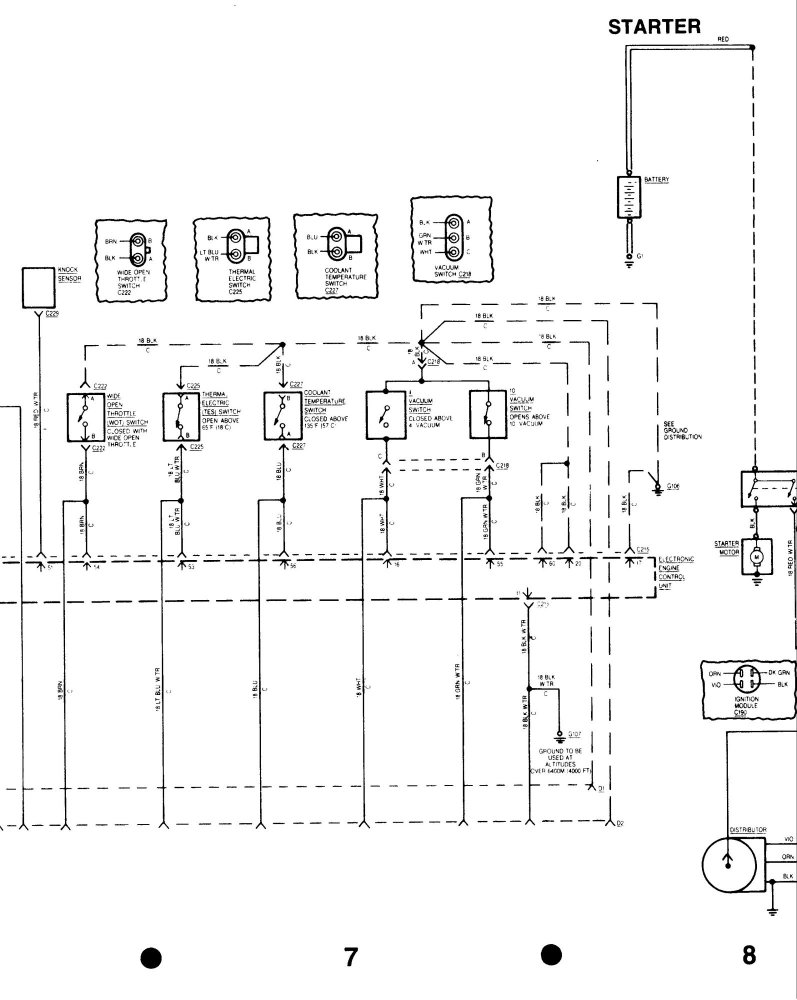

84_85_FSJ_WiringDiagramPage4 Engine 6 cyl cont'd

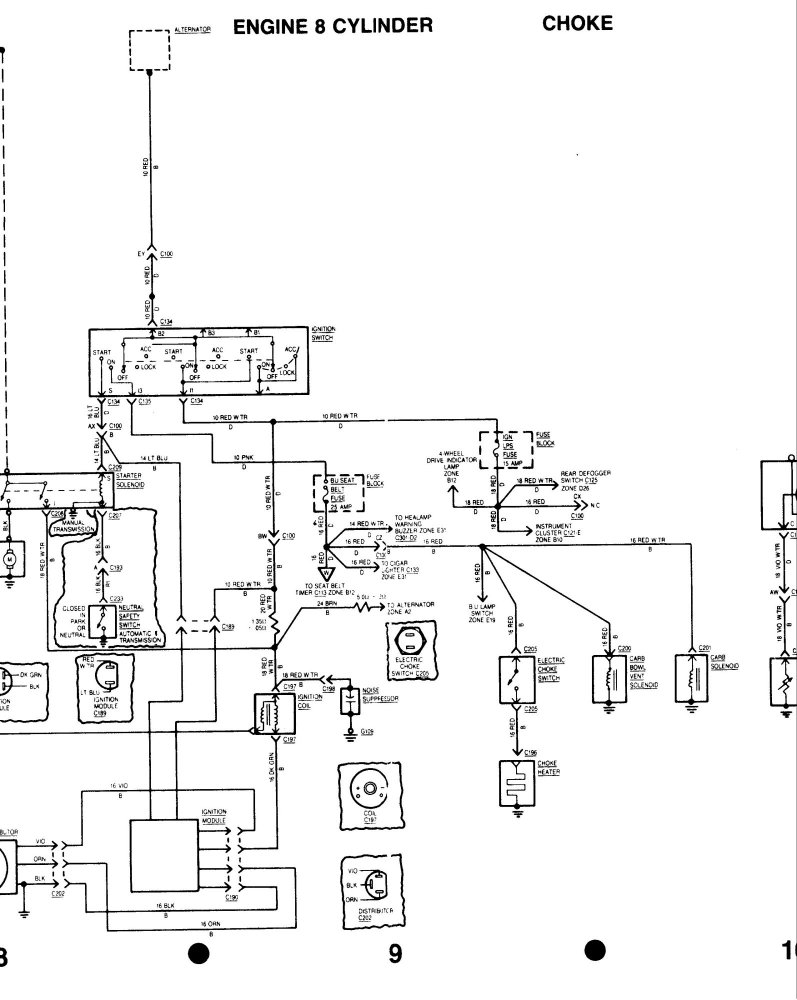

84_85_FSJ_WiringDiagramPage5 Engine 8 Cylinder

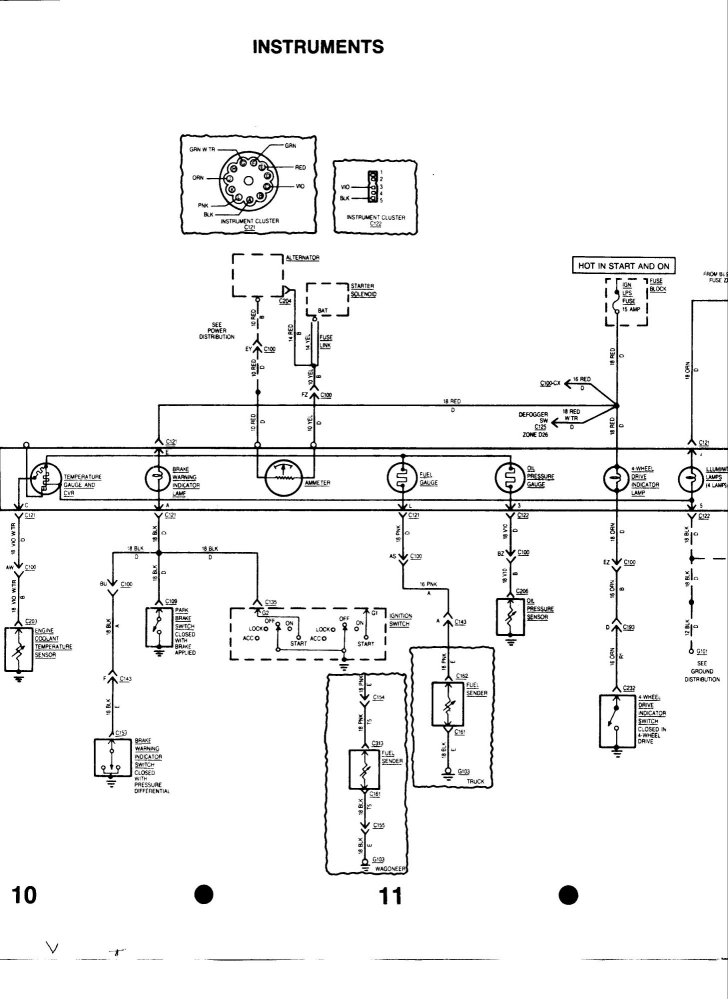

84_85_FSJ_WiringDiagramPage6 Instruments

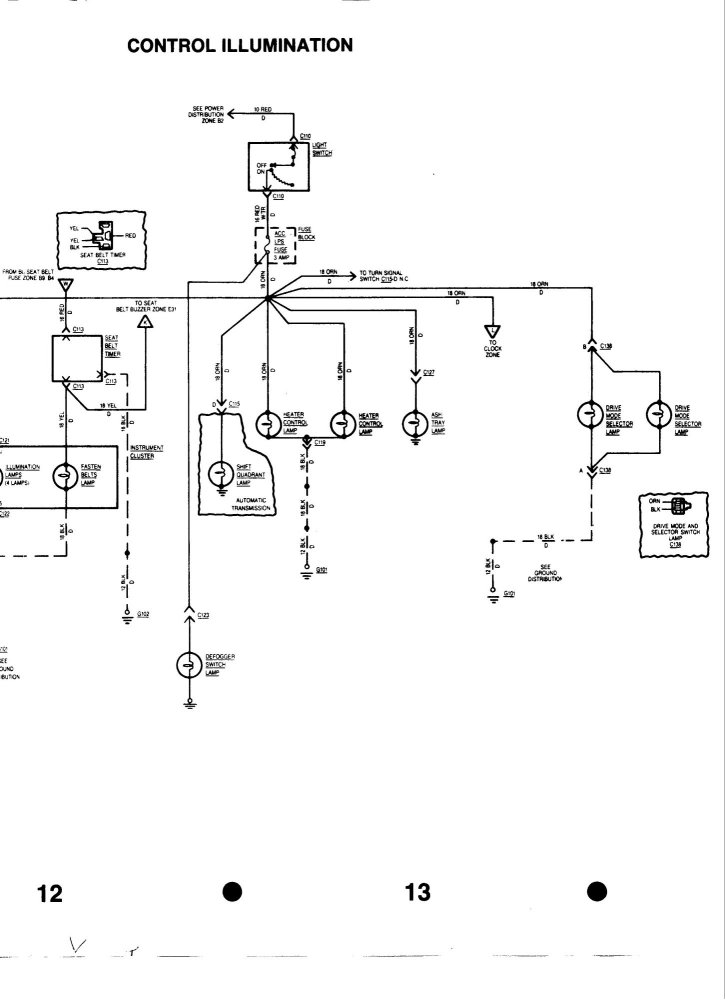

84_85_FSJ_WiringDiagramPage7 Control Illumination

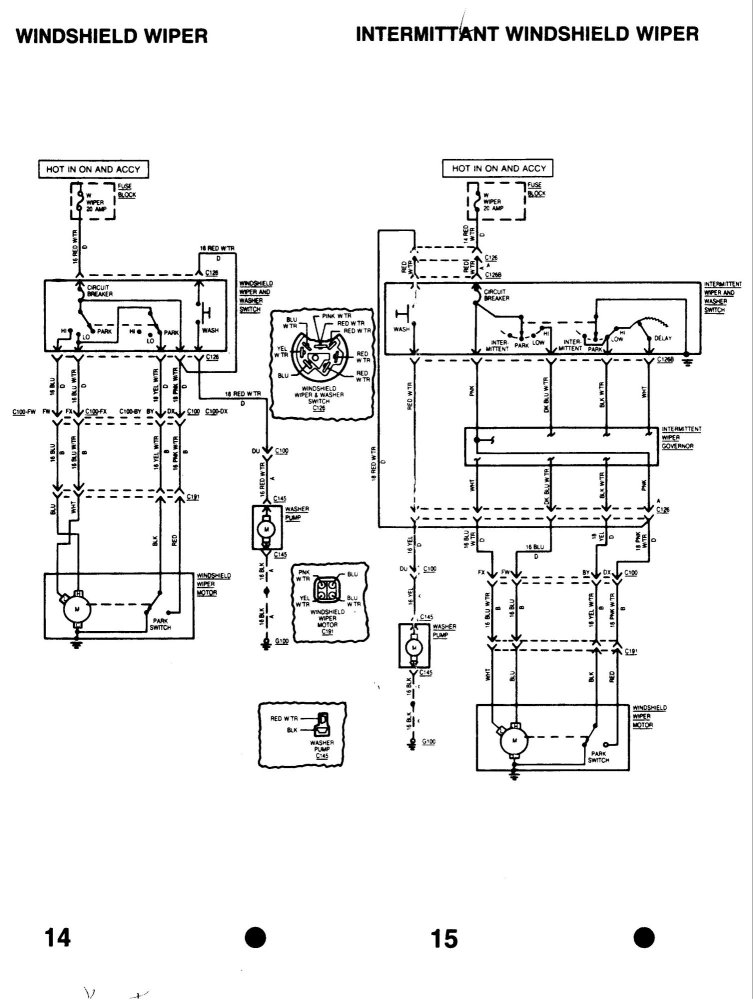

84_85_FSJ_WiringDiagramPage8 Windshield Wiper/Intermittant Winshield Wiper

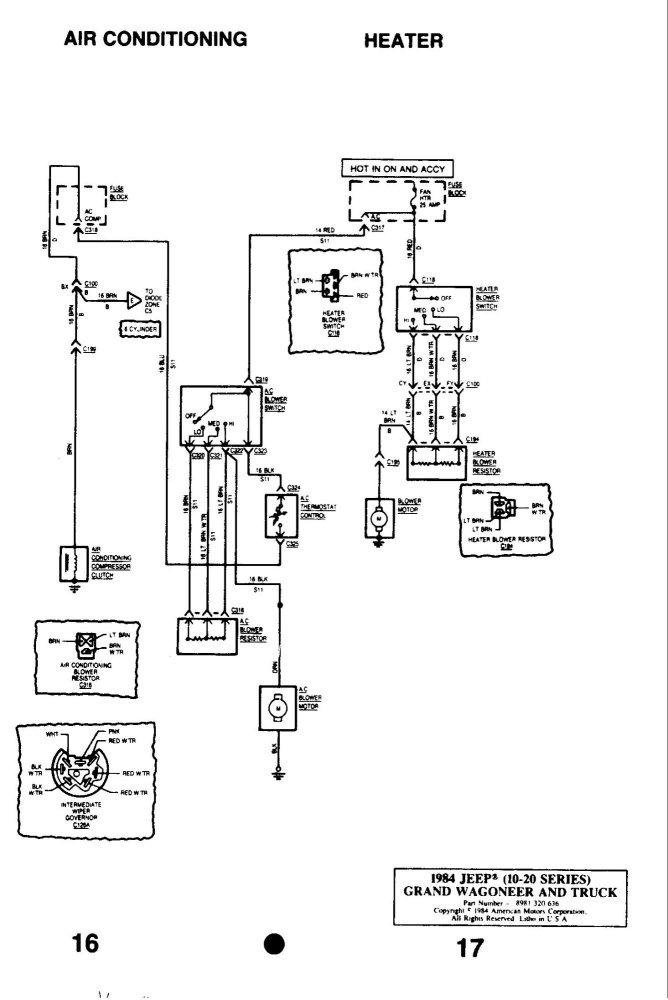

84_85_FSJ_WiringDiagramPage9 Air Conditioning & Heater

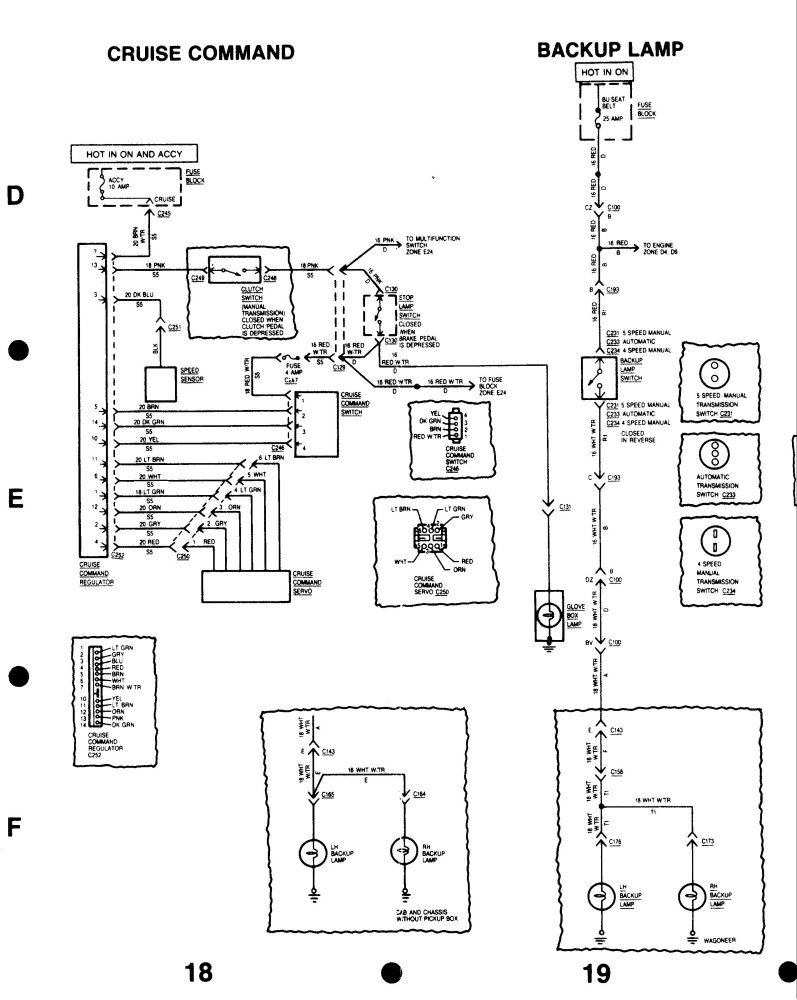

84_85_FSJ_WiringDiagramPage10 Cruise Control/ Back-up Lamp

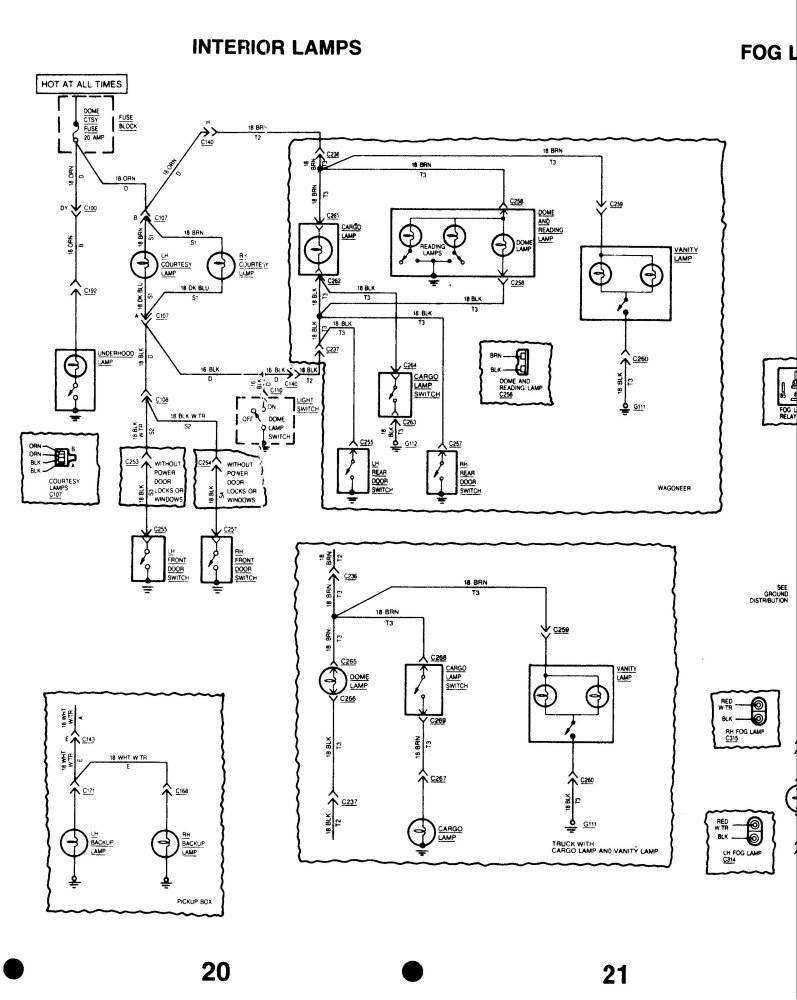

84_85_FSJ_WiringDiagramPage11 Interior Lamps - Start of Fog

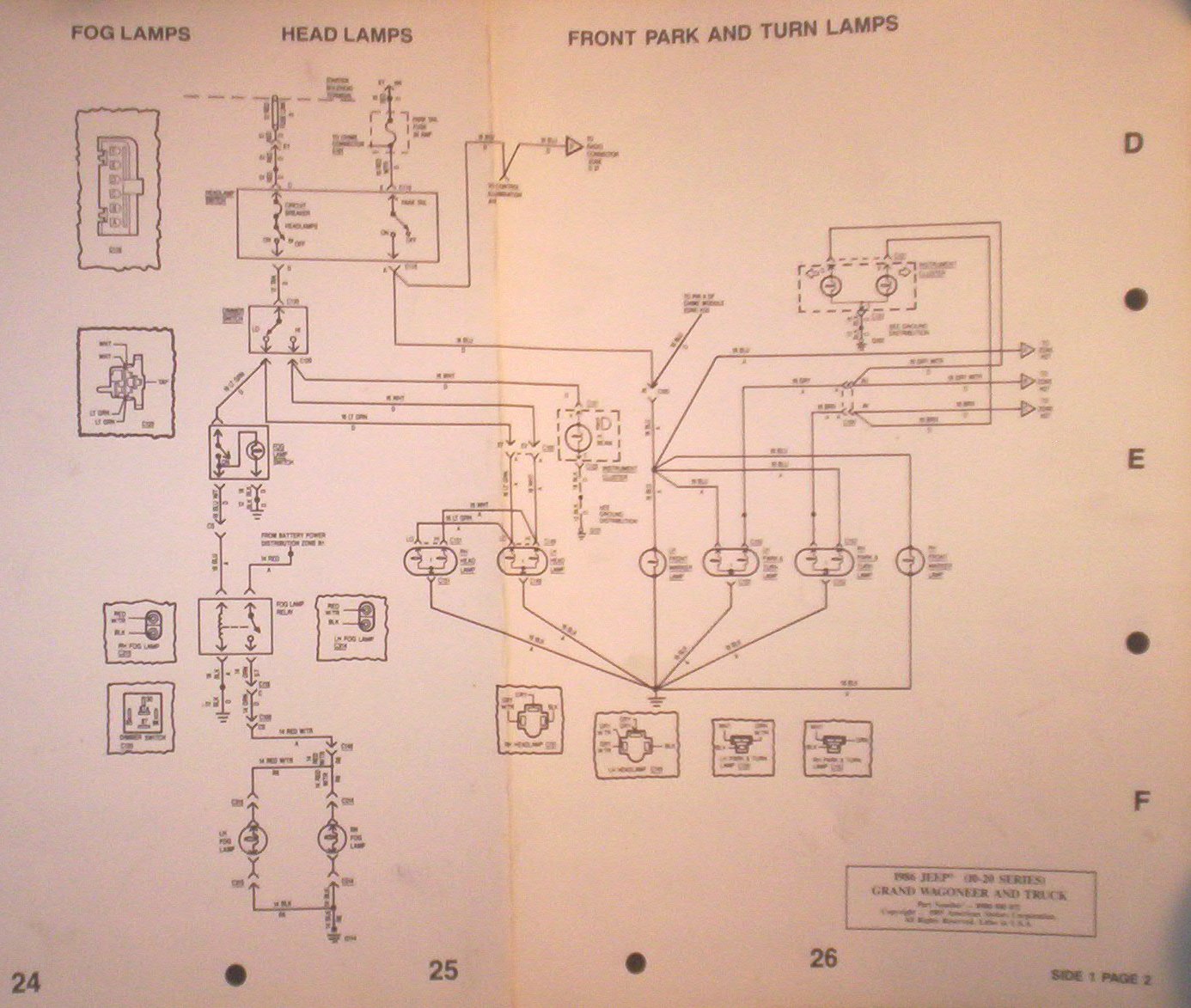

84_85_FSJ_WiringDiagramPage12 Fog / Rear Lamps

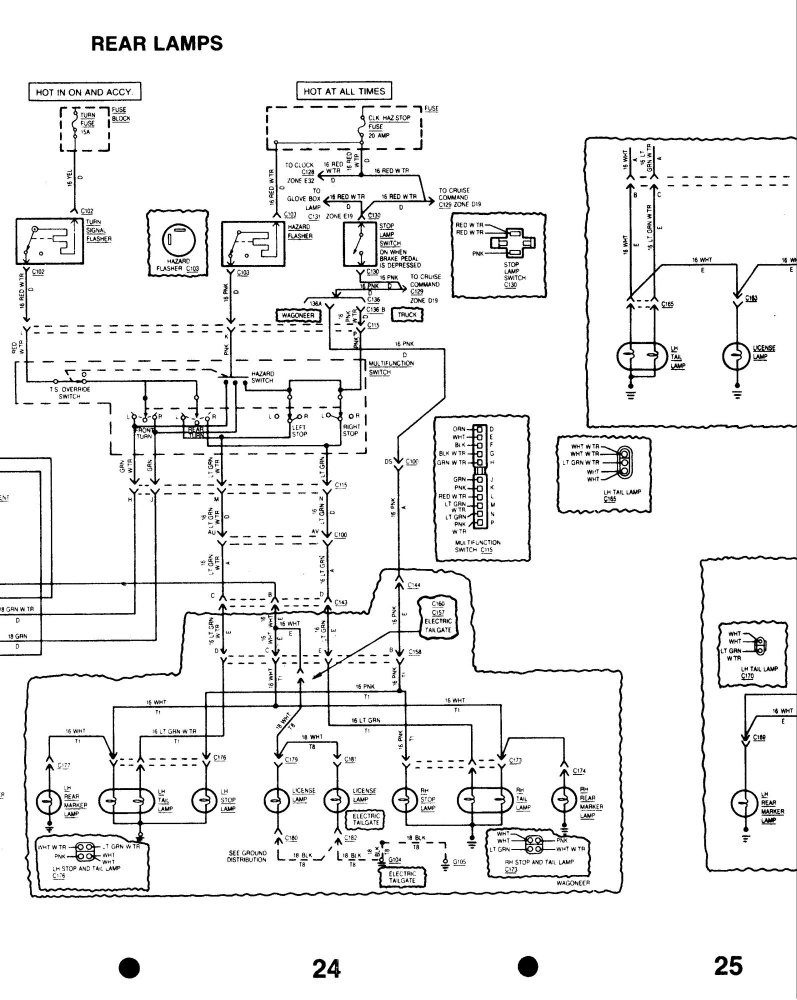

84_85_FSJ_WiringDiagramPage13 Rear Lamps

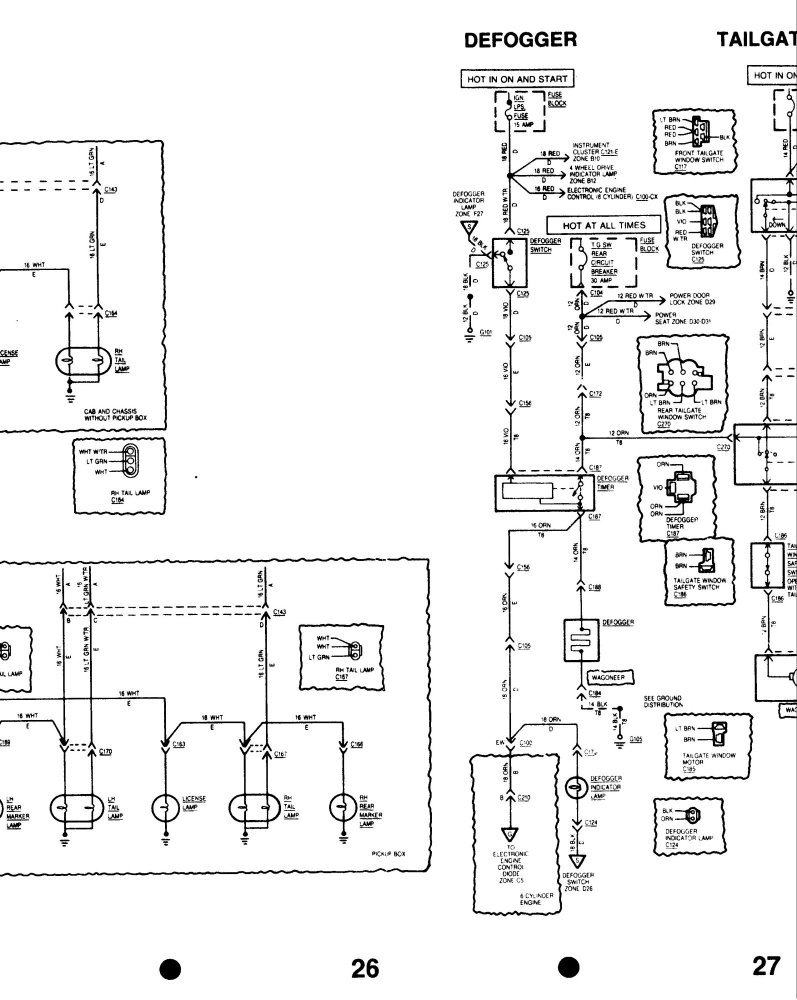

84_85_FSJ_WiringDiagramPage14 Defogger - Start of Tailgate Window

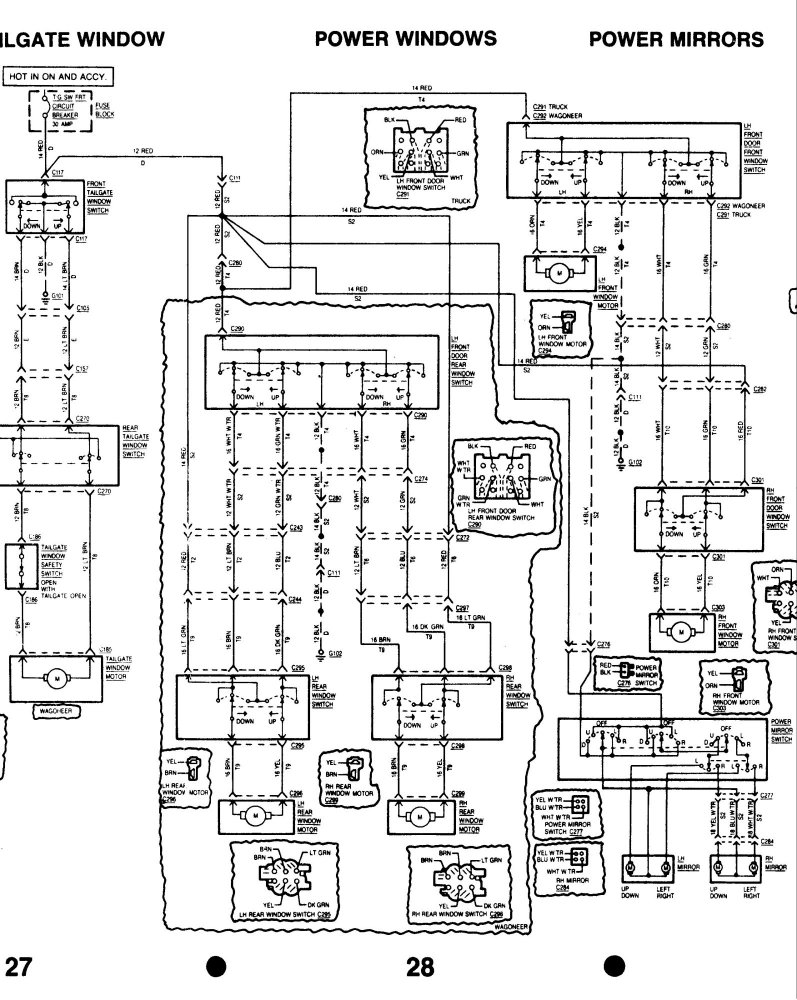

84_85_FSJ_WiringDiagramPage15 Tailgate Window / Power Windows / Power Mirrors

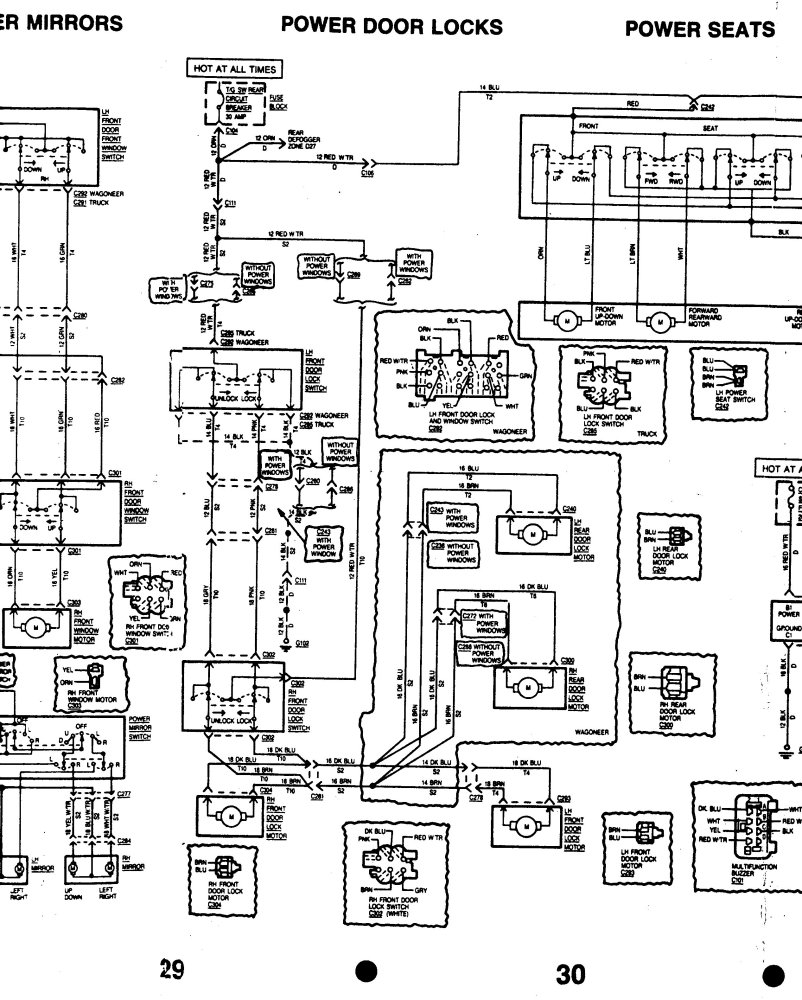

84_85_FSJ_WiringDiagramPage16 Power Windows / Power Door Locks

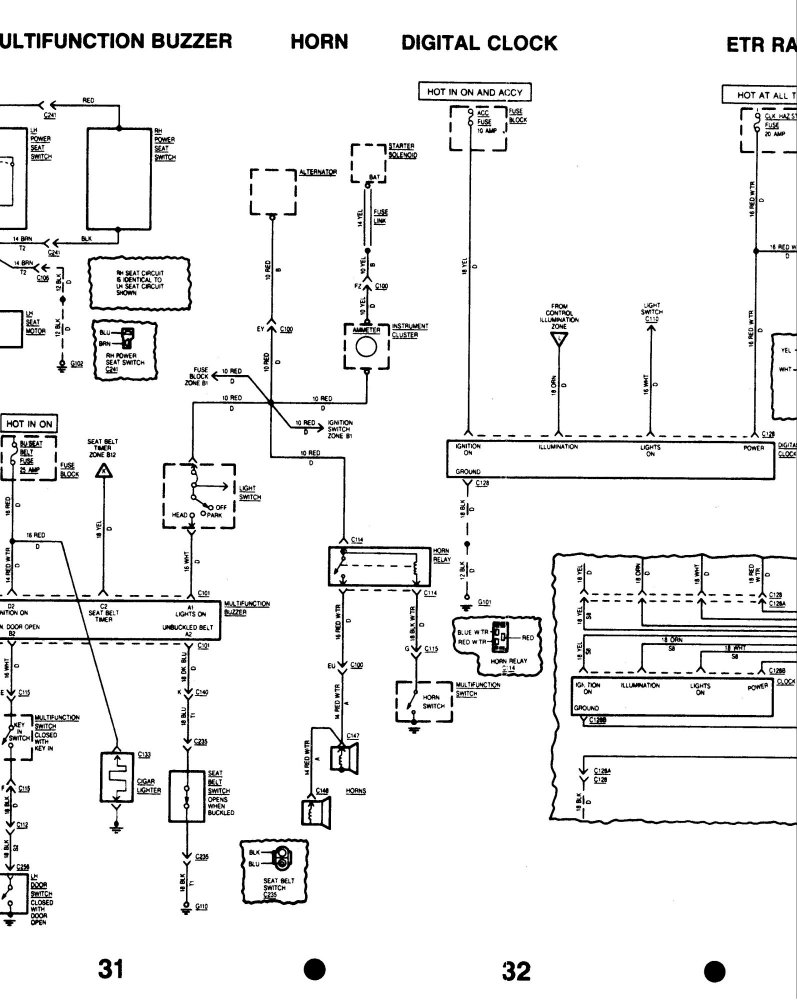

84_85_FSJ_WiringDiagramPage17 Multi-Function Buzzer / Horn / Digital Clock / ETR Radio

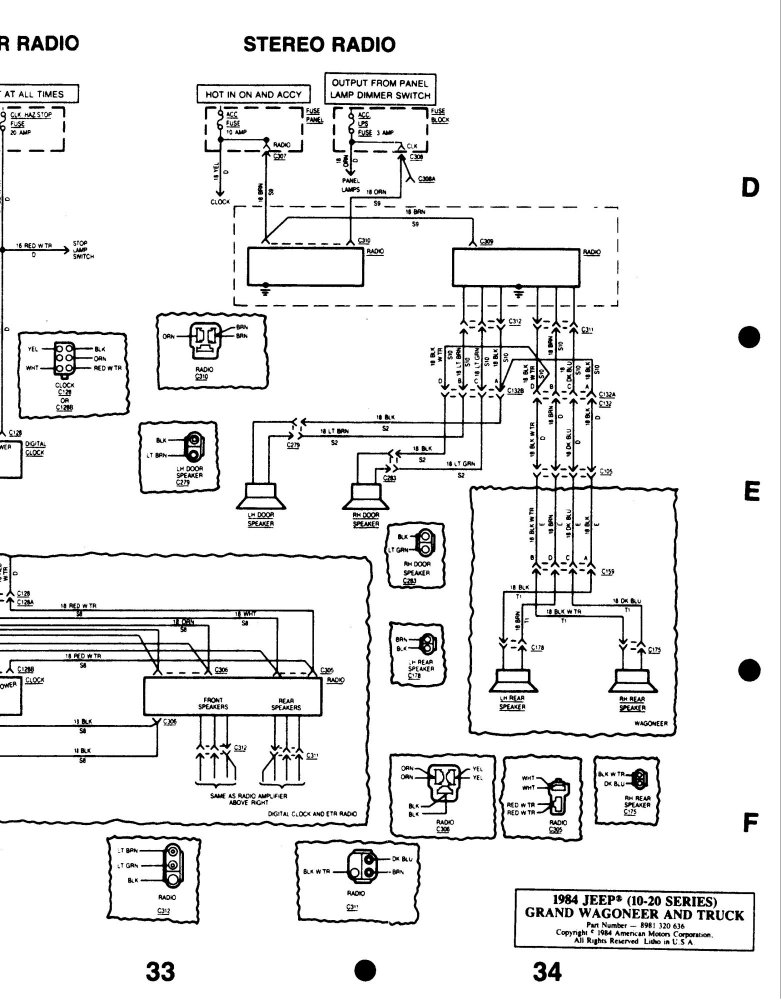

84_85_FSJ_WiringDiagramPage18 ETR Radio / Stereo Radio
84_85-FSJ-WiringDiagram.zip Complete set in 1 WinZip File (approx 2 Meg)

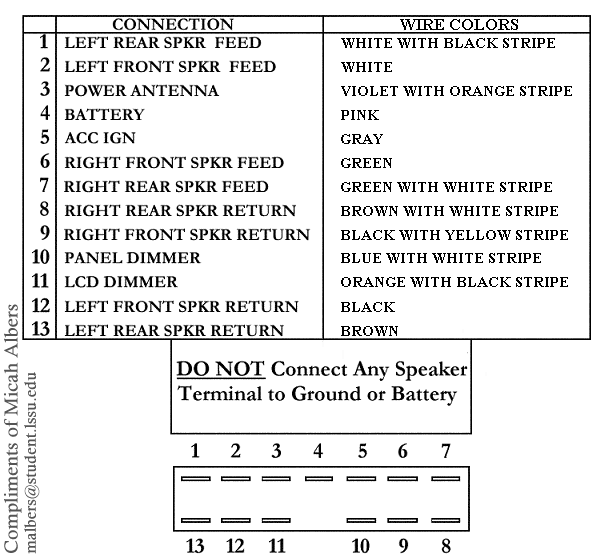

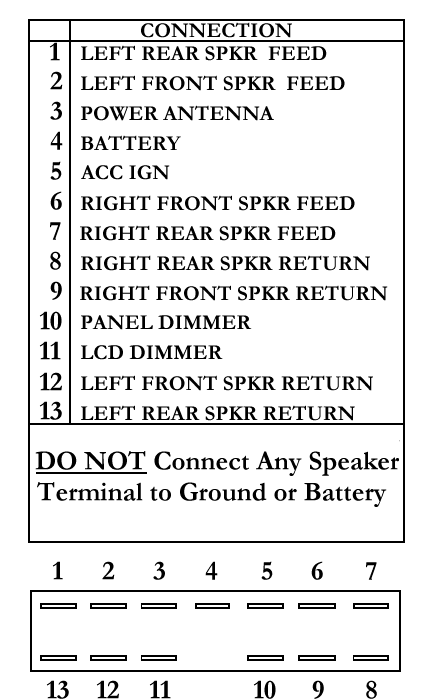

1986 & Newer Radio Connector Layout
1986 & Newer Radio Connector - SJ
1986 & Newer Radio Connector - Cherokee

1986 J Truck & Grand Wagoneer Factory wiring diagram
Note: These diagrams are scanned from the 11" x 5' or so long & split into overlapping diagrams so they can be printed & pasted together.

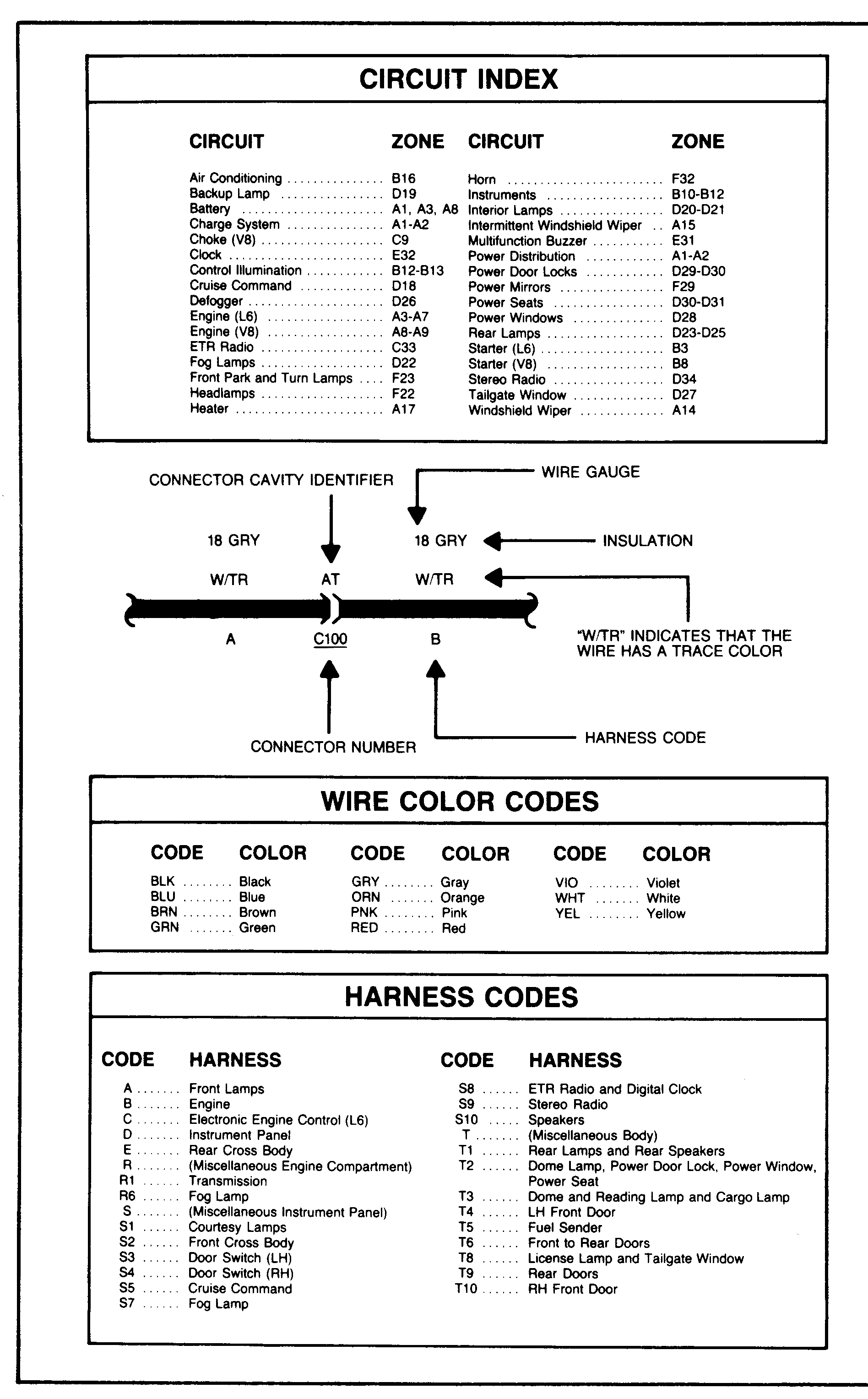

86_FSJ_WiringDiagramPage1-1 Circuit Index

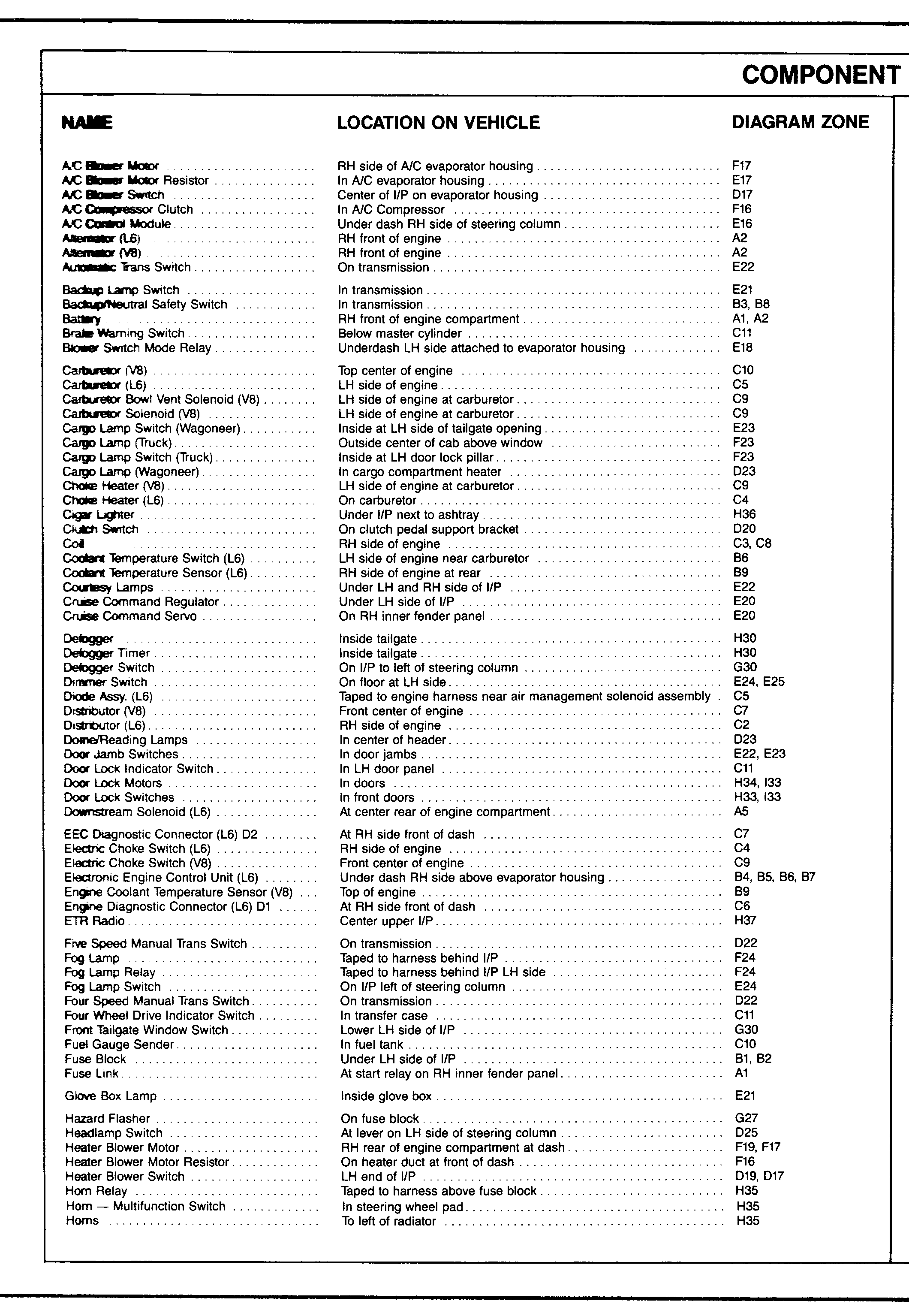

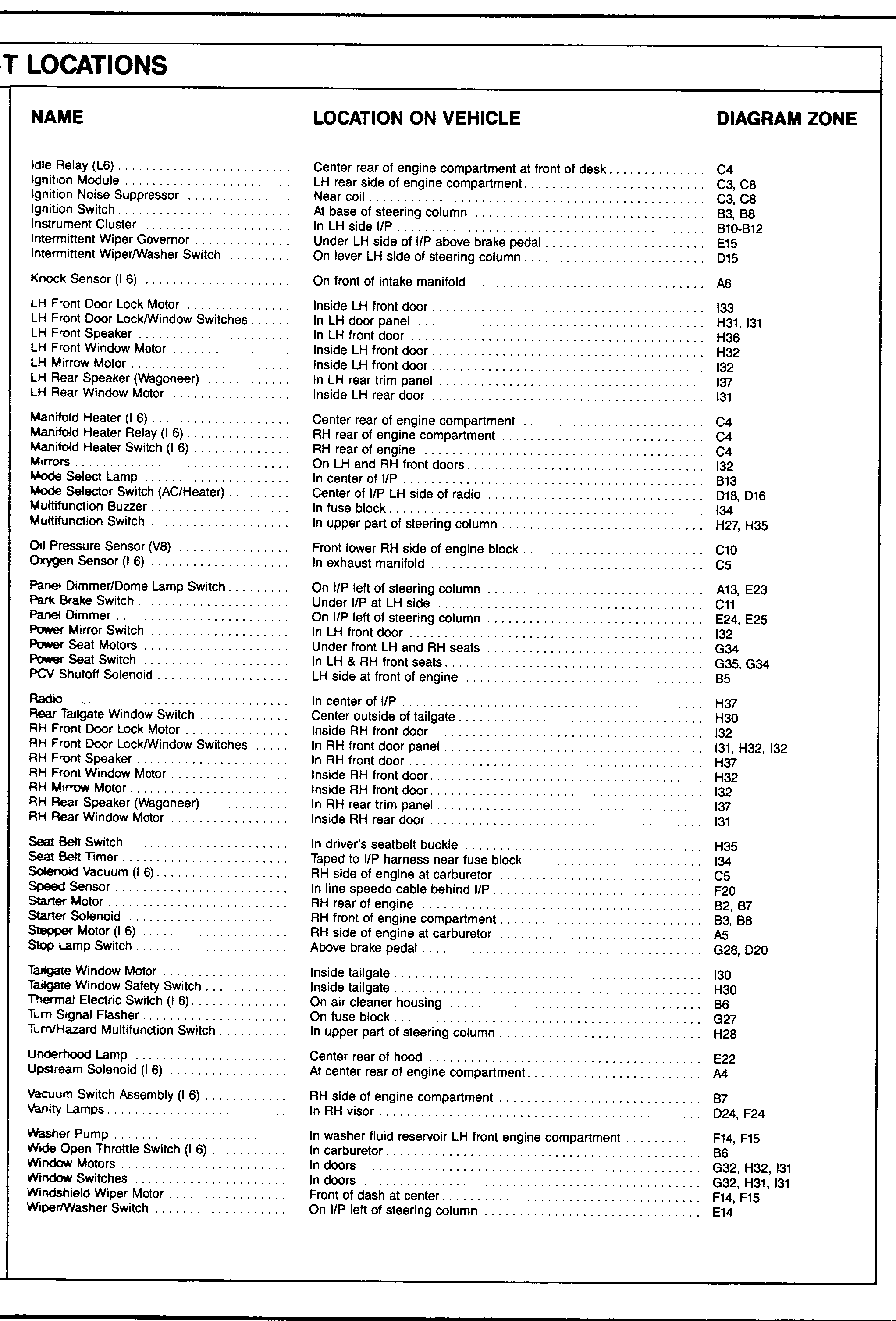

86_FSJ_WiringDiagramPage1-2 Component Locations
86_FSJ_WiringDiagramPage1-3 Component Locations Cont'd

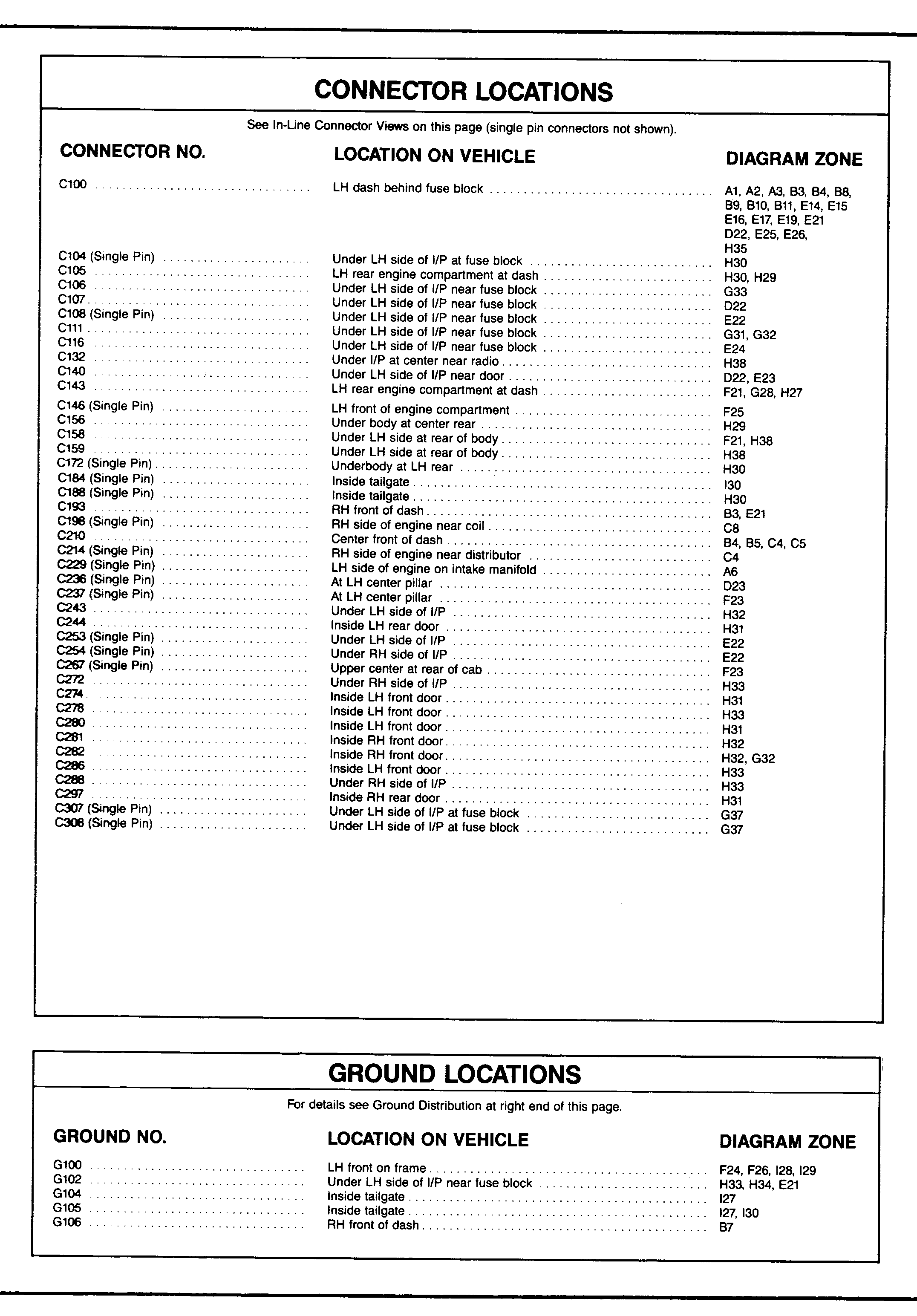

86_FSJ_WiringDiagramPage1-4 Connector Locations

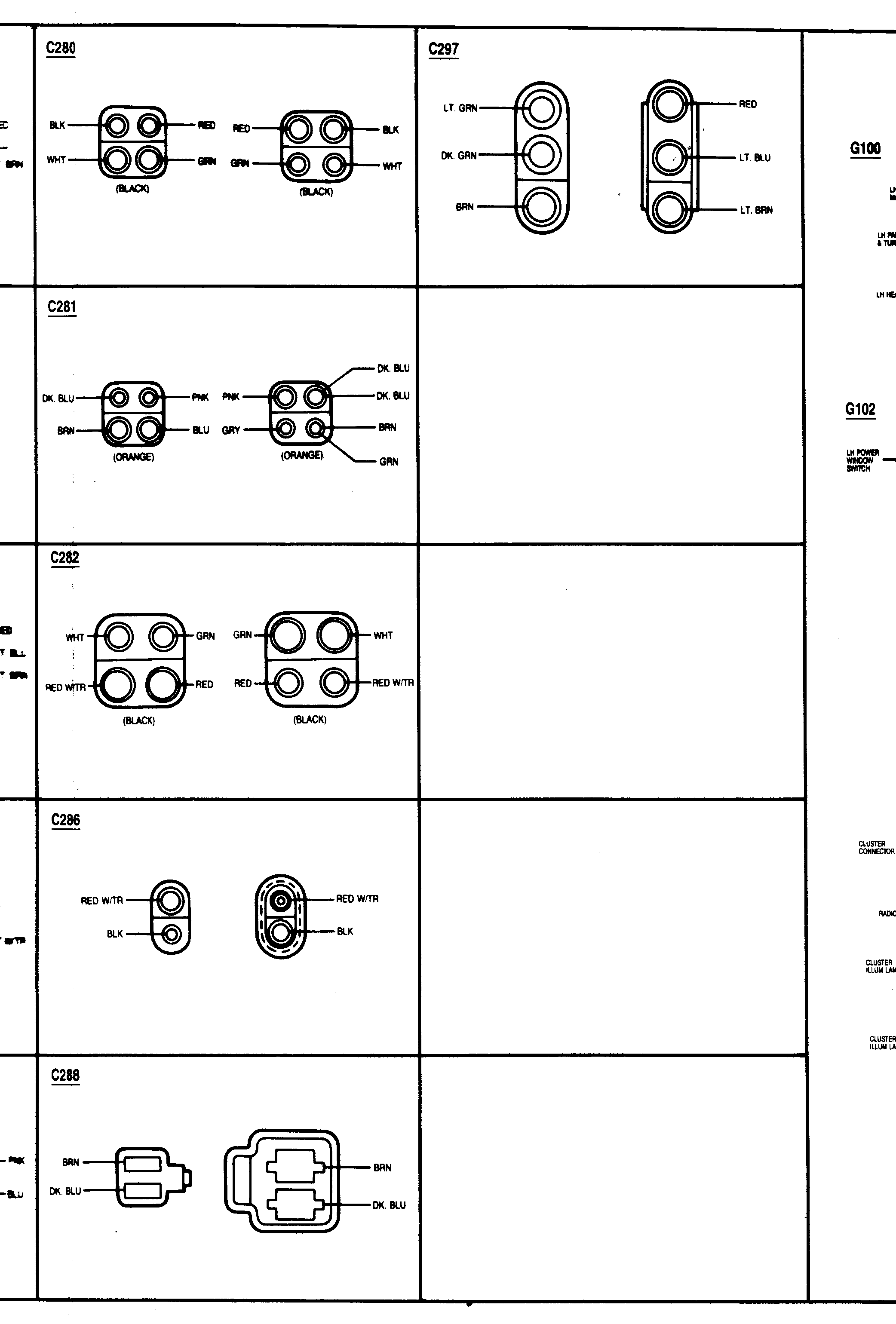

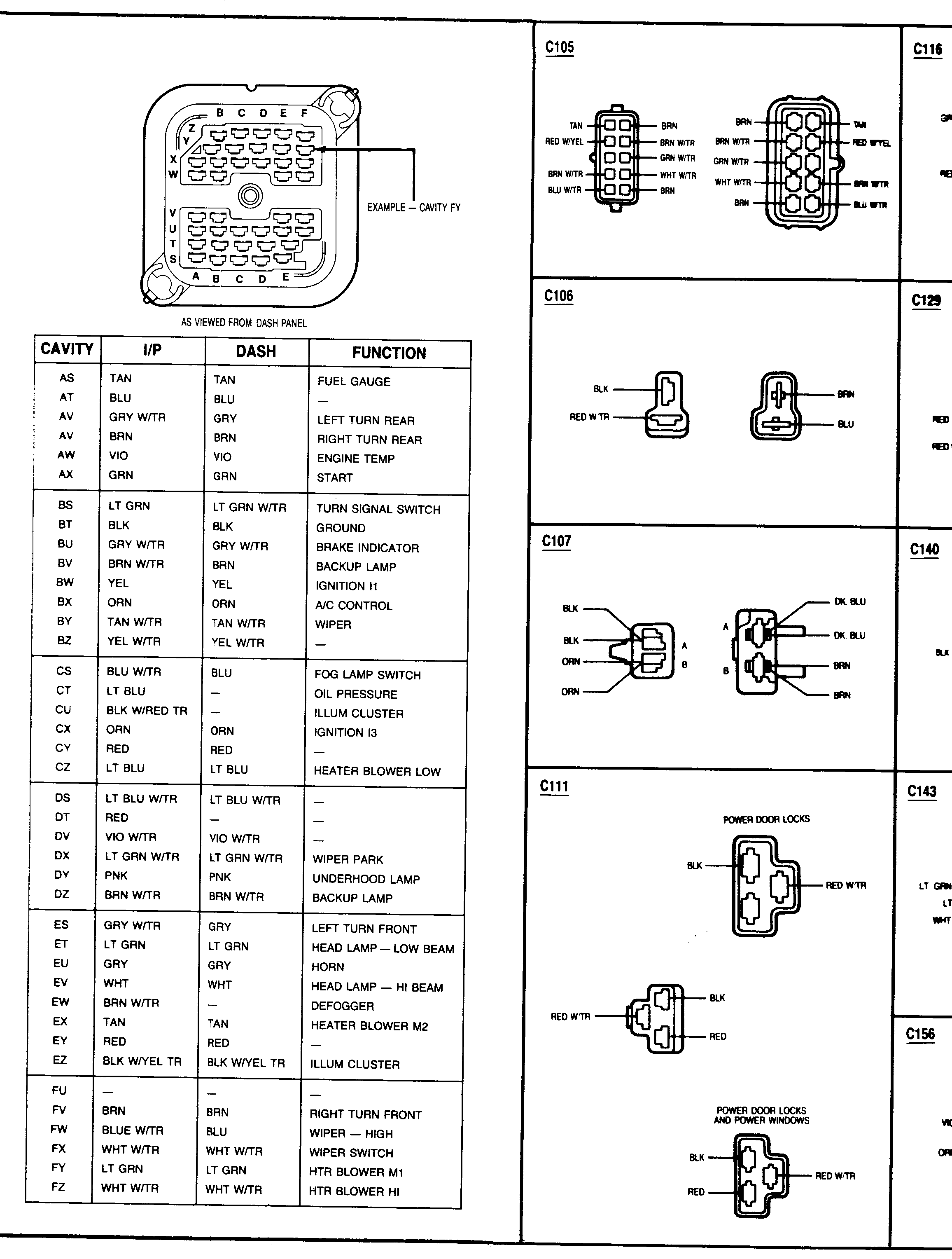

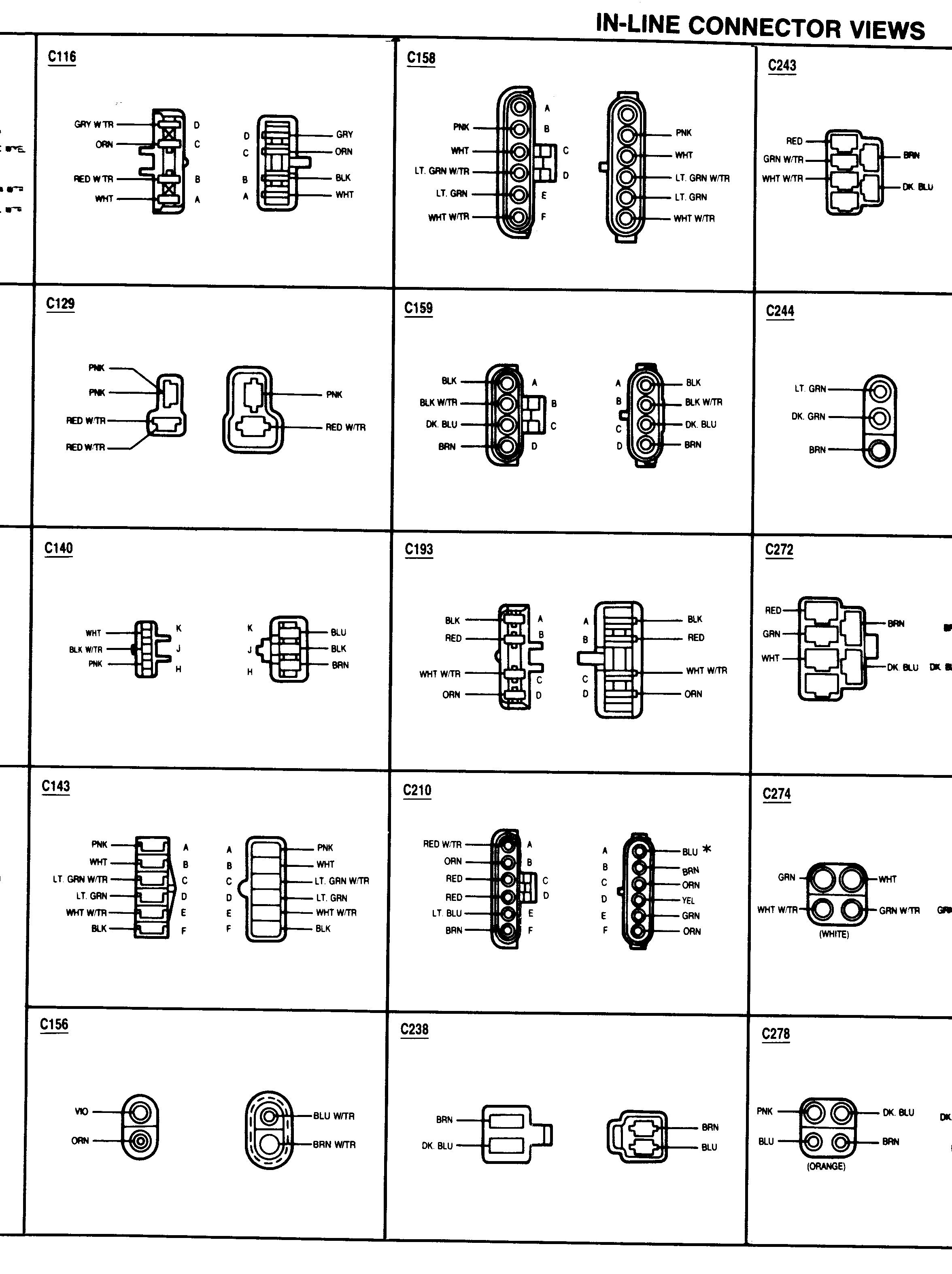

86_FSJ_WiringDiagramPage1-5 In-Line Connectors
86_FSJ_WiringDiagramPage1-6 In-Line Connectors
86_FSJ_WiringDiagramPage1-7 In-Line Connectors

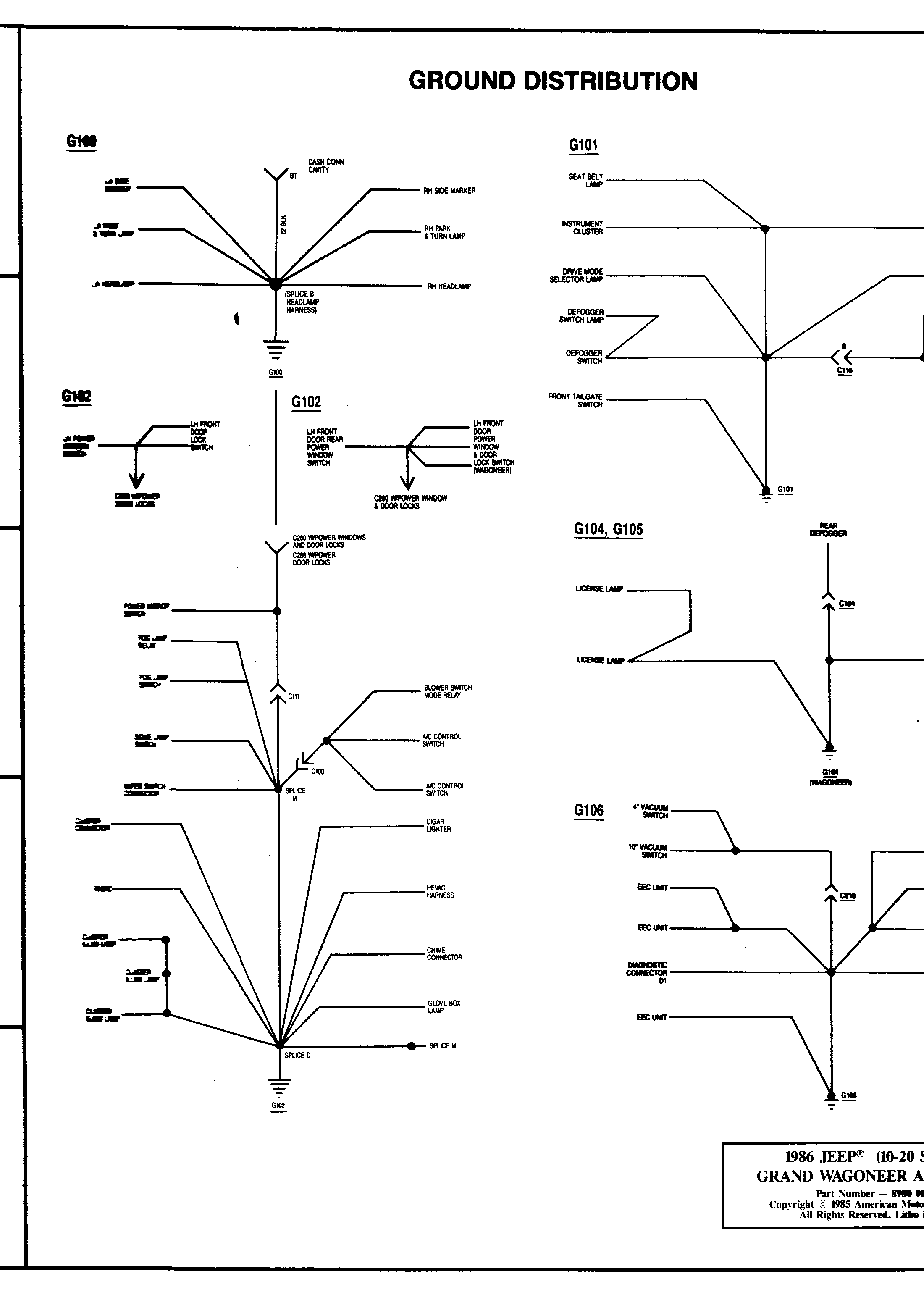

86_FSJ_WiringDiagramPage1-8 Ground Distribution

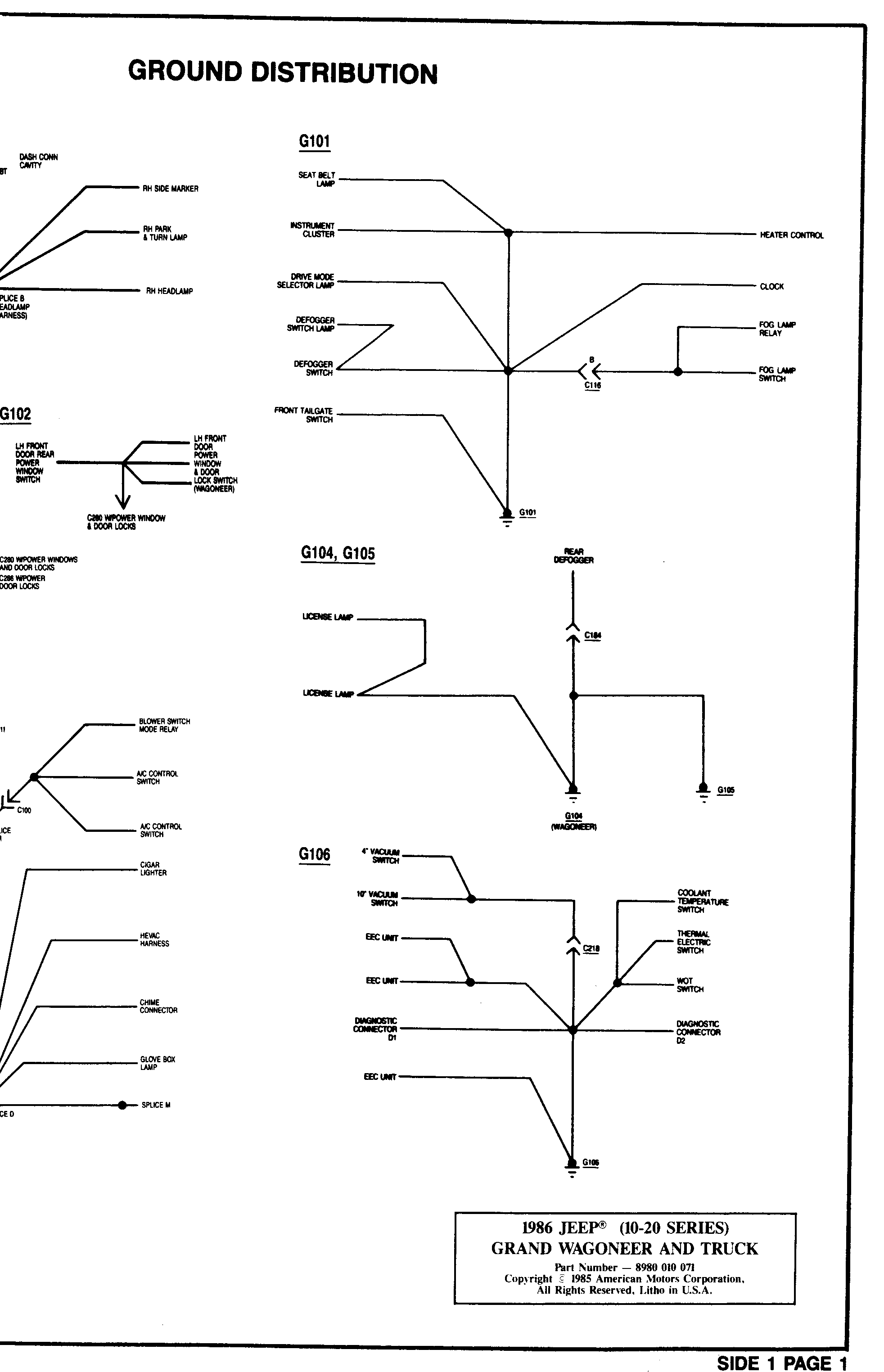

86_FSJ_WiringDiagramPage1-9 Ground Distribution (end of section)

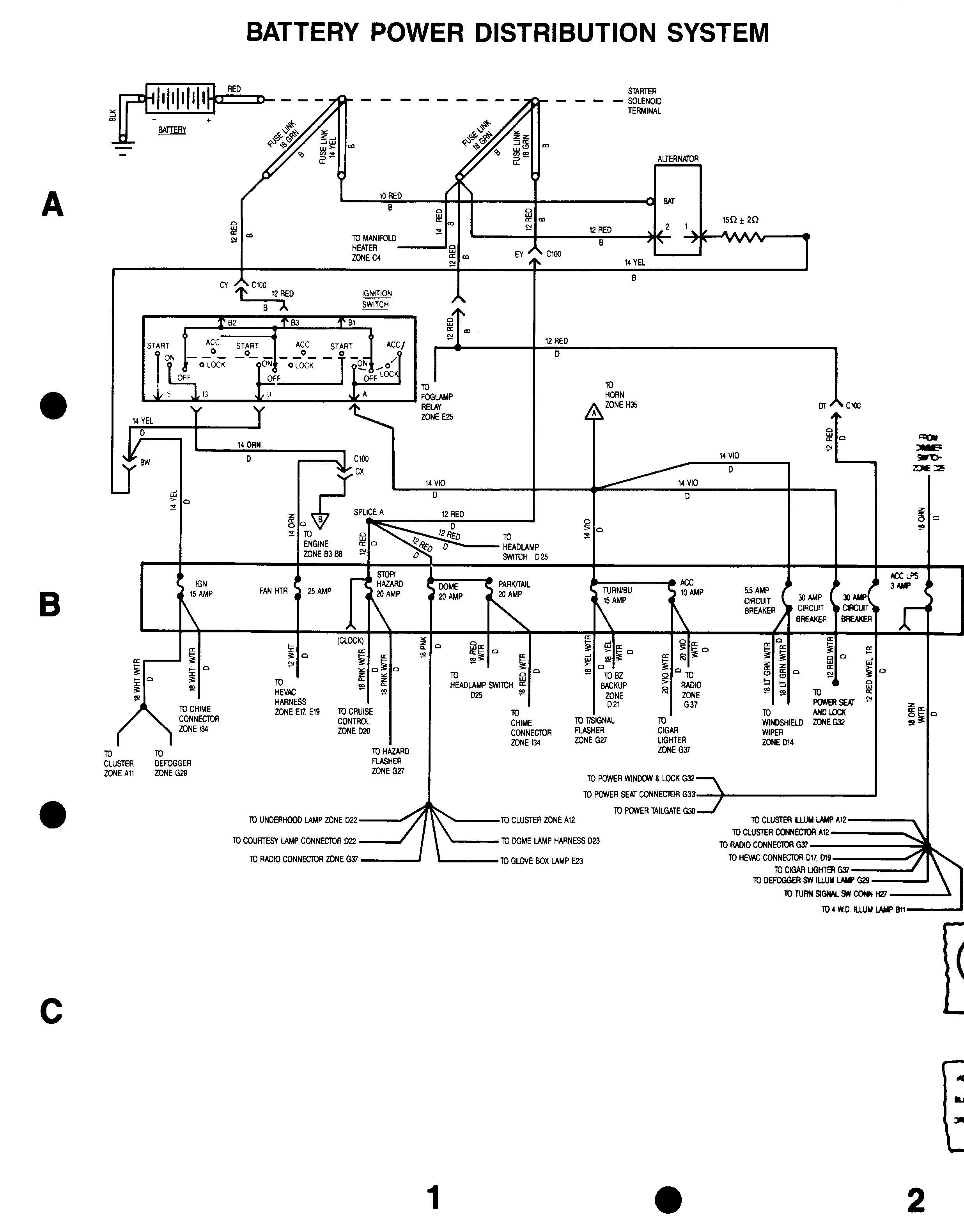

86_FSJ_WiringDiagramPage2-1 Battery - Power Distribution

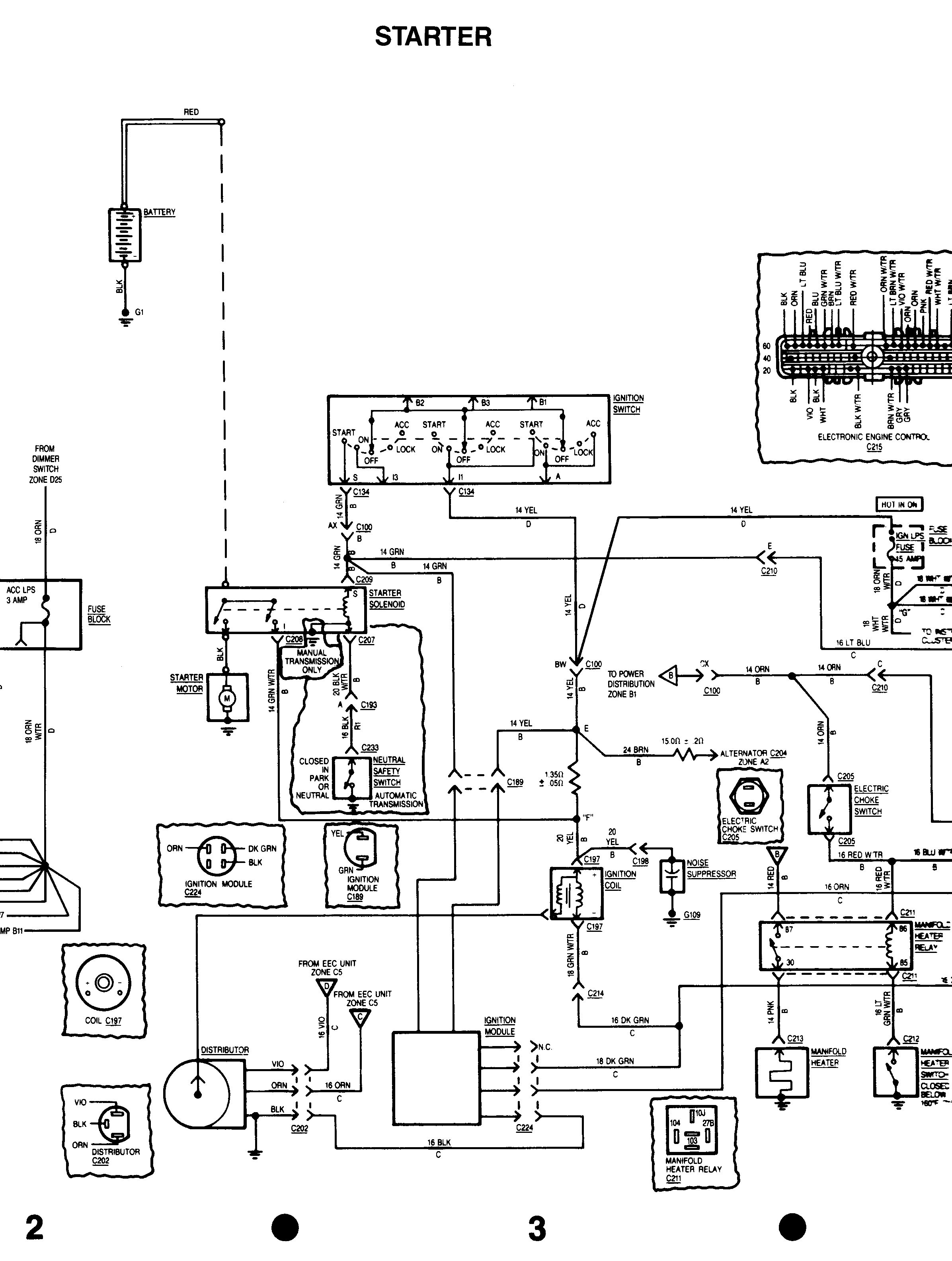

86_FSJ_WiringDiagramPage2-2 Starter pg 2&3

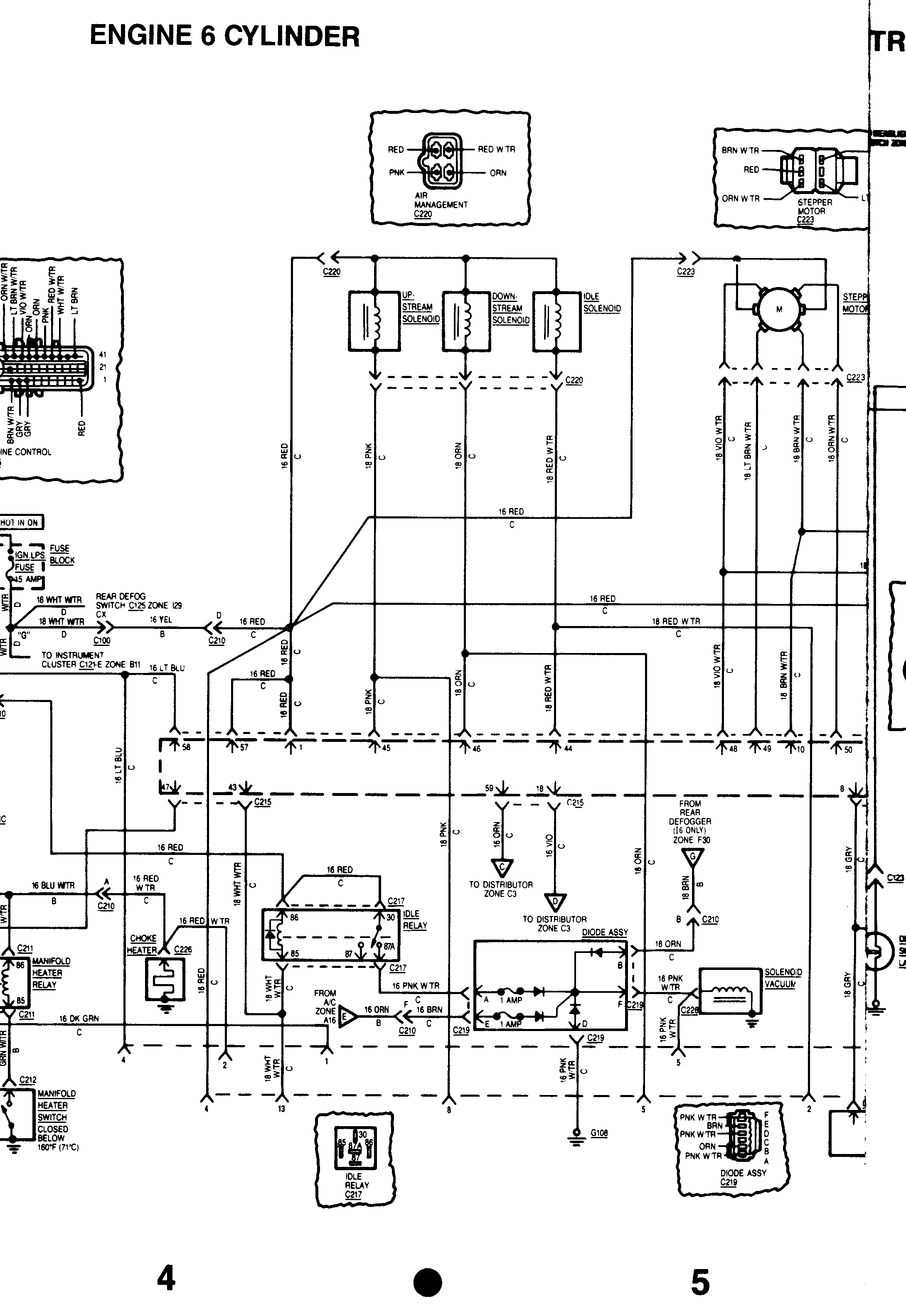

86_FSJ_WiringDiagramPage2-3 Engine 6 Cyl pg 4&5

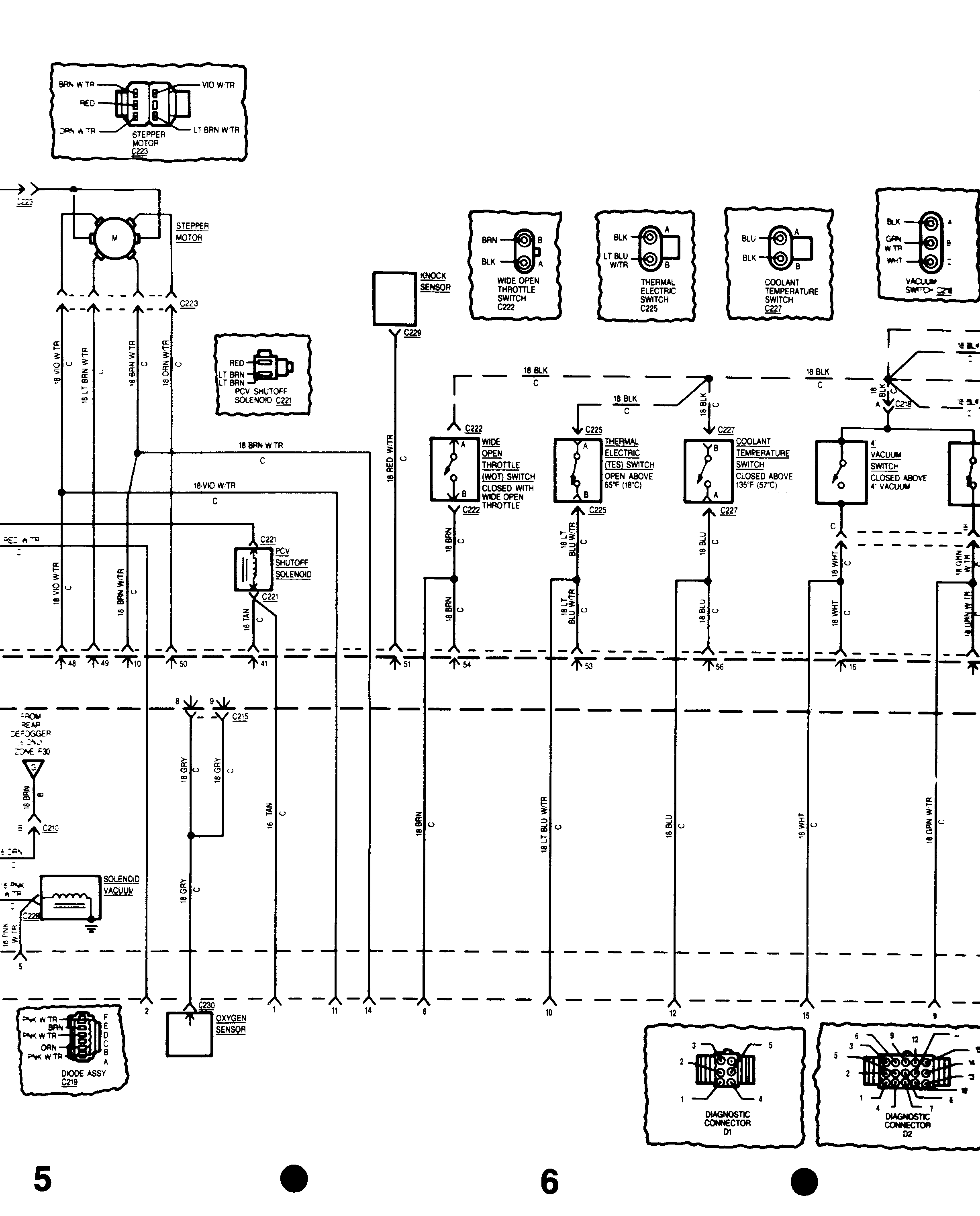

86_FSJ_WiringDiagramPage2-4 Engine 6 Cyl pg 5&6

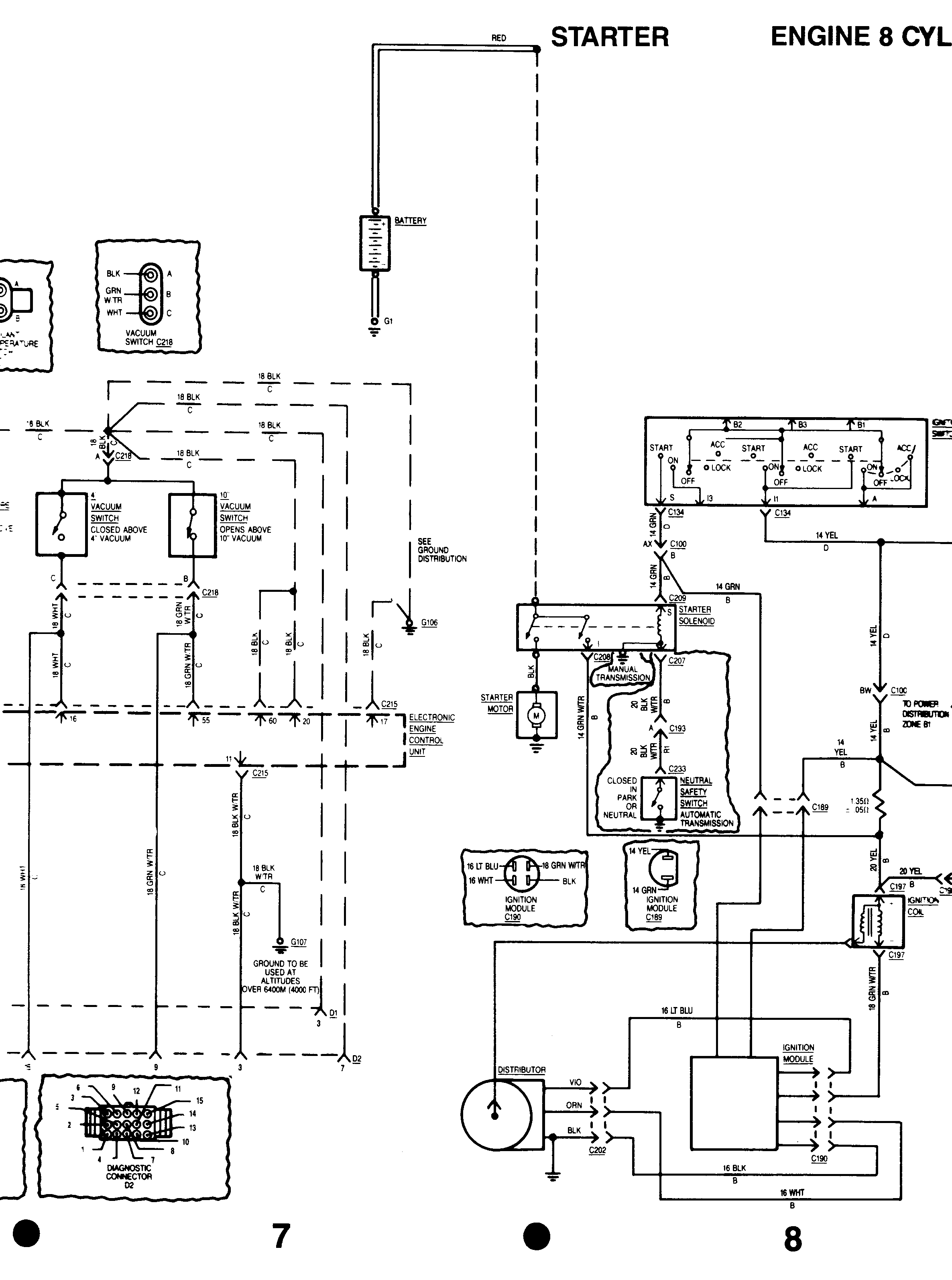

86_FSJ_WiringDiagramPage2-5 Engine 8 Cyl/Starter pg7&8

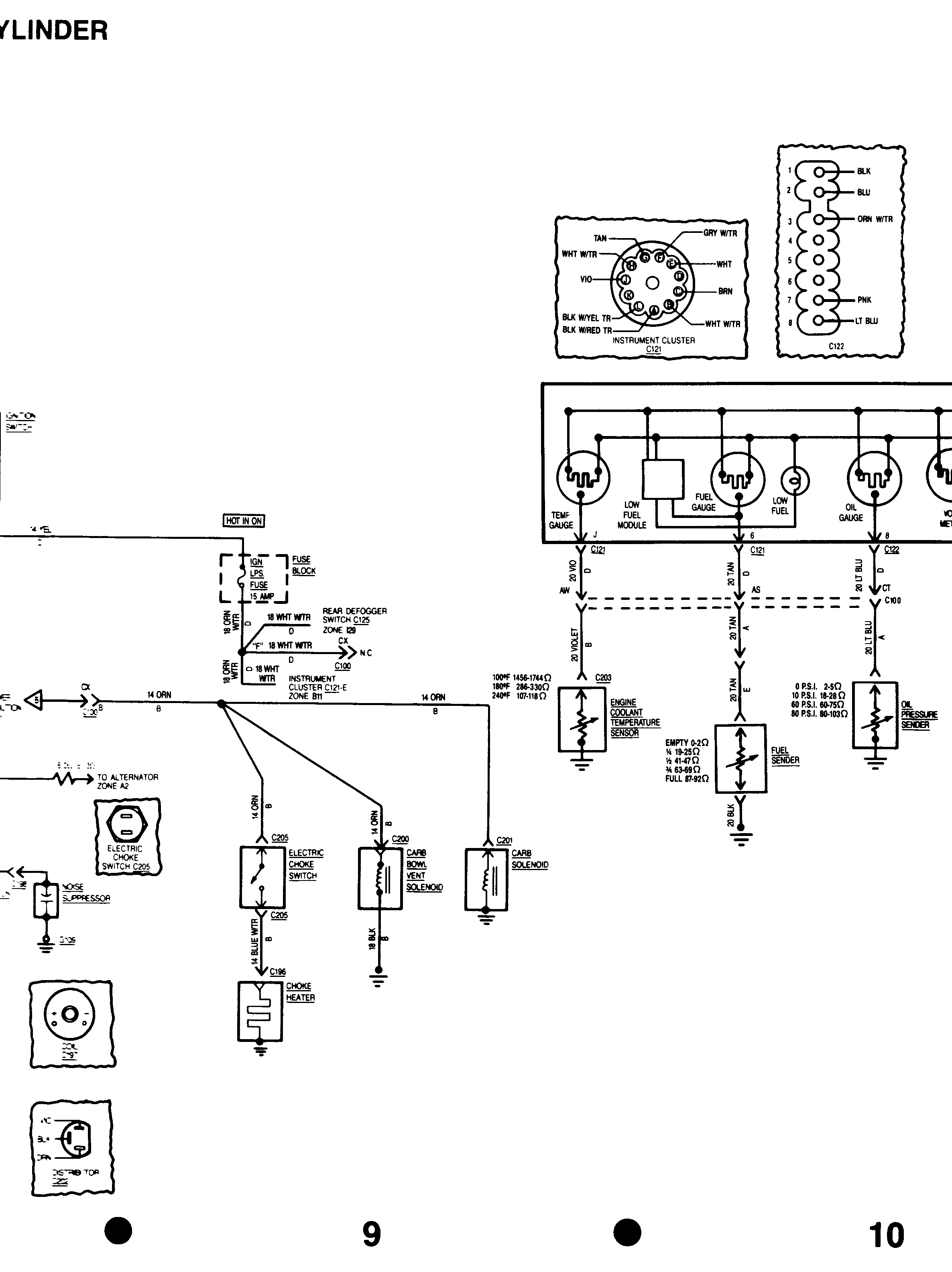

86_FSJ_WiringDiagramPage2-6 Engine 8 Cyl/Starter pg9&10

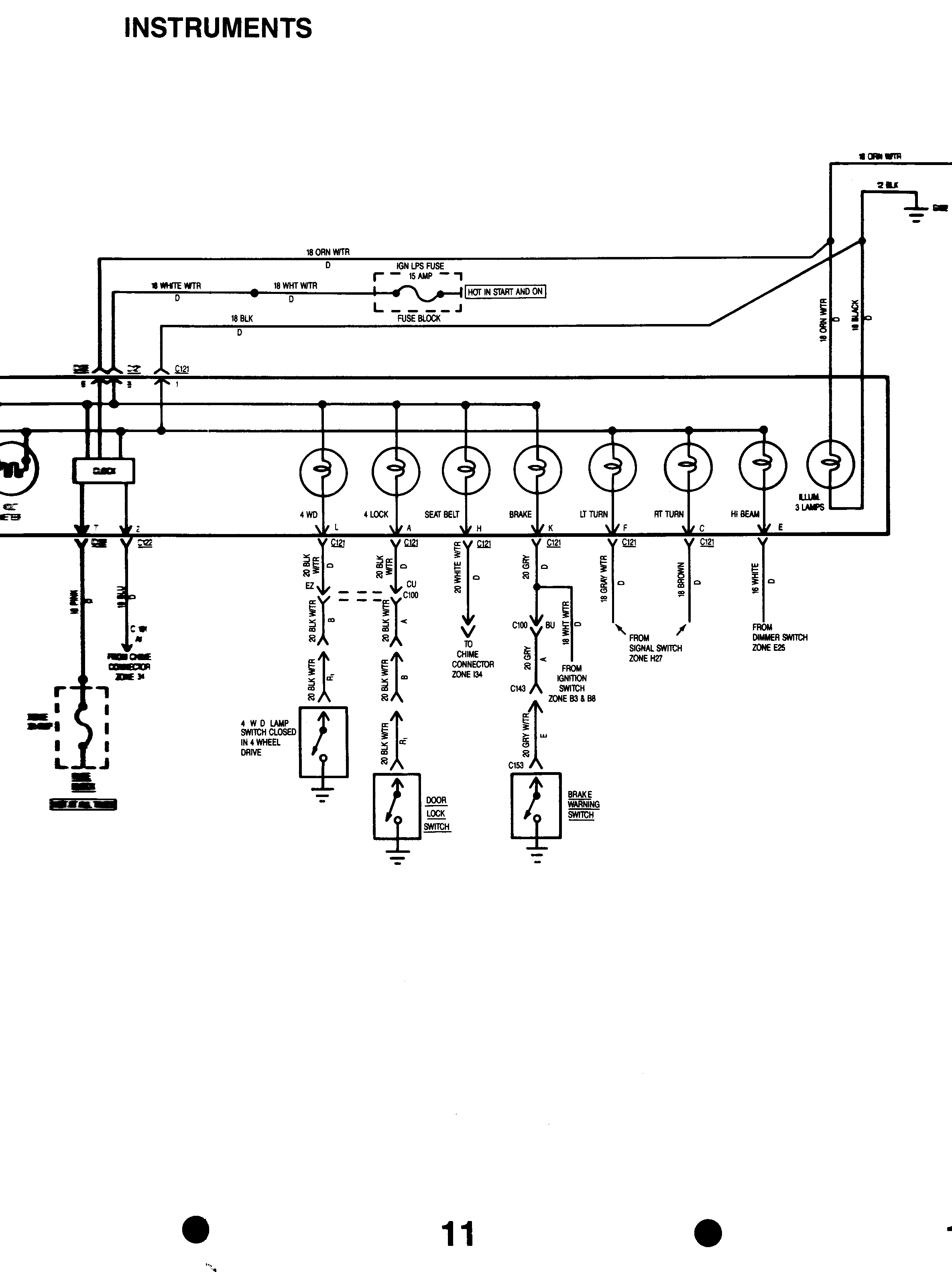

86_FSJ_WiringDiagramPage2-7 Instruments pg11

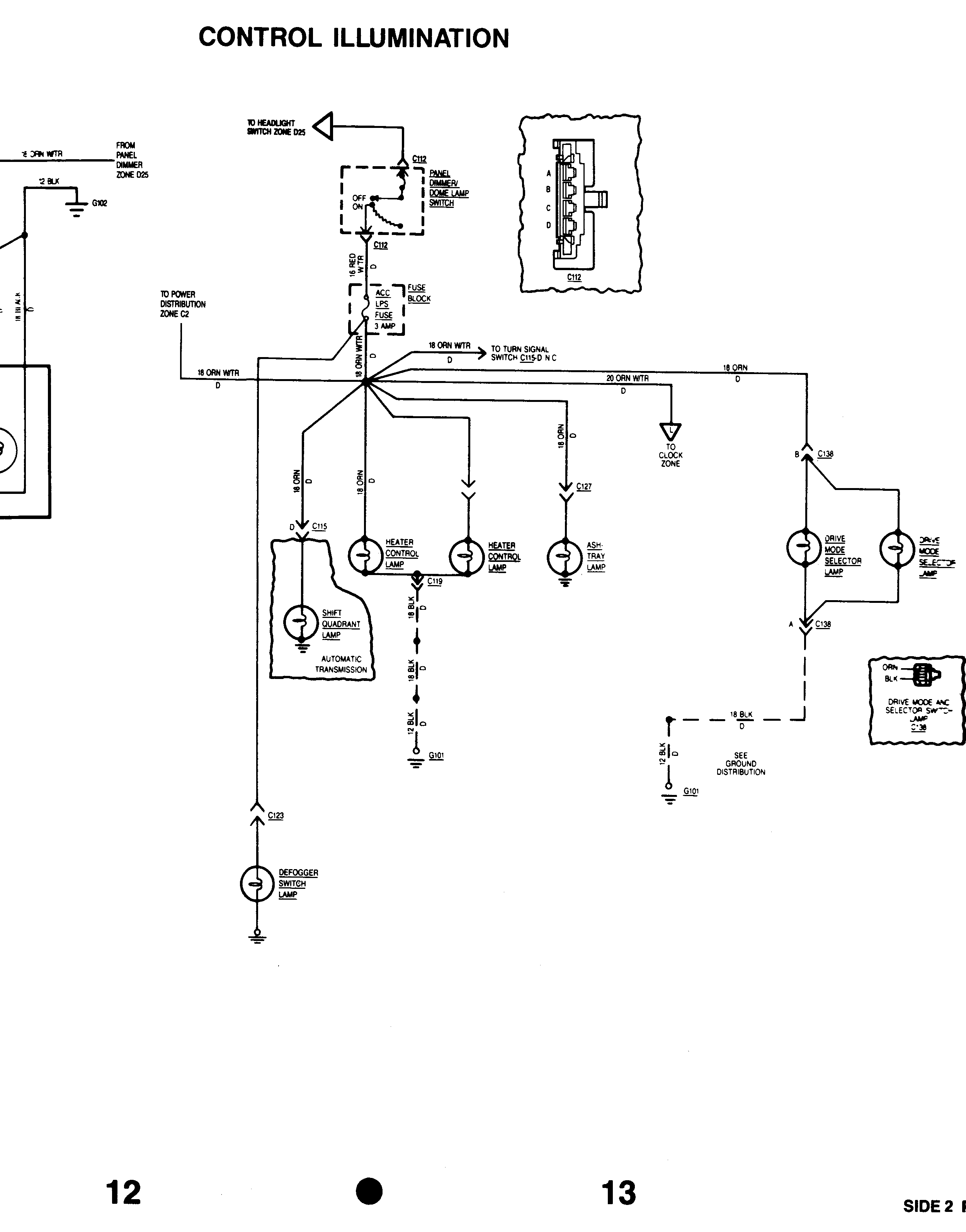

86_FSJ_WiringDiagramPage2-8 Control Illumination pg12&13

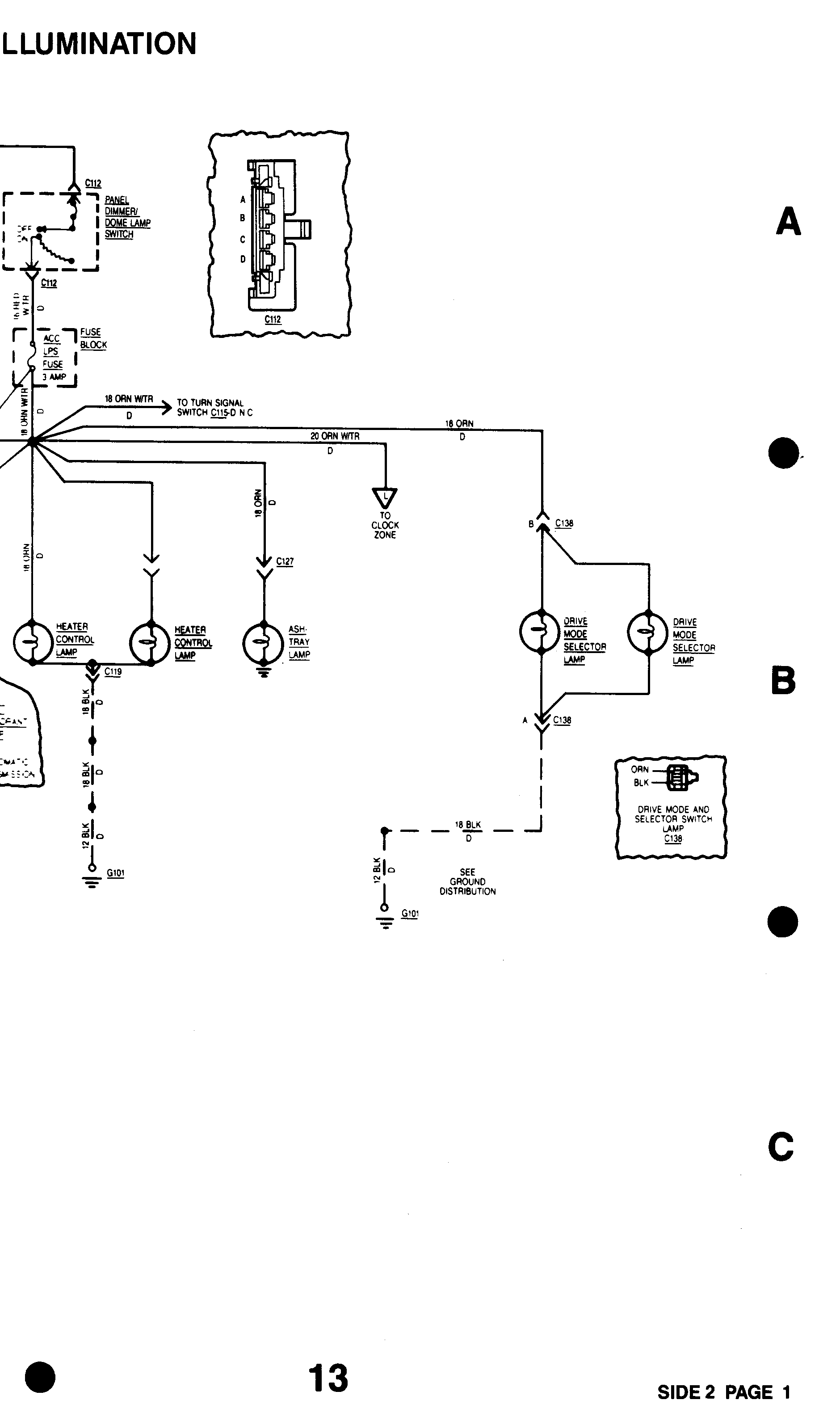

86_FSJ_WiringDiagramPage2-9 Page 13 (end of section)

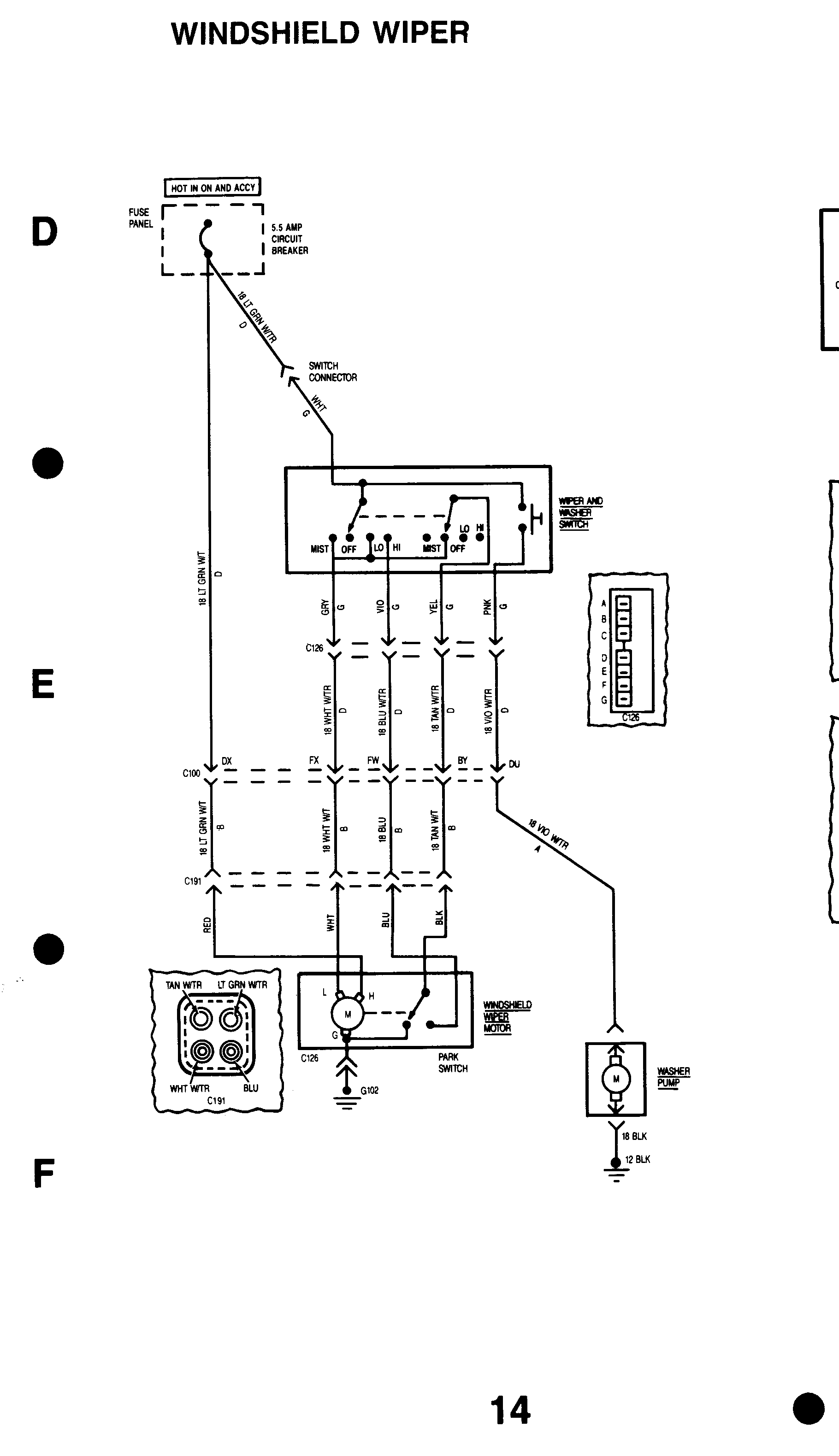

86_FSJ_WiringDiagramPage3-1 Windshield Wipers

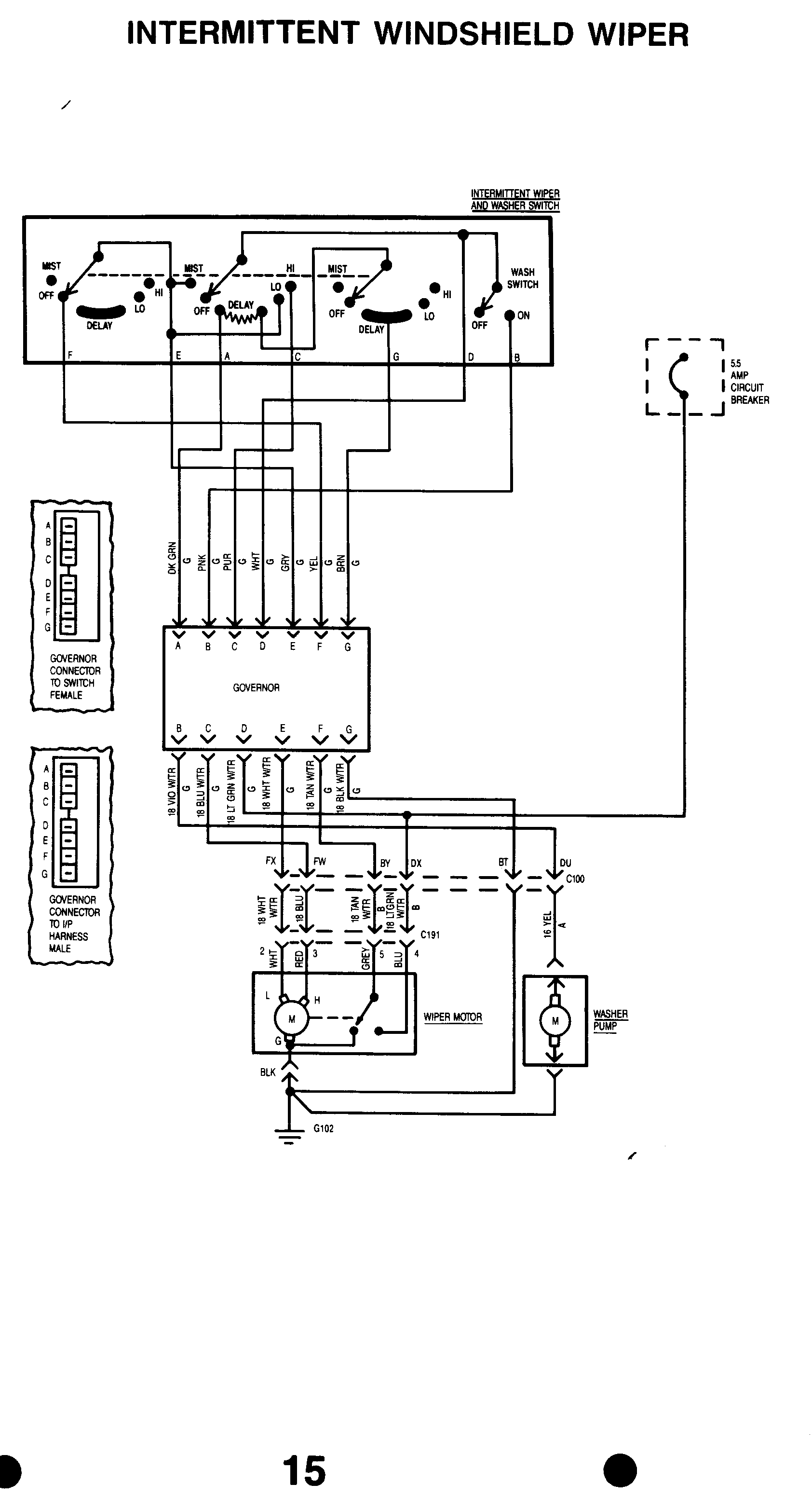

86_FSJ_WiringDiagramPage3-2 Intermittant Windshield Wipers

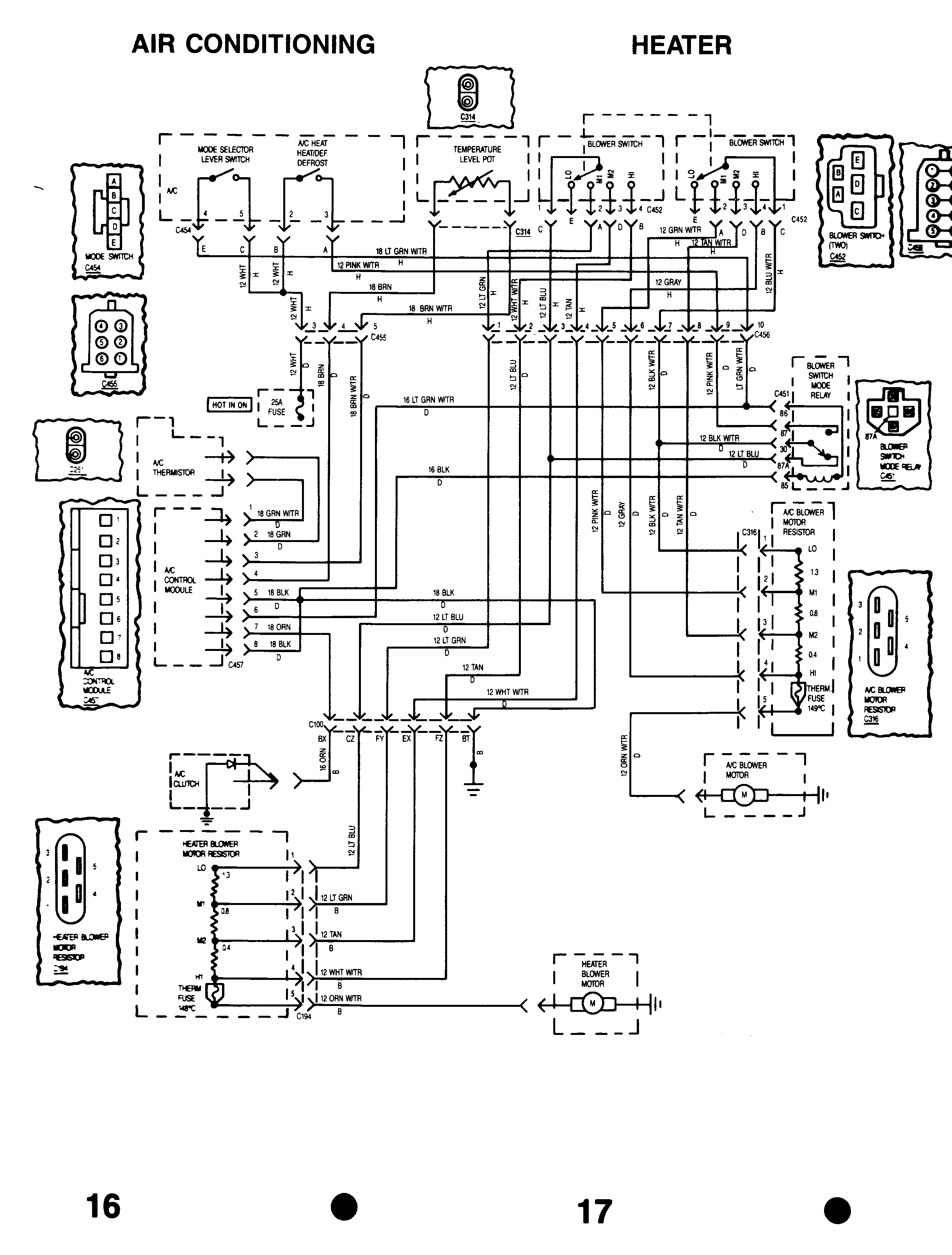

86_FSJ_WiringDiagramPage3-3 A/C-Heat

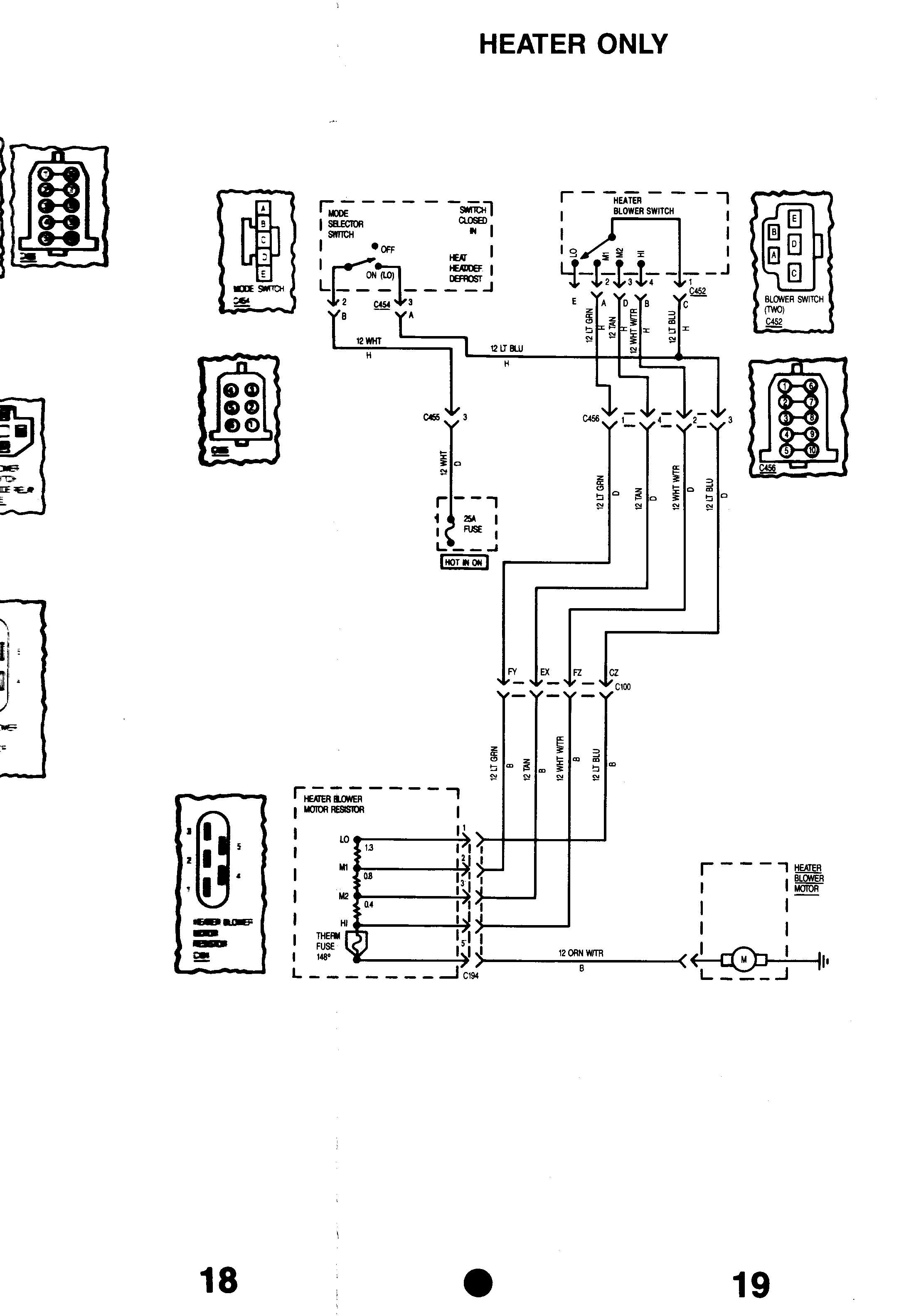

86_FSJ_WiringDiagramPage3-4 Heater Only

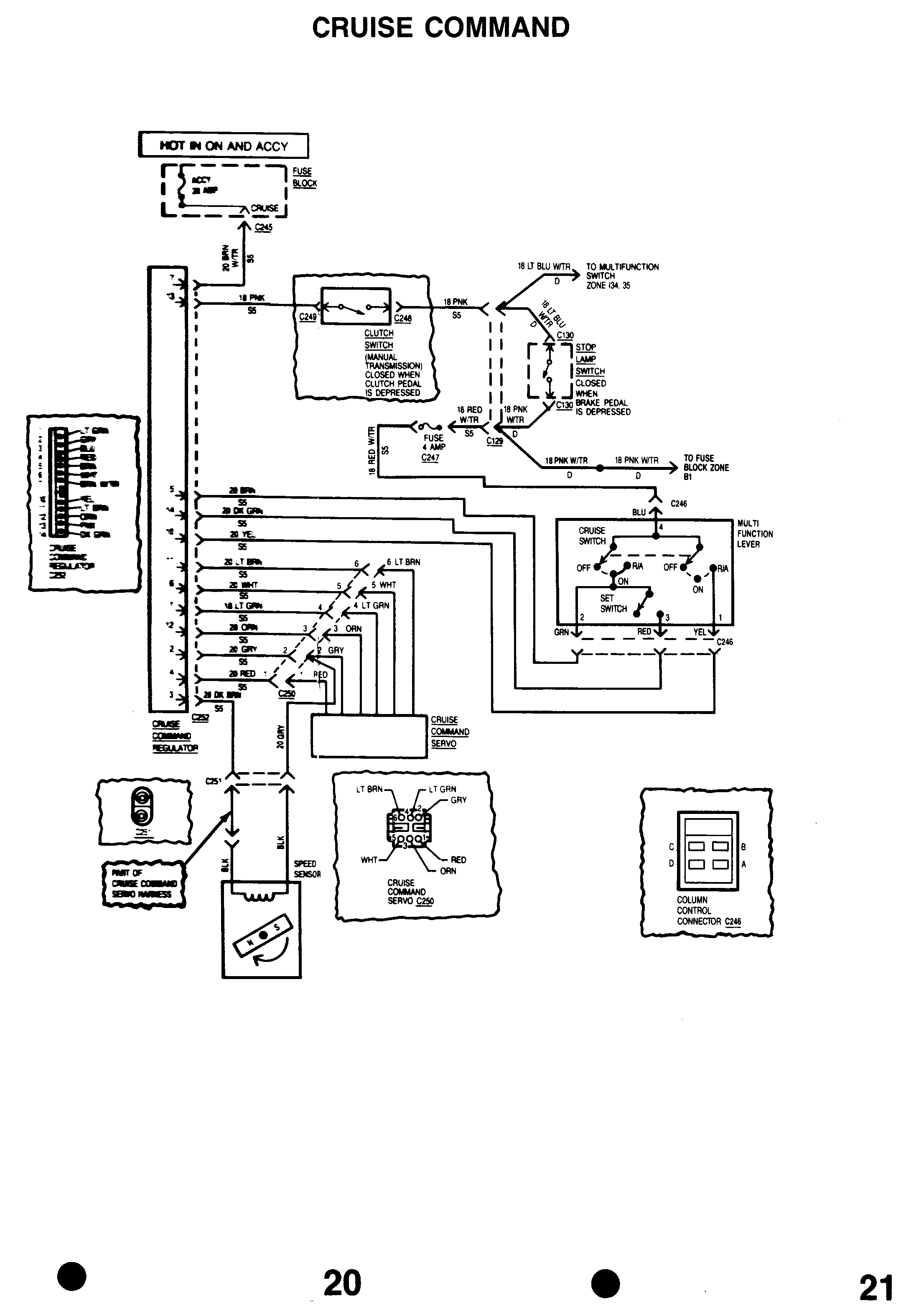

86_FSJ_WiringDiagramPage3-5 Cruise

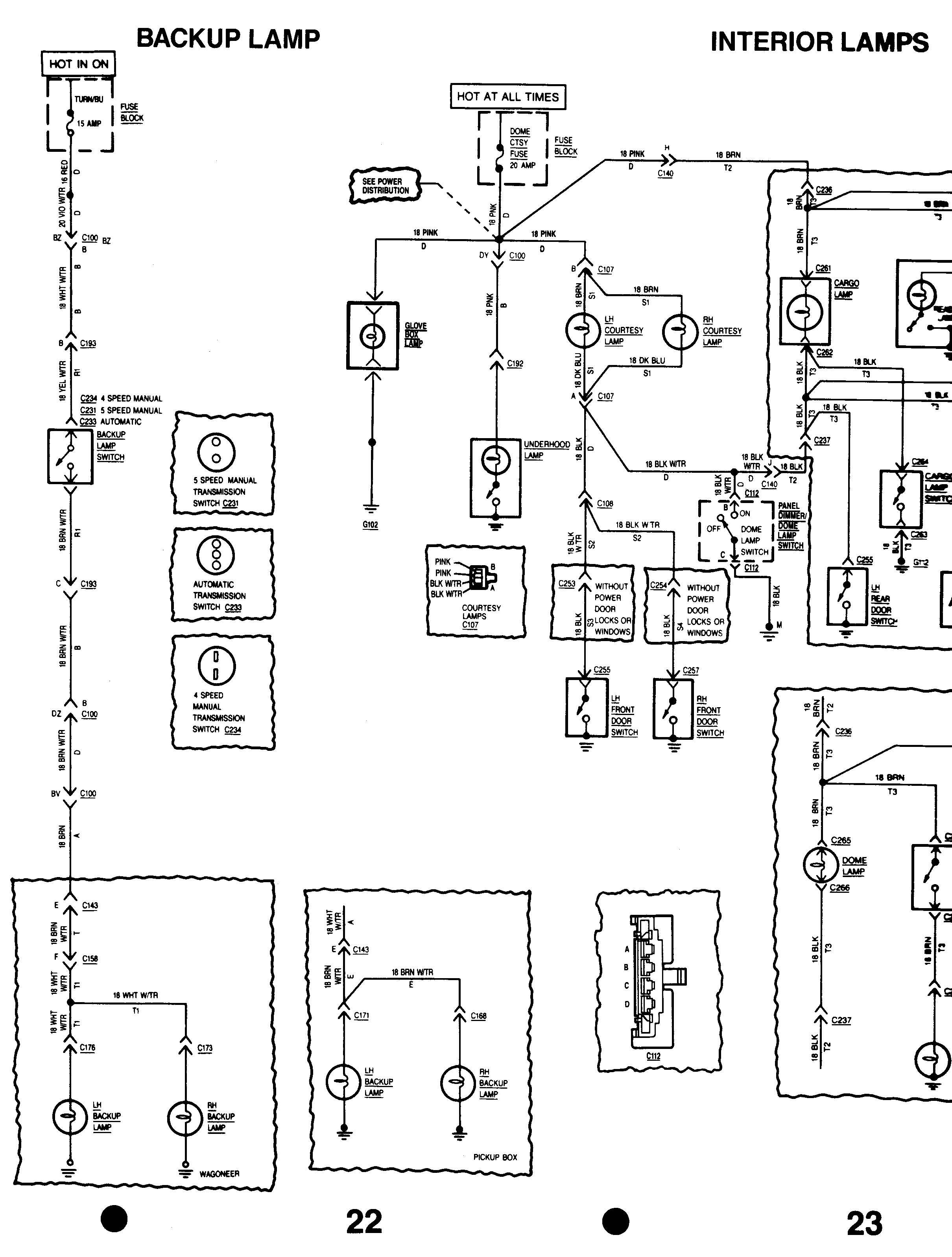

86_FSJ_WiringDiagramPage3-6 Back-up/Interior

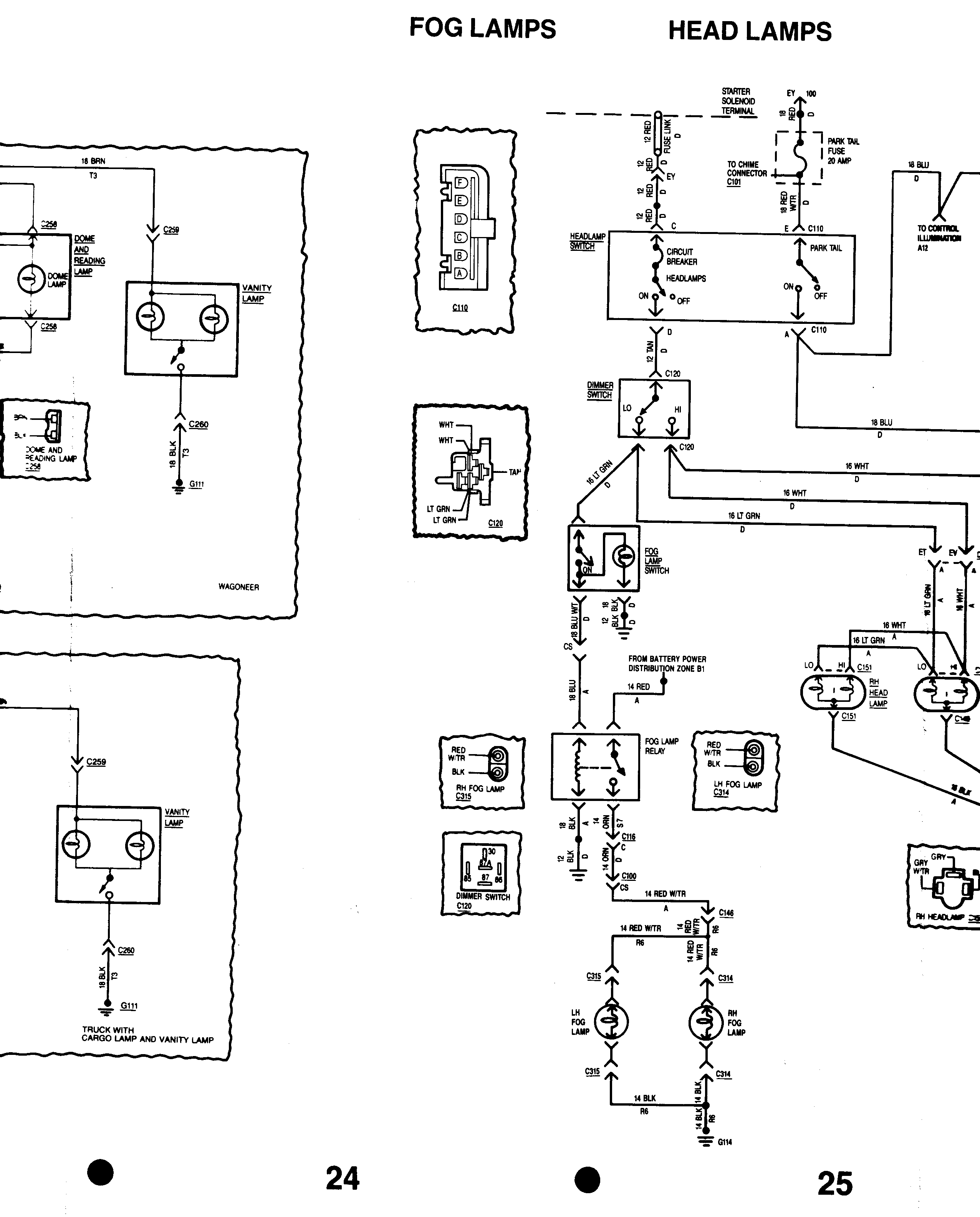

86_FSJ_WiringDiagramPage3-7 Fog/Headlightts

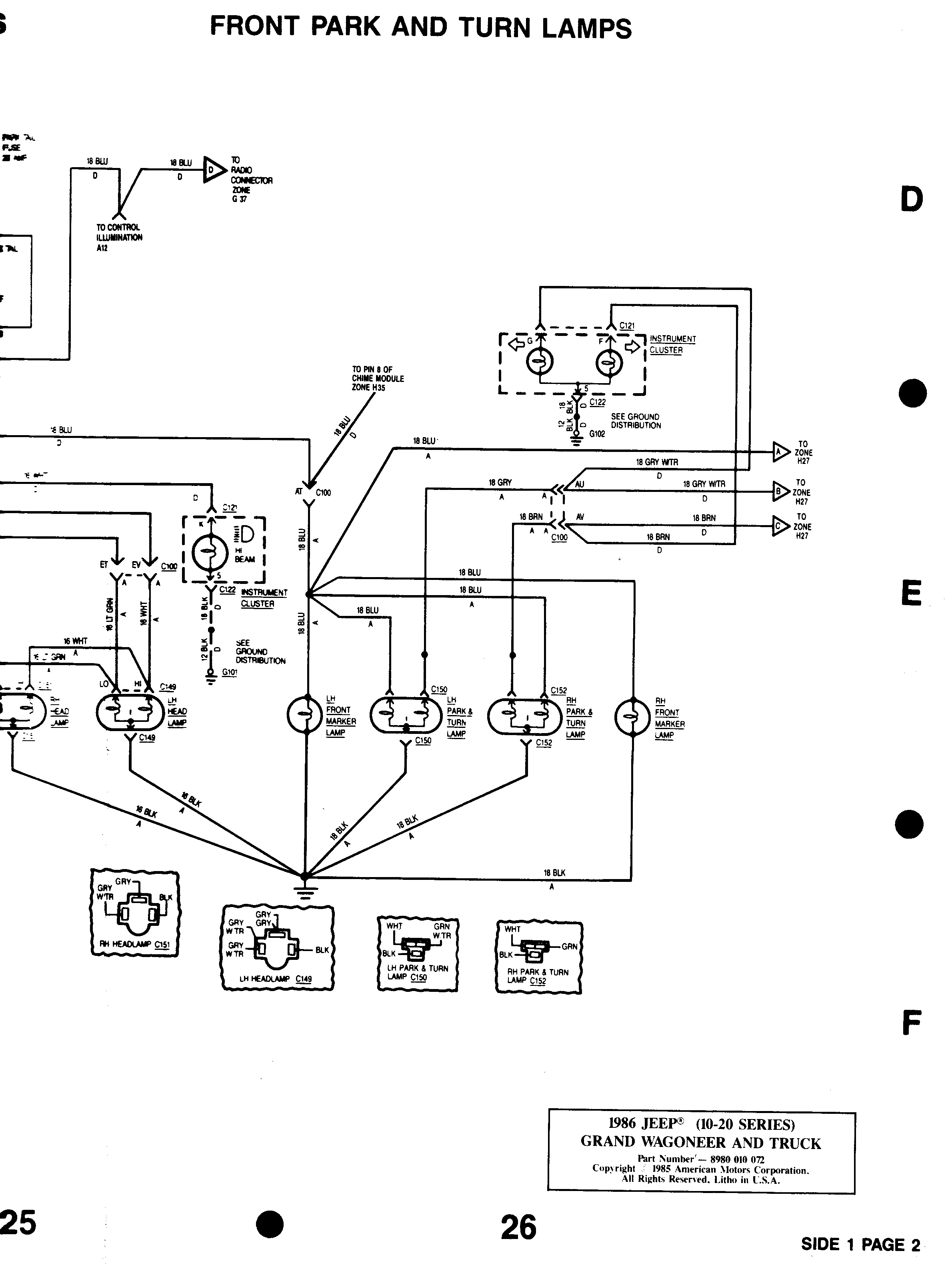

86_FSJ_WiringDiagramPage3-8 Front Park & Turn

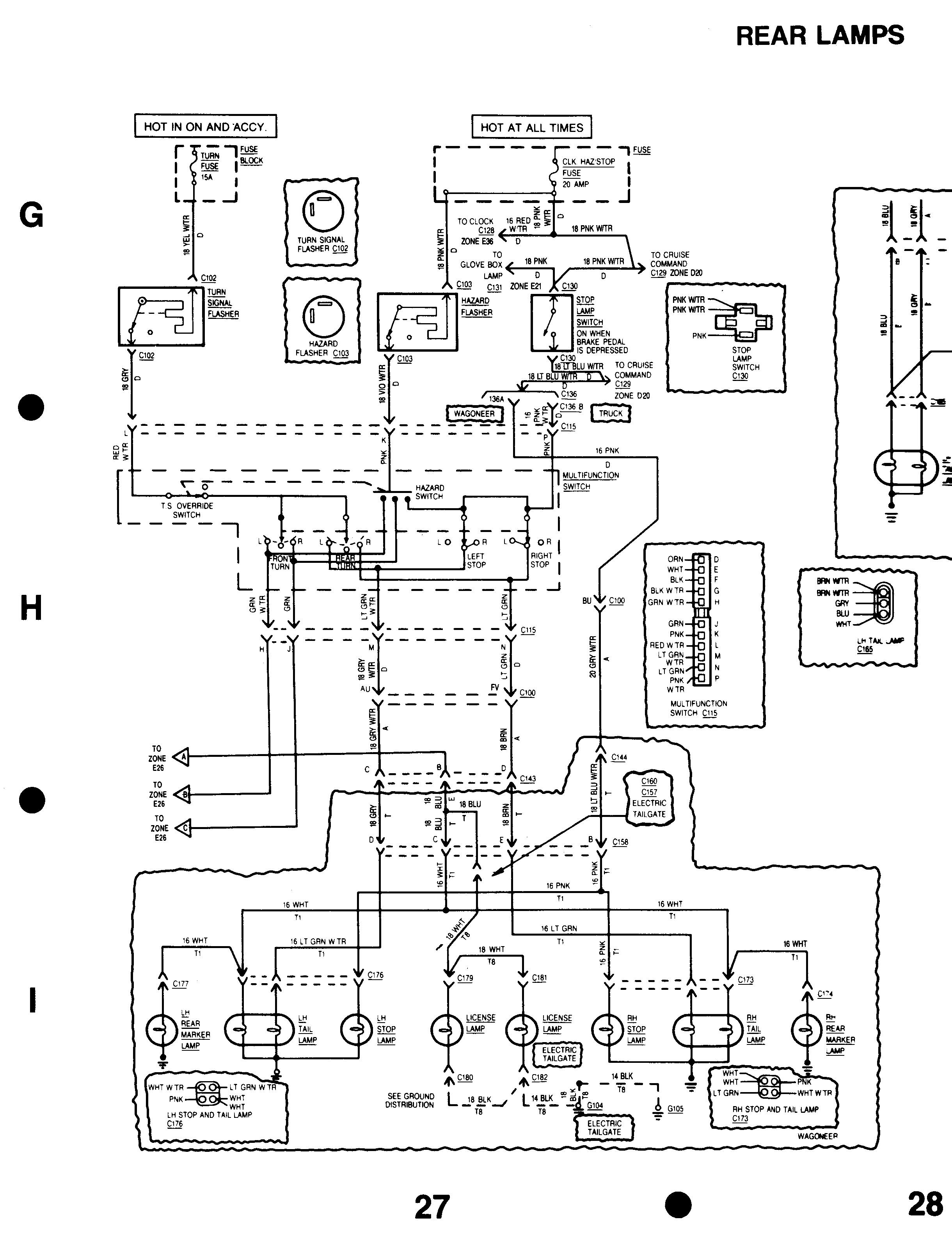

86_FSJ_WiringDiagramPage4-1 Rear Lamps

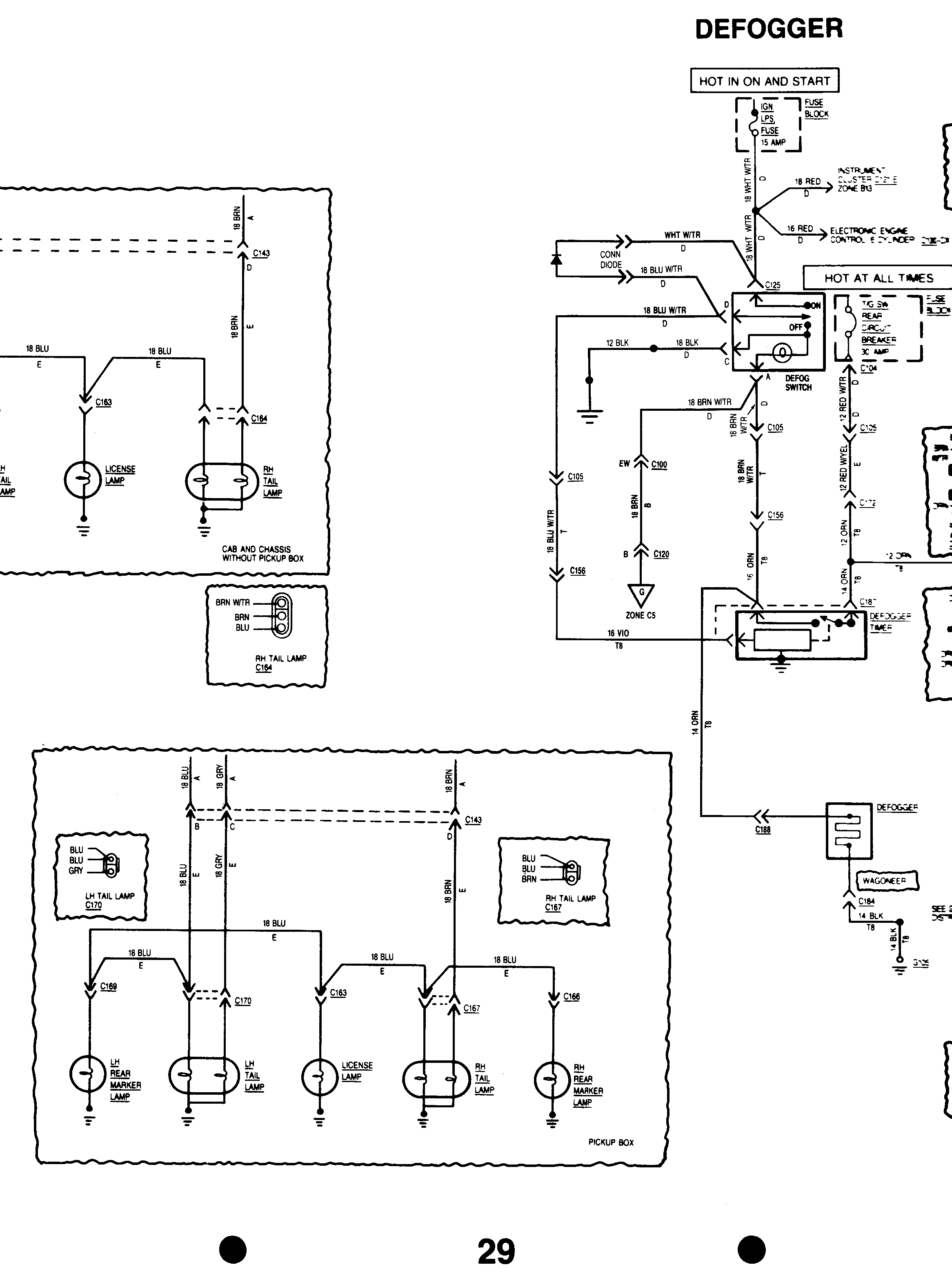

86_FSJ_WiringDiagramPage4-2 Defogger

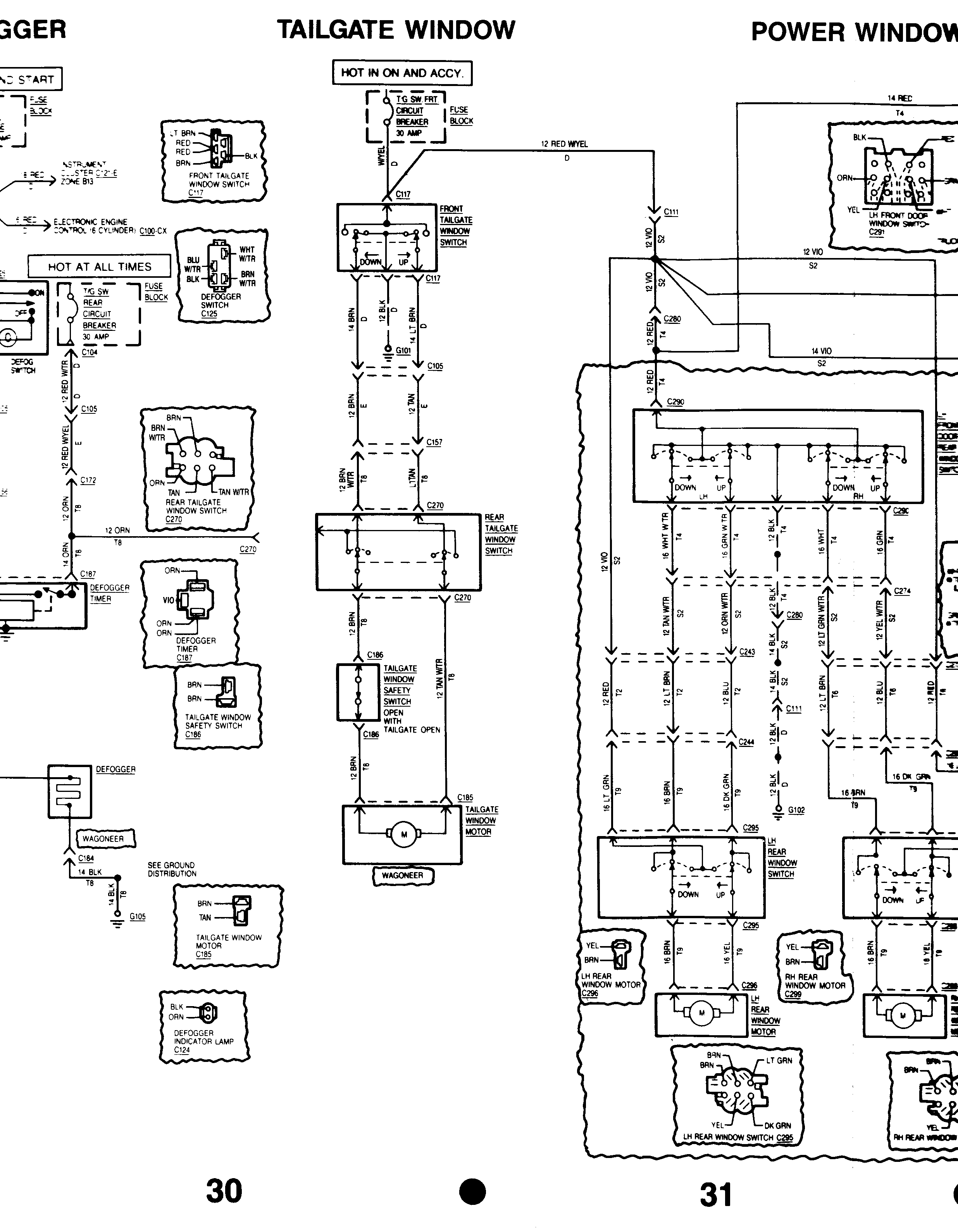

86_FSJ_WiringDiagramPage4-3 Tailgate Window/Power Windows

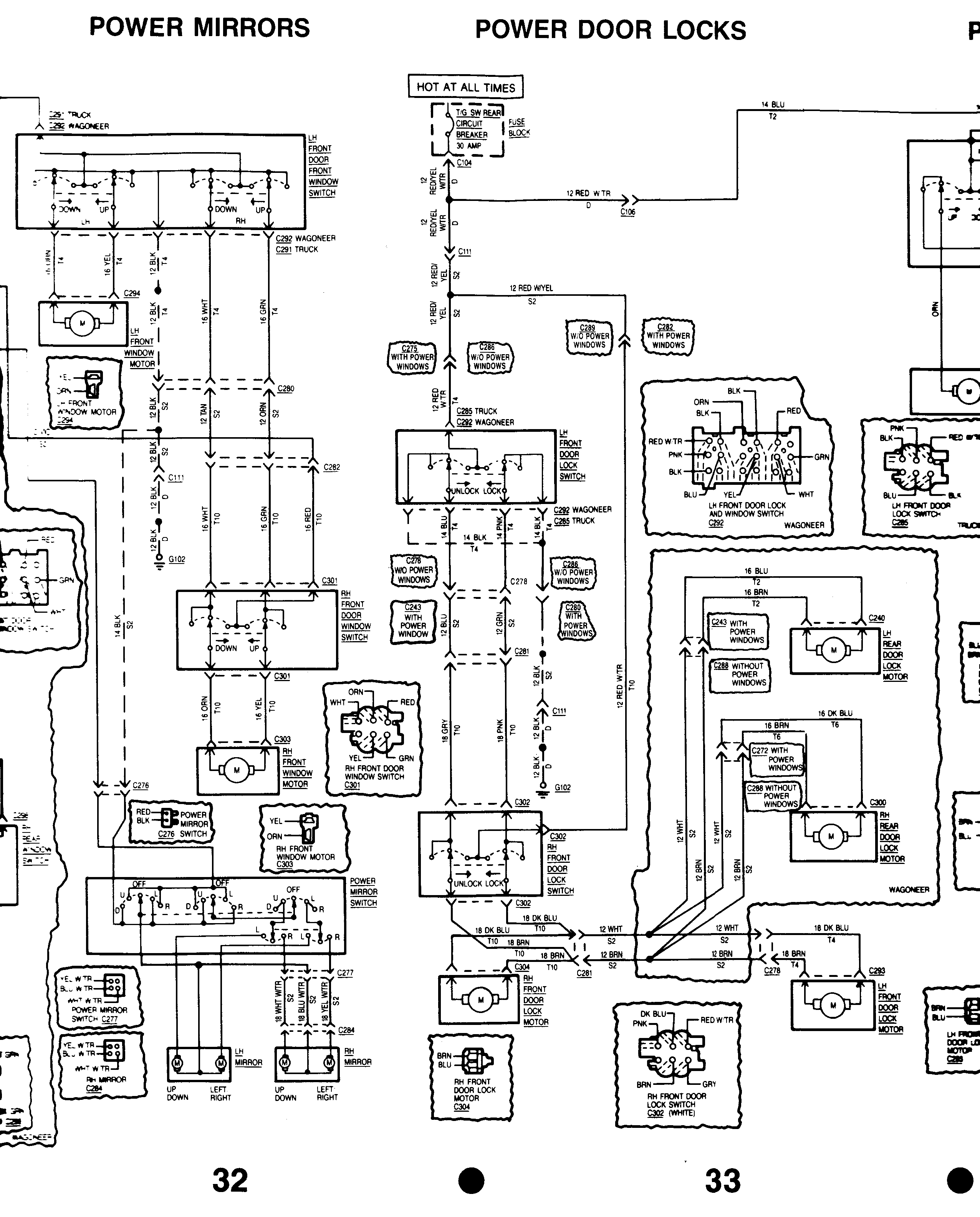

86_FSJ_WiringDiagramPage4-4 Power Windows/Door Locks

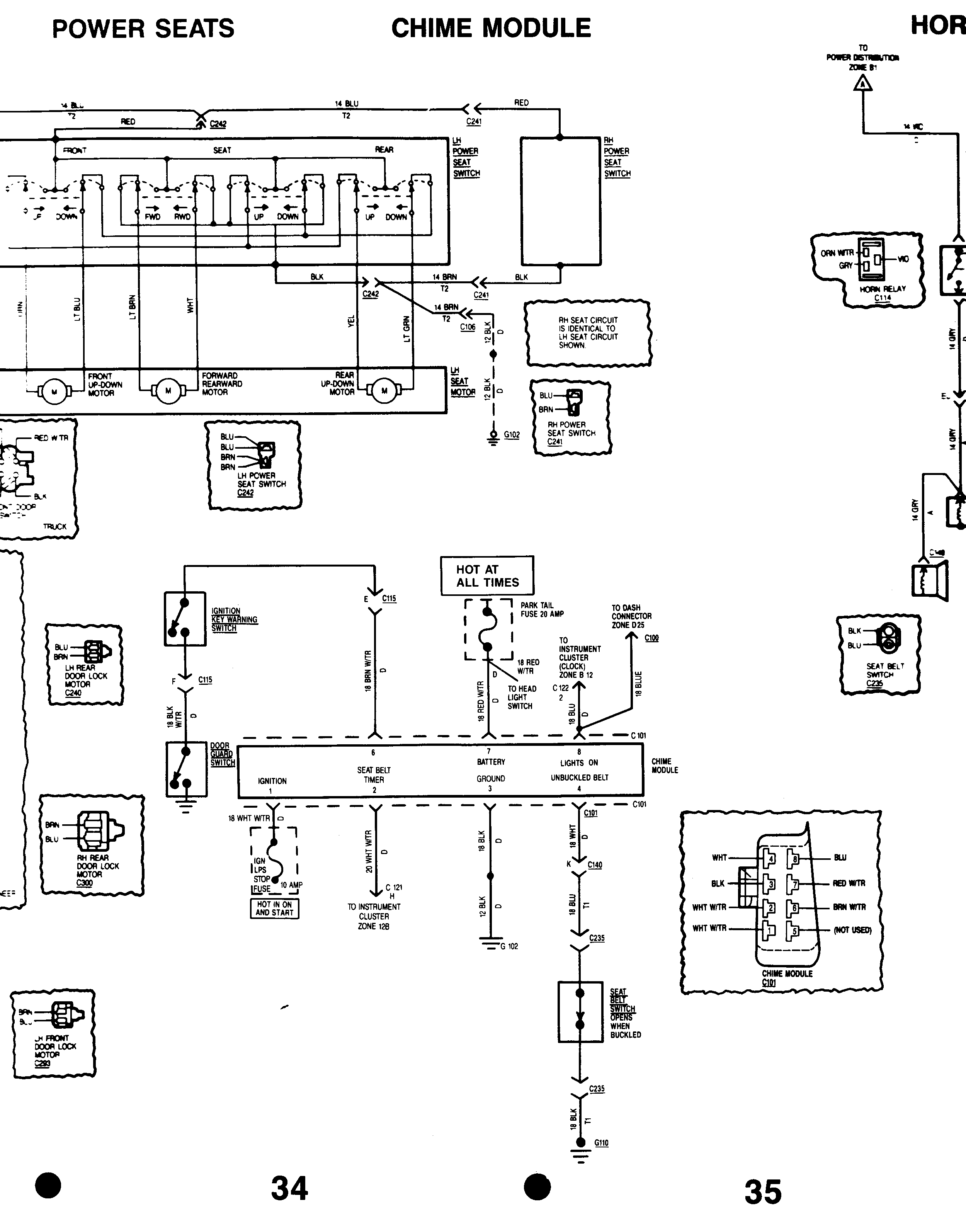

86_FSJ_WiringDiagramPage4-5 Power Seats/Chime

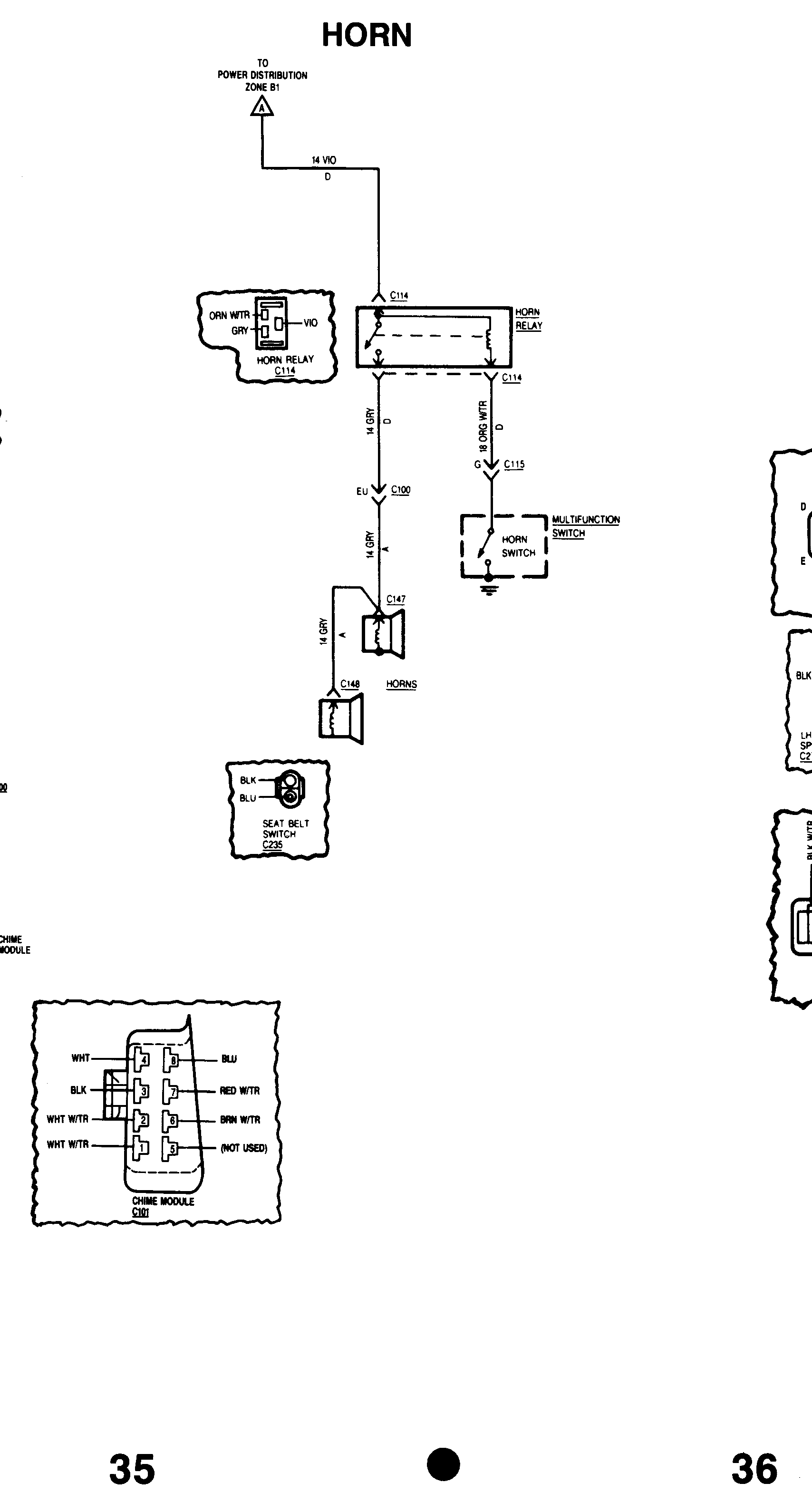

86_FSJ_WiringDiagramPage4-6 Horn

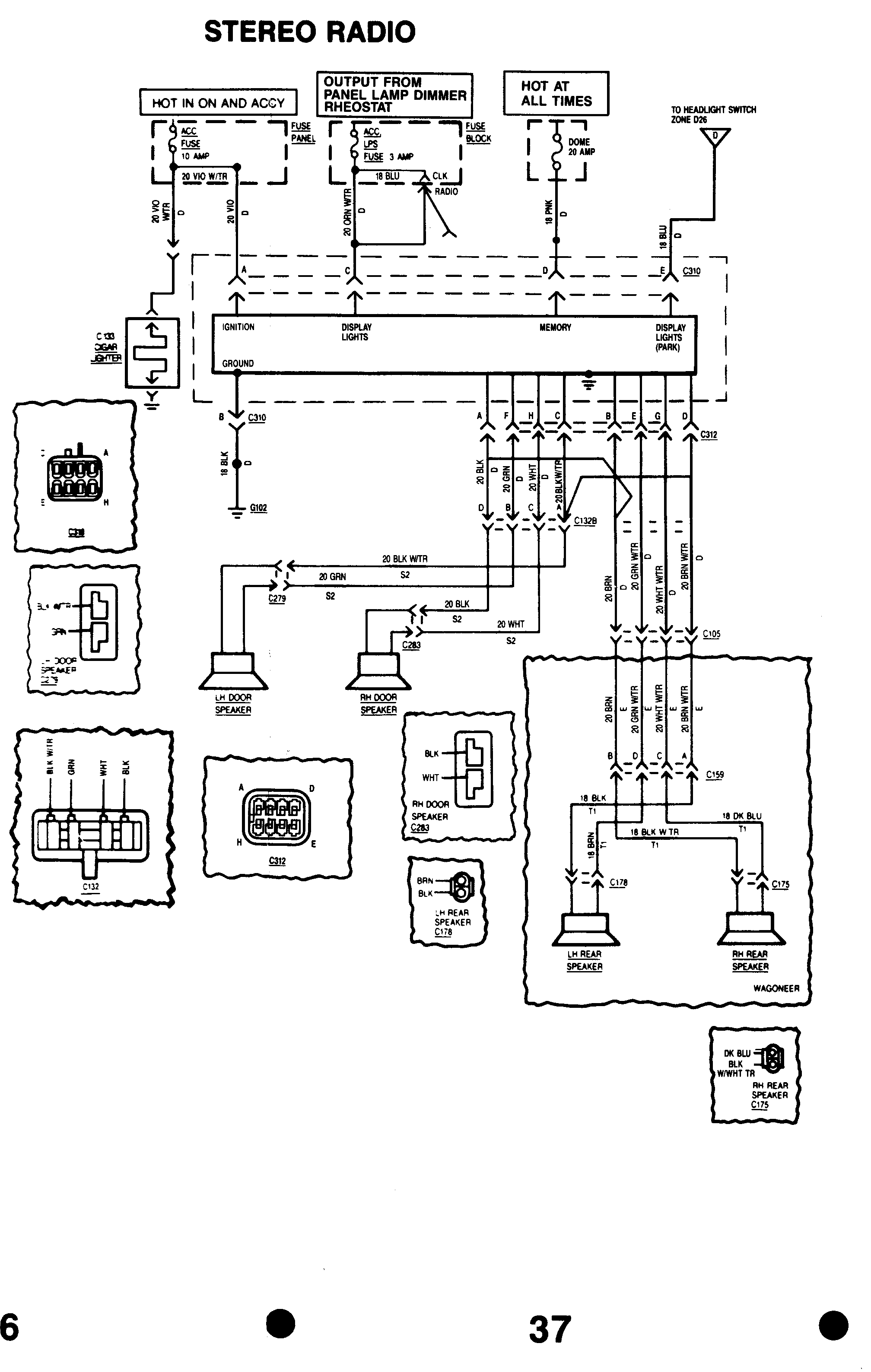

86_FSJ_WiringDiagramPage4-7 Stereo Radio

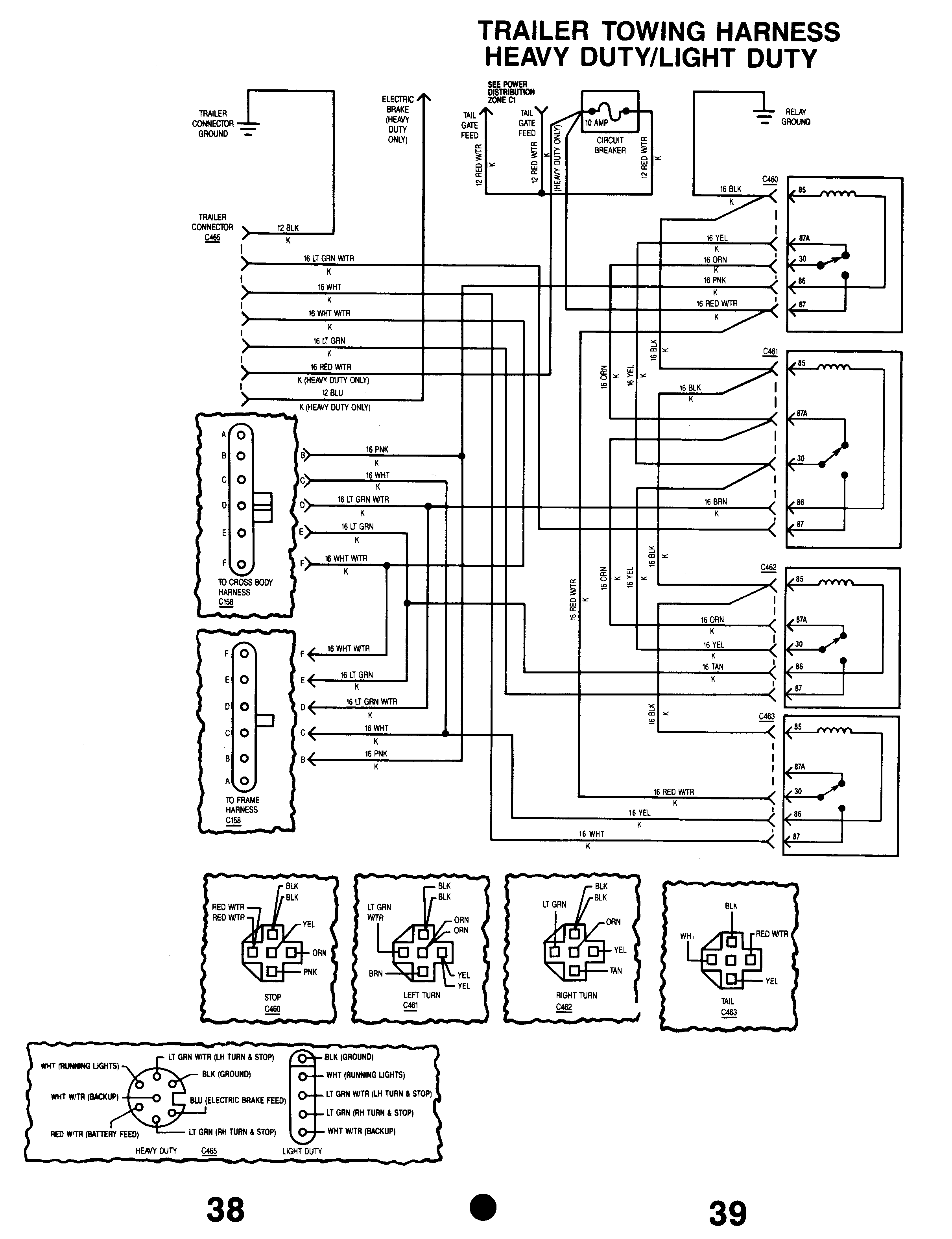

86_FSJ_WiringDiagramPage4-8 Heavy Duty Towing Harness
86-FSJ-WiringDiagrams.zip Complete set in 1 WinZip File (approx 3.3 Meg)

1987 (& 88) Grand Wagoneer Wiring Repair Article. (Compiled & published by Dan James_2005)

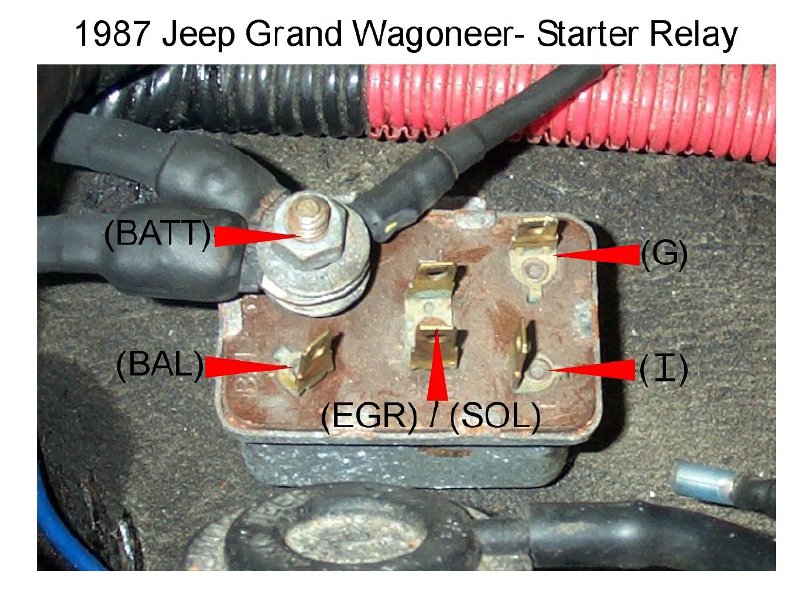

87 (& 88) Starter Relay
87 (& 88) Jeep Wire Repair Technical Repairs & Diagrams
New 04/05/14 1987 Grand Wagoneer scan of factory wiring diagrams in 4 sections (Supplied by Stephen Sierra)
87 Wiring Index Page 1
87 Wiring Section 1 to 13
87 Wiring Section 14 to 26
87 Wiring Section 27 to 39

1988 Grand Wagoneer Wiring Diagrams. This set has been slightly cleaned up for readability. (Source of these scans is unknown)

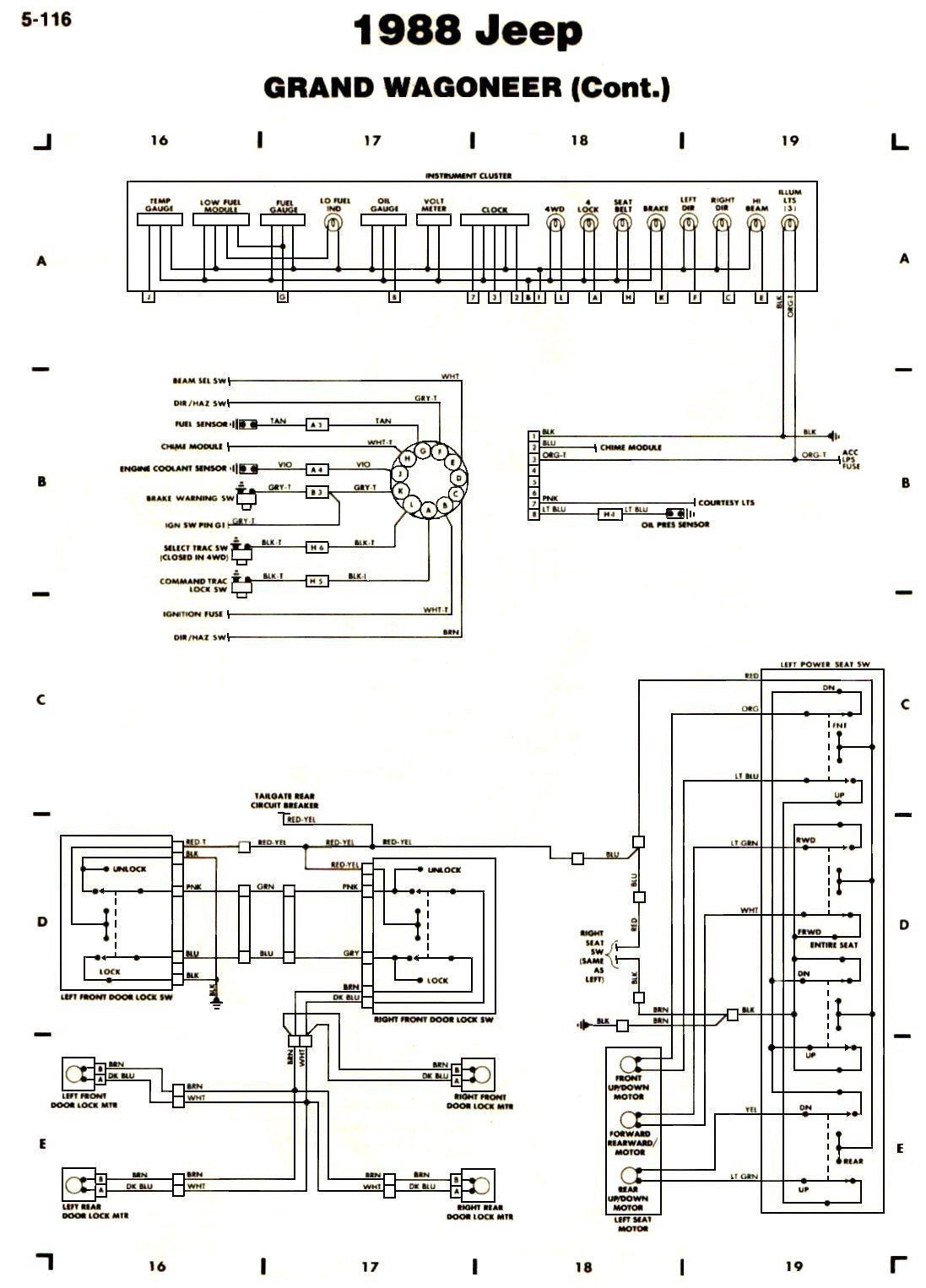

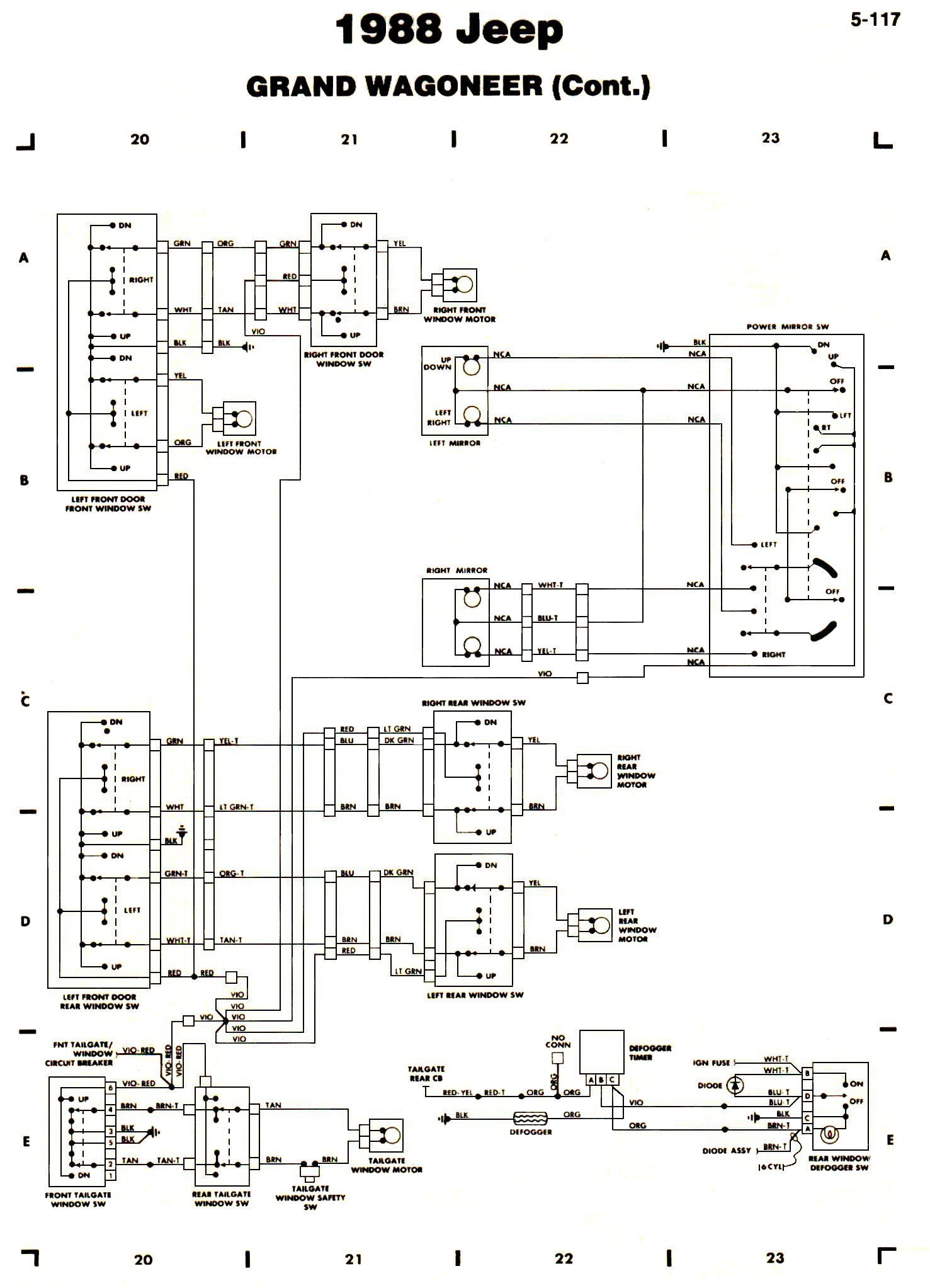

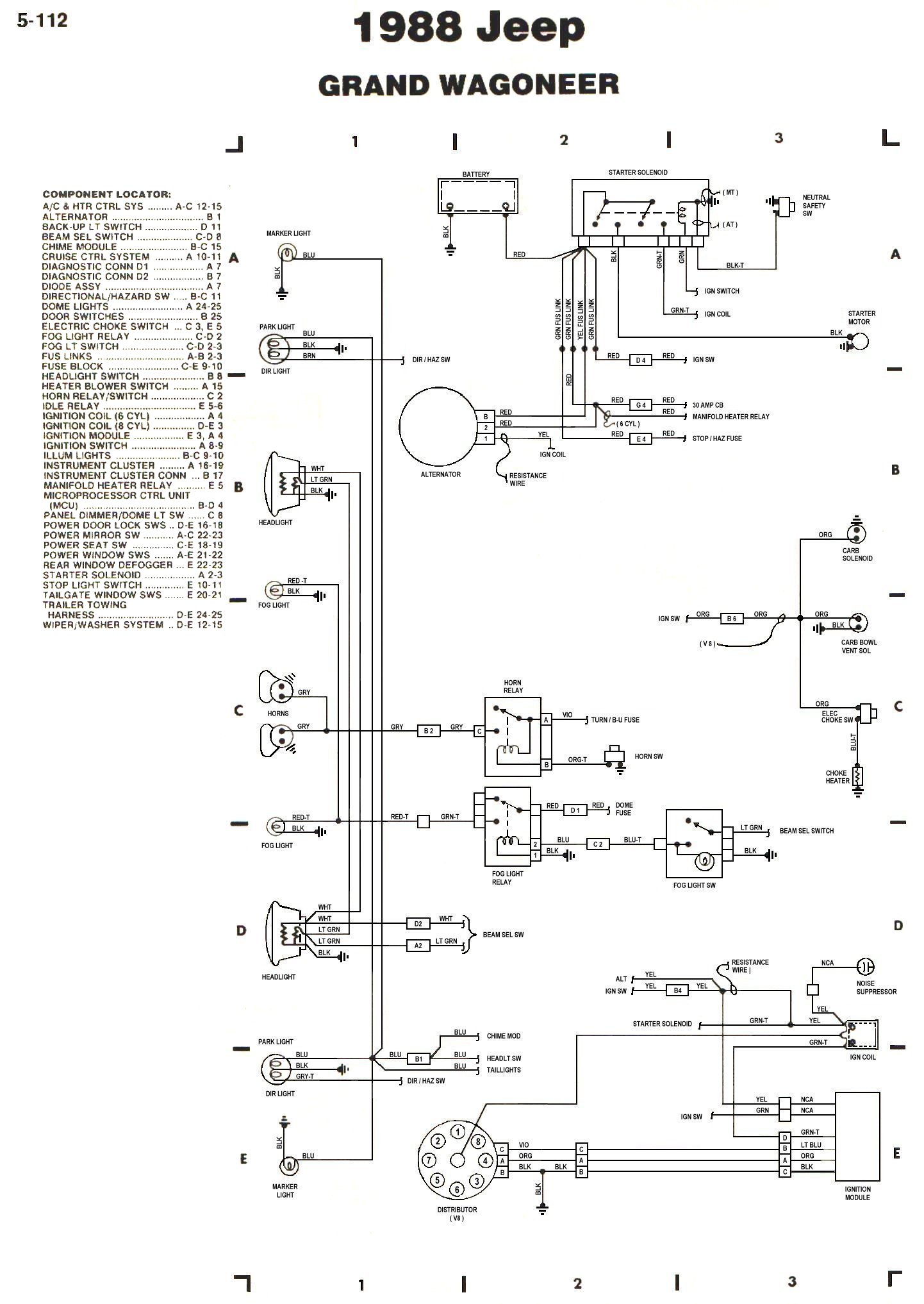

88_FSJ_WiringDiagramPage1

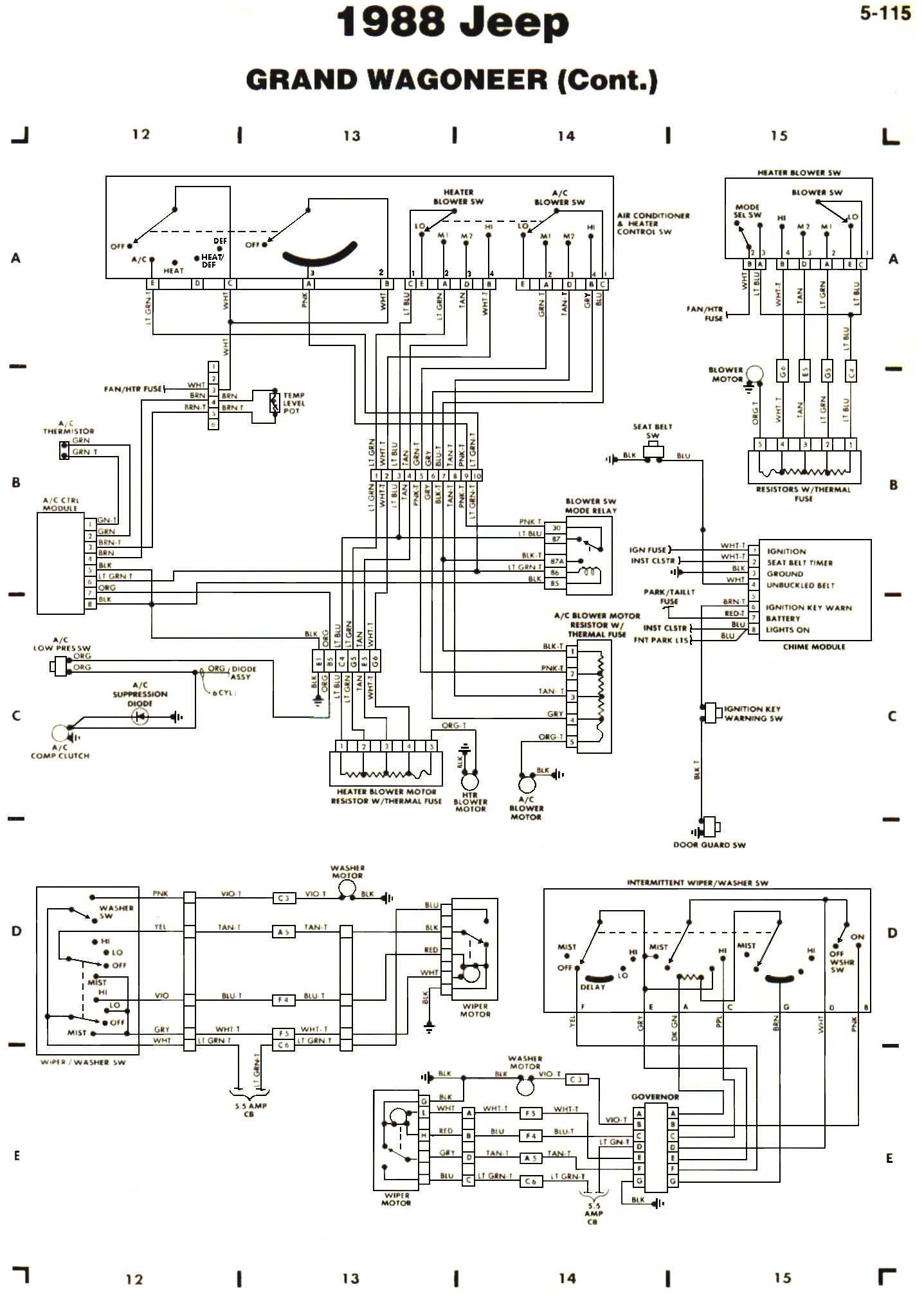

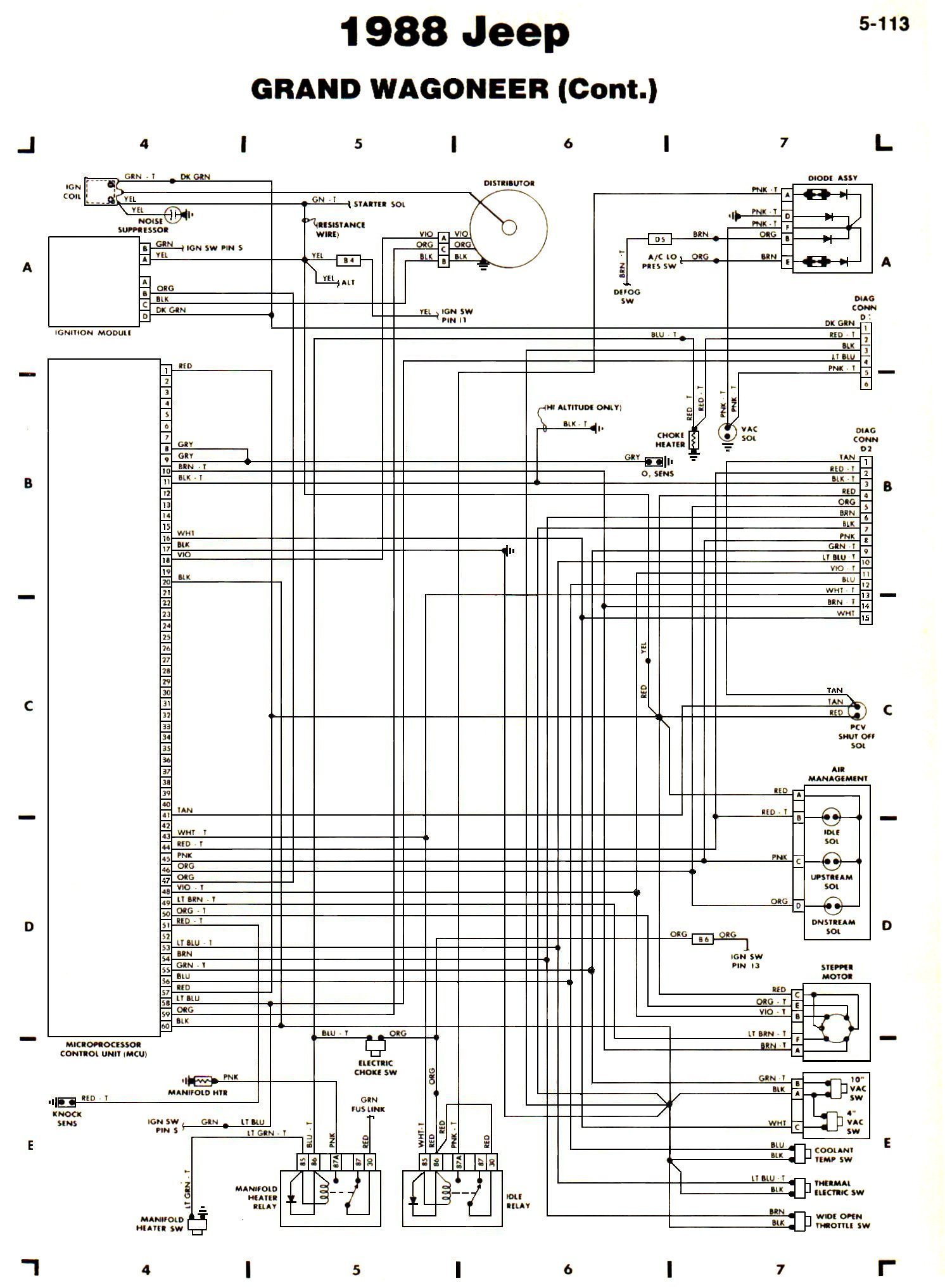

88_FSJ_WiringDiagramPage2

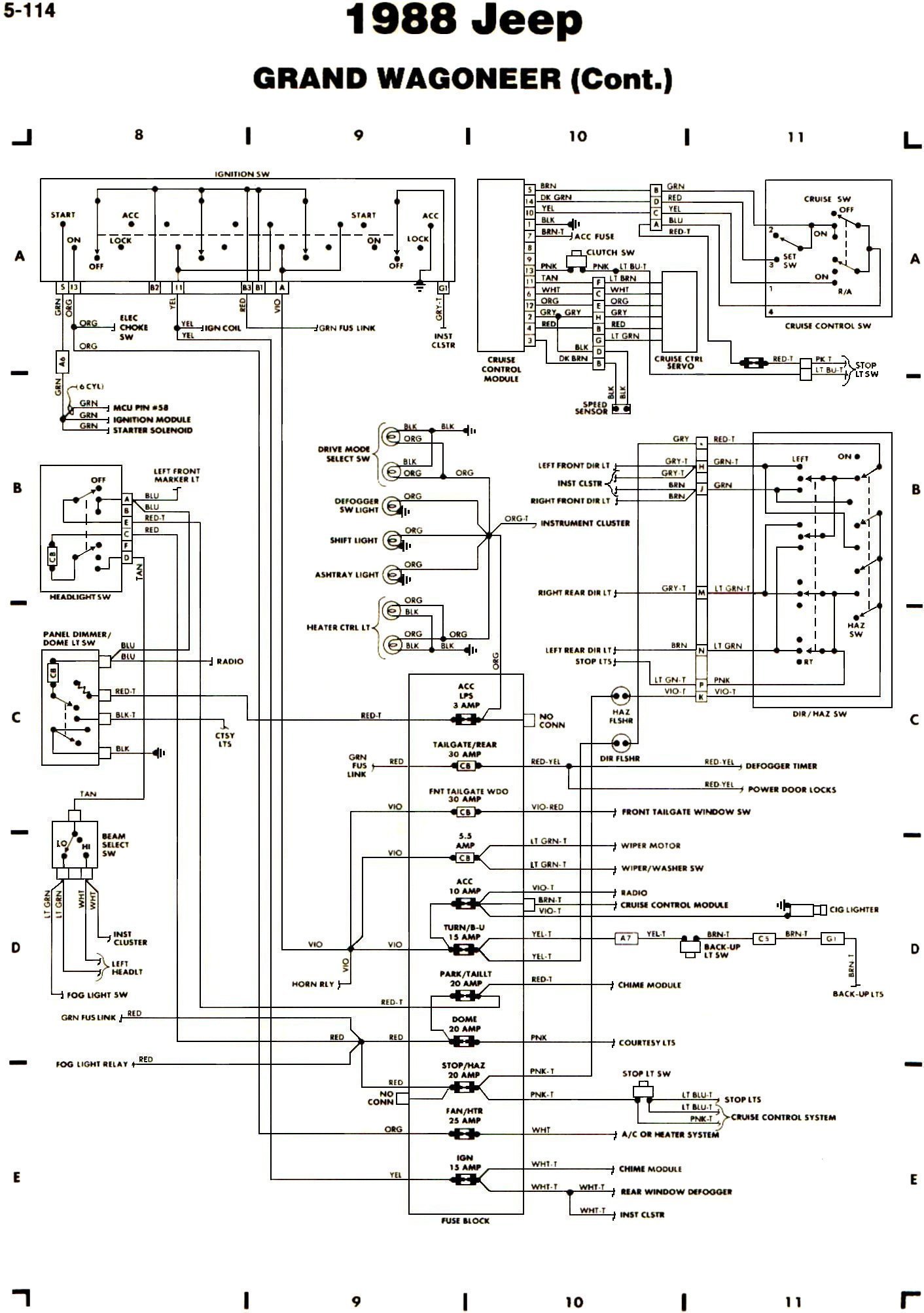

88_FSJ_WiringDiagramPage3
88_FSJ_WiringDiagramPage4
88_FSJ_WiringDiagramPage5
88_FSJ_WiringDiagramPage6
88_FSJ_WiringDiagram.zip Complete set in 1 WinZip File (approx 1.55 Meg)

1989 Grand Wagoneer Factory wiring diagram
Note: These diagrams are scanned from the 11" x 5' or so long & split into overlapping diagrams so they can be printed & pasted together.
These are compliments of Andrew Dauber.
1989 Fuse Panel & Charging System 1989 Fuse Panel & Charging system
1989 Courtesy Lamps, Dome Lamps, Cargo Lamps & Vanity Lamps 1989 Courtesy Lamps, Dome Lamps, Cargo Lamps & Vanity Lamps
1989 Cruise Control System 1989 Cruise Control System
1989 Defogger 1989 Defogger
1989 Front End Lighting 1989 Front End Lighting
1989 Fuel Tank System 1989 Fuel Tank System
1989 Horn & Cigar Lighter - Turn Signal & Hazard Warning System 1989 Horn & Cigar Lighter - Turn Signal & Hazard Warning System
1989 Ignition & Emission System 1989 Ignition & Emission System
1989 Headlamp Switch Controlled Interior Lighting 1989 Headlamp Switch Controlled Interior Lighting
1989 International Symbols 1989 International Symbols
1989 Oil Pressure, Temperature & Underhood Lamp 1989 Oil Pressure, Temperature & Underhood Lamp
1989 Power Door Locks & Keyless Entry 1989 Power Door Locks & Keyless Entry
1989 Power Windows & Power Seat 1989 Power Windows & Power Seat
1989 Rear Lamps (1) 1989 Rear Lamps (1)
1989 Rear Lamps (2) 1989 Rear Lamps (2)
1989 Rear Wiper 1989 Rear Wiper
1989 Starting System & Ignition Switch 1989 Starting System & Ignition Switch
1989 Wiring Diagram Symbols 1989 Wiring Diagram Symbols
1989 Tailgate Window 1989 Tailgate Window
1989 Warning Chime Module & Overhead Console 1989 Warning Chime Module & Overhead Console
1989 Warning Indicators 1989 Warning Indicators
1989 Windshield Wipers 1989 Windshield Wipers
1989 Electrical Diagrams Complete Set in a Zip File Complete set in 1 WinZip File (approx 11 Megs)

 New Section:  1990 Wiring Diagrams This section is so large I made a seperate page for it. All 55 pages from the Jeep Electrical Manual (Section 8W-Wiring Diagrams) are now posted.

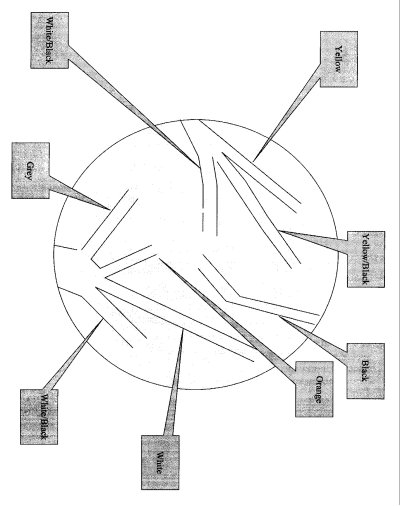

mirror.jpg The diagram you need when you pop the control apart by accident!
