Oljeep Collins

1990 Grand Wagoneer Wiring Diagrams Page


You can "Right-Click" and do a "Save As" on the link or go to the link & do the same thing. The WinZip format files are compressed and you will need a WinZip type program to uncompress.
In your graphics program, (I use PaintShopPro), use your Page Setup and check the "Fit to Page" and you should get some decent printouts.

For Requests email Tom Collins

1990 Fuse Panel & Ignition Schematic

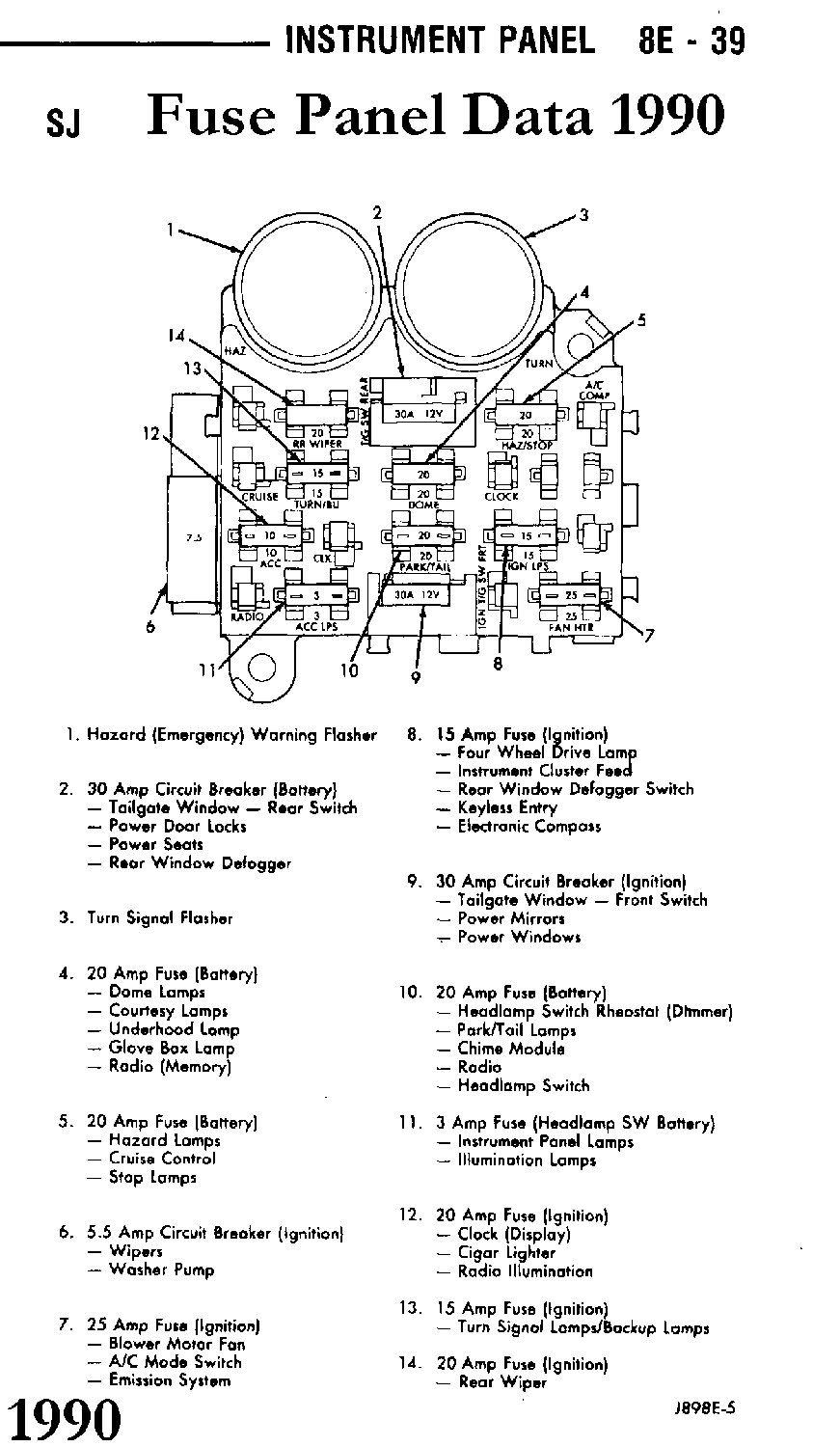

Fuse Panel Layout

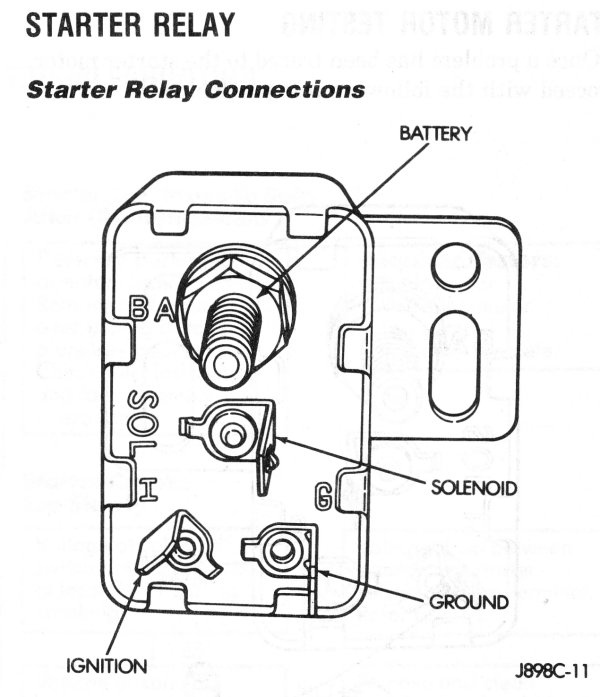

Starter Solenoid

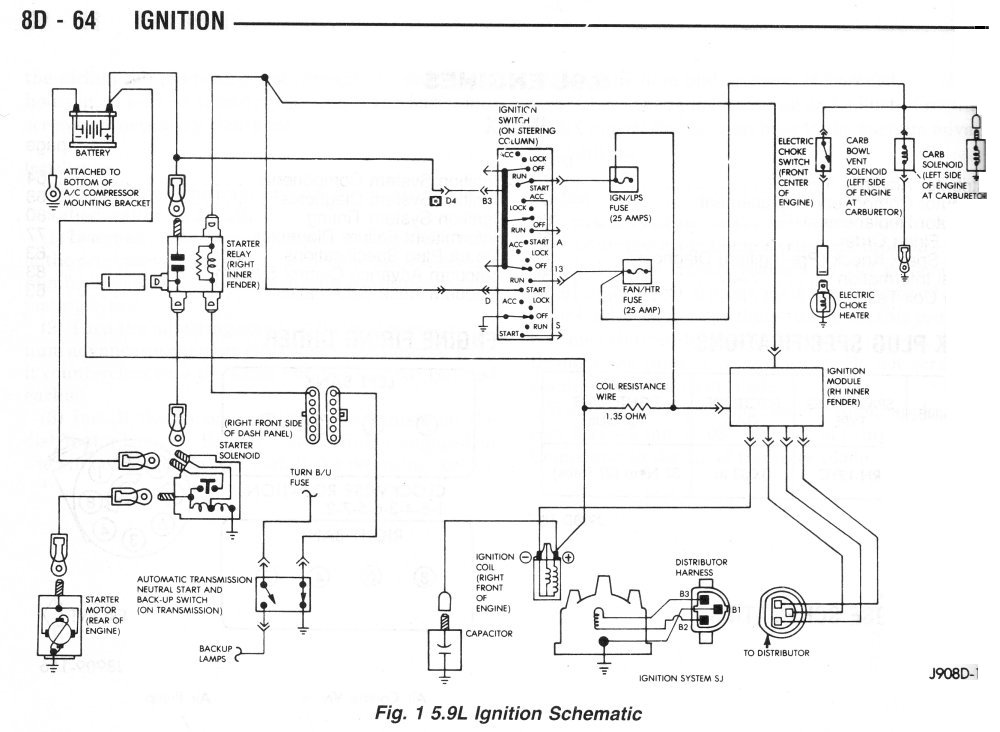

Ignition Schematic

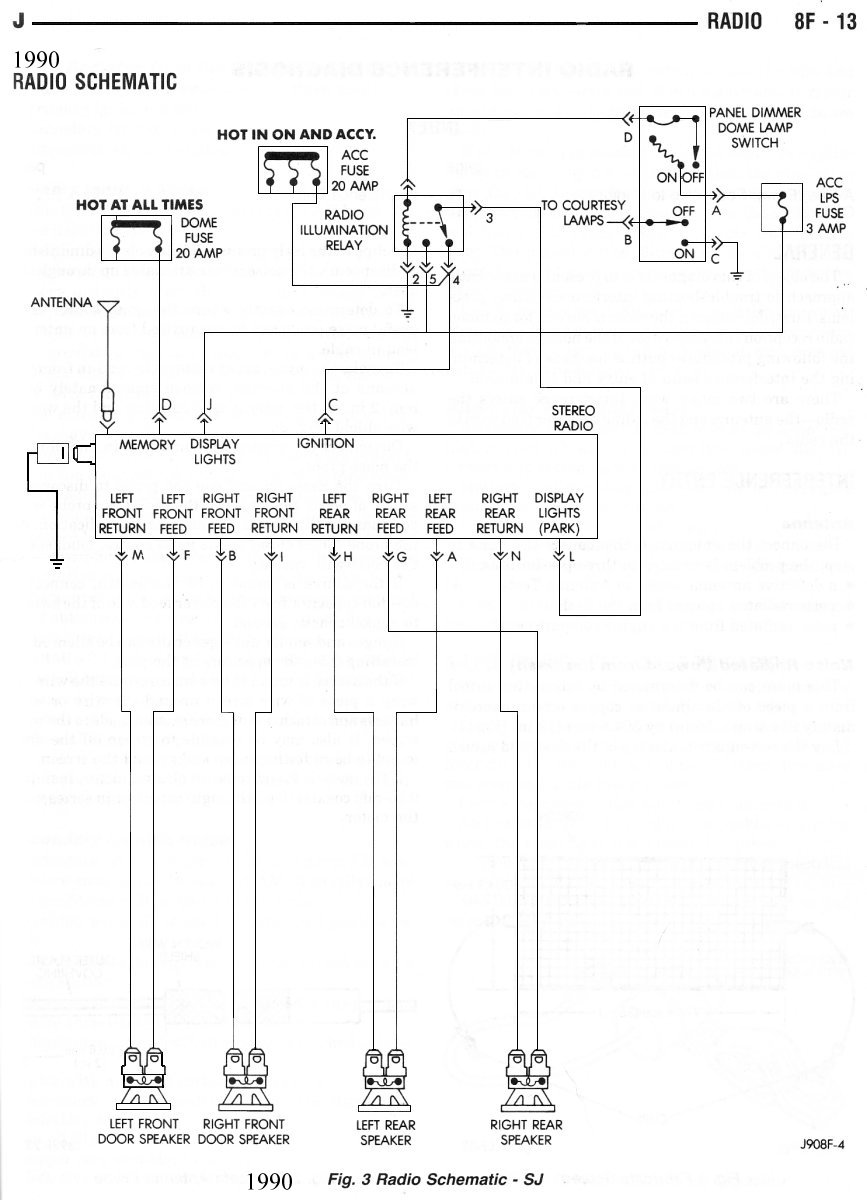

1990 Radio Schematic (Also refer to Page 29 in the Numeric section below)
Radio Schematic

1990 Instrument Cluster

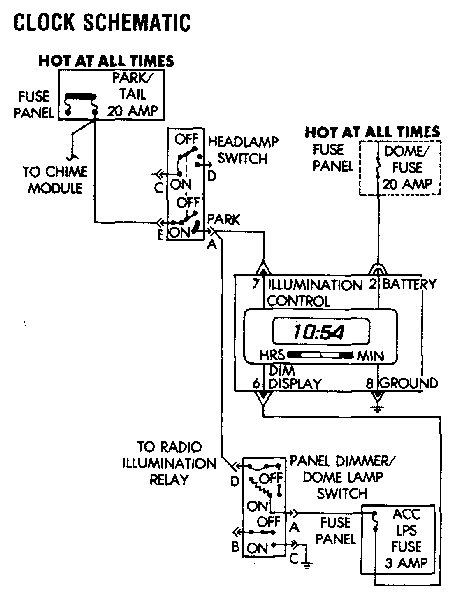

Instrument Panel Clock

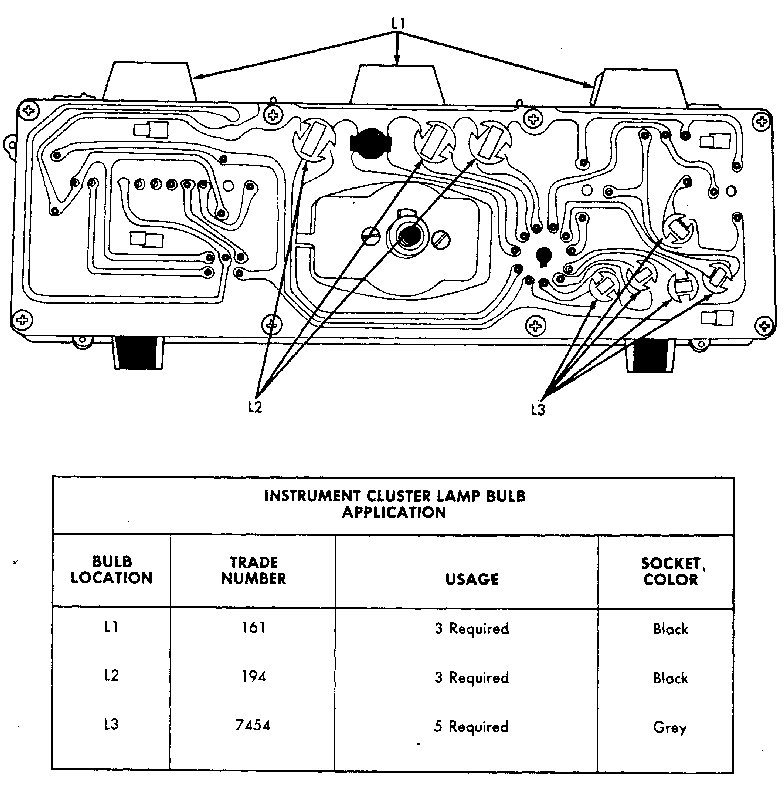

Instrument Panel Cluster Lamps

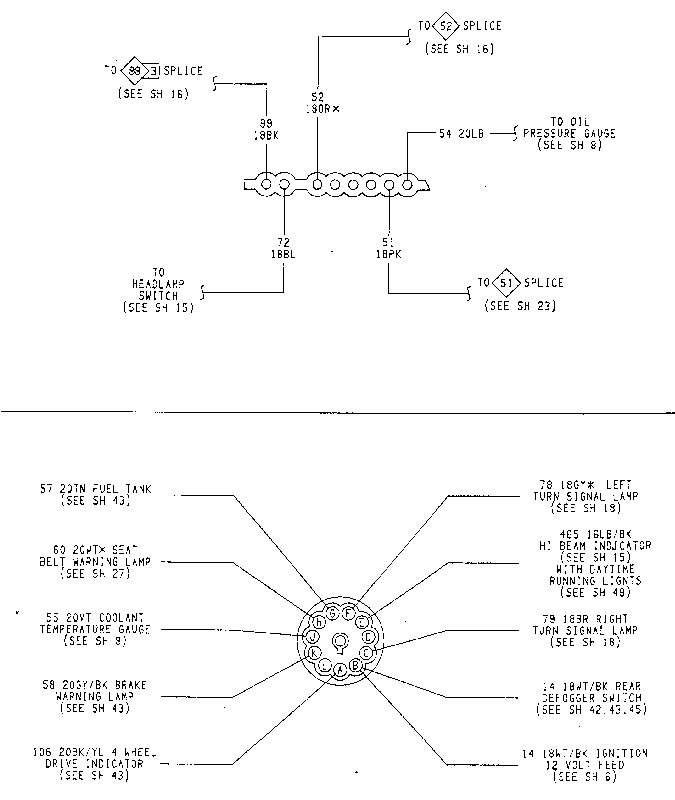

Instrument Panel Connectors

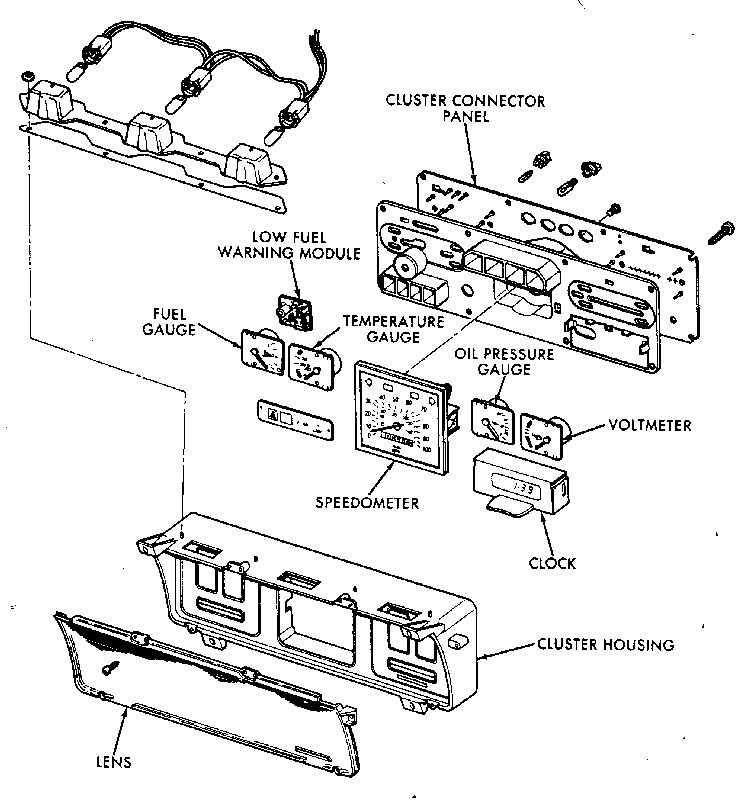

Instrument Panel Exploded View

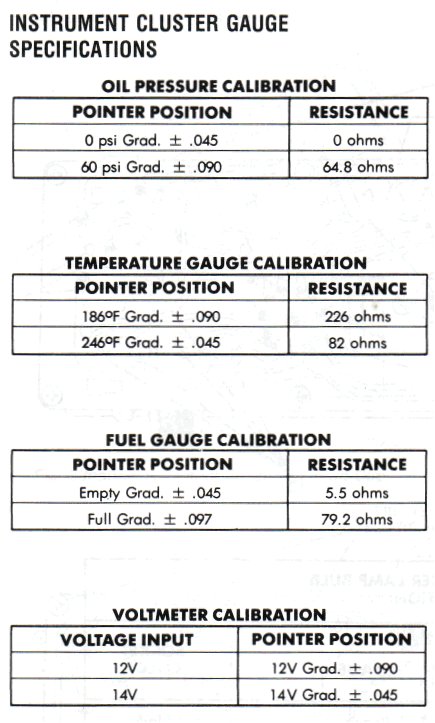

Instrument Panel Gauge Specs

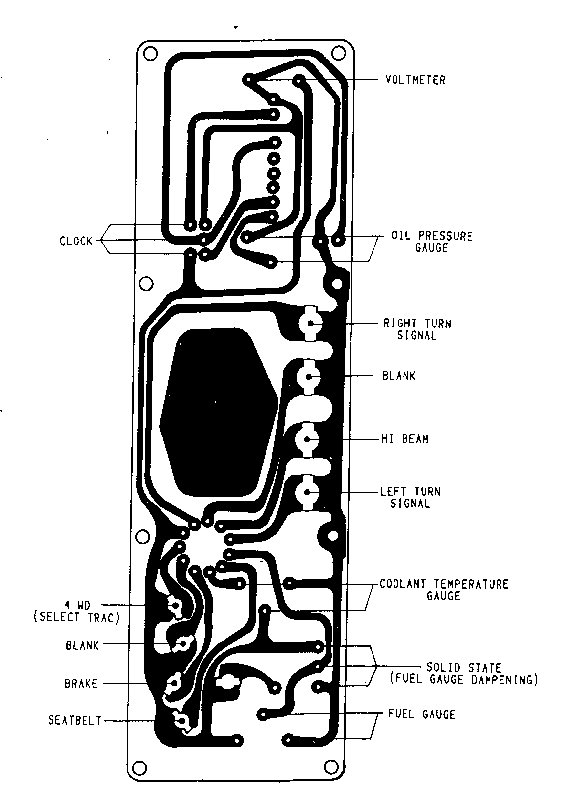

Instrument Panel Printed Circuit Board

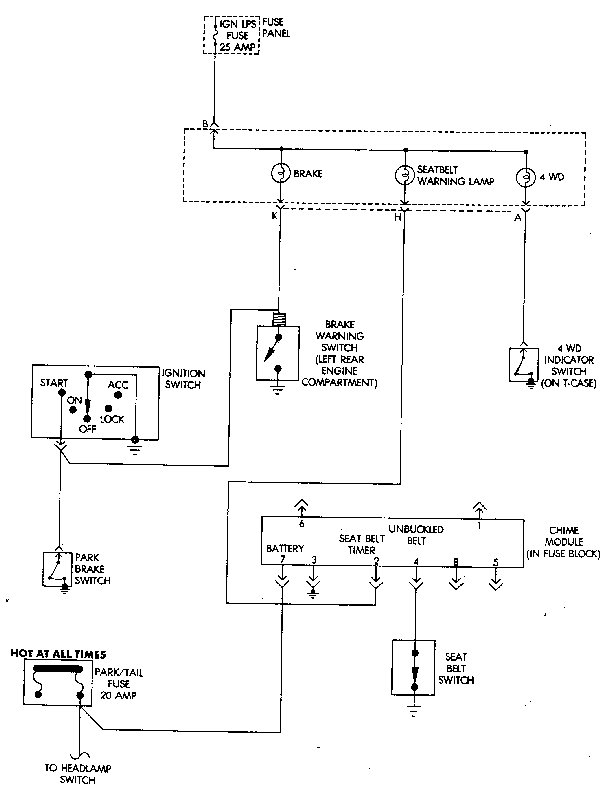

Instrument Panel Schematic Page 1

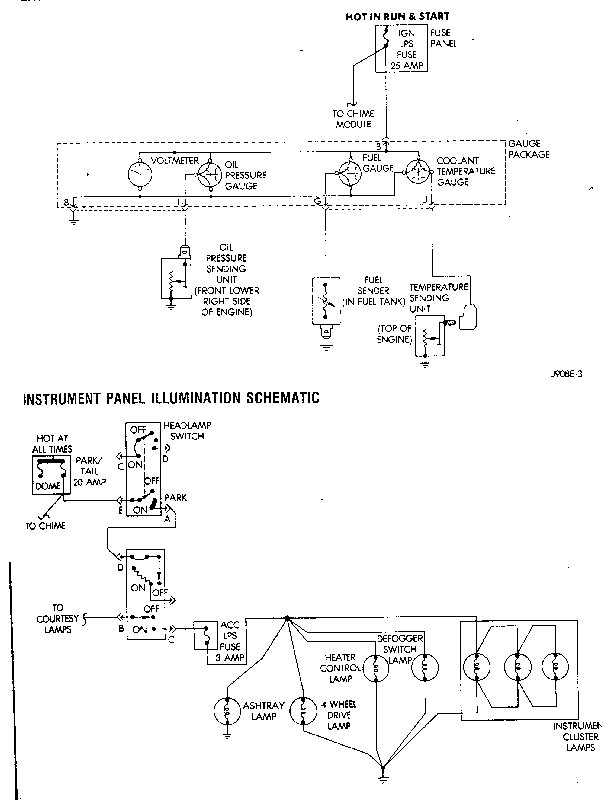

Instrument Panel Schematic Page 2
90-Instrument Cluster Set (WinZip File) Complete set in 1 WinZip File (approx 600K)

1990 Cruise Control
Cruise_Wiring 1 Section 8W Page SJ-11
Cruise_Wiring 2 Section 8W Page SJ-12

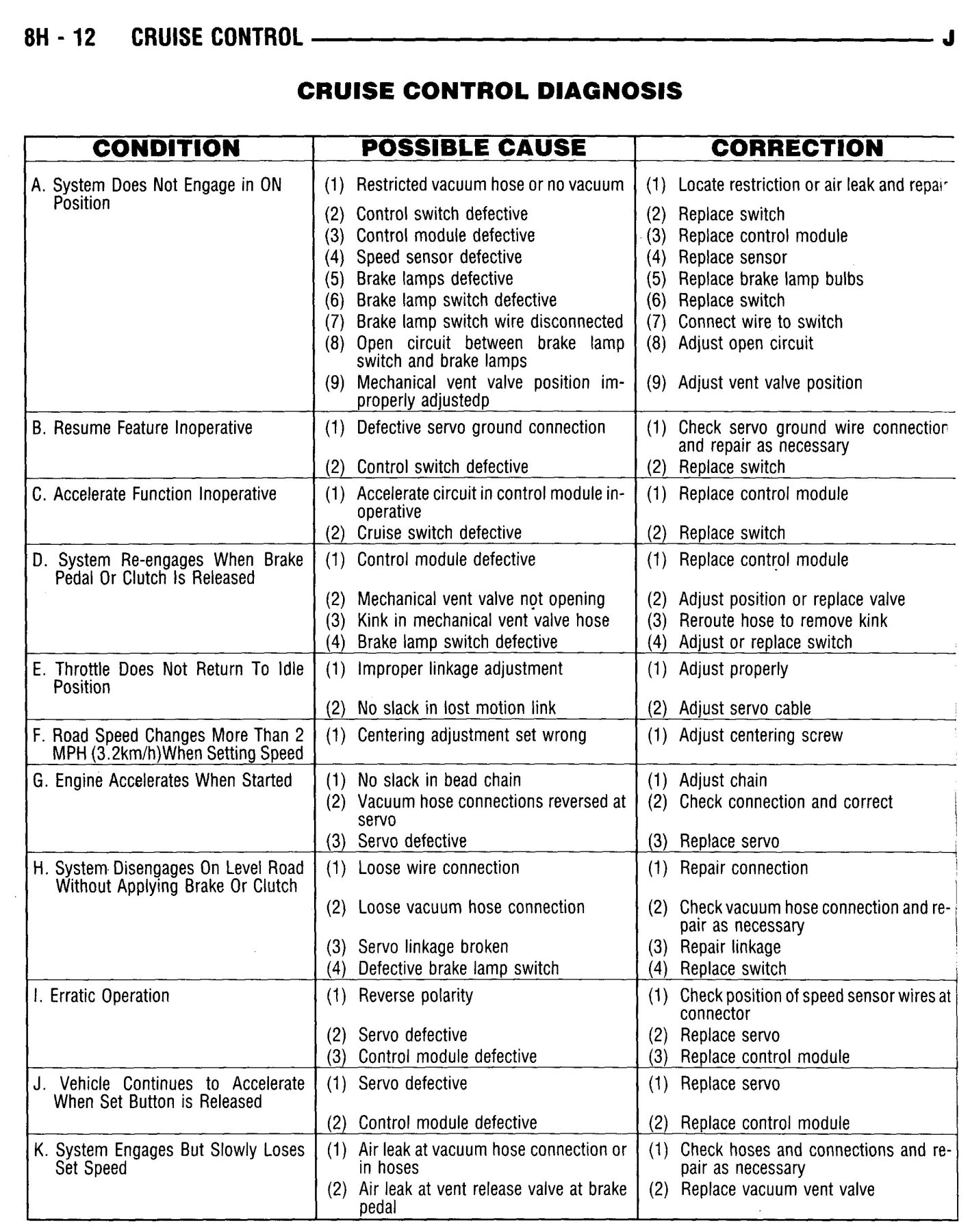

Cruise Control Diagnosis Section 8H Page 12

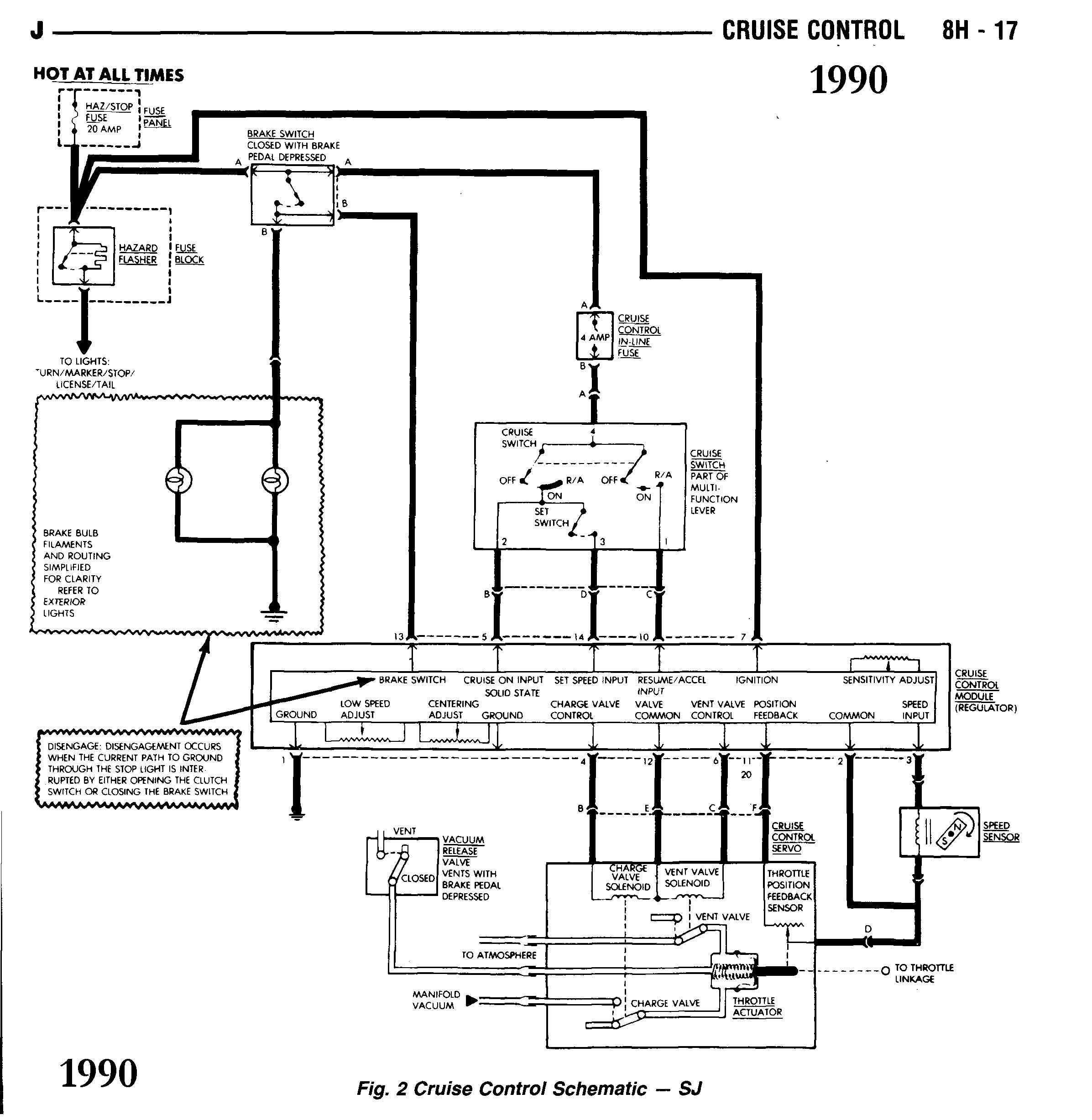

Cruise_Schematic Section 8H Page 17

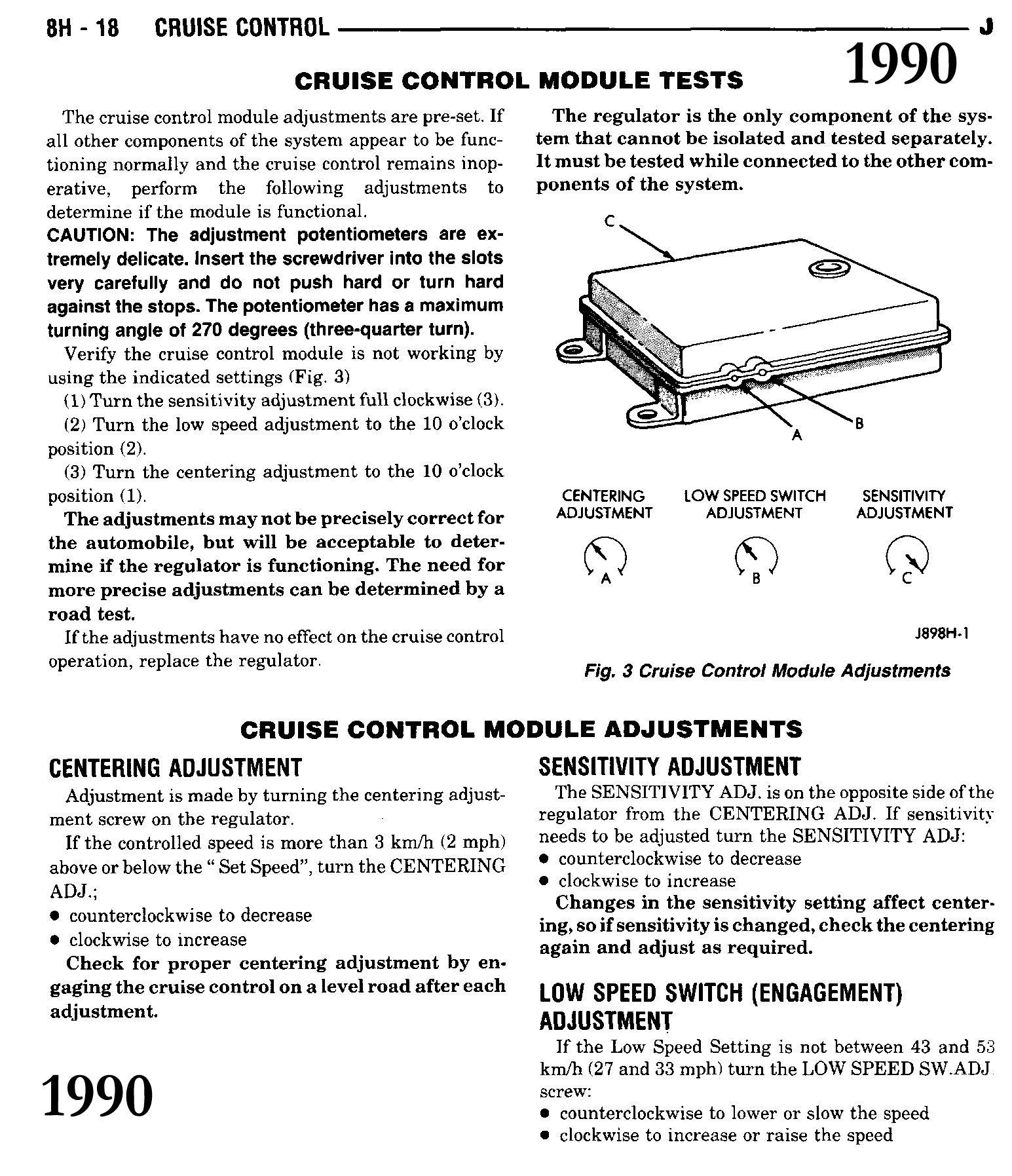

Cruise_Module Tests Section 8H Page 18

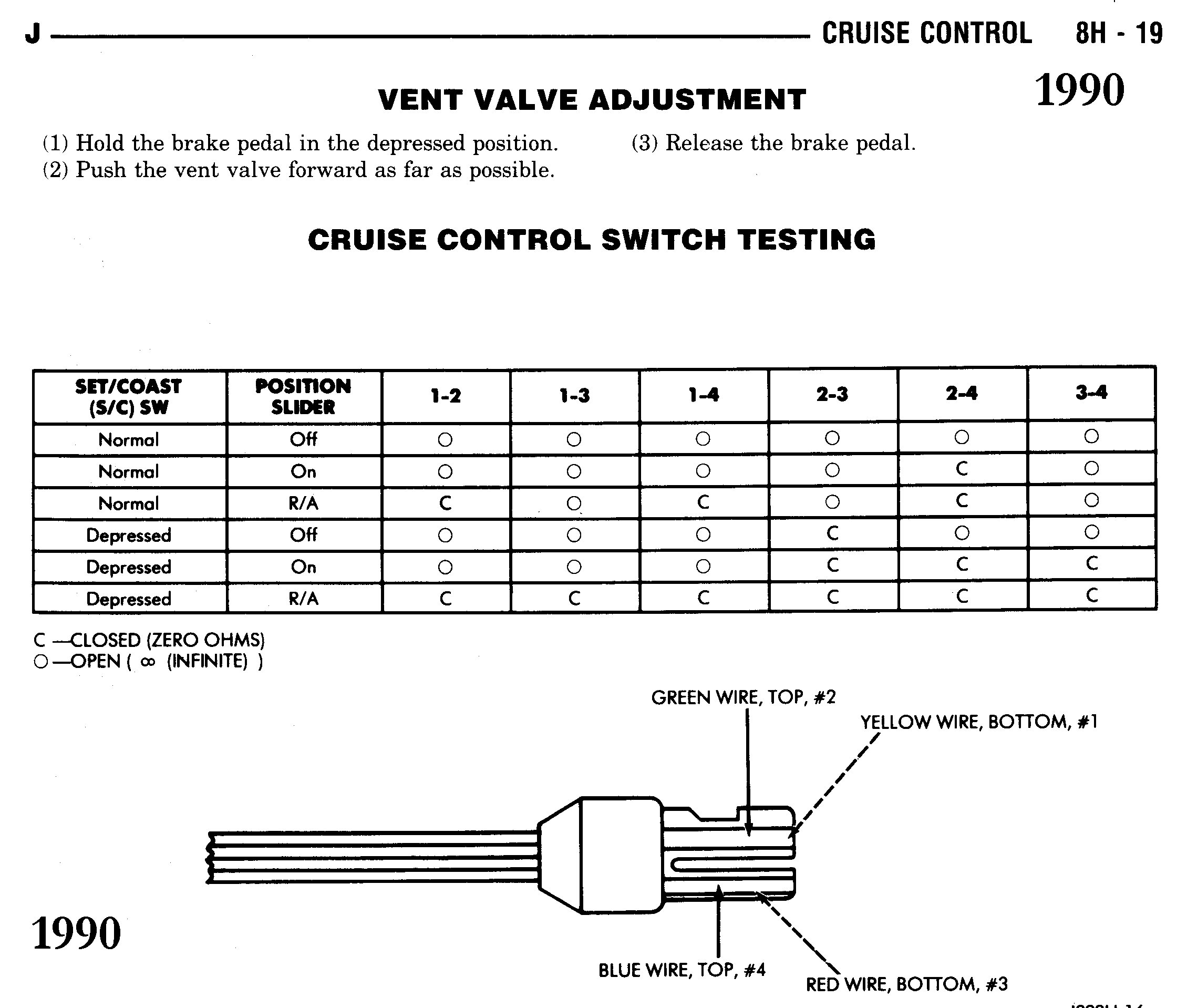

Cruise_Switch Page Section 8H Page 19
Cruise Control Set (WinZip File) Complete set in 1 WinZip File (approx 2 Meg)


1990 Wiring Diagrams (Section 8W) Numeric Listing

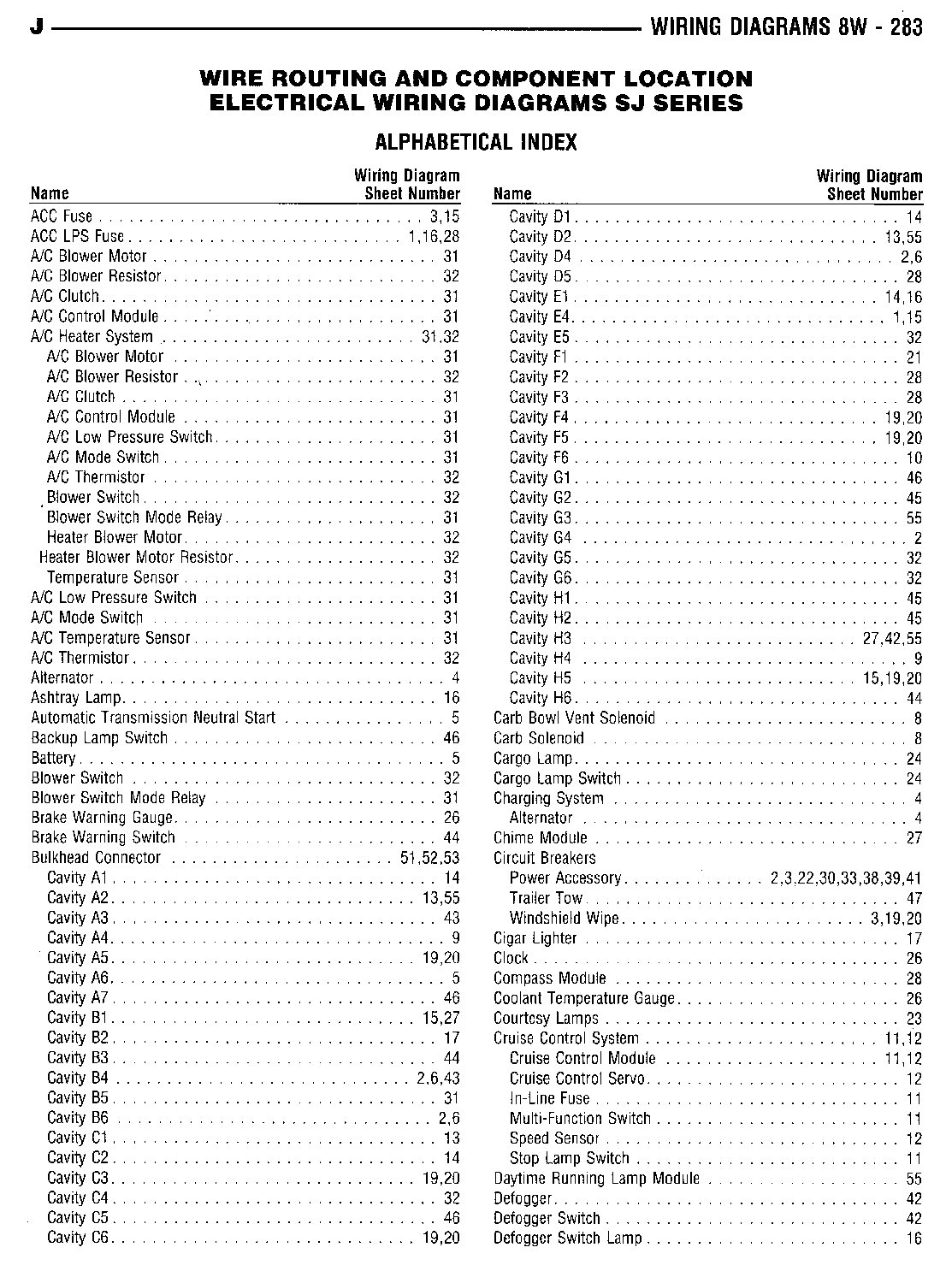

1990 Index A - Def
 Index Page 1

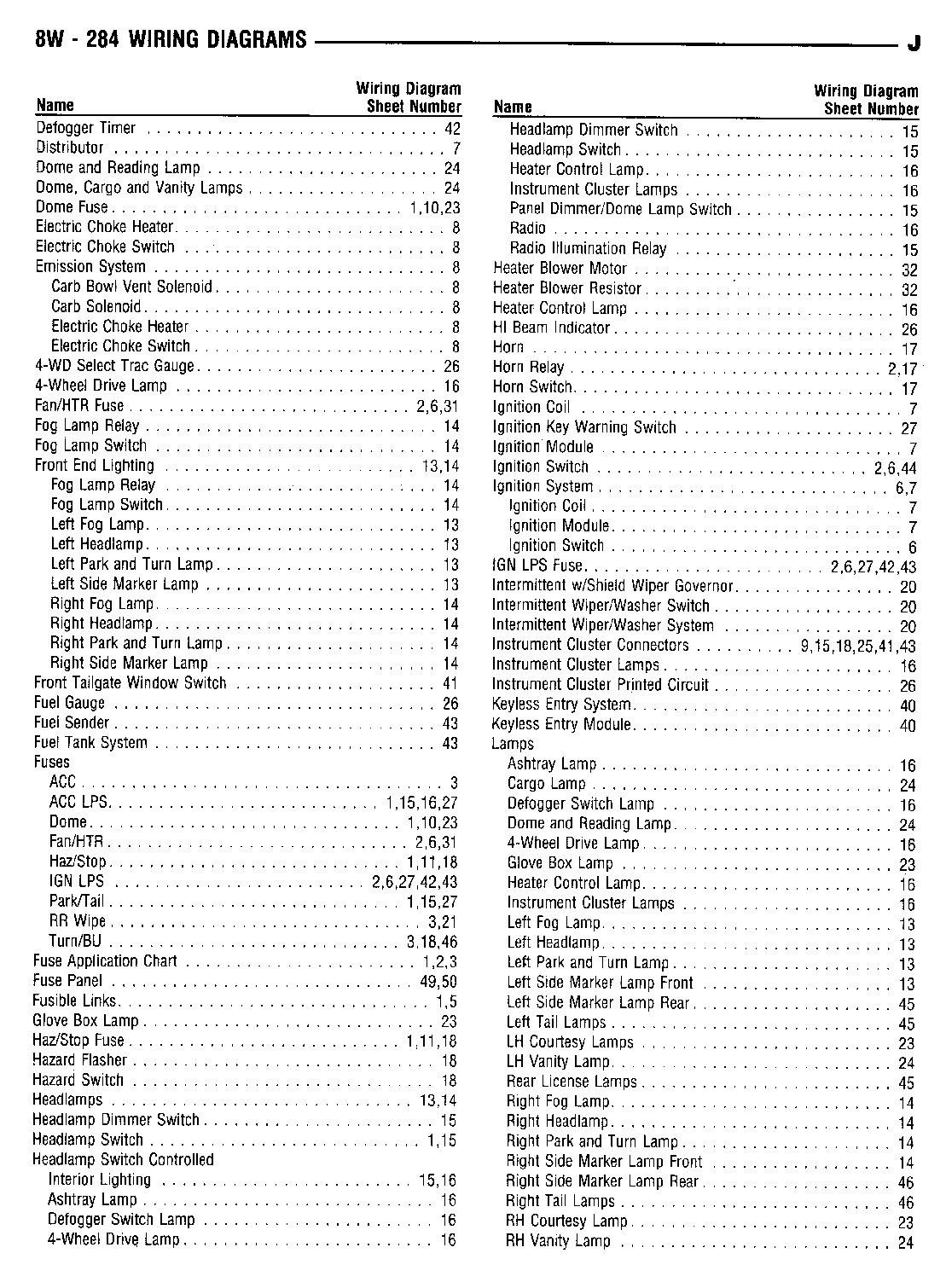

1990 Index Def - Lamps
 Index Page 2

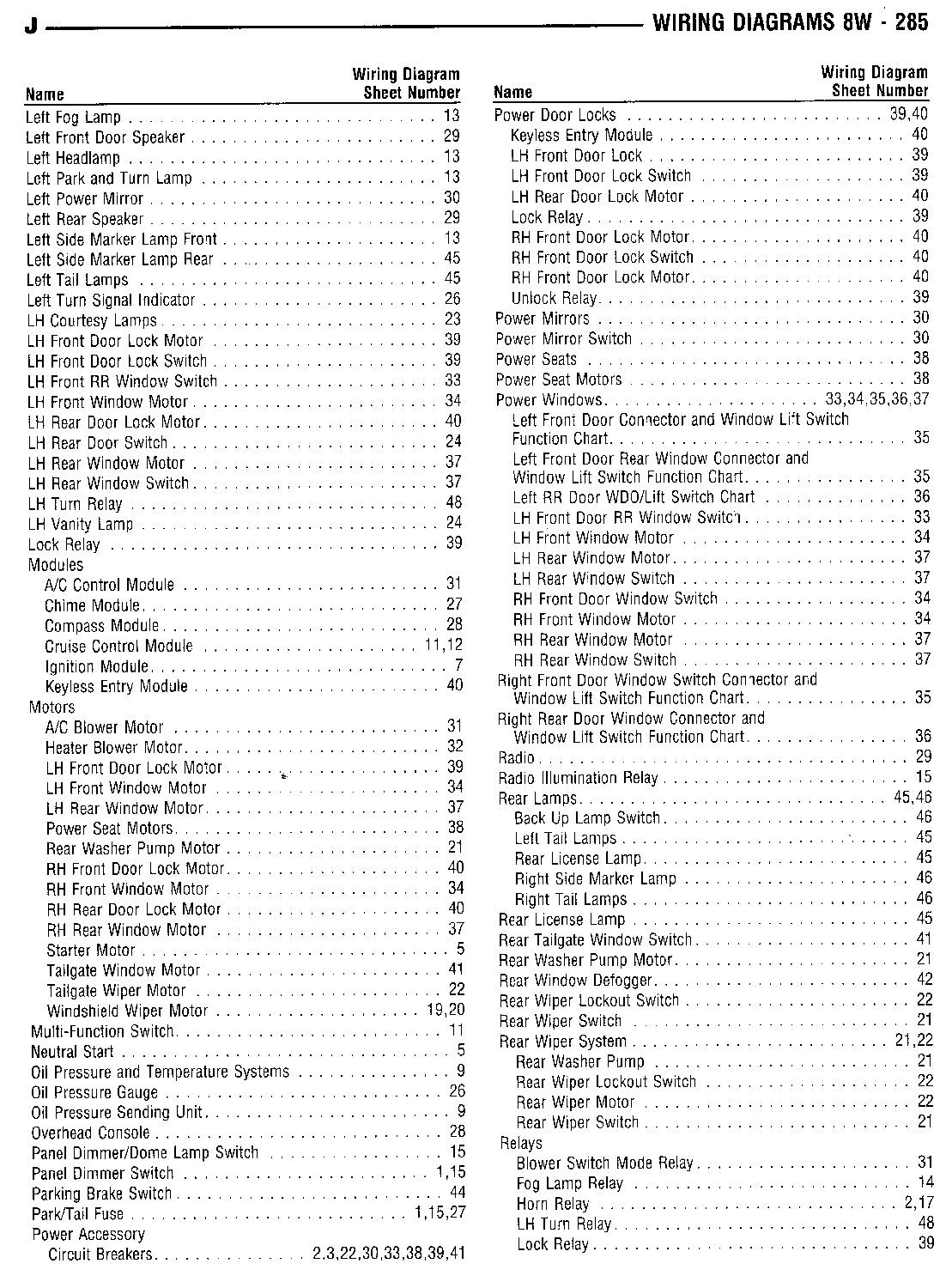

1990 Index Lamps - Relays
 Index Page 3

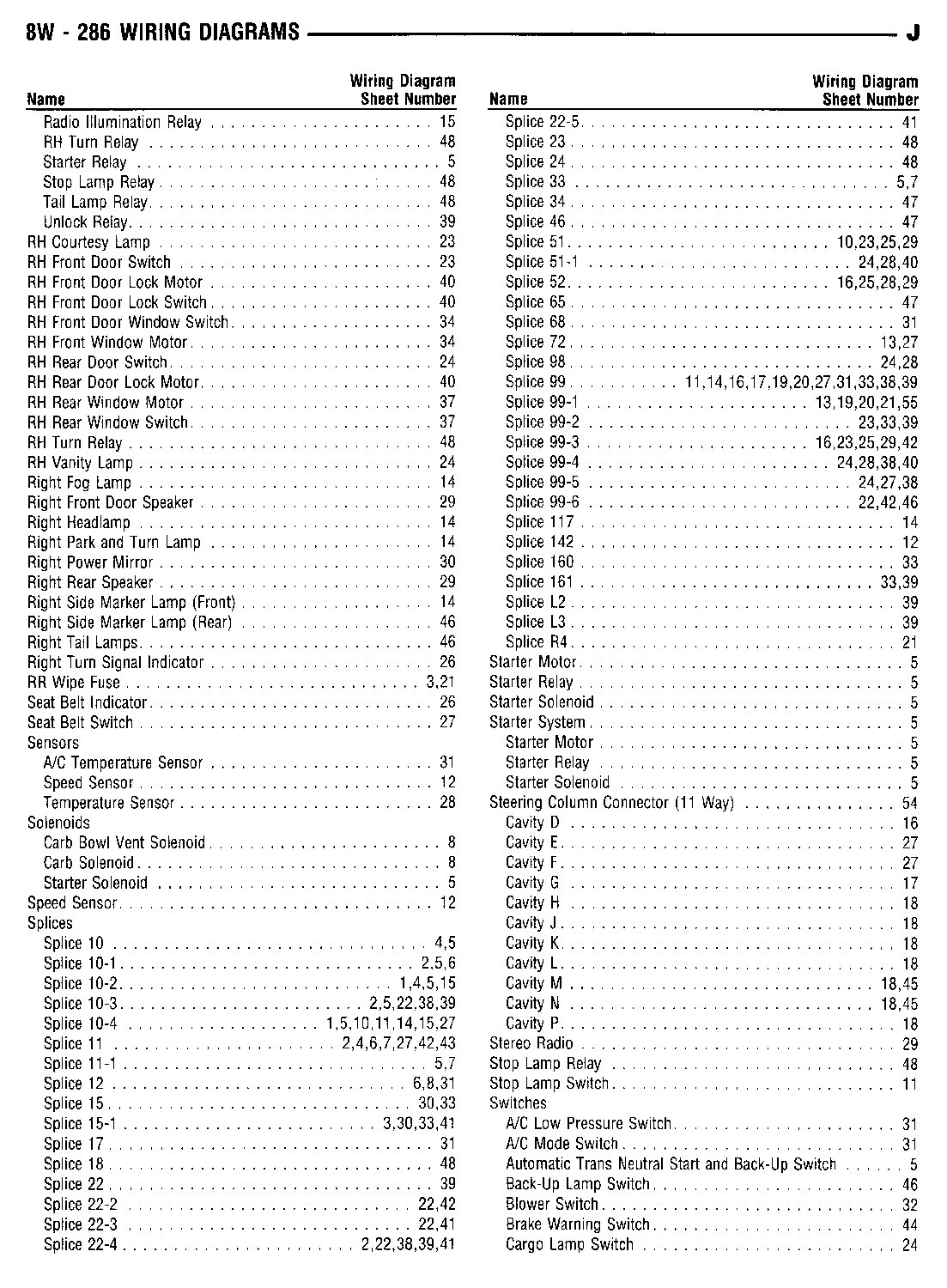

1990 Index Relays - Switches
 Index Page 4

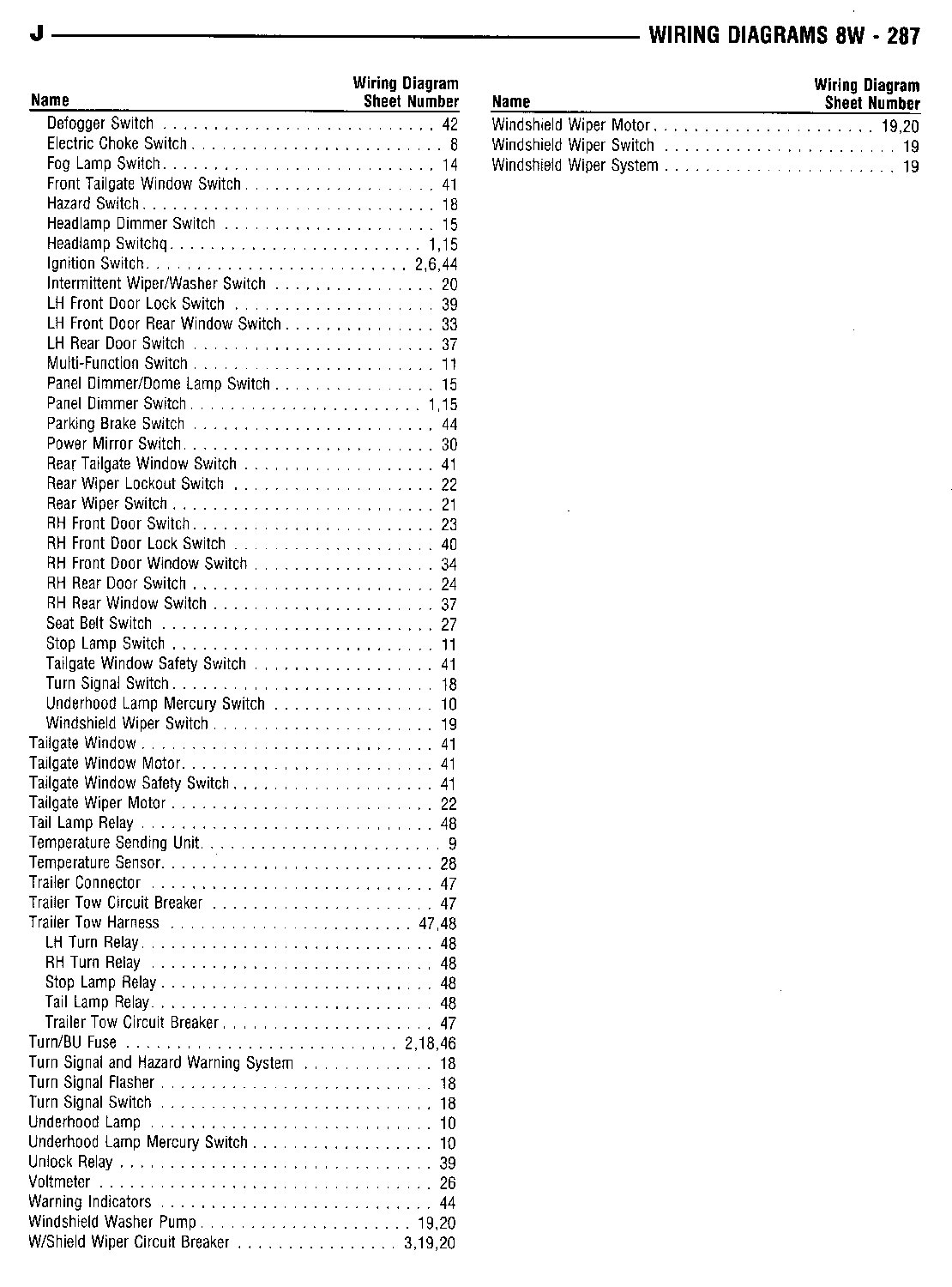

1990 Index Switches - End
 Index Page 5

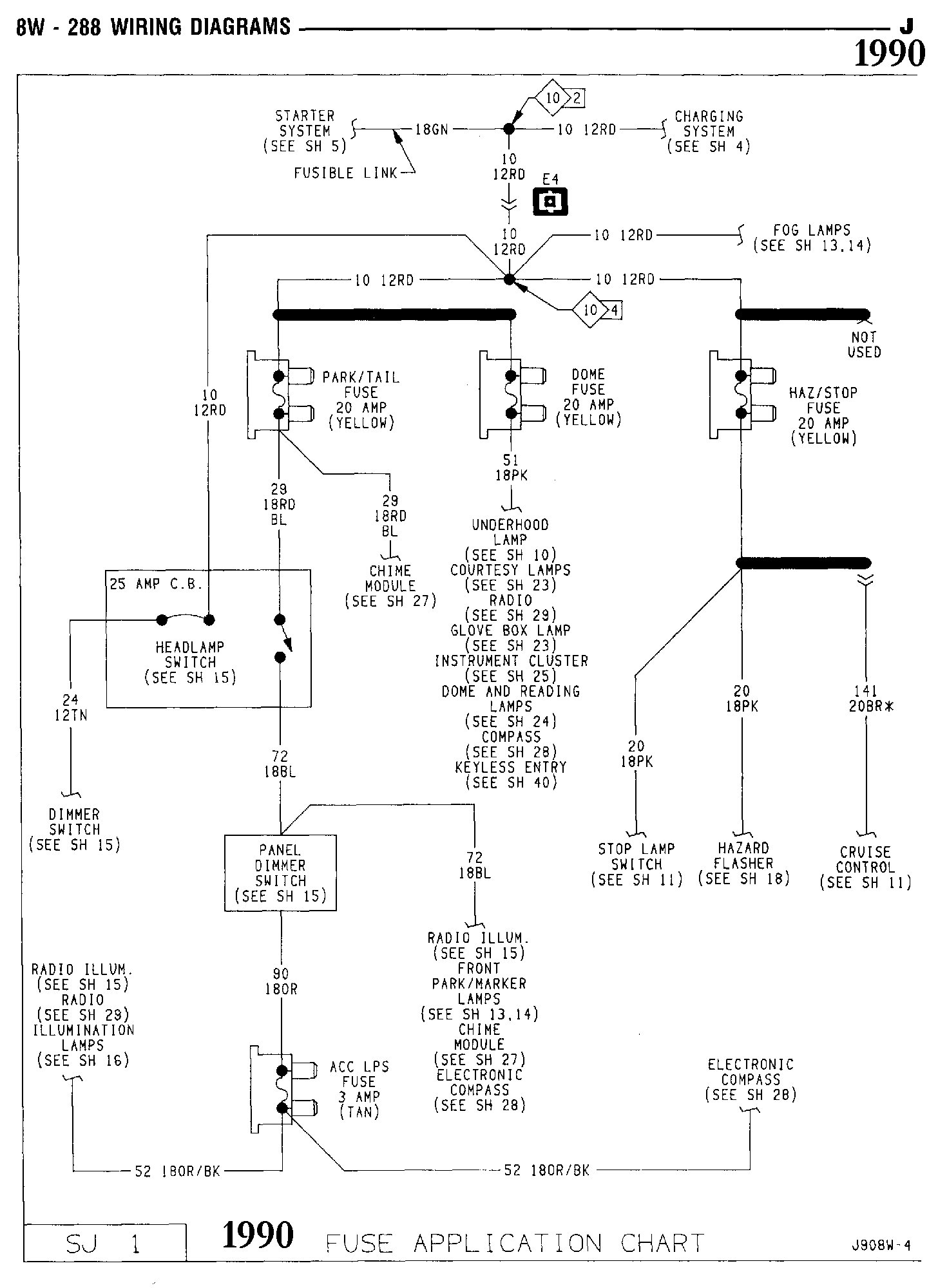

FuseApplicationChart-8W_Page-1
 Fuse Application Chart #1 of 3

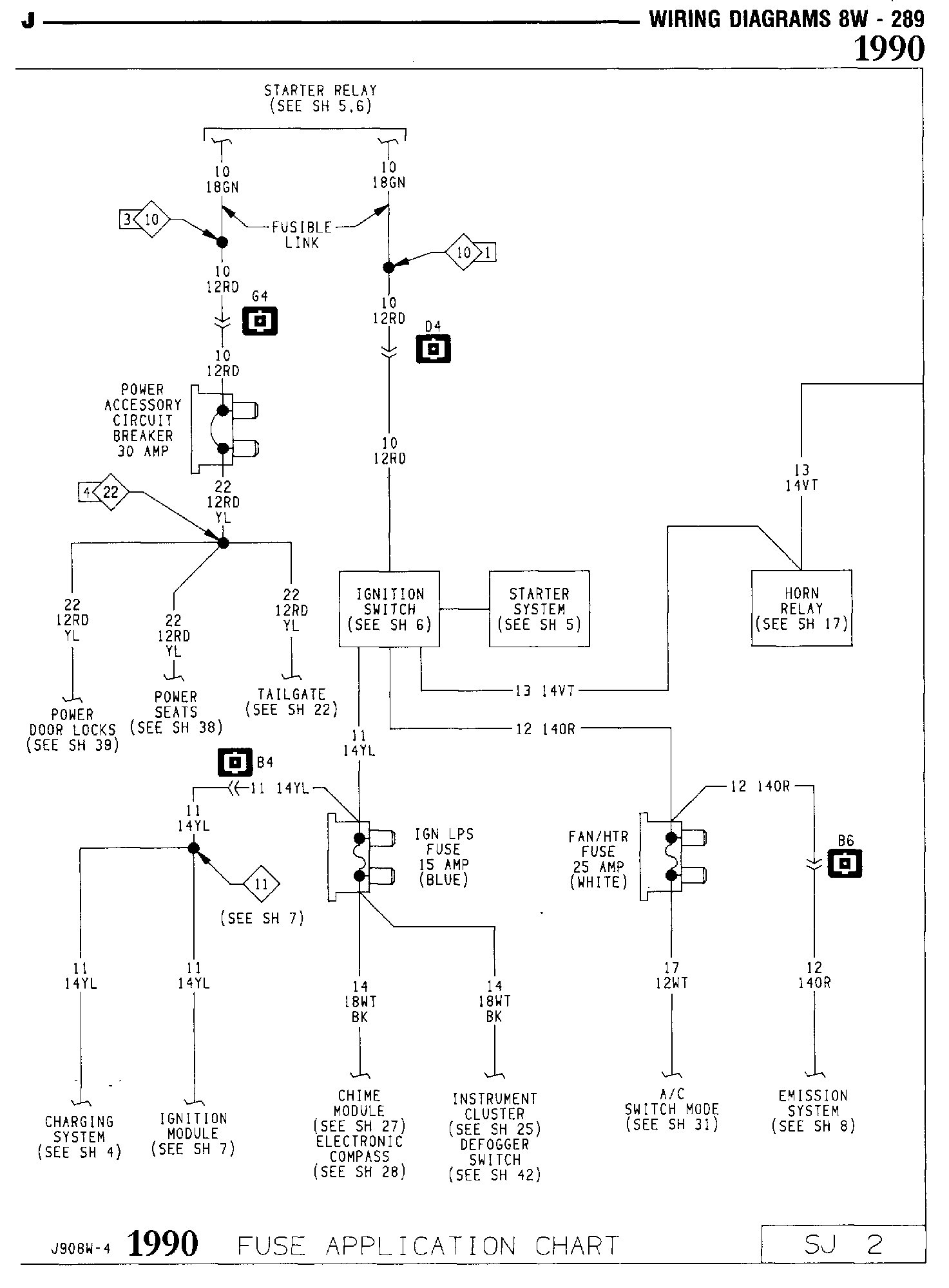

FuseApplicationChart-8W_Page-2
 Fuse Application Chart #2 of 3

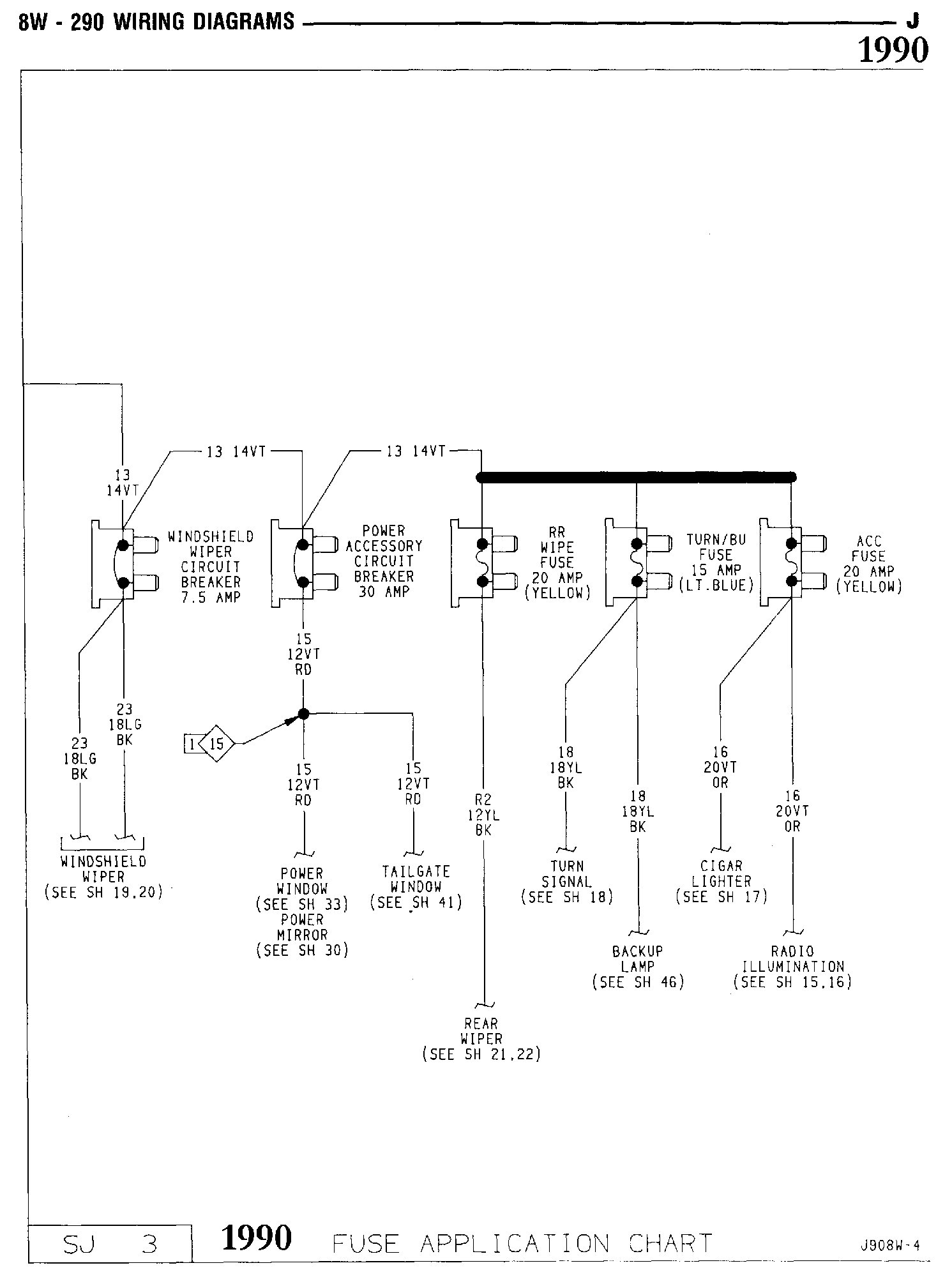

FuseApplicationChart-8W_Page-3
 Fuse Application Chart #3 of 3

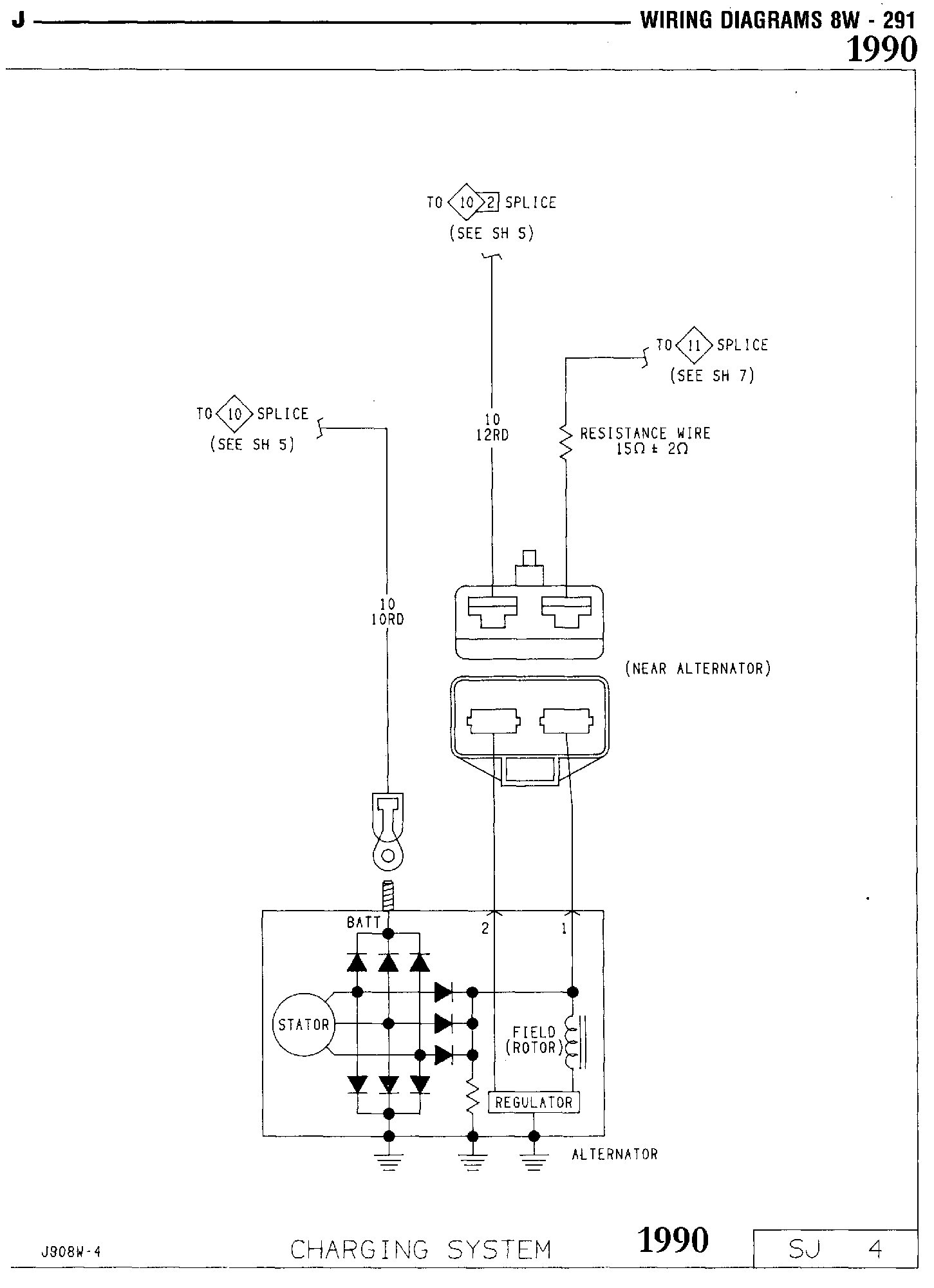

ChargingSystem-8W_Page-4
 Charging System

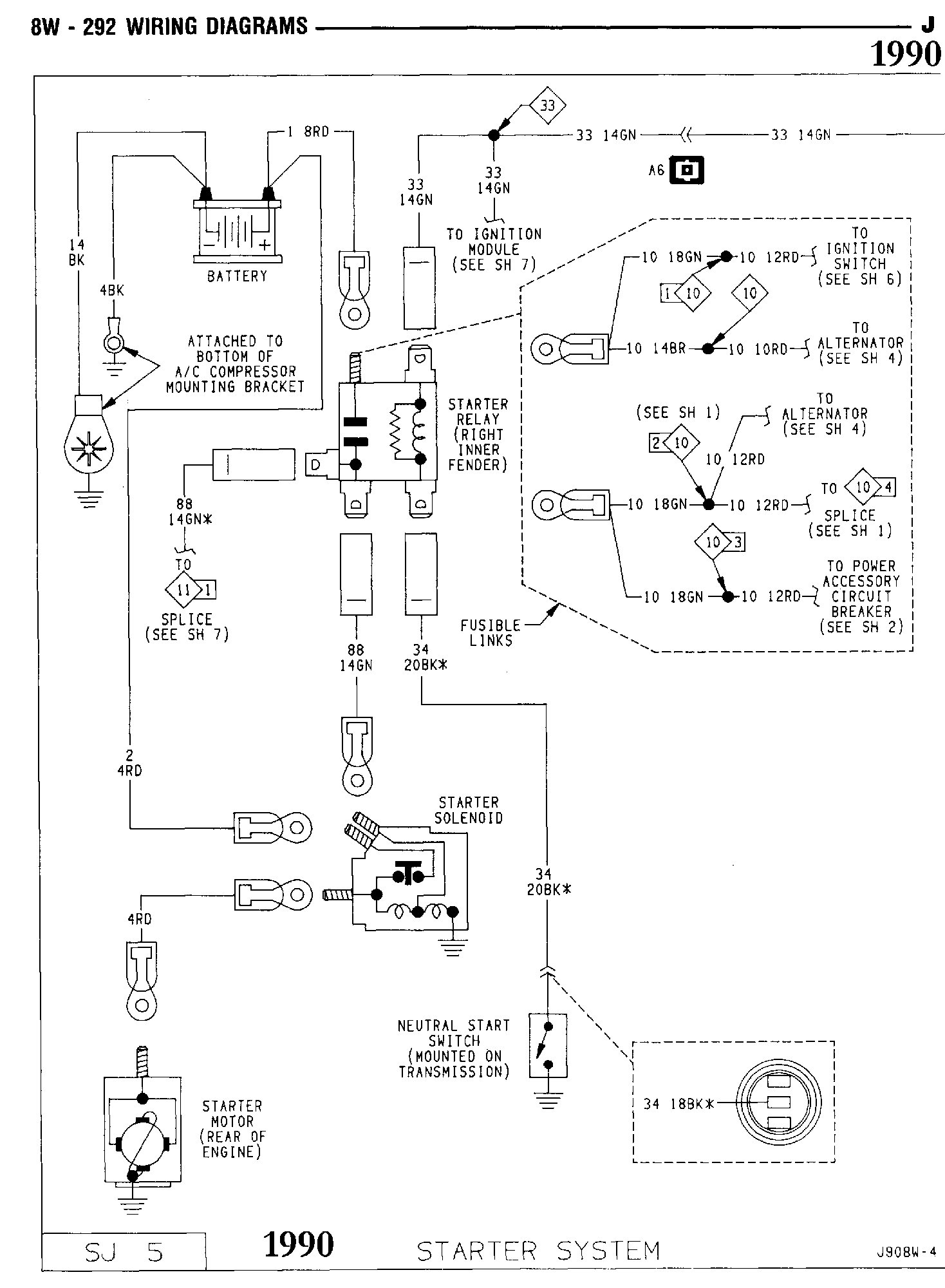

StarterSystem-8W_Page-5
 Starter System #1 of 2

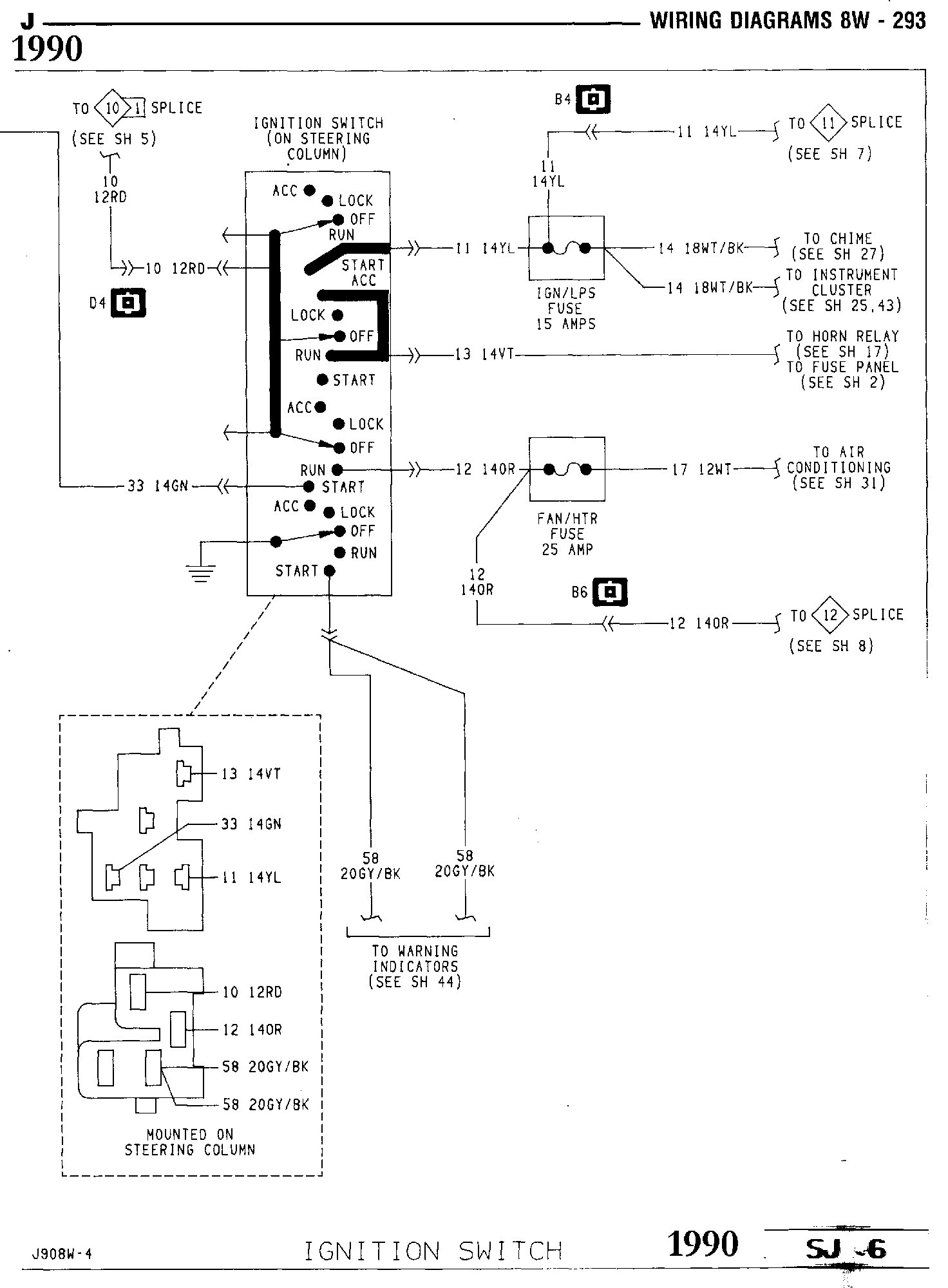

IgnitionSwitch-8W_Page-6
 Ignition Switch #2 of 2

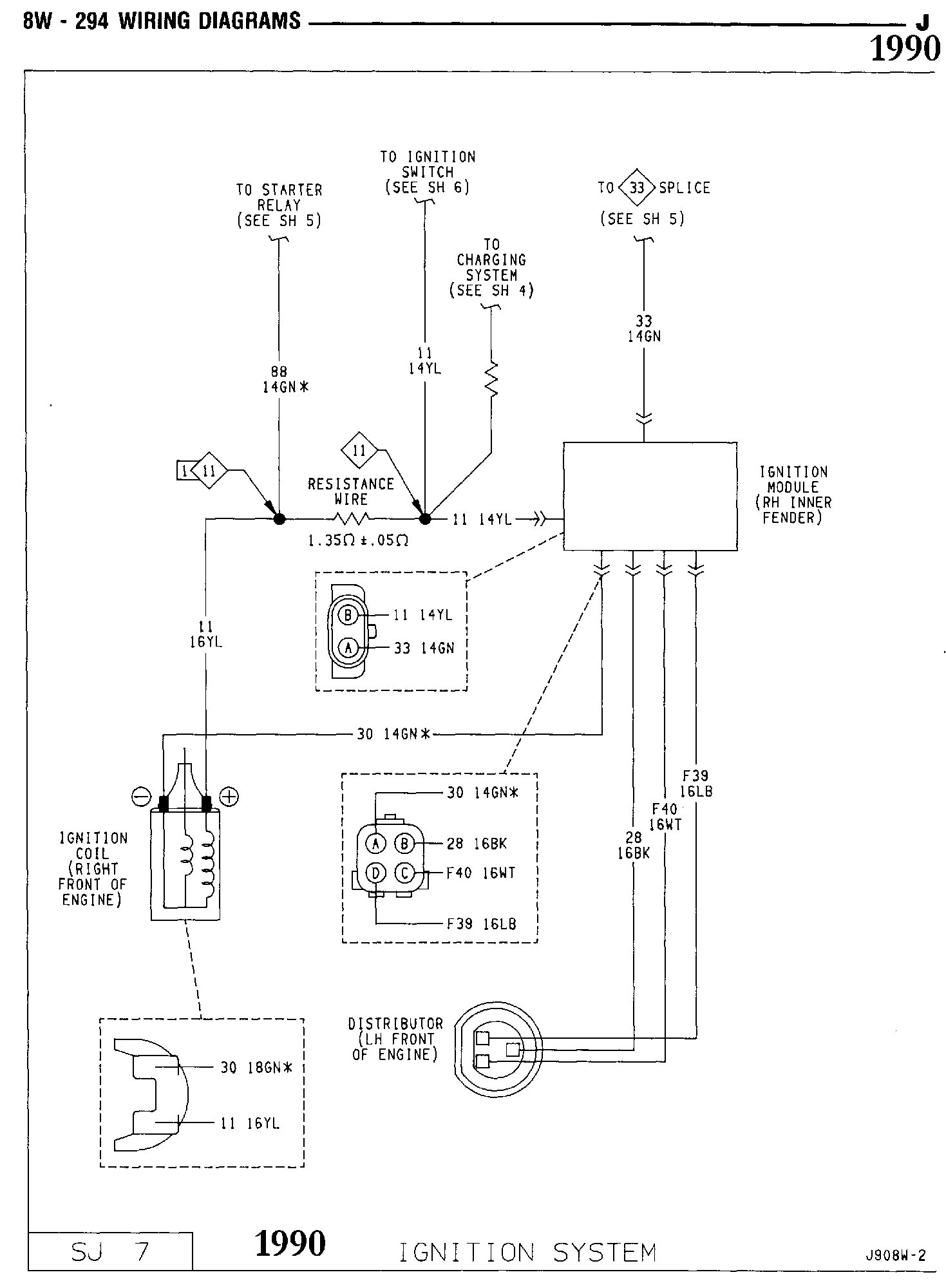

IgnitionSystem-8W_Page-7
 Ignition System

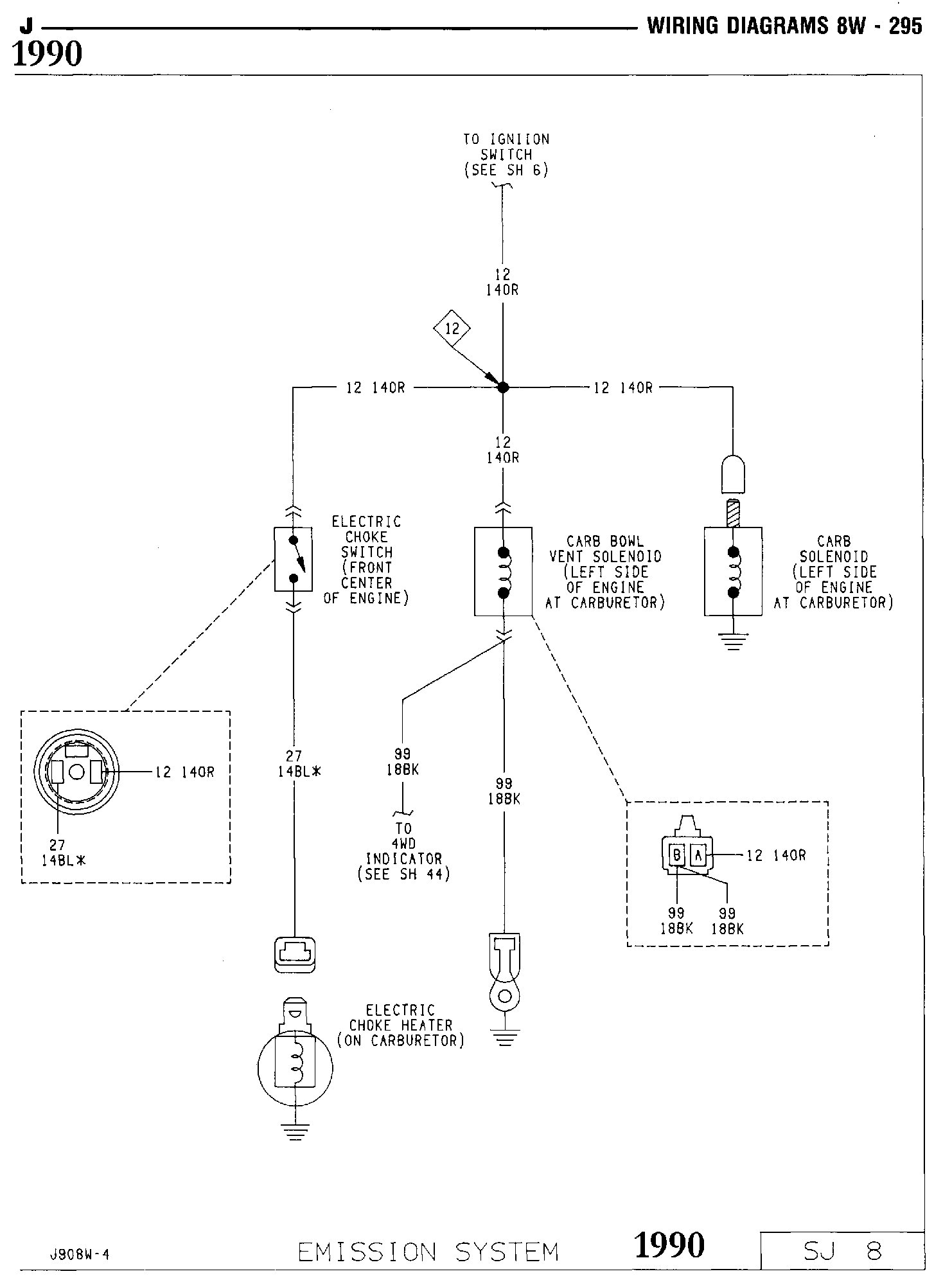

EmissionSystem-8W_Page-8
 Emission System

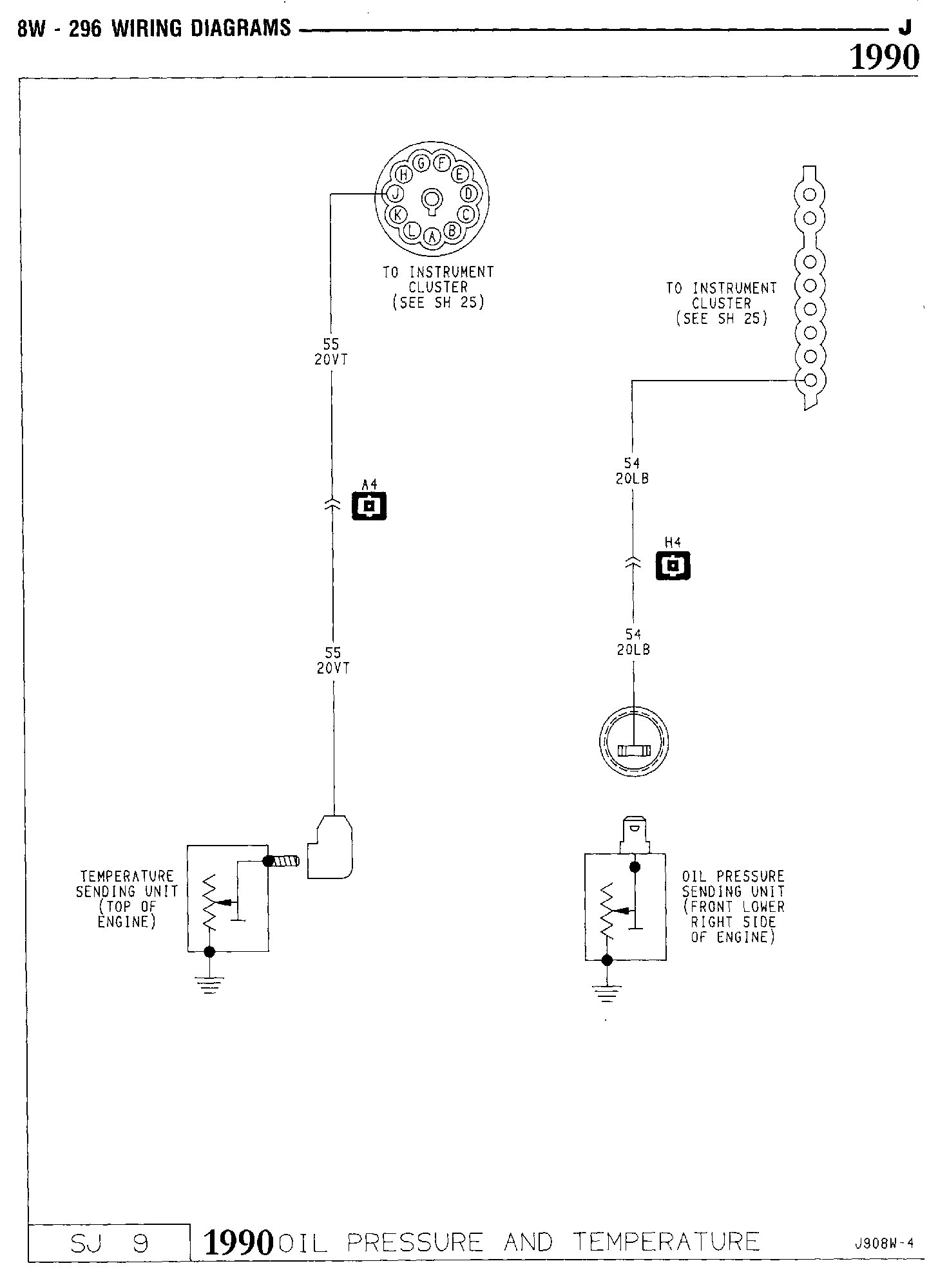

OilPressureTemp-8W_Page-9
 Oil Pressure & Temperature

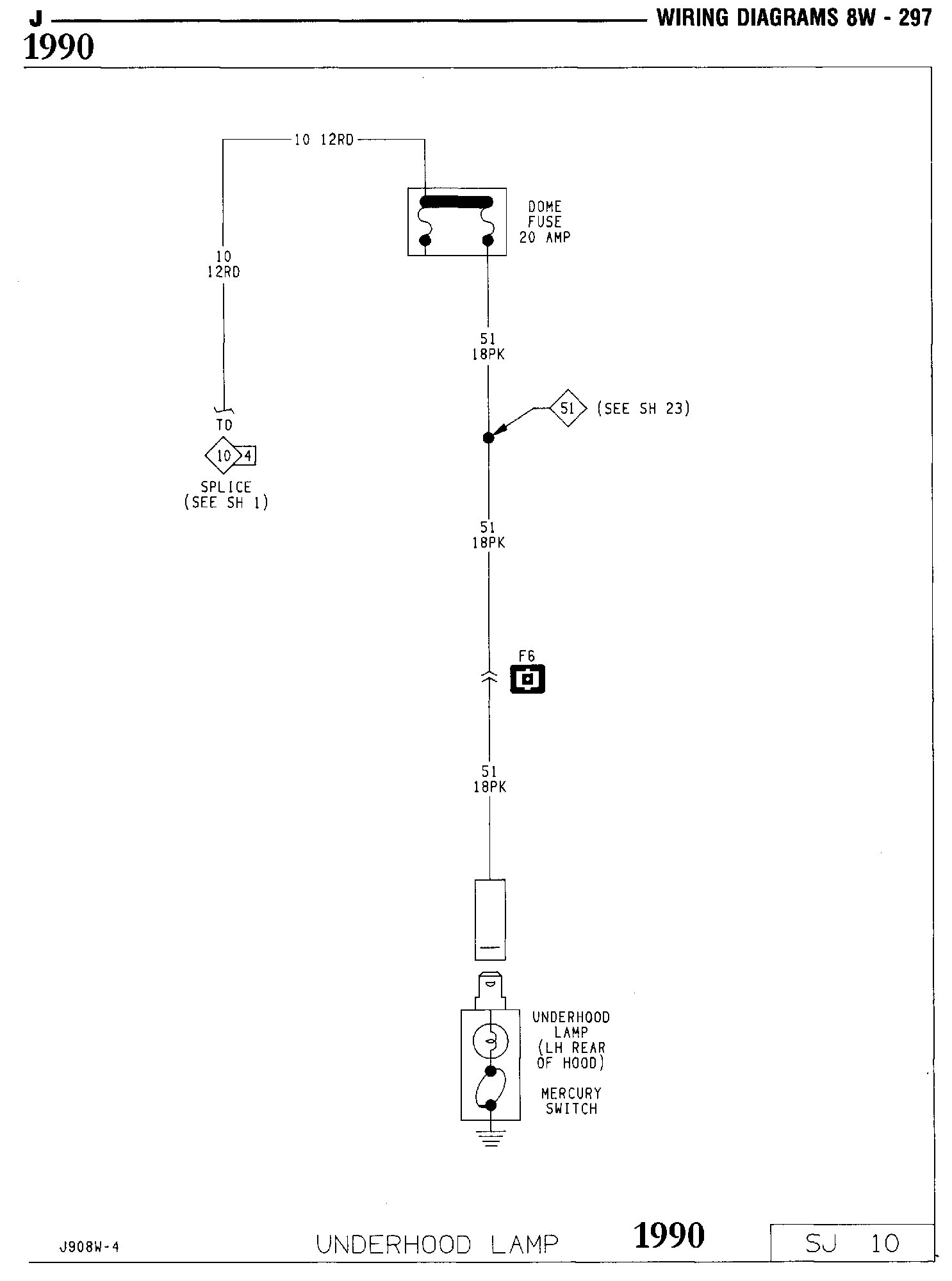

UnderhoodLamp-8W_Page-10
 Underhood Lamp

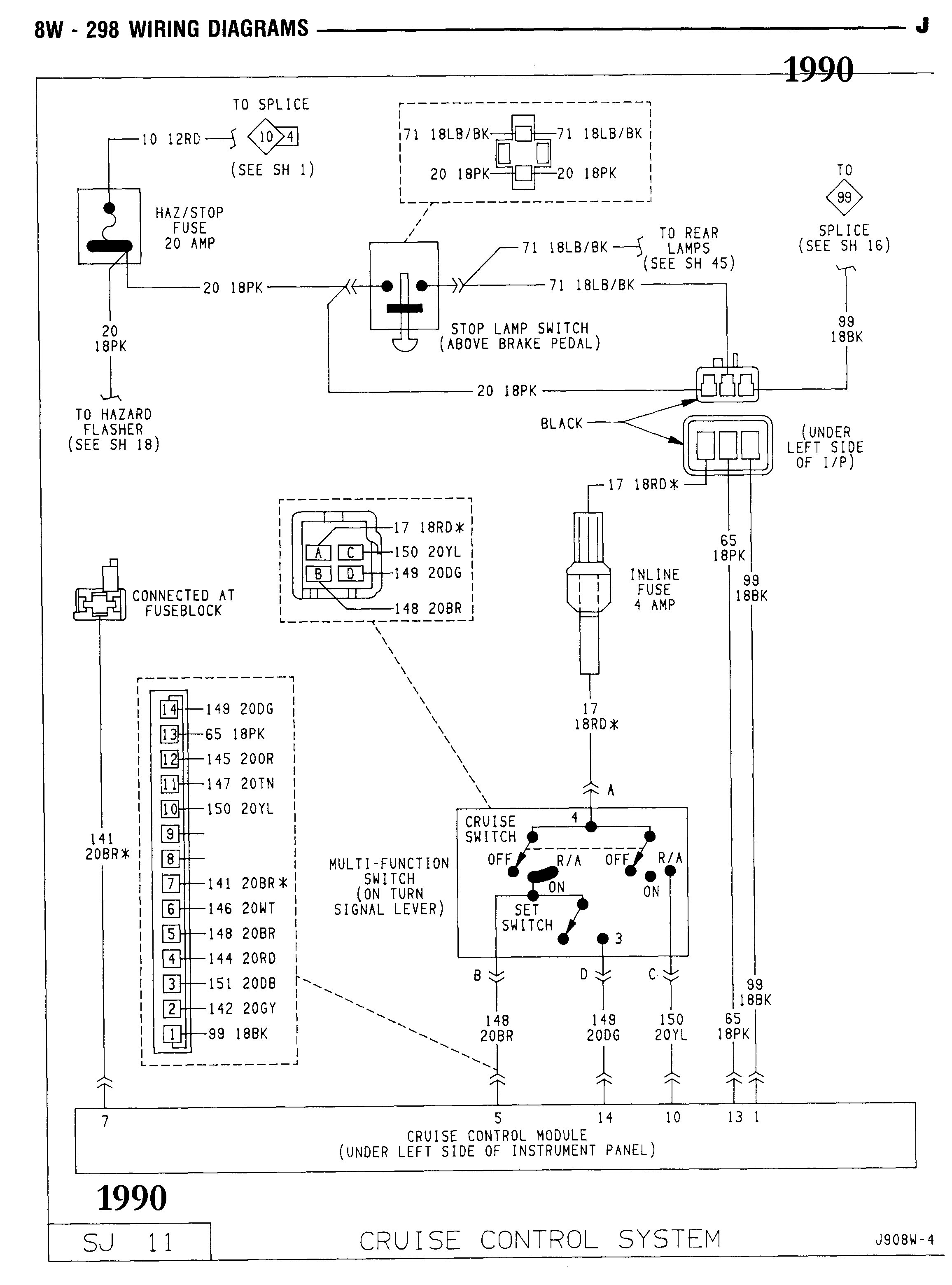

Cruise_Wiring-1-8W-Page-11
 Cruise Wiring #1 of 2

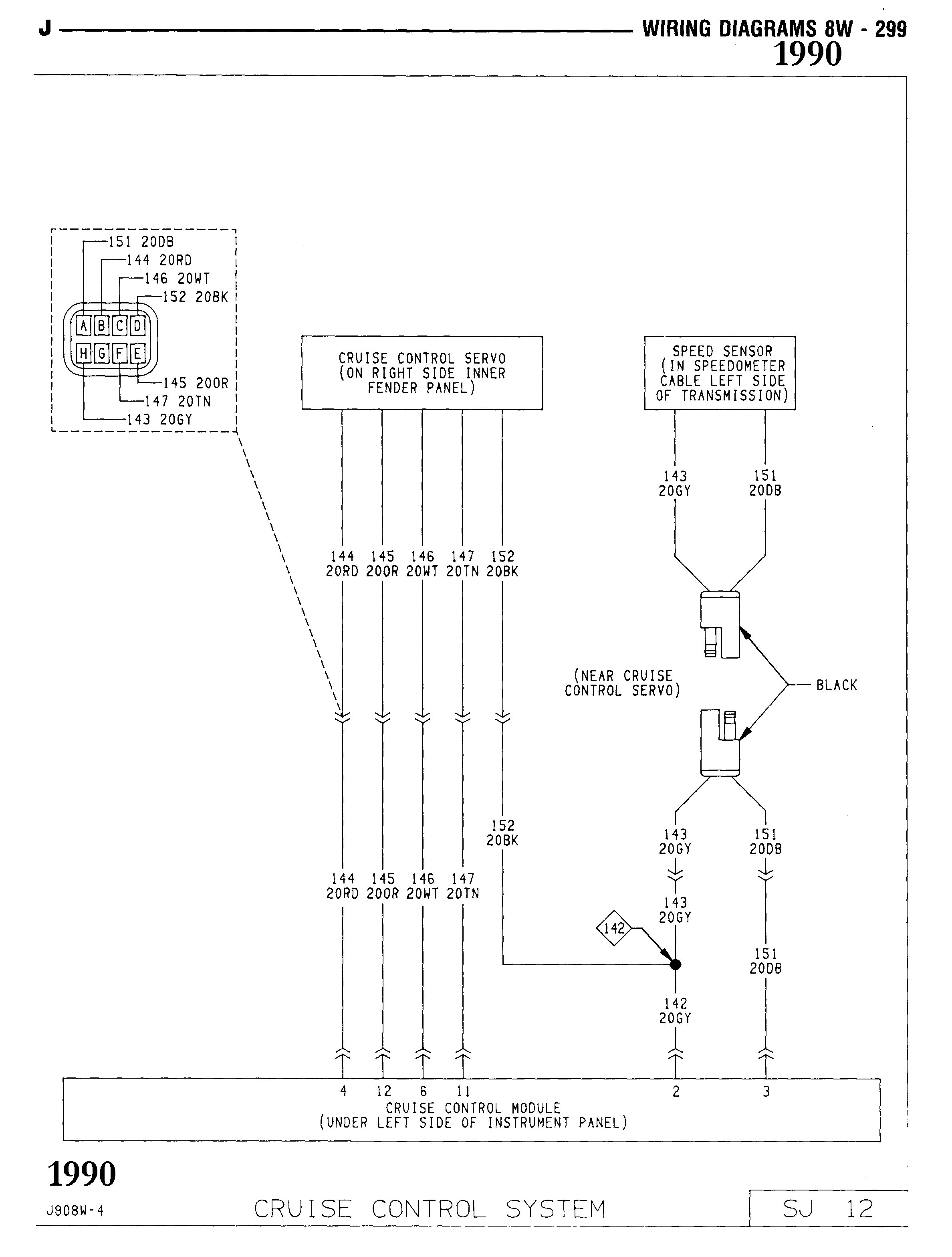

Cruise_Wiring-2-8W-Page-12.
 Cruise Wiring #2 of 2

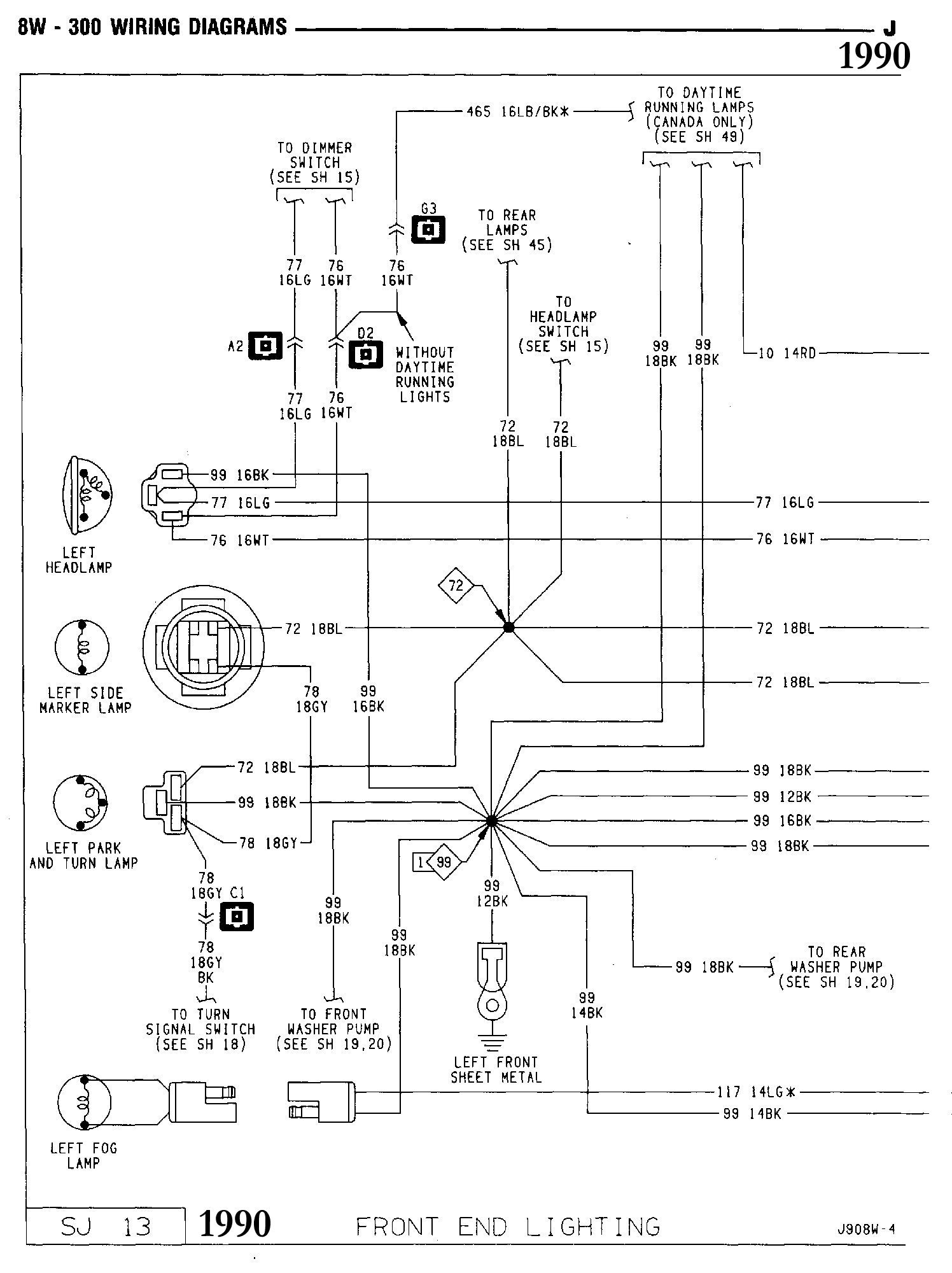

FrontEndLighting-8W_Page-13
 Front End Lighting #1 of 2

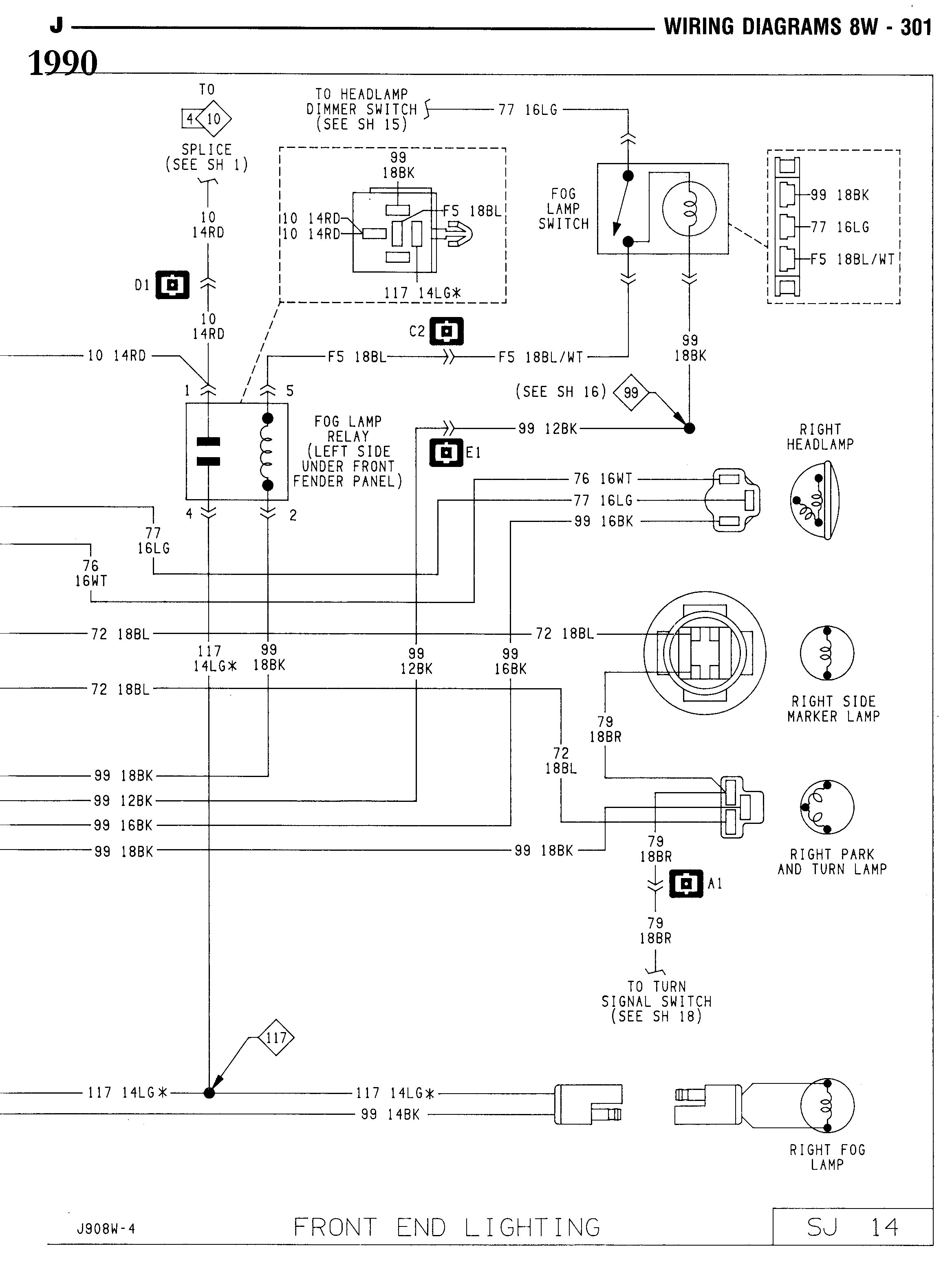

FrontEndLighting-8W_Page-14
 Front End Lighting #2 of 2

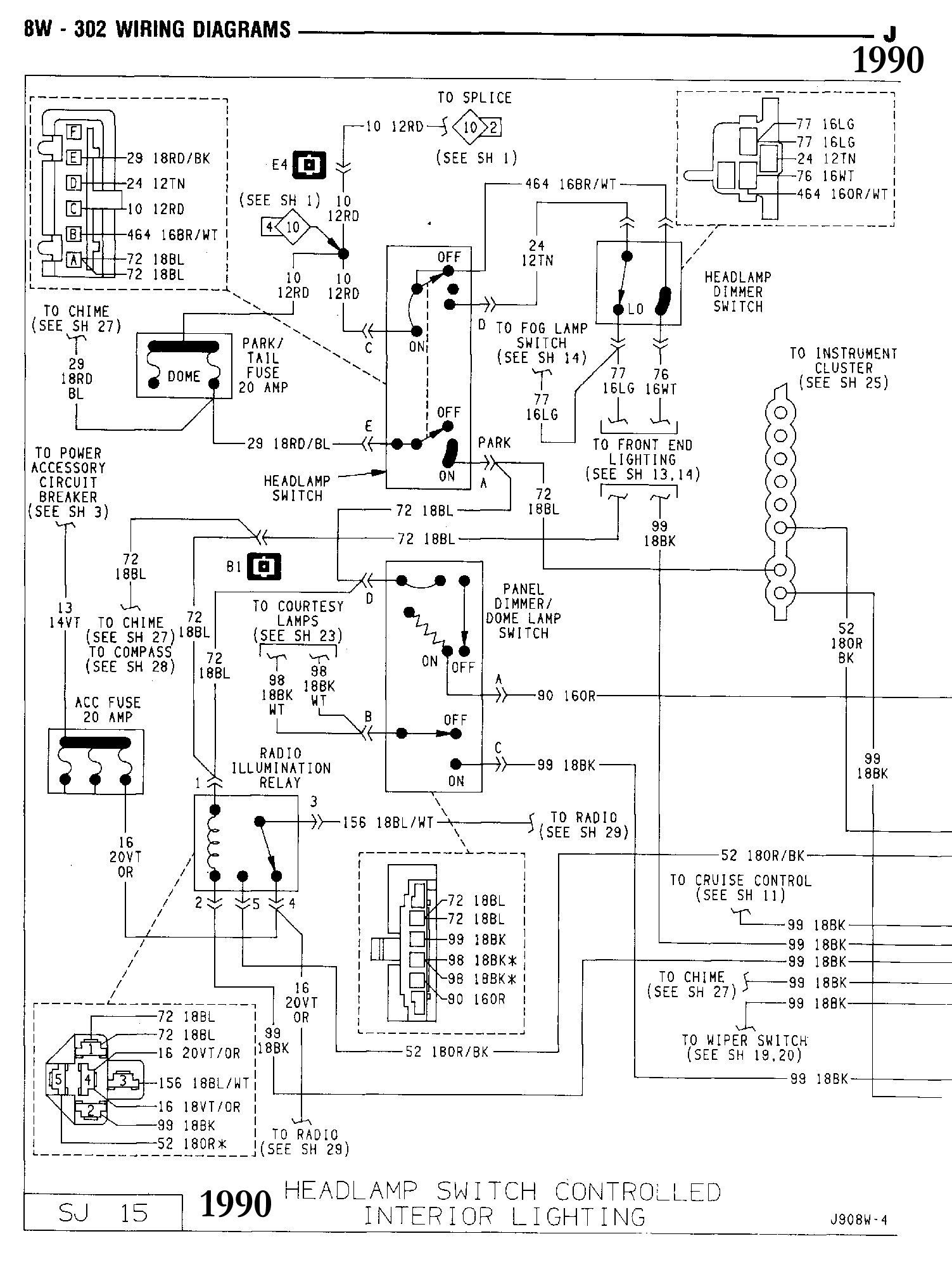

HeadlampSwitchControlled-1-8W_Page-15
 Interior Lighting #1 of 2

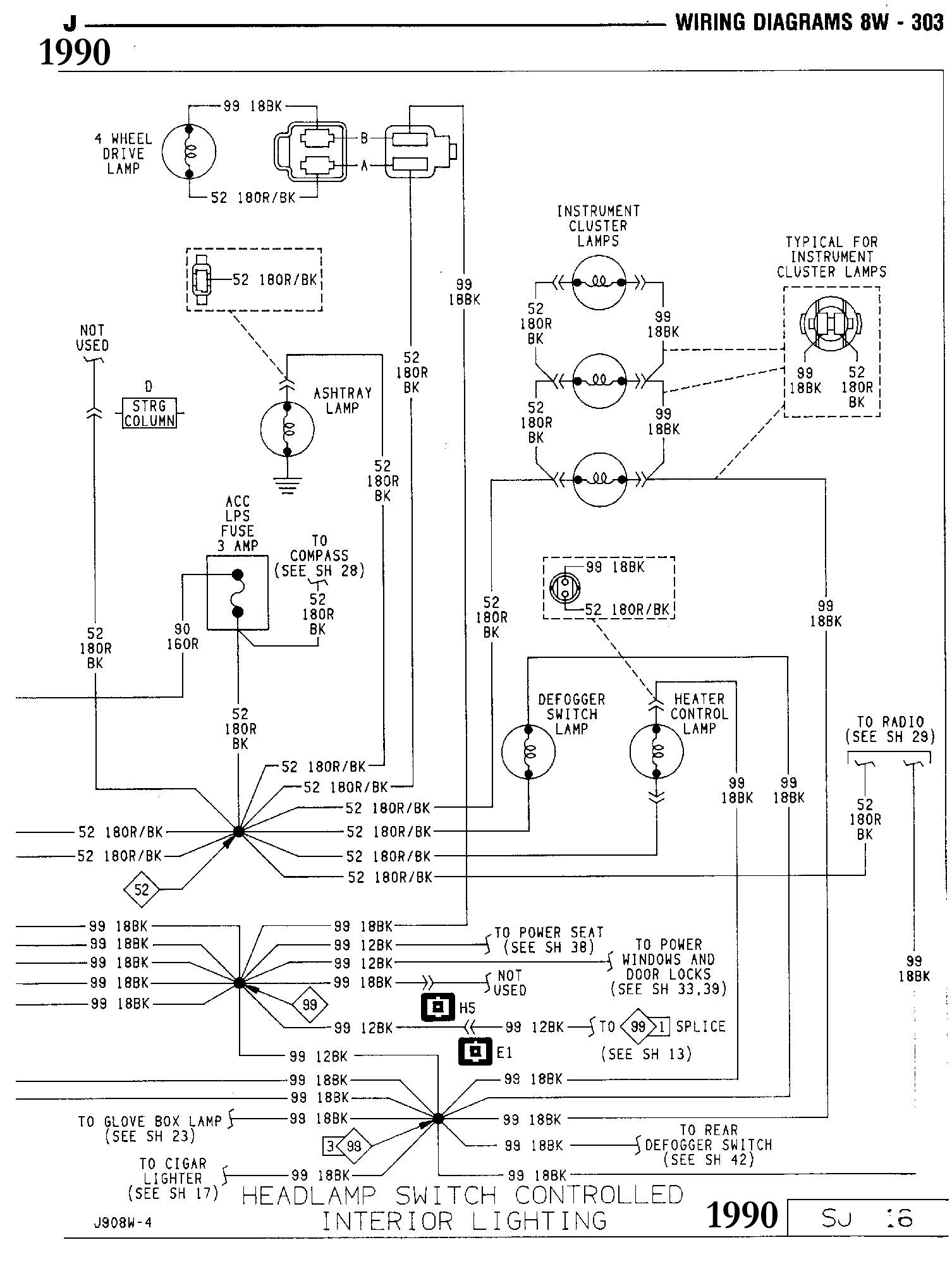

HeadlampSwitchControlled-2-8W_Page-16
 Interior Lighting #2 of 2

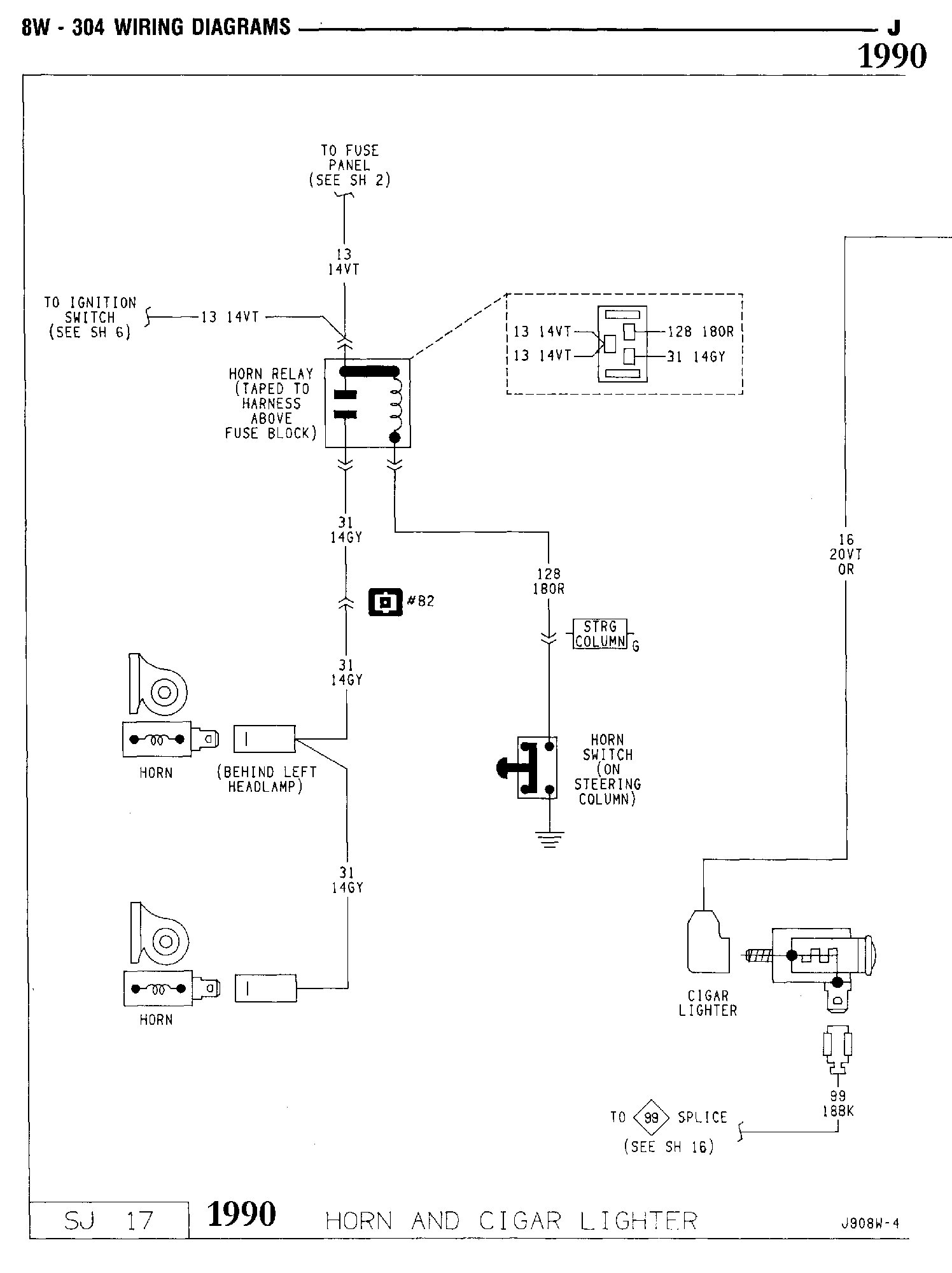

Horn-Cigar-8W_Page-17
 Horn-Cigar Lighter #1 of 2

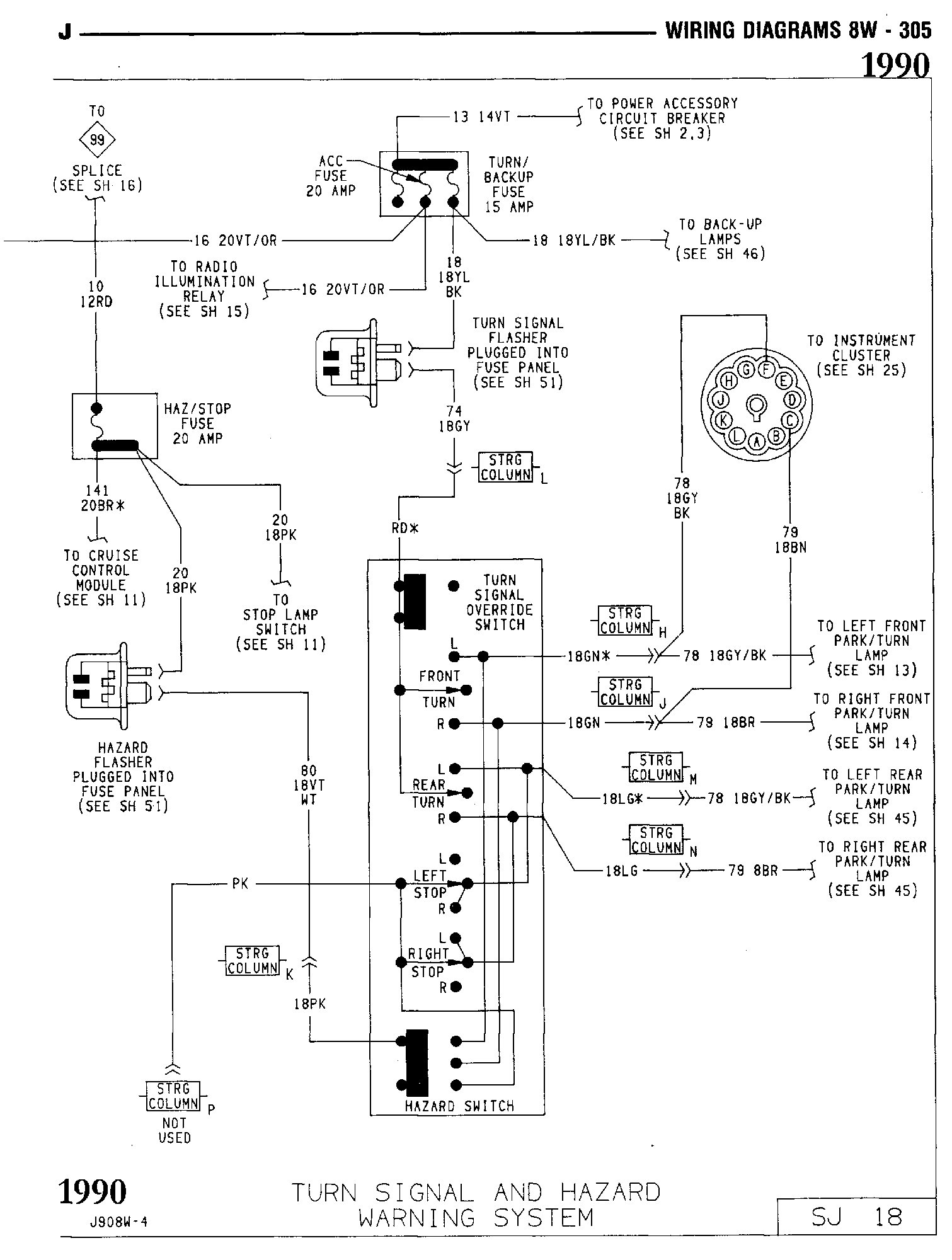

TurnSignal-Hazard-8W_Page-18
 Turn Signals/Hazards #2 of 2

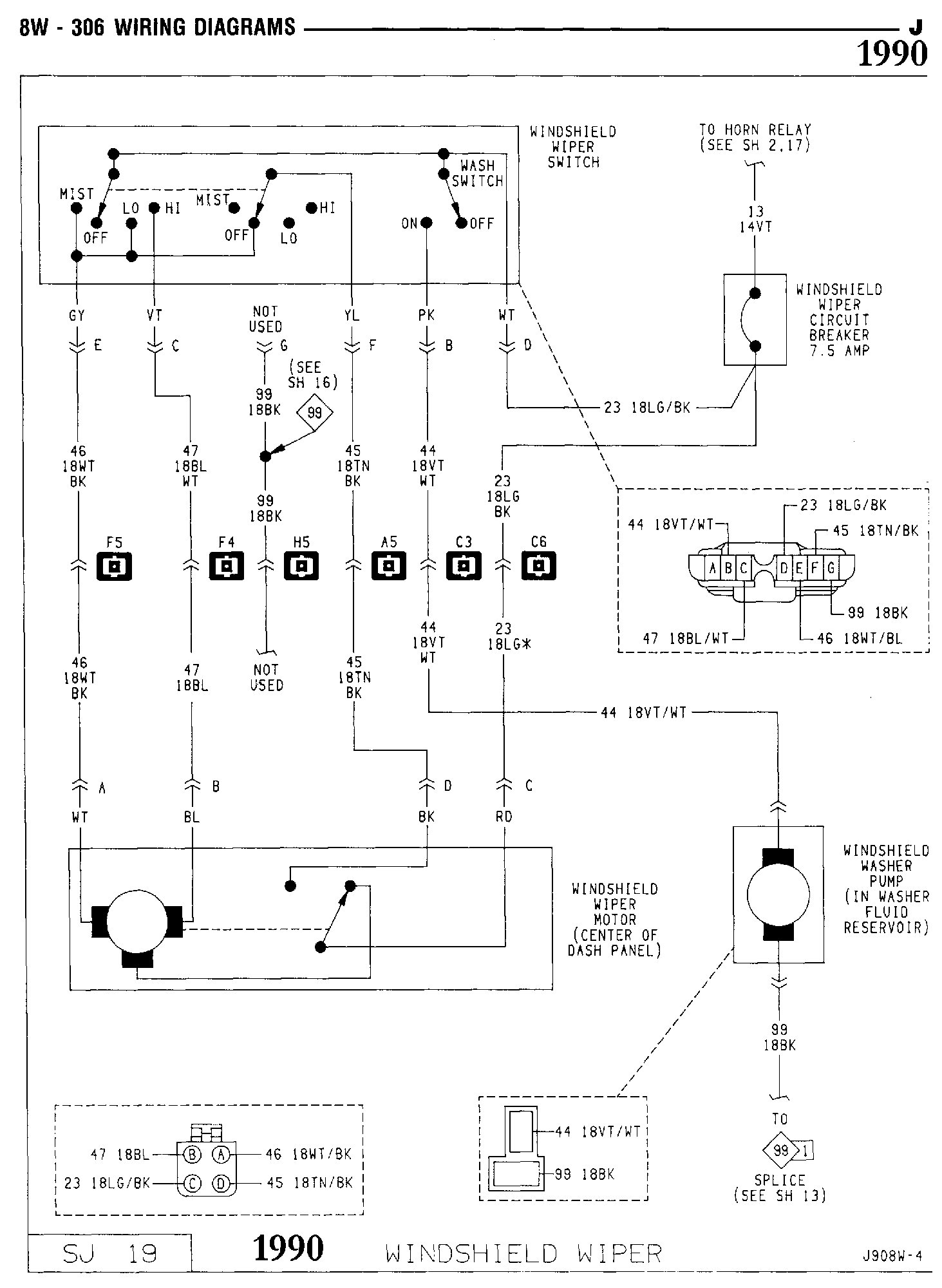

WindshieldWiper-8W_Page-19
 Windshield Wiper

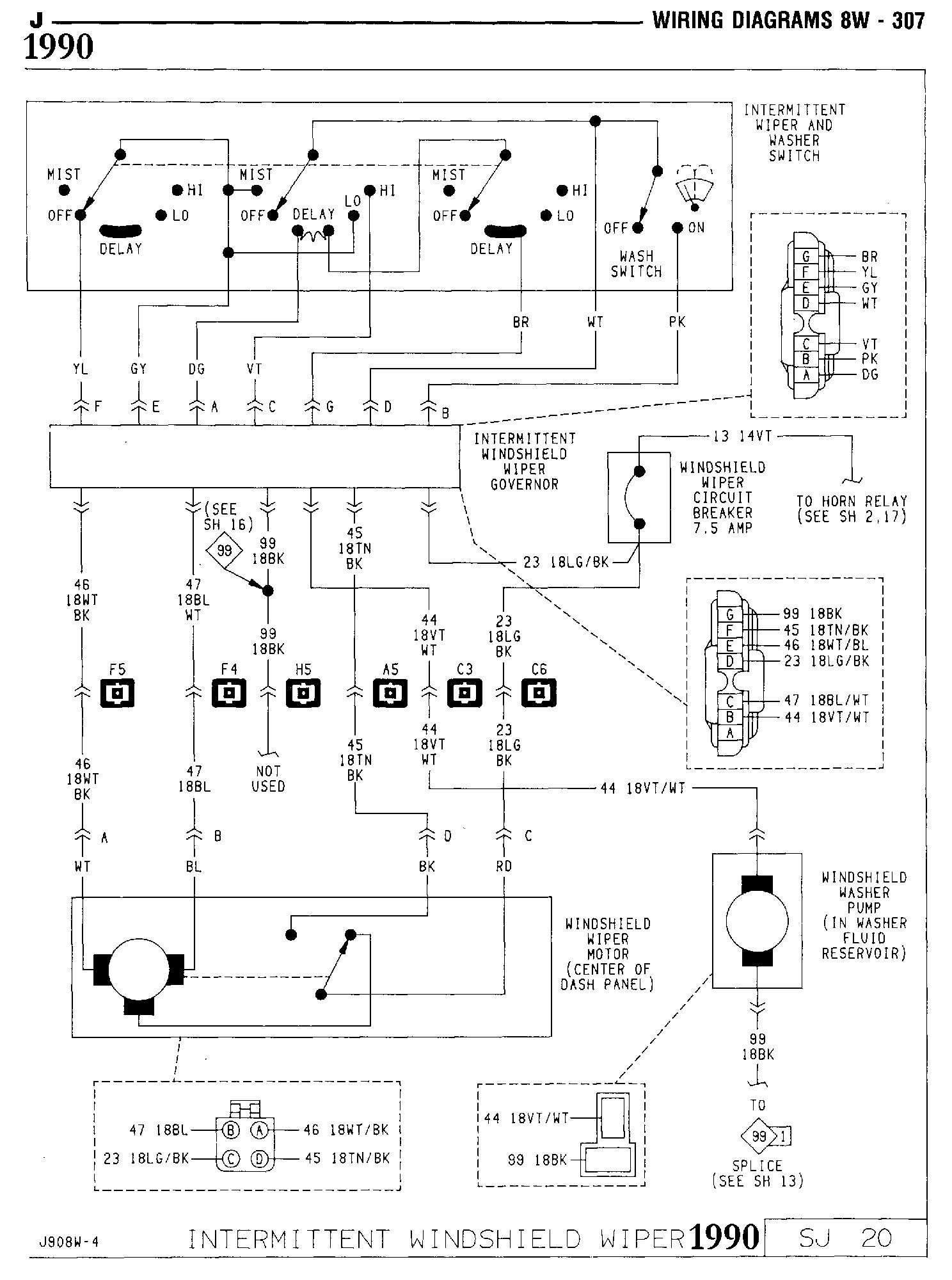

IntermittantWindshieldWiper-8W_Page-20
 Intermittant Wiper

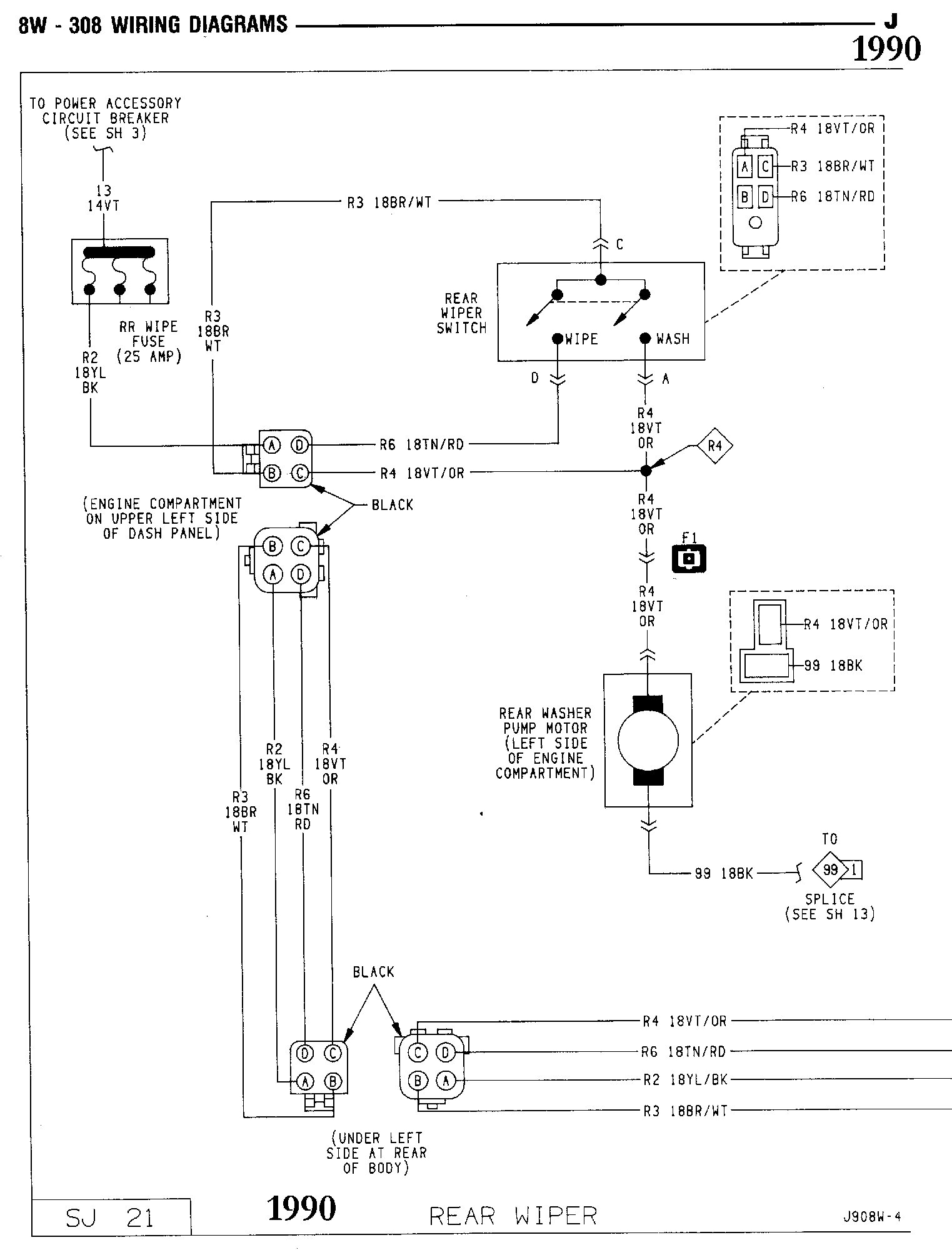

RearWiper-8W_Page-21
 Rear Wiper #1 of 2

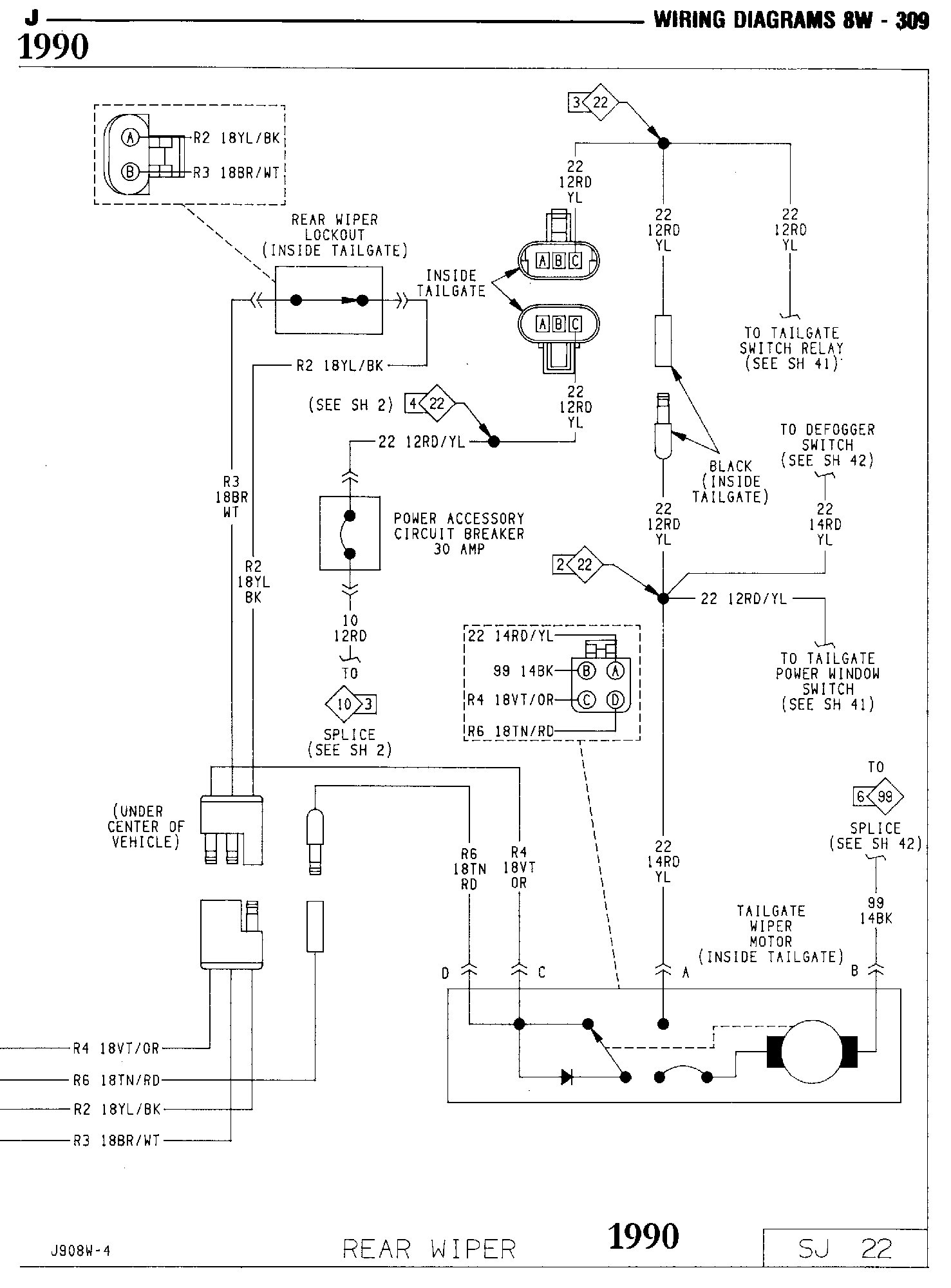

RearWiper-8W_Page-22
 Rear Wiper #2 of 2

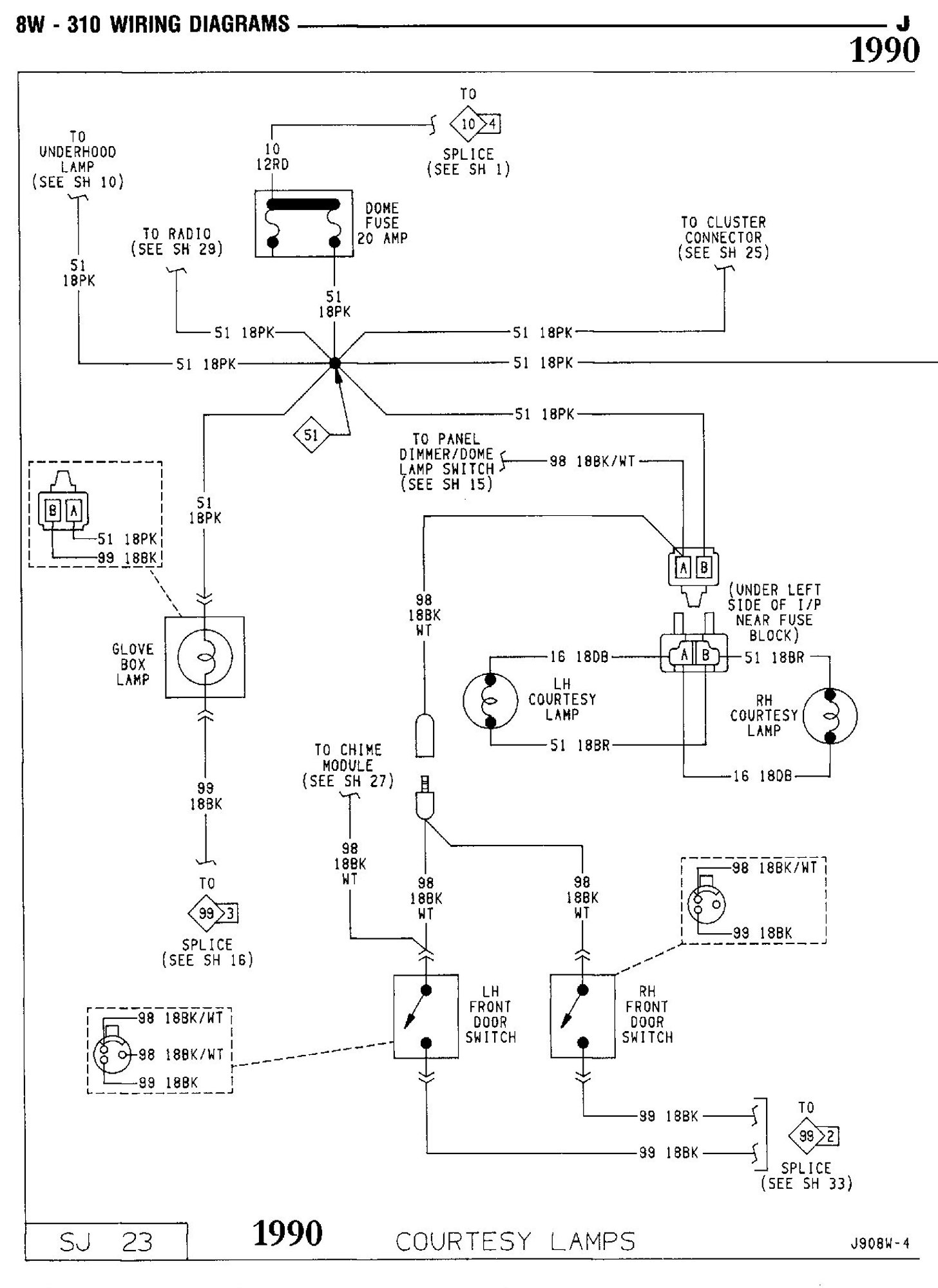

CourtesyLamps-8W_Page-23
 Courtesy Lamps

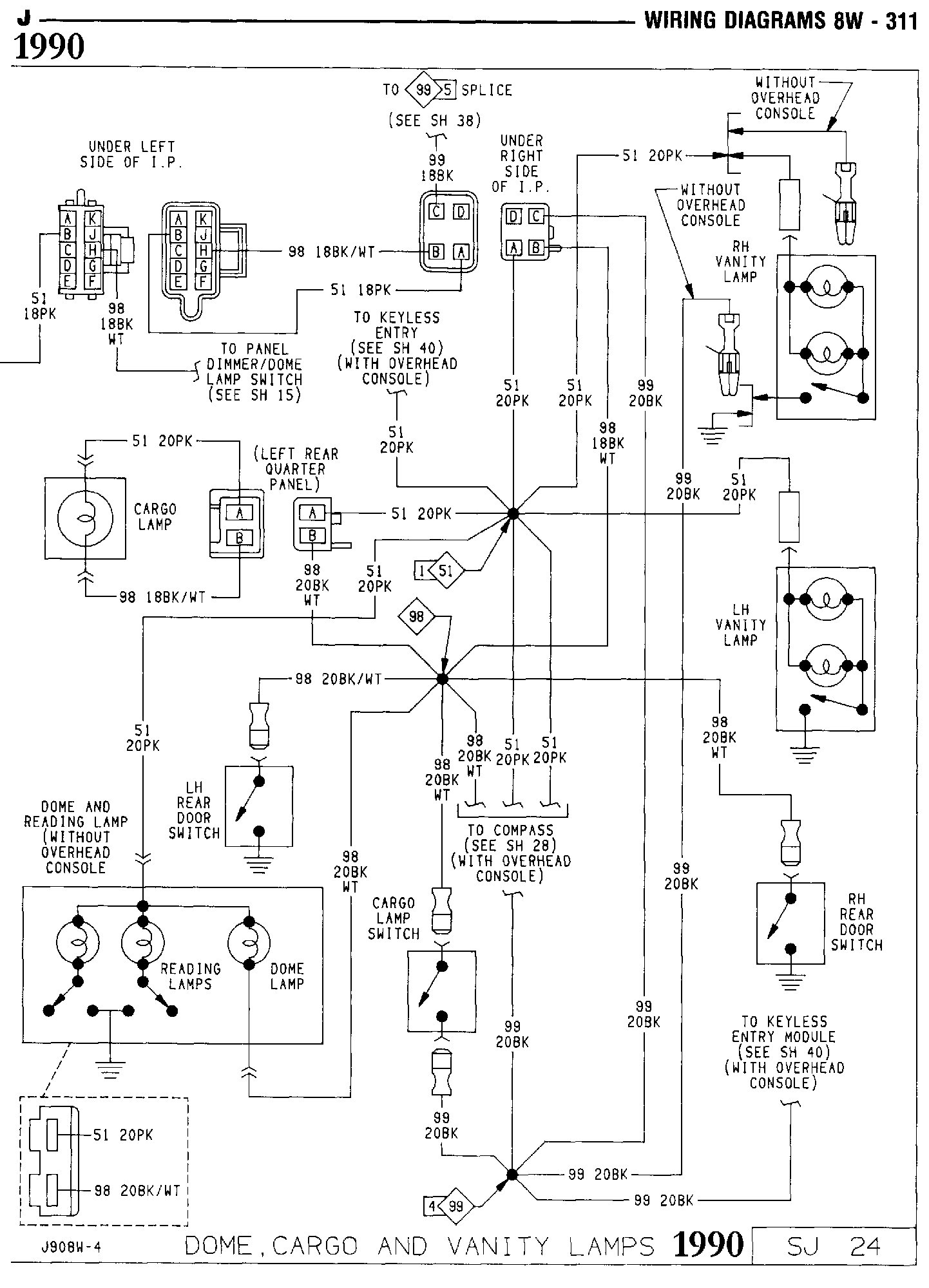

DomeCargoVanityLamps-8W_Page-24
 Dome, Cargo & Vanity Lamps

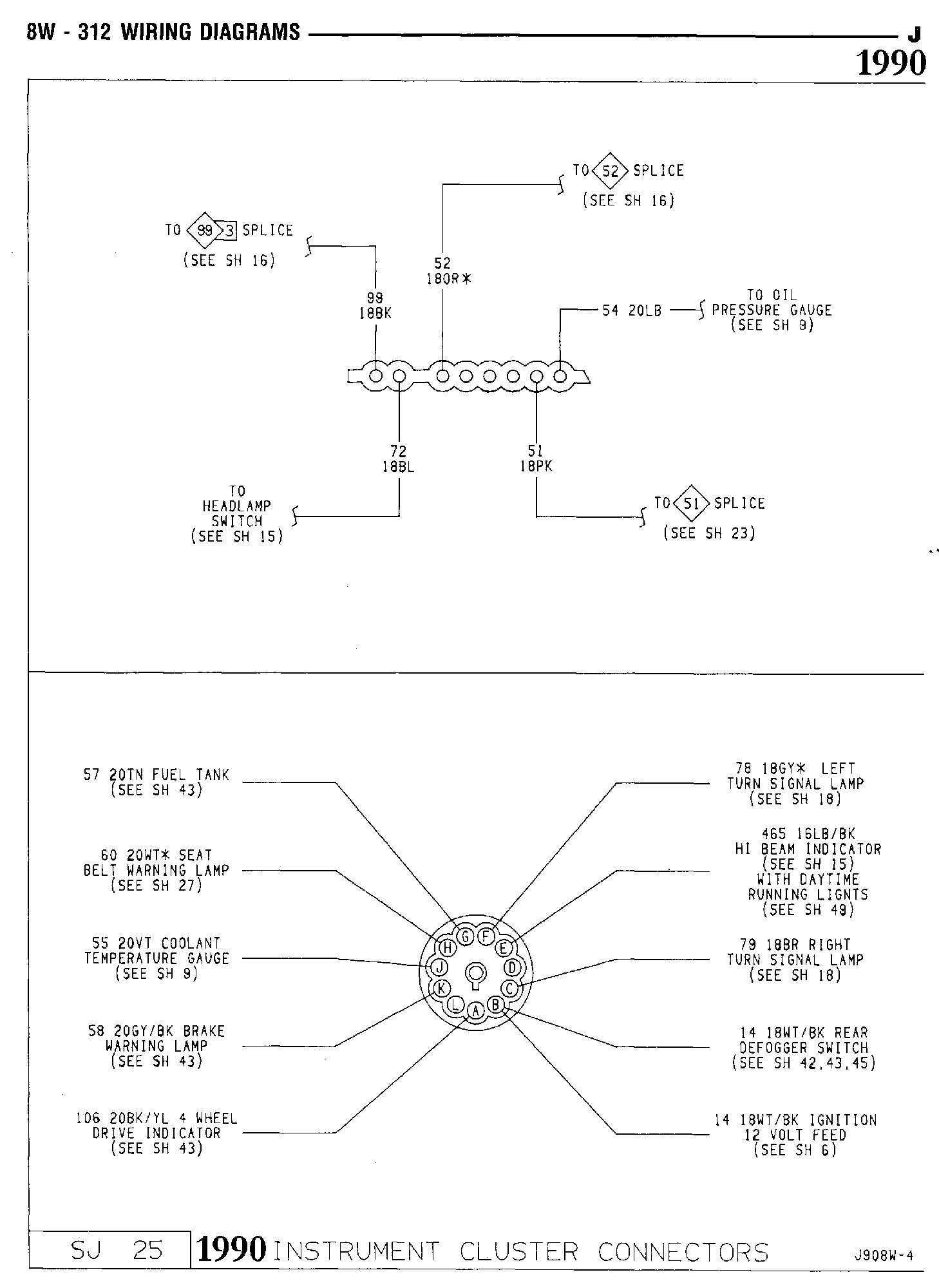

InstrumentClusterConnectors-8W_Page-25
 Instrument Cluster Connectors

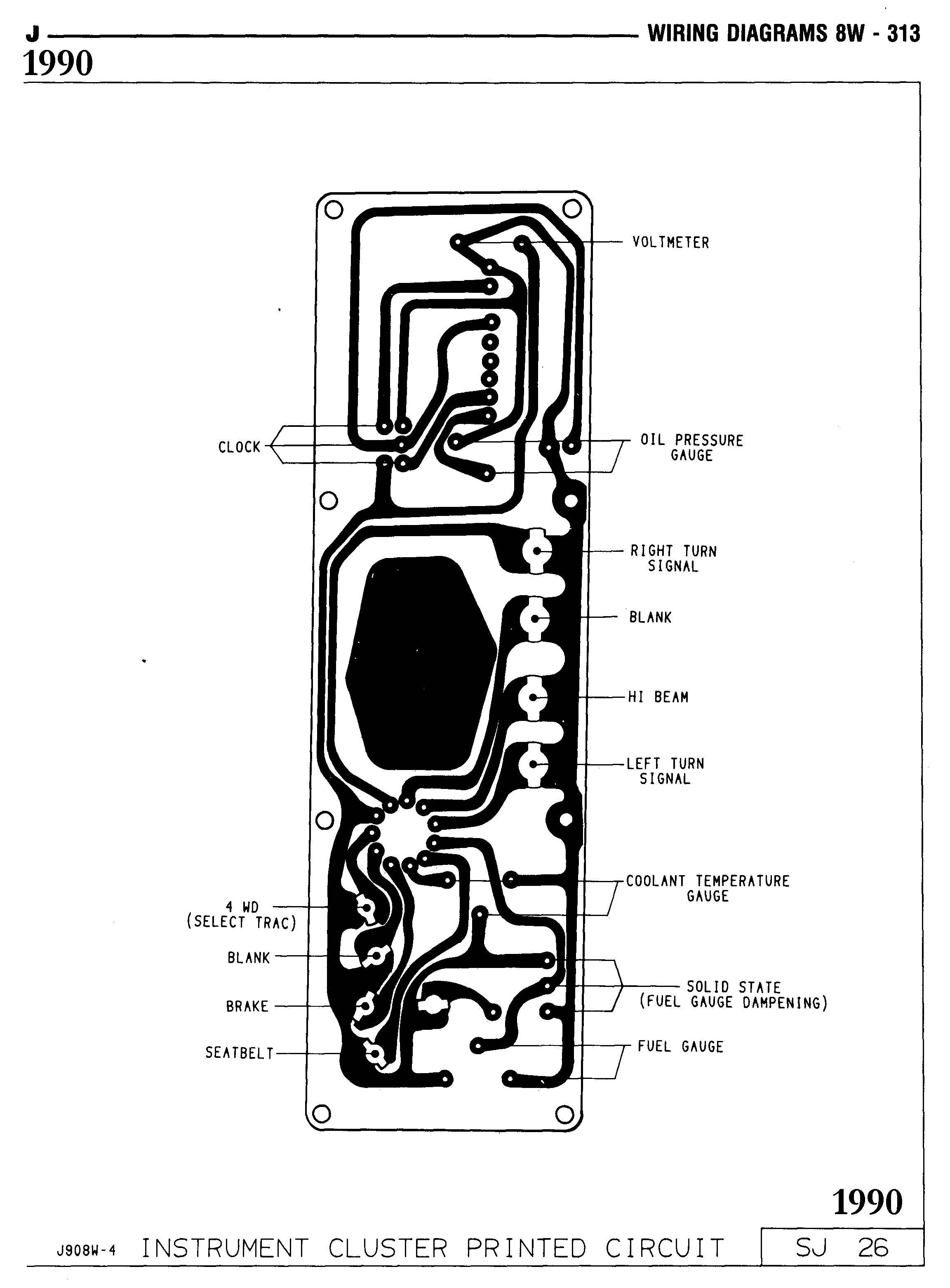

InstrumentClusterPrintedCircuit-8W_Page-26
 Instrument Cluster Printed Circuit

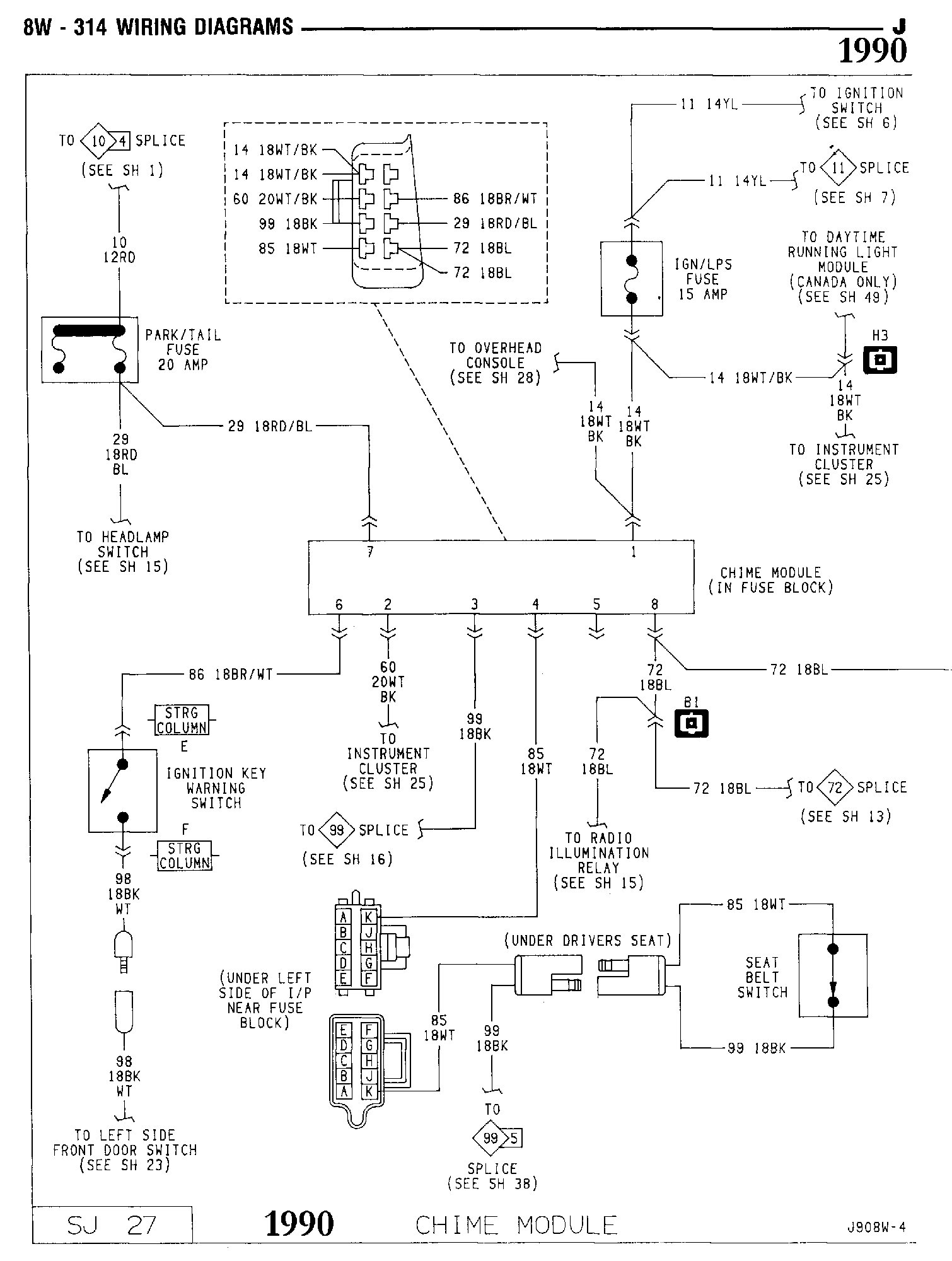

ChimeModule-8W_Page-27
 Chime Module

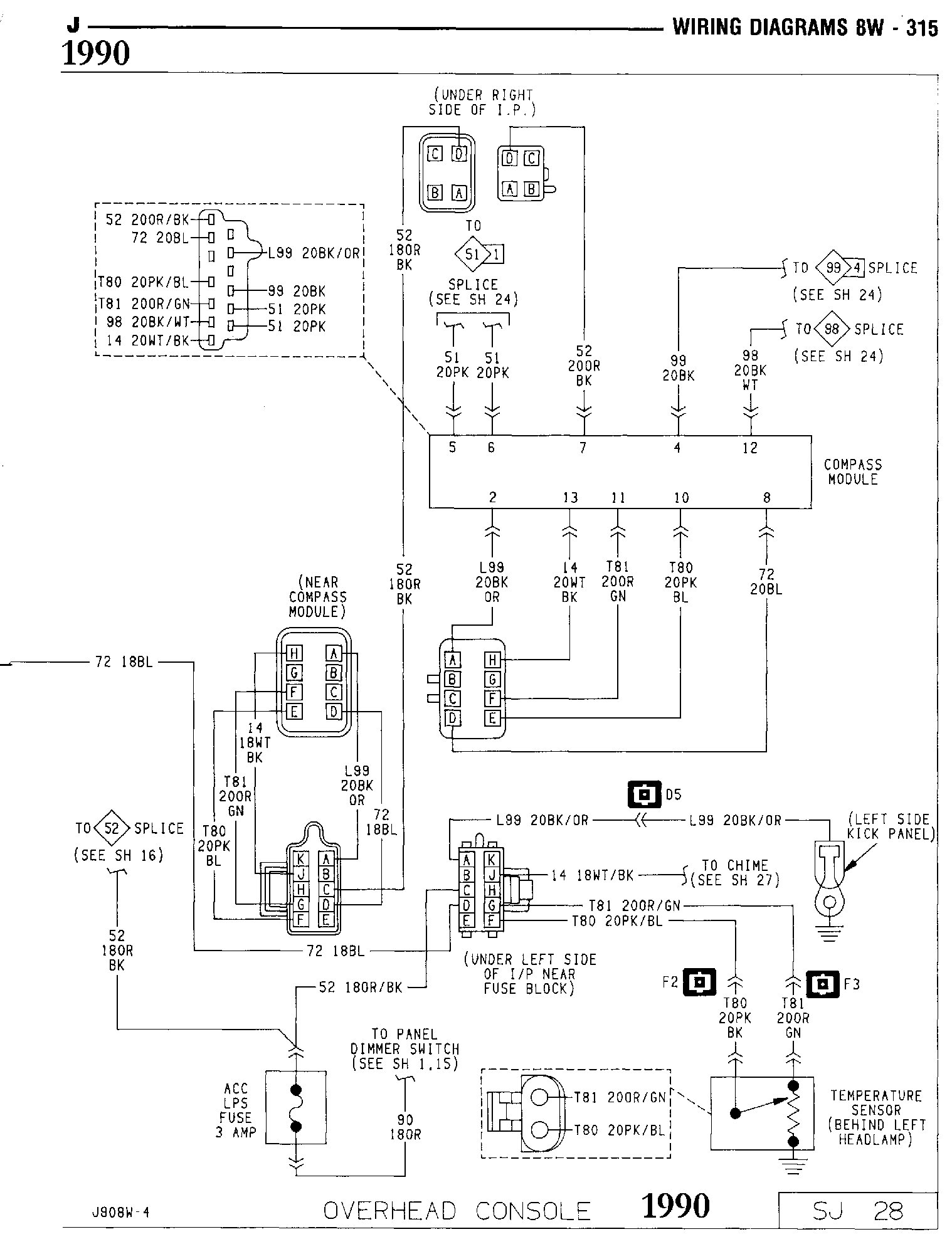

OverheadConsole-8W_Page-28
 Overhead Console

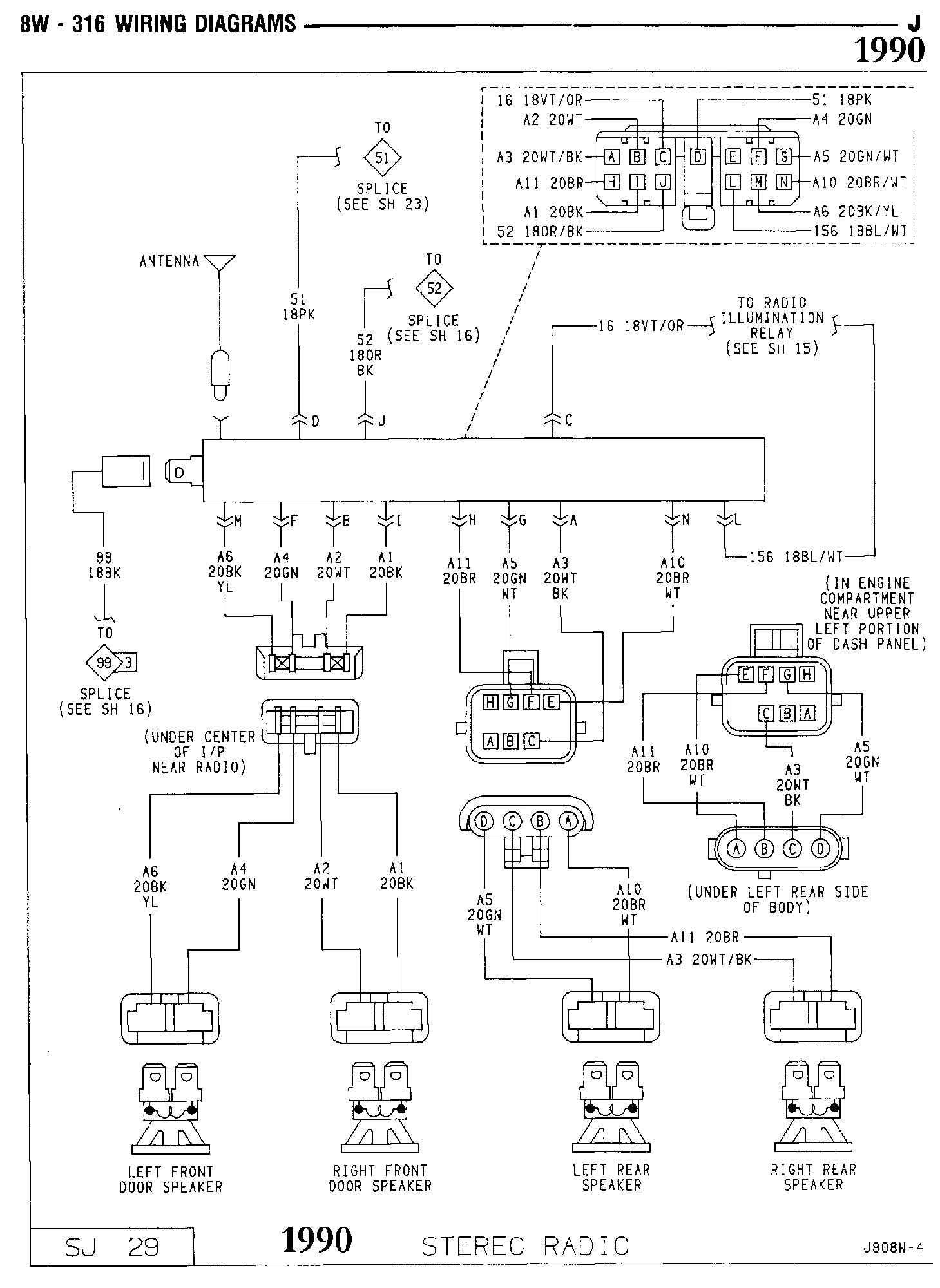

StereoRadio-8W_Page-29
 Stereo Radio

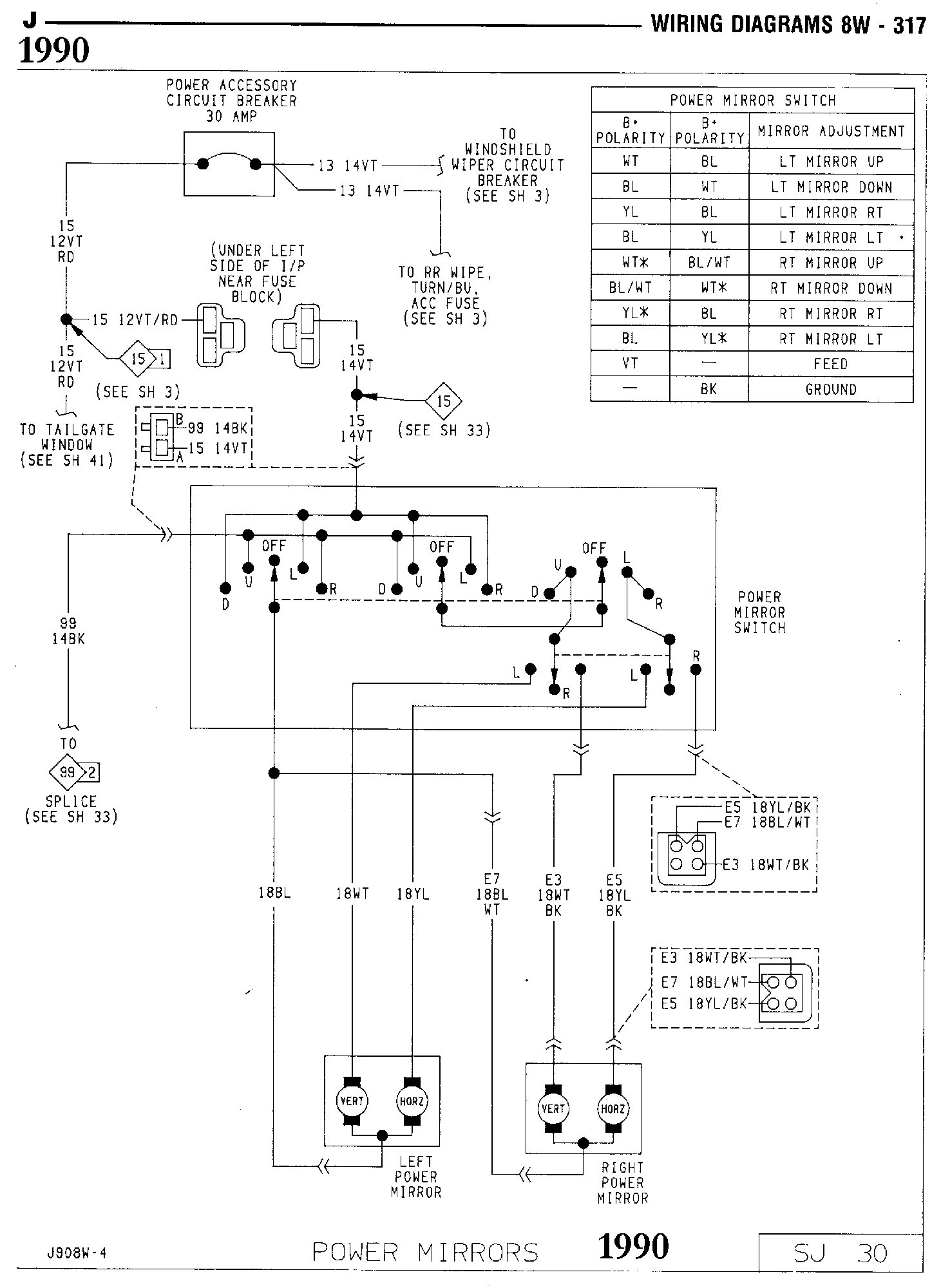

PowerMirrors-8W_Page-30
 Power Mirrors

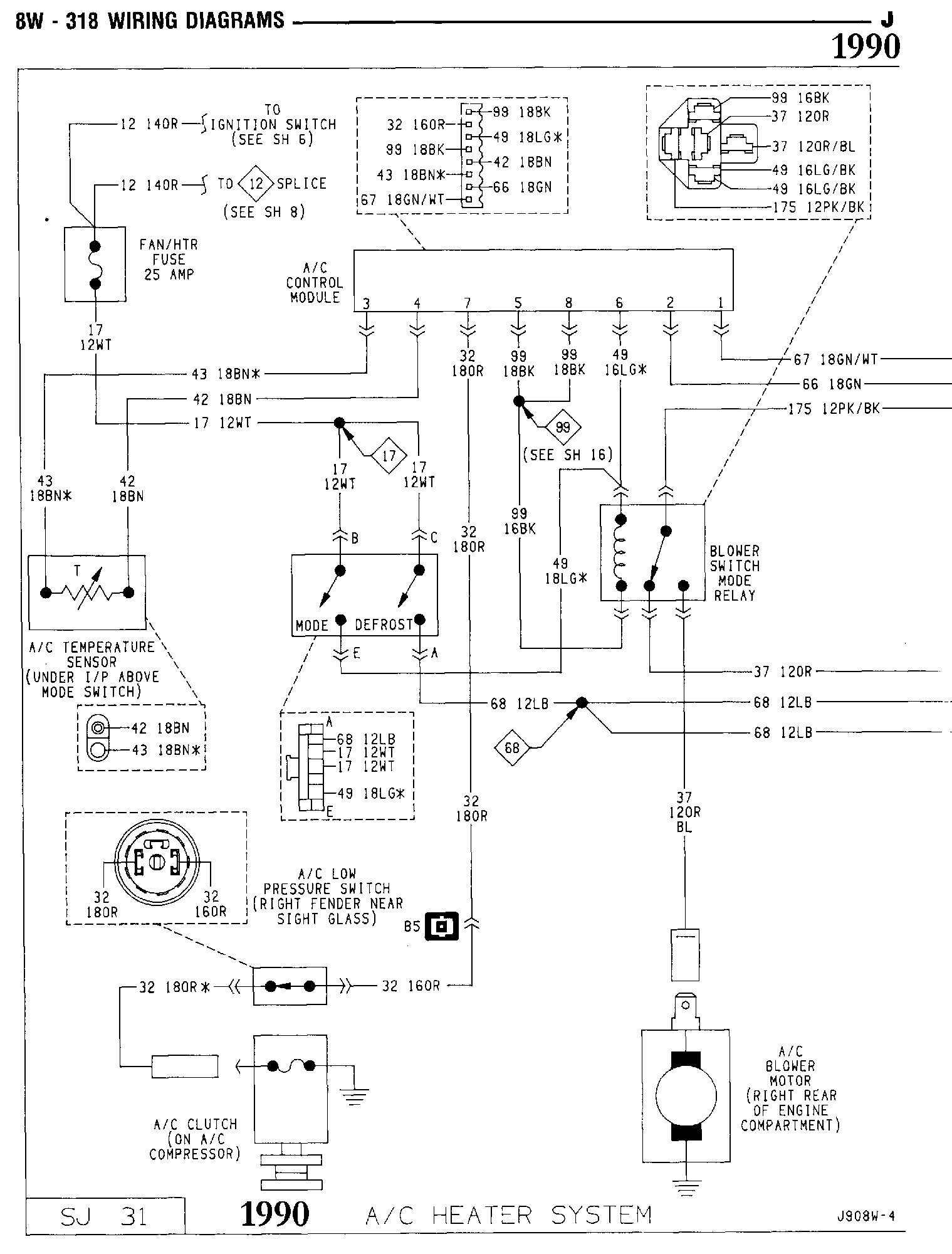

AC-HeaterSystem-8W_Page-31
 A/C Heater System #1 of 2

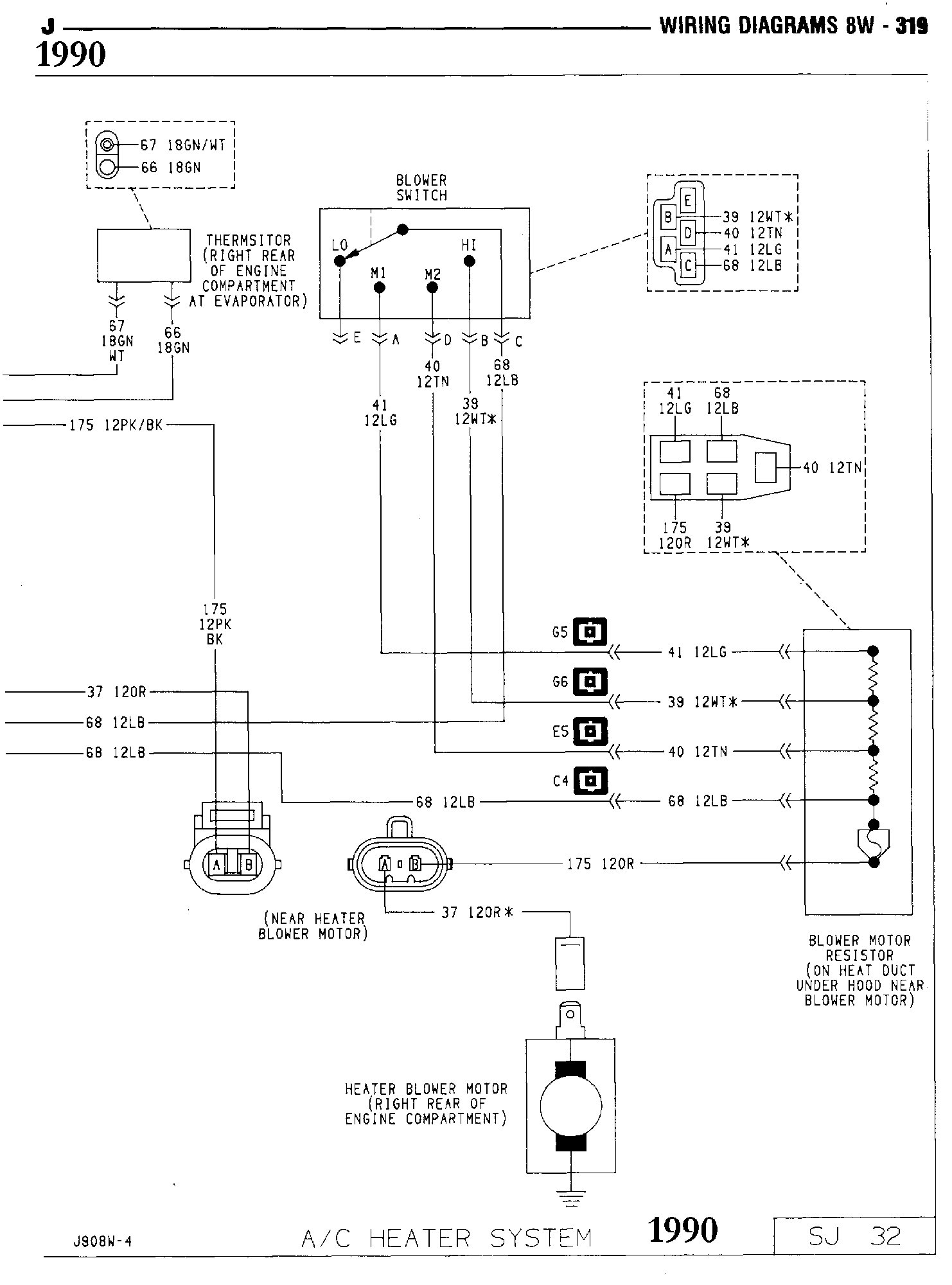

AC-HeaterSystem-8W_Page-32
 A/C Heater System #2 of 2

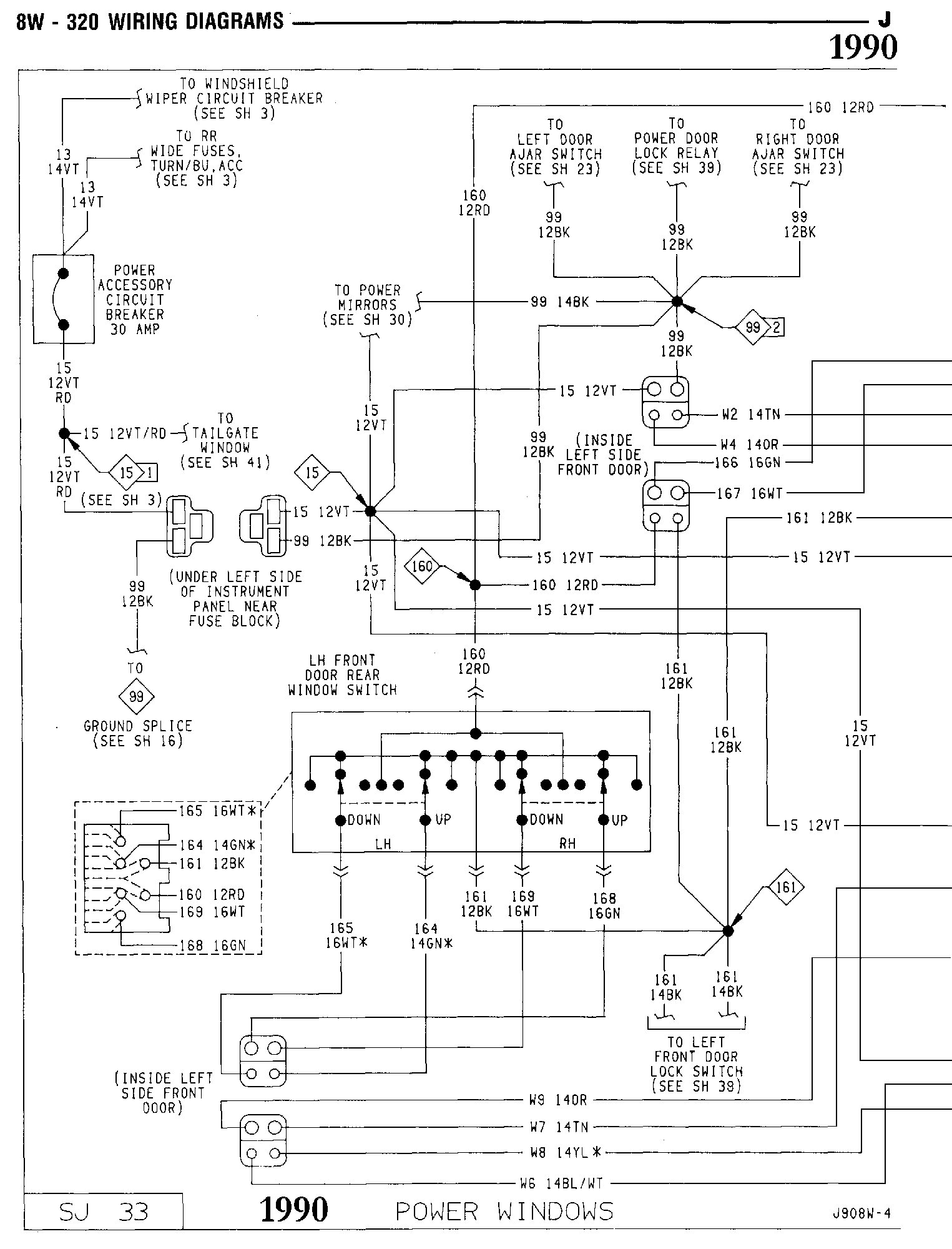

PowerWindows-8W_Page-33
 Power Windows #1 of 2

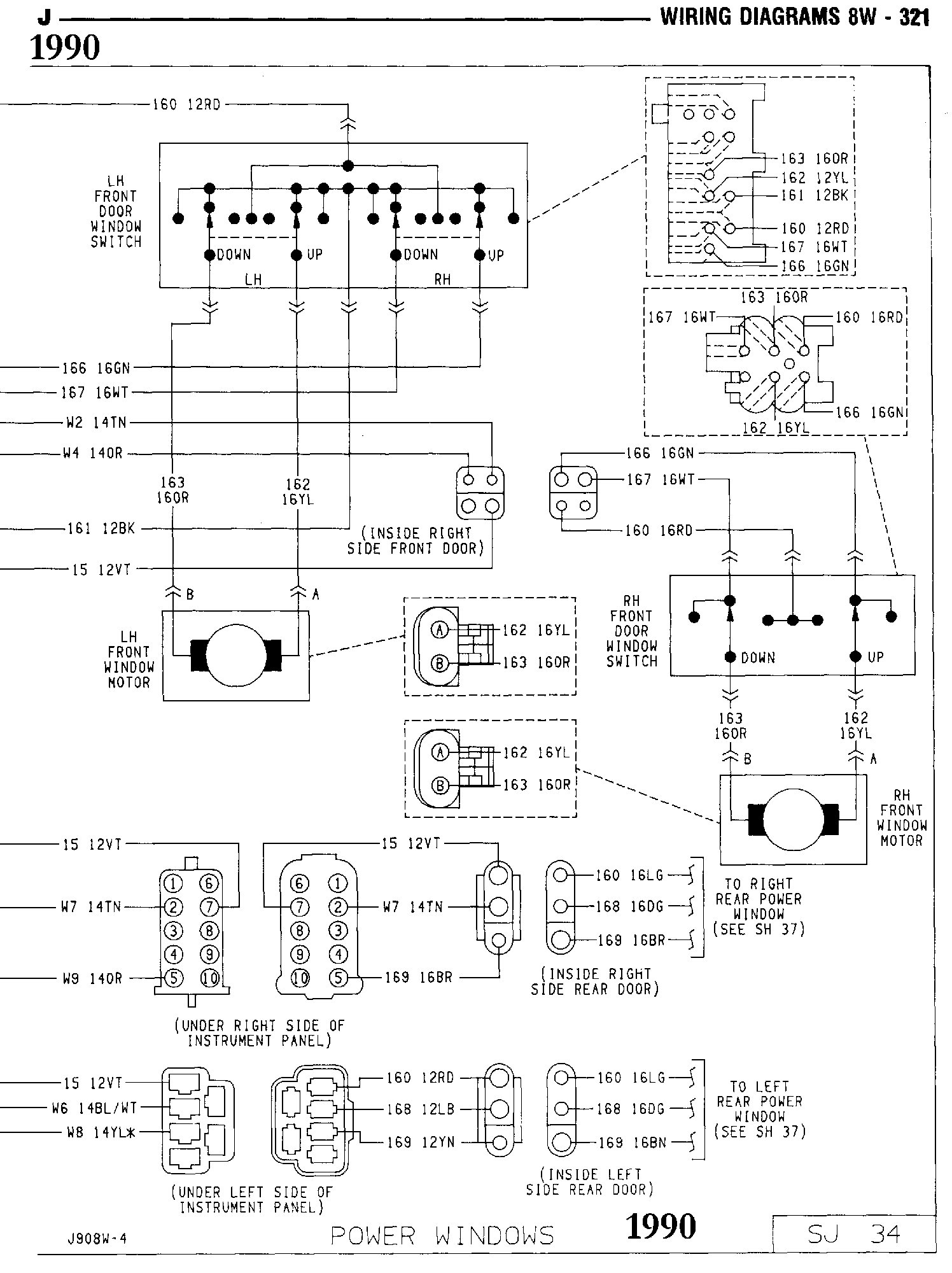

PowerWindows-8W_Page-34
 Power Windows #2 of 2

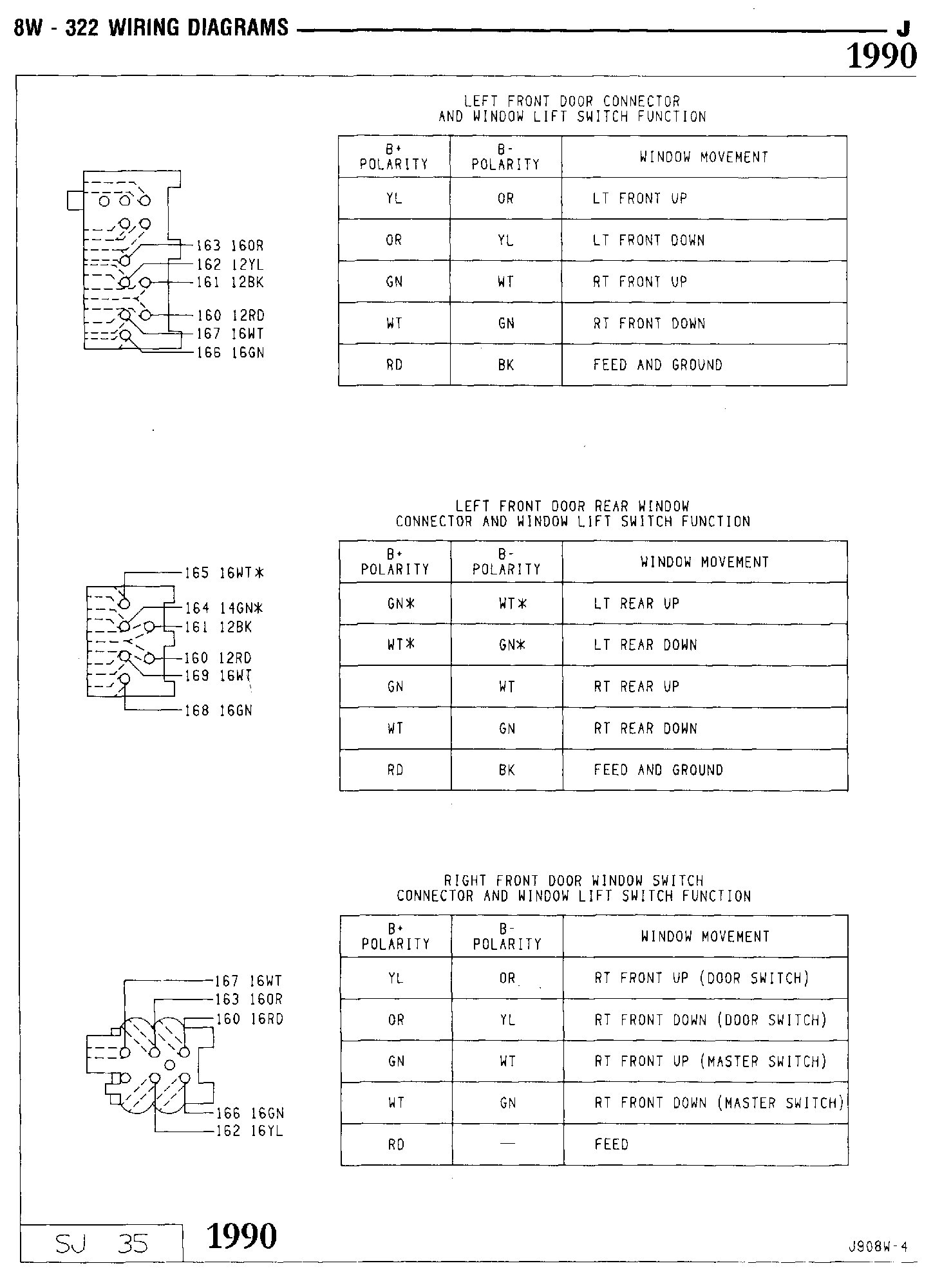

PowerWindowSwitchFunctions-8W_Page-35
 Window Switch Functions Front

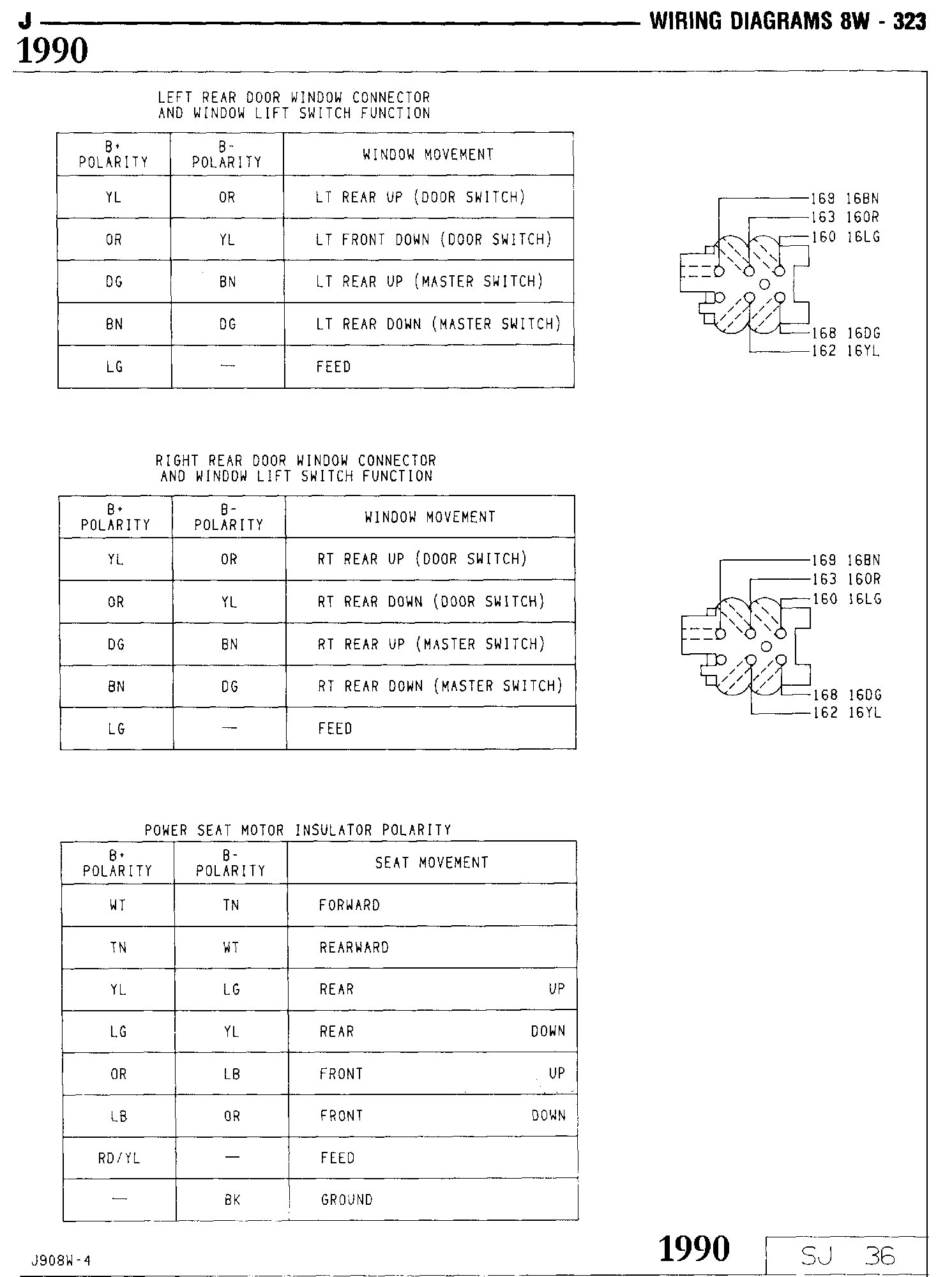

PowerWindow-SeatSwitchFunctions-8W_Page-36
 Window Sw Functions Rear & Seats

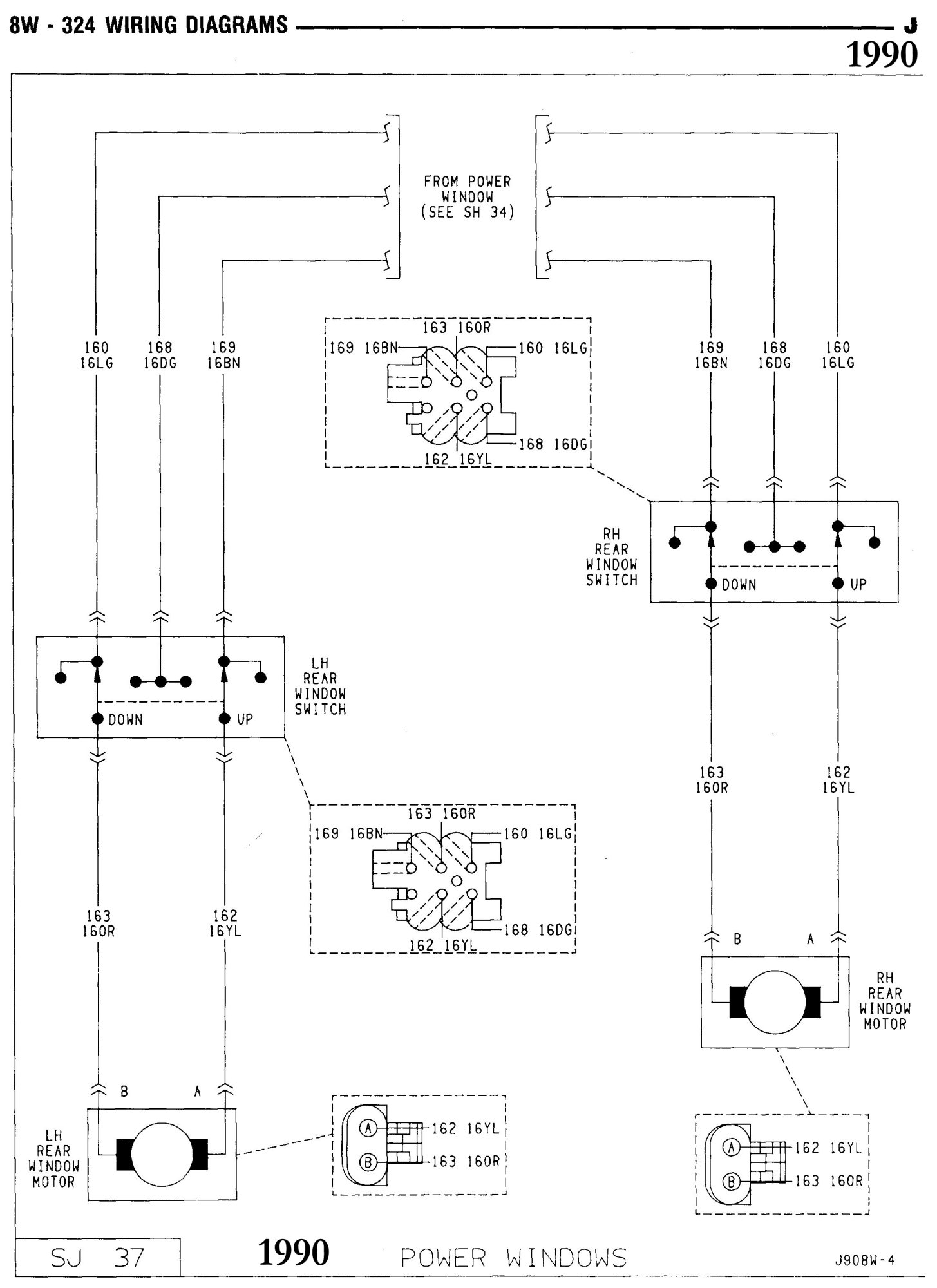

PowerWindows-8W_Page-37
 Power Window Schematic

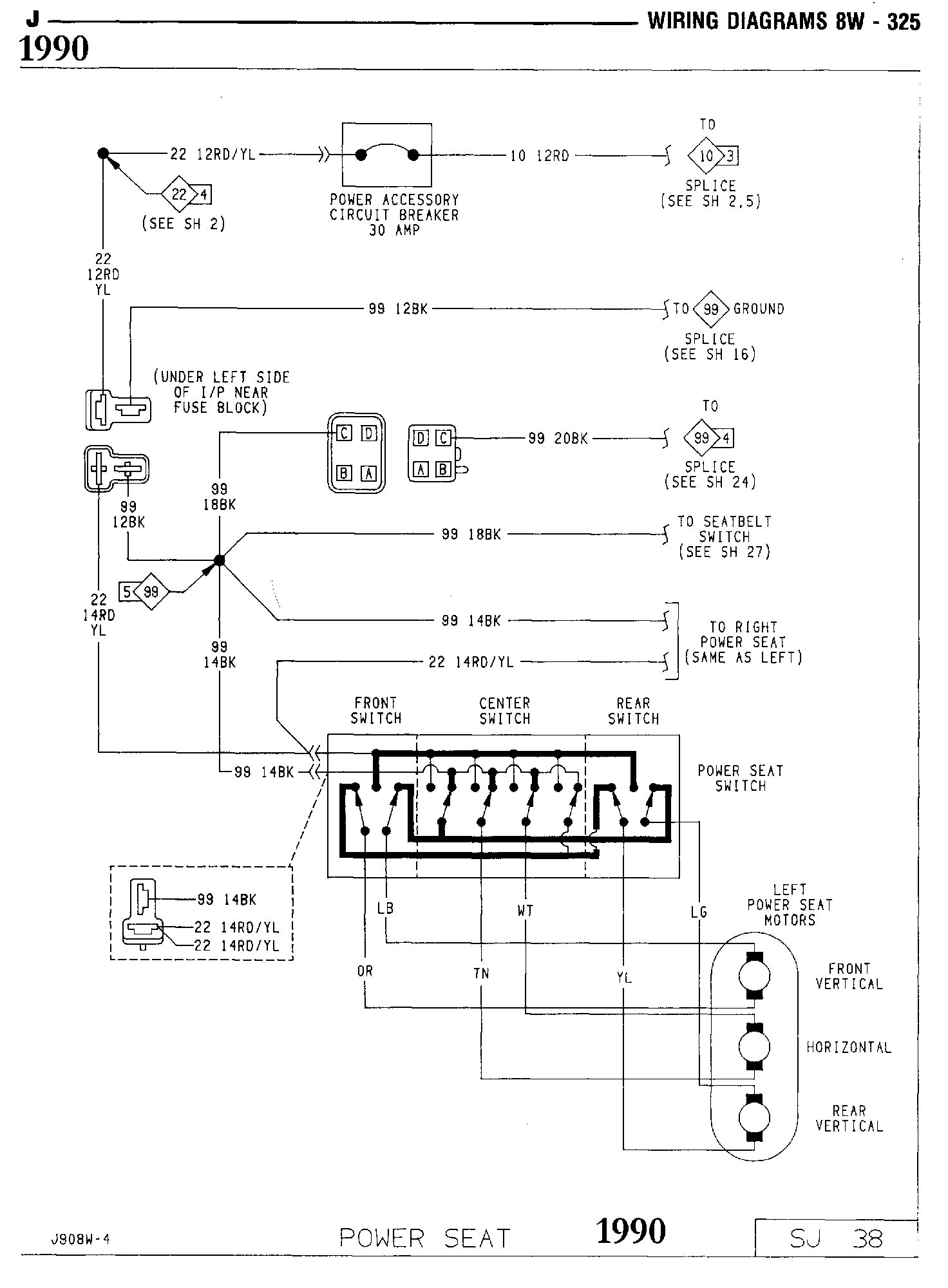

PowerSeat-8W_Page-38
 Power Seat Schematic

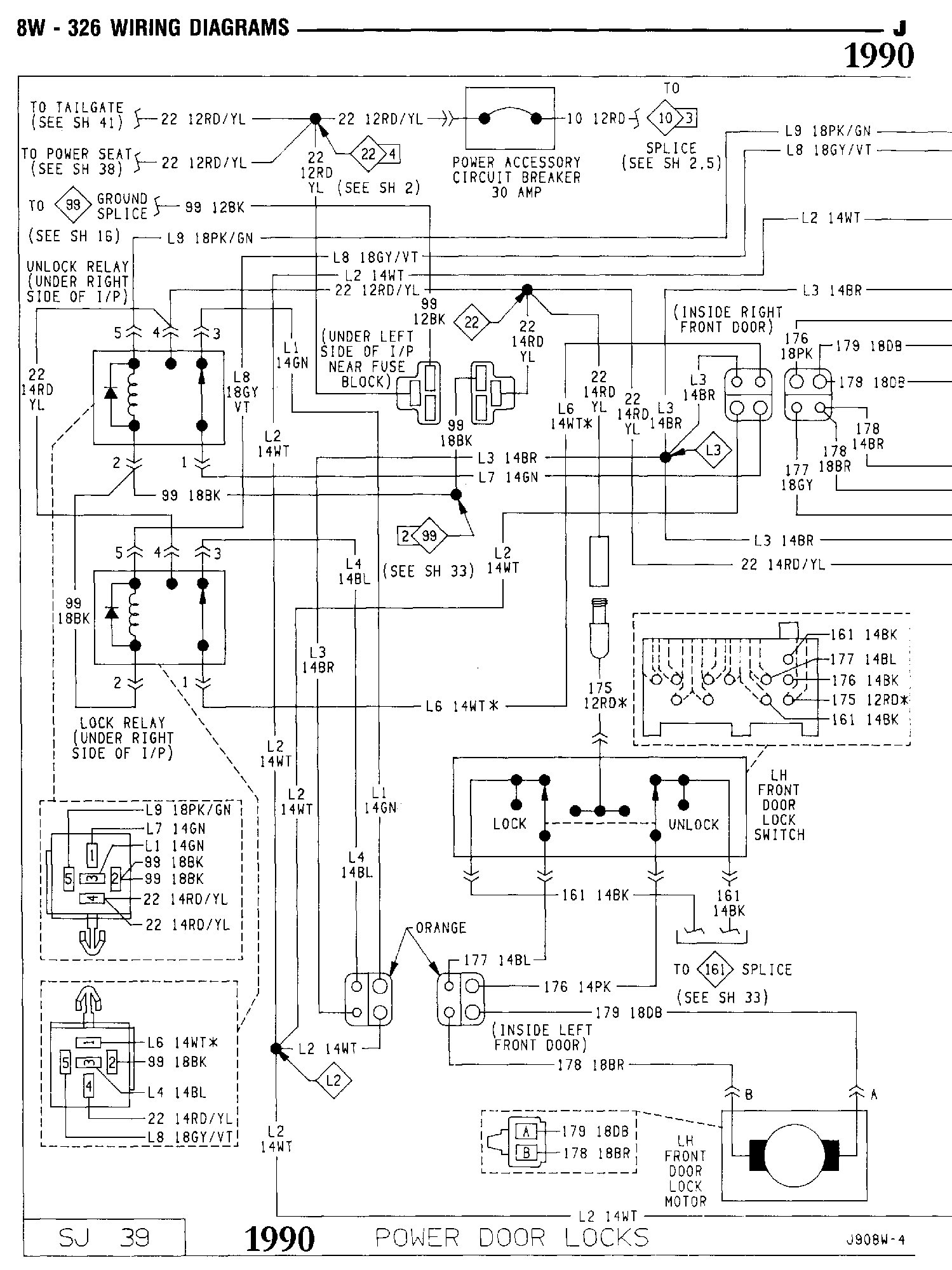

PowerDoorLocks-8W_Page-39
 Power Door Locks #1 of 2

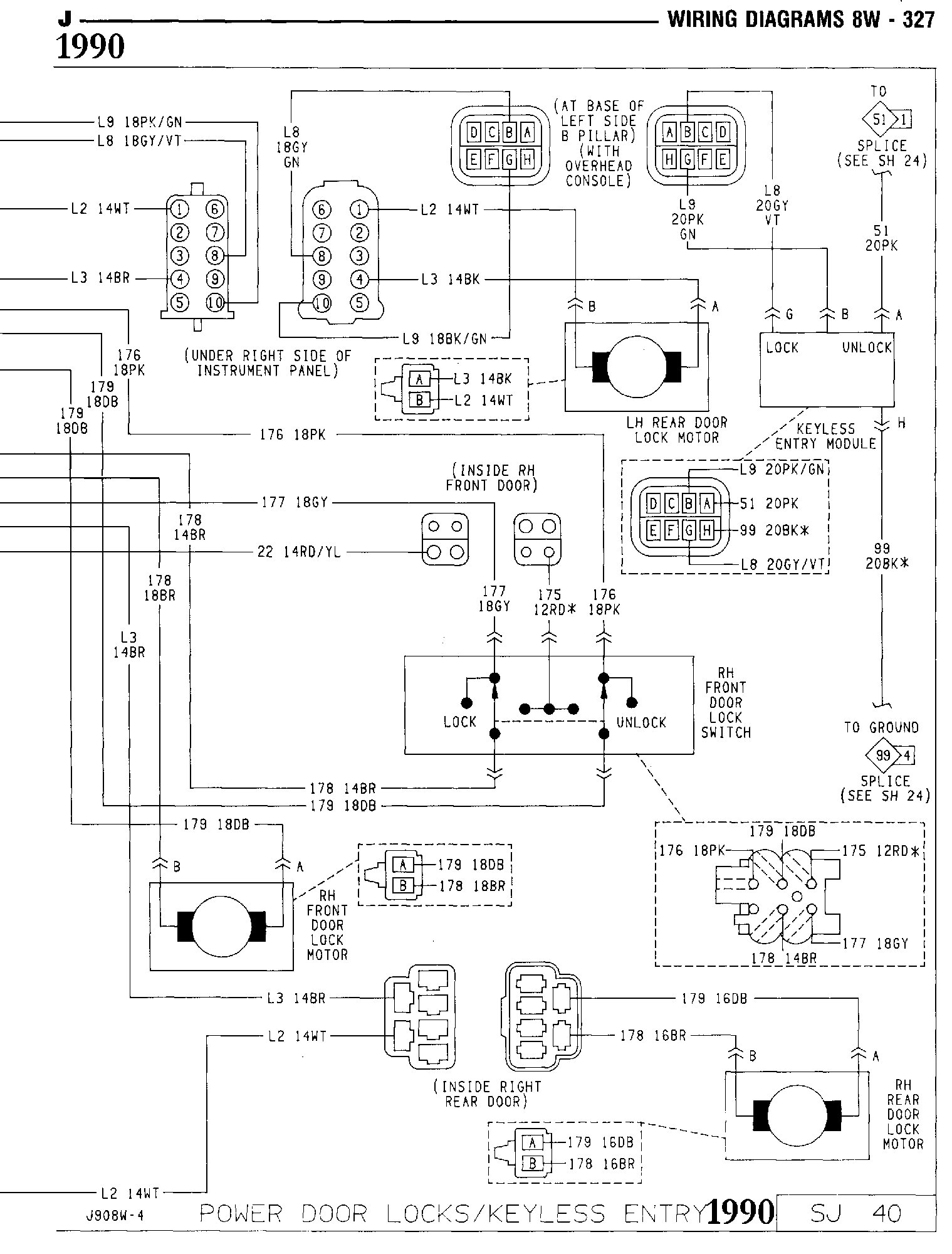

PowerDoorLocks-KeylessEntry-8W_Page-40
 Power Door Locks/Keyless #1 of 2

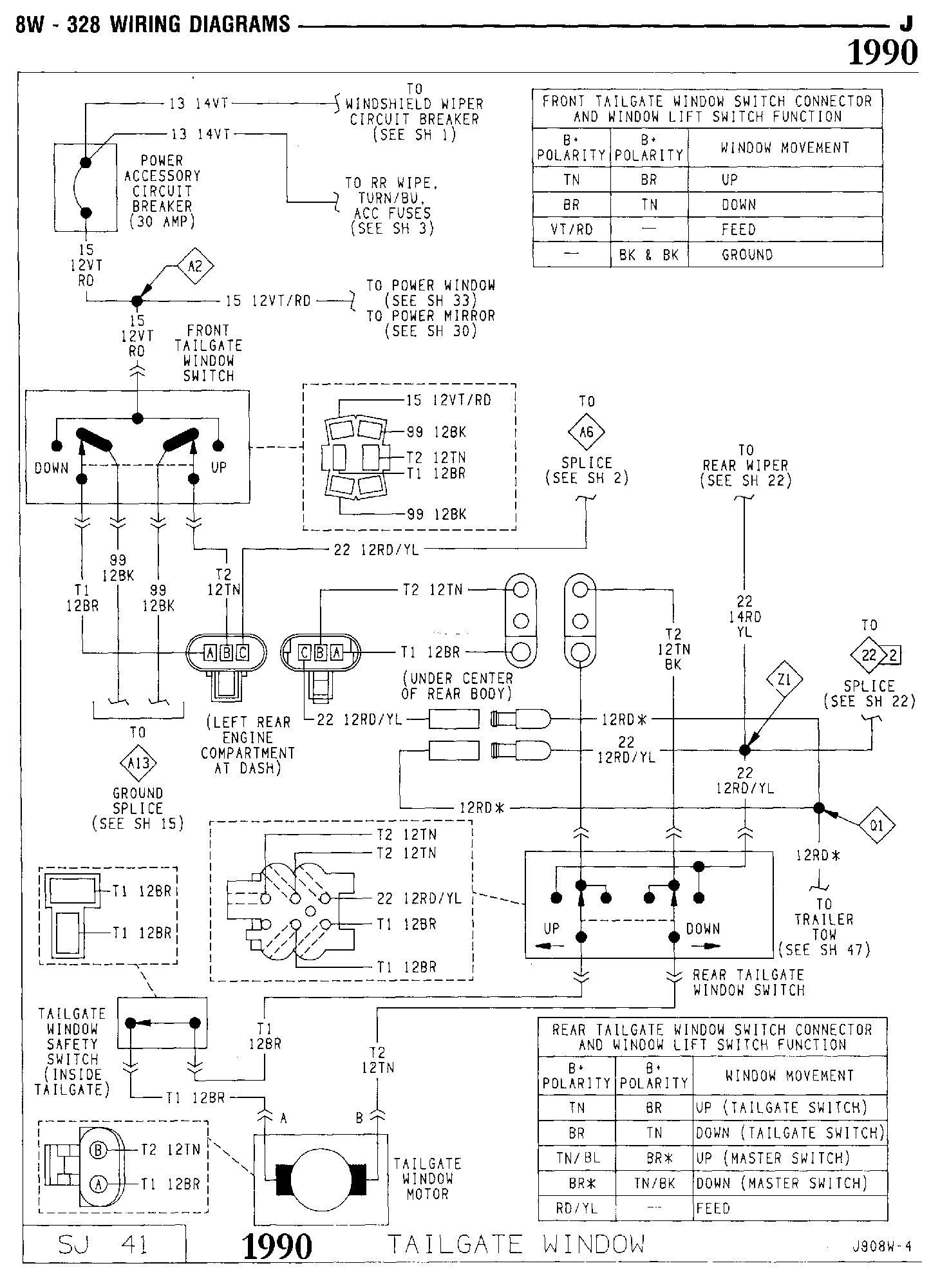

TailgateWindow-8W_Page-41
 Tailgate Window

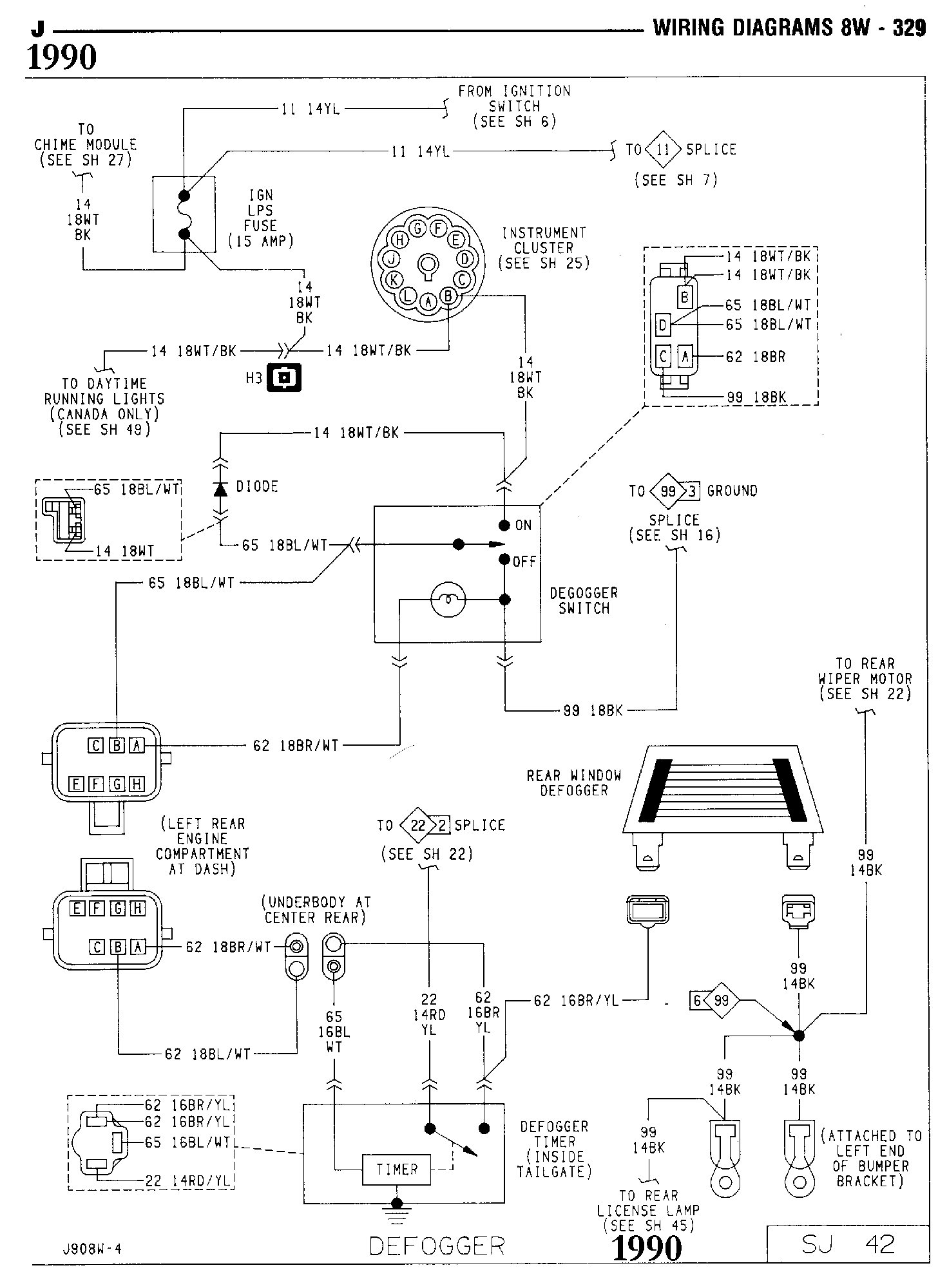

RearDefogger-8W_Page-42
 Rear Window Defogger

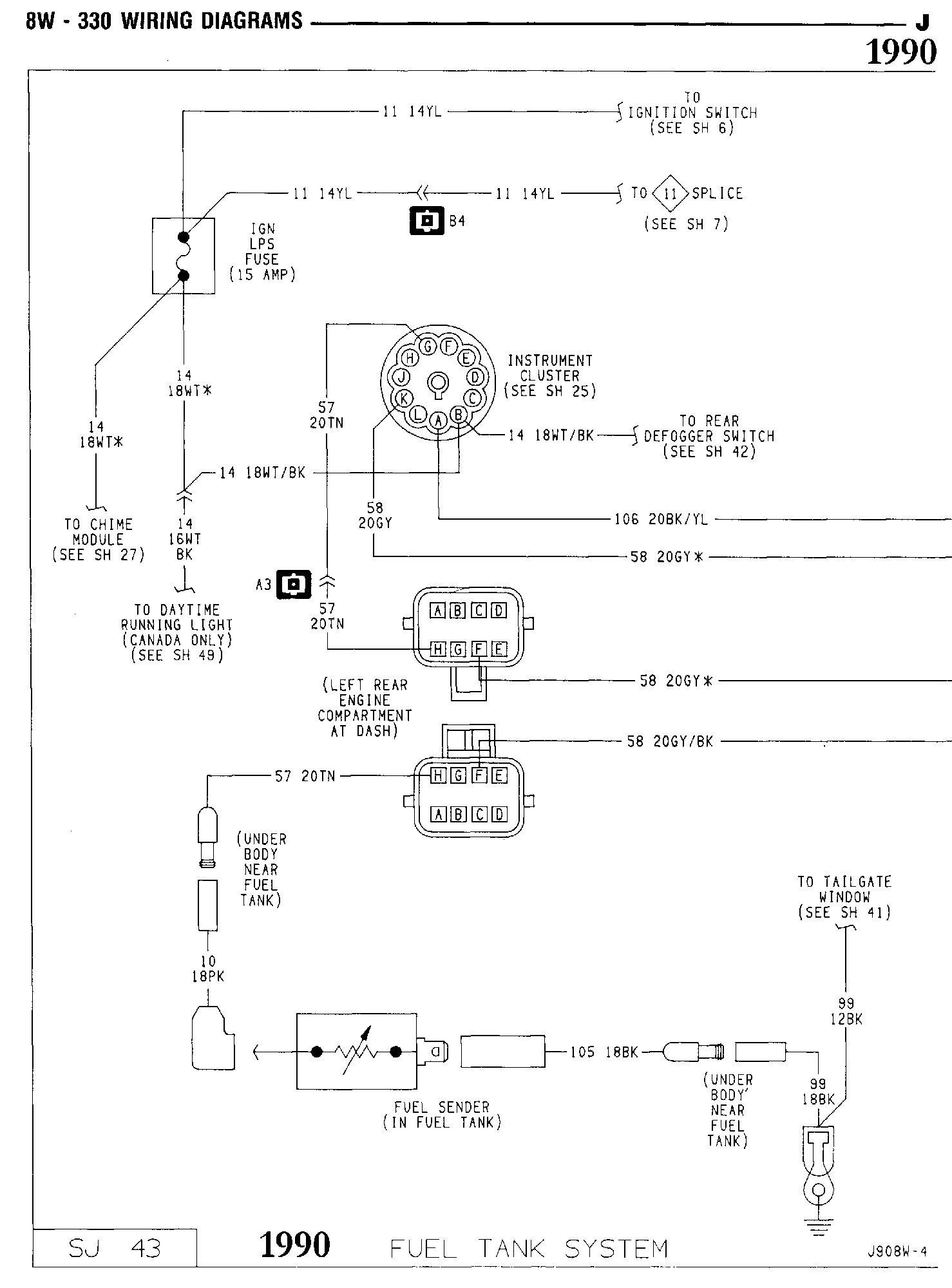

FuelTankSystem-8W_Page-43
 Fuel Tank System #1 of 2

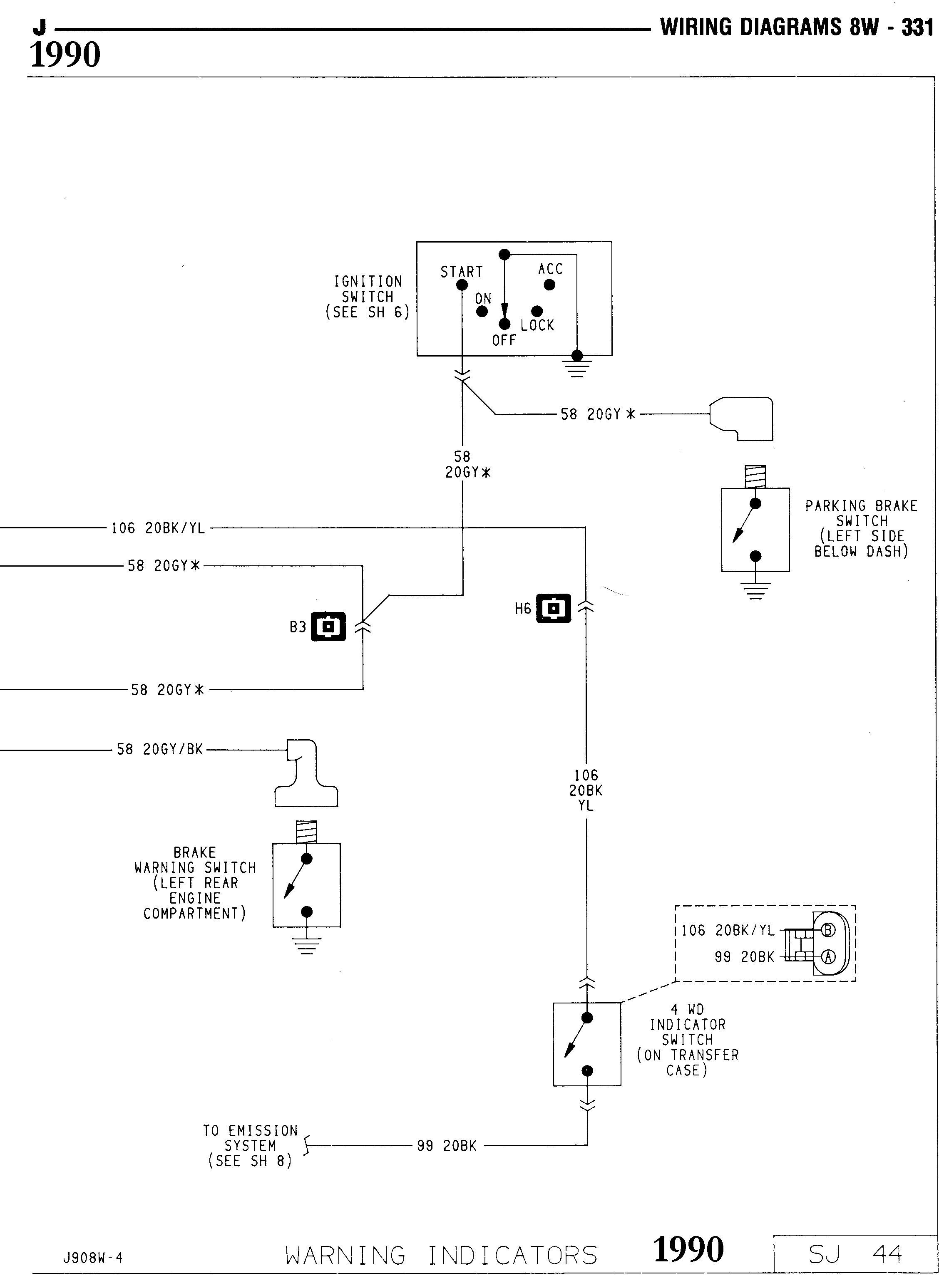

WarningIndicators-8W_Page-44
 Warning Indicators # 2 of 2

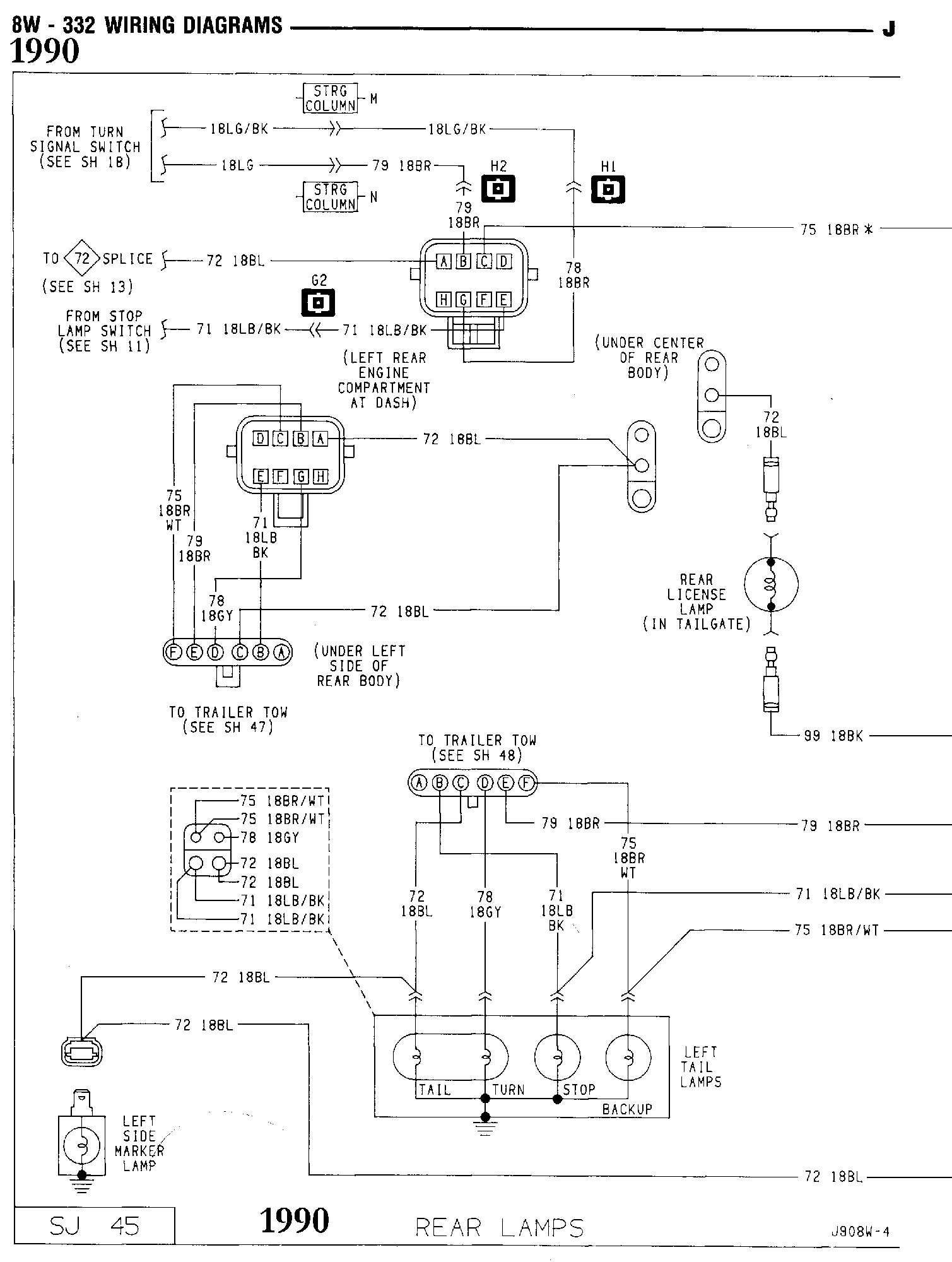

RearLamps-8W_Page-45
 Rear Lamps #1 of 2

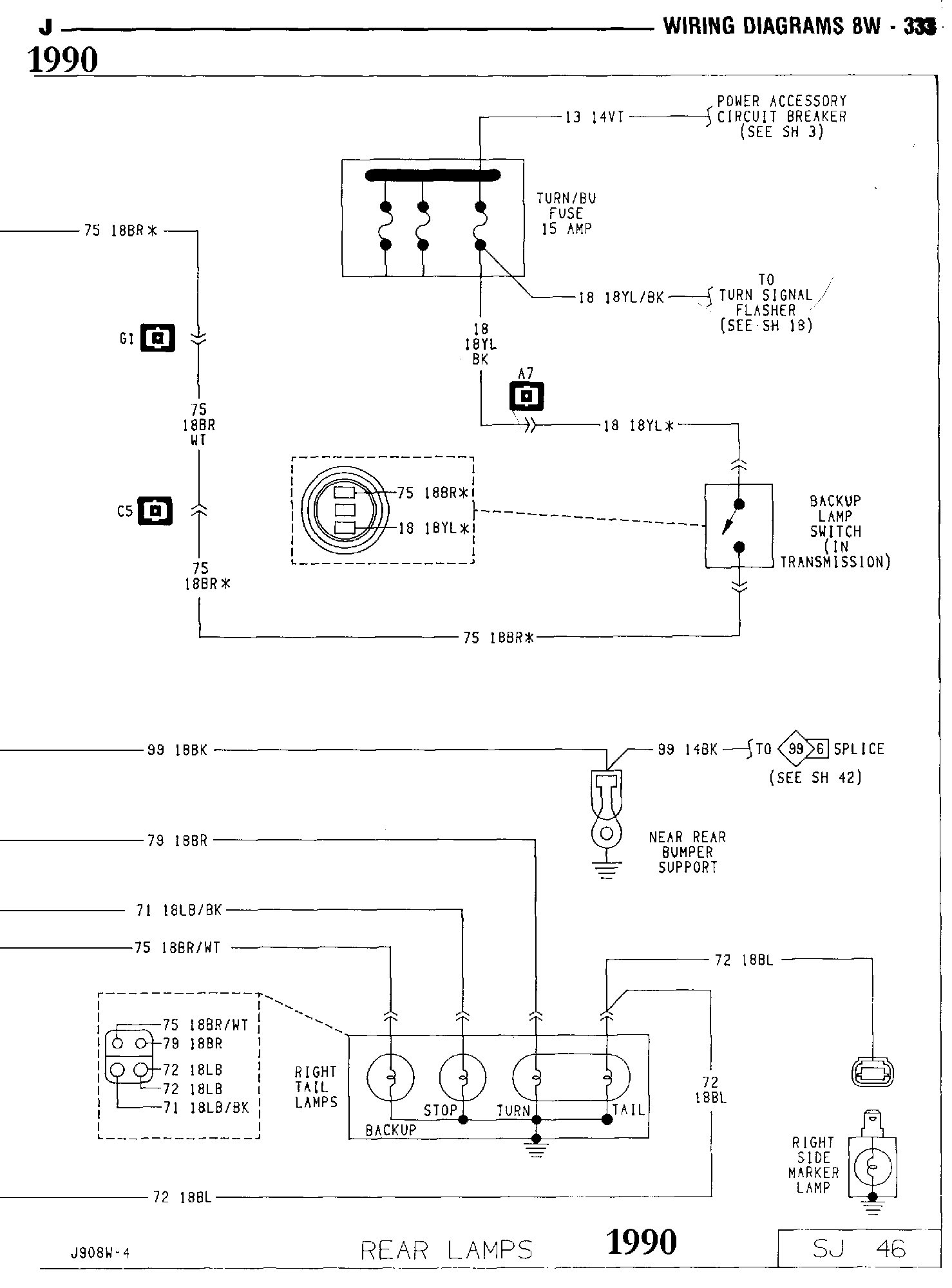

RearLamps-8W_Page-46
 Rear Lamps #2 of 2

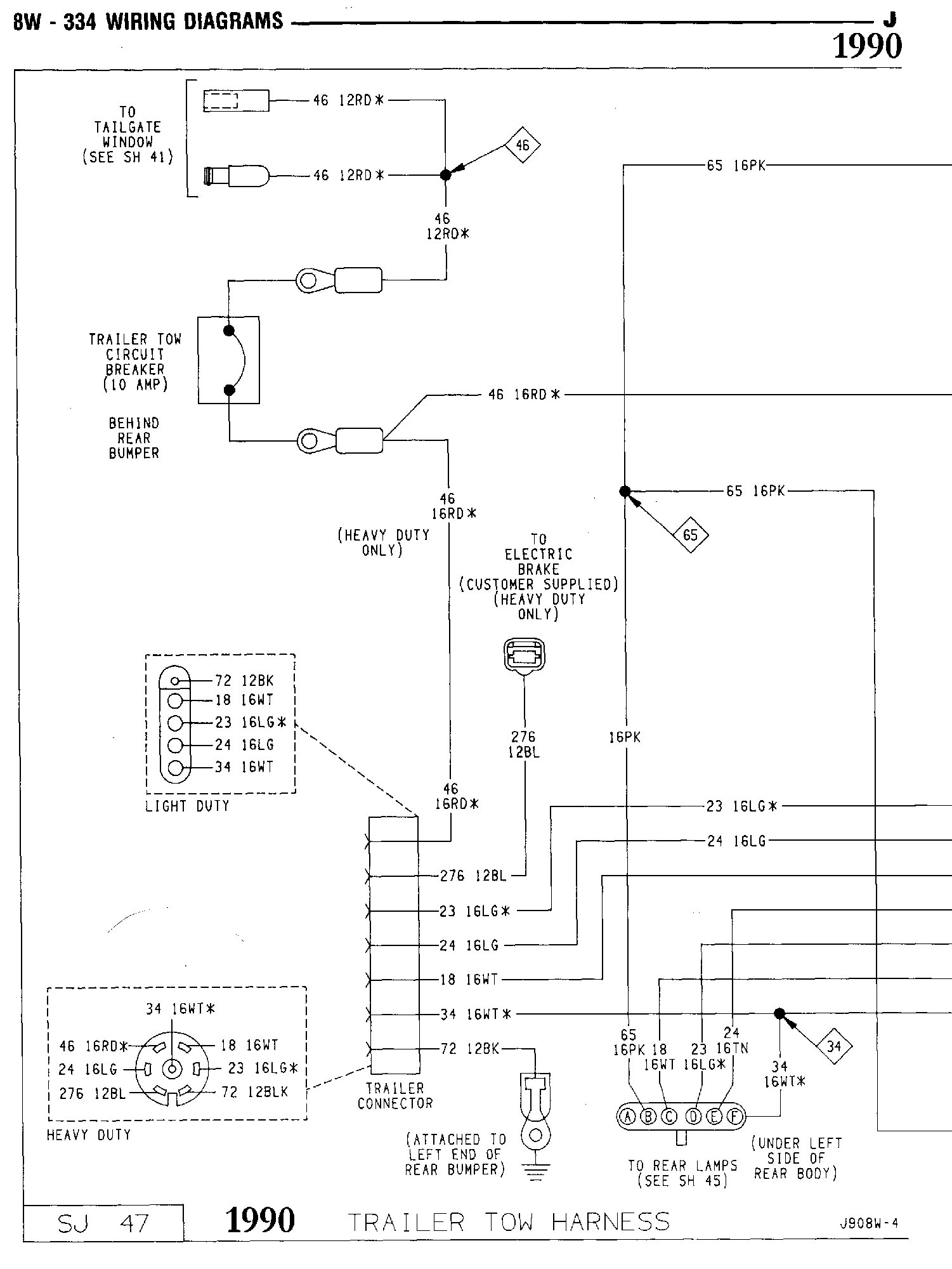

TrailerTowHarness-8W_Page-47
 Trailer Tow Harness #1 of 2

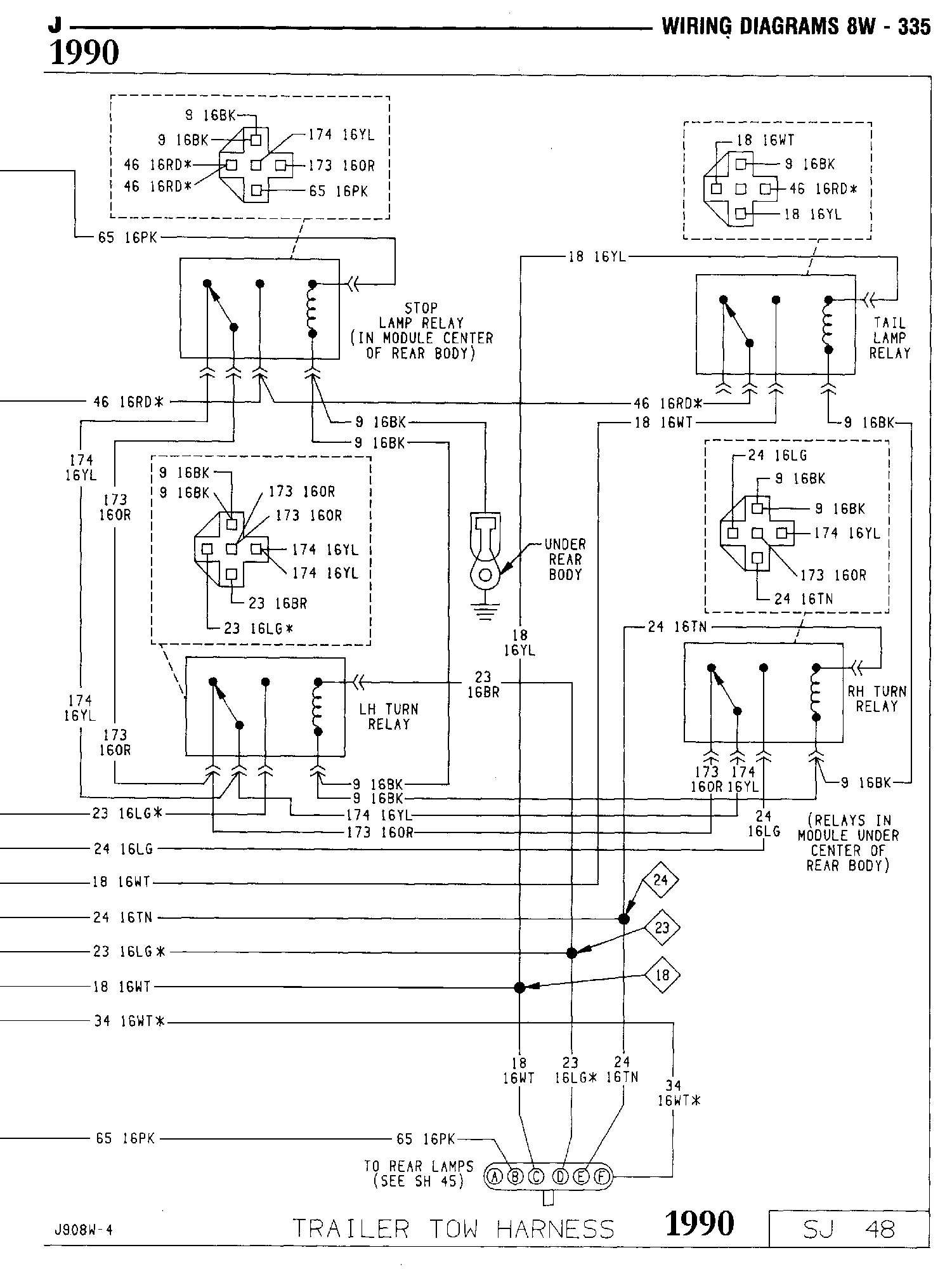

TrailerTowHarness-8W_Page-48
 Trailer Tow Harness #2 of 2

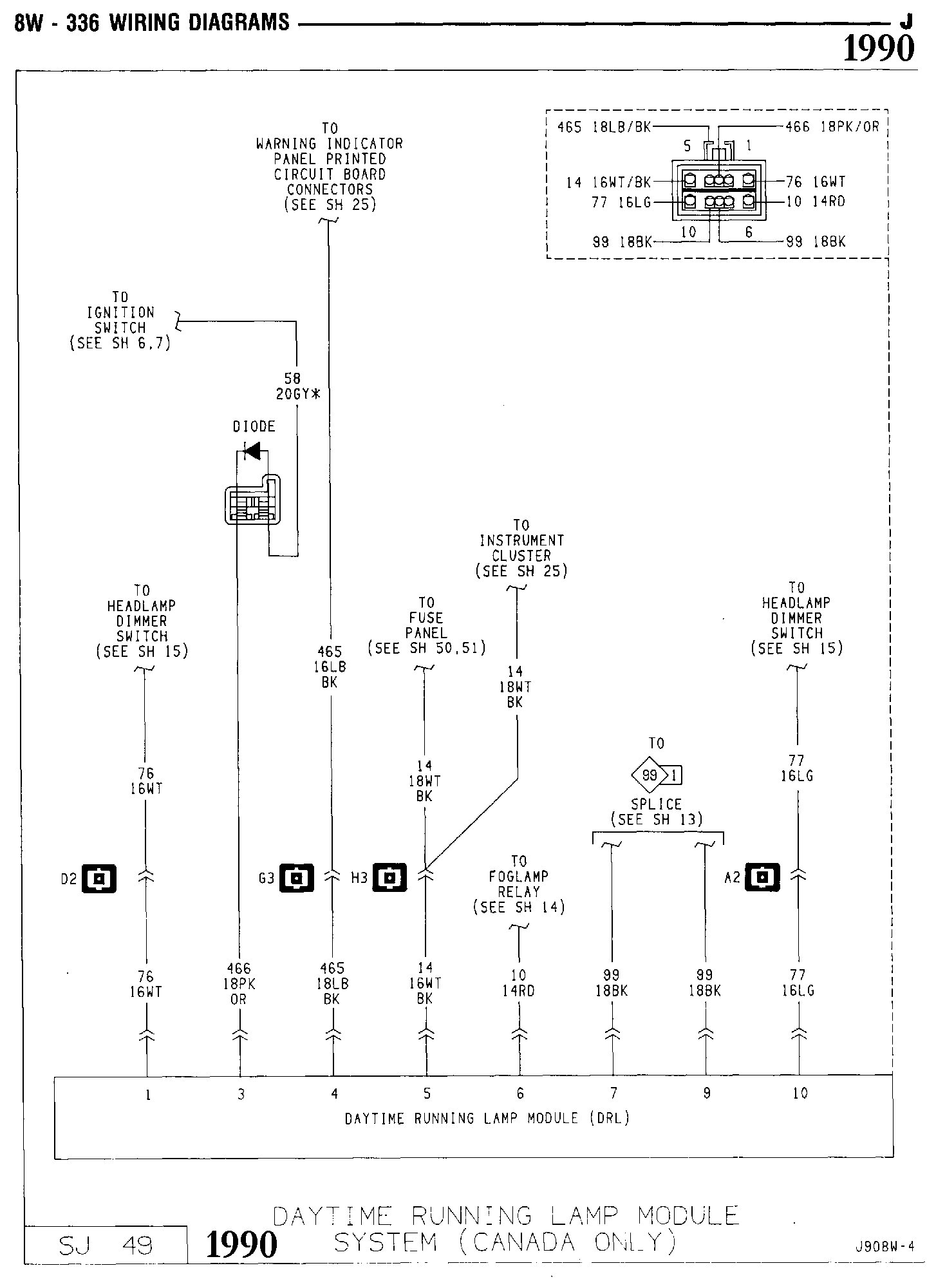

DaytimeRunningLamp-Canada-8W_Page-49
 Daytime Running Lamps (Canada)

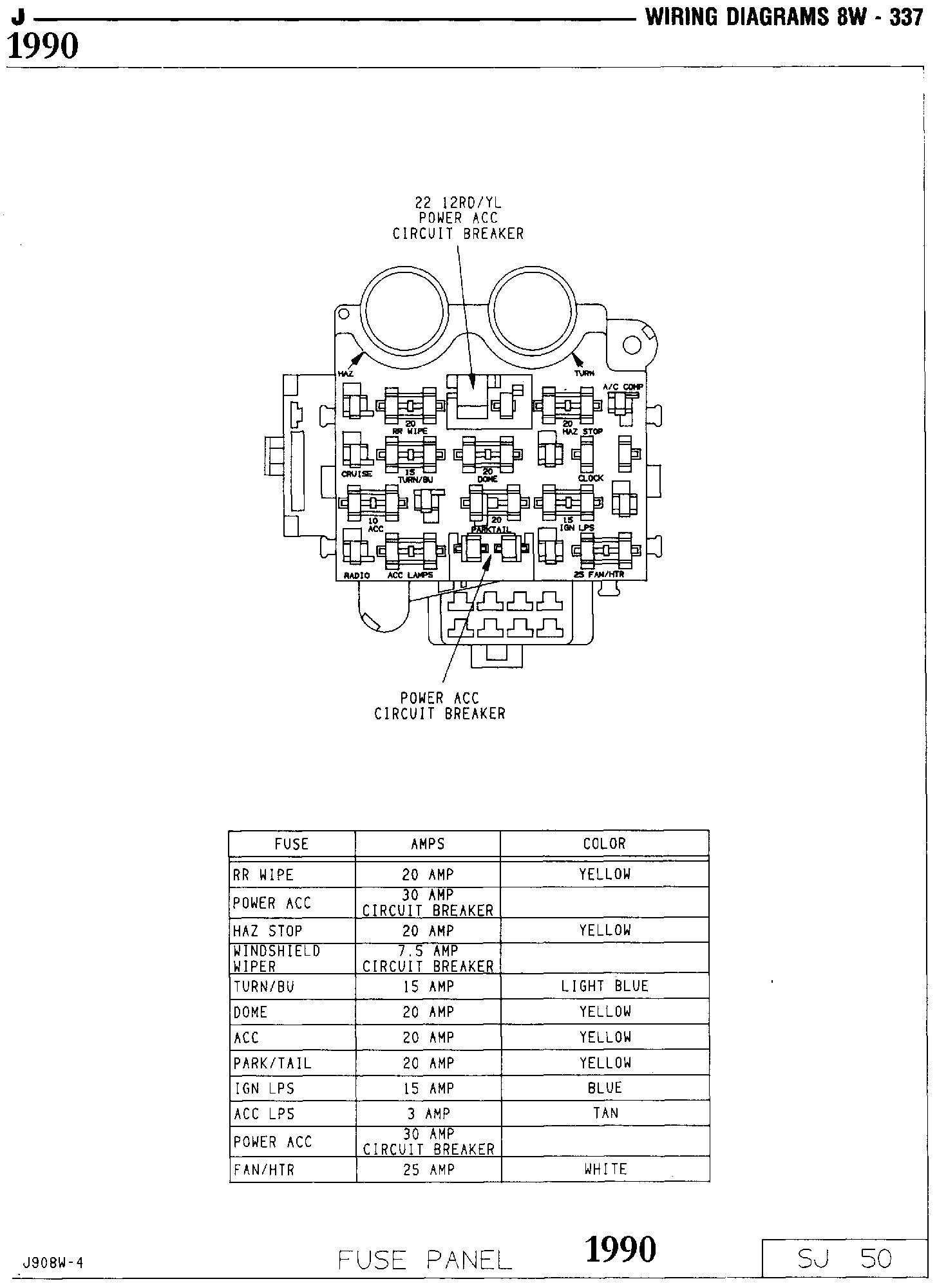

FusePanel-8W_Page-50
 Fuse Panel Front

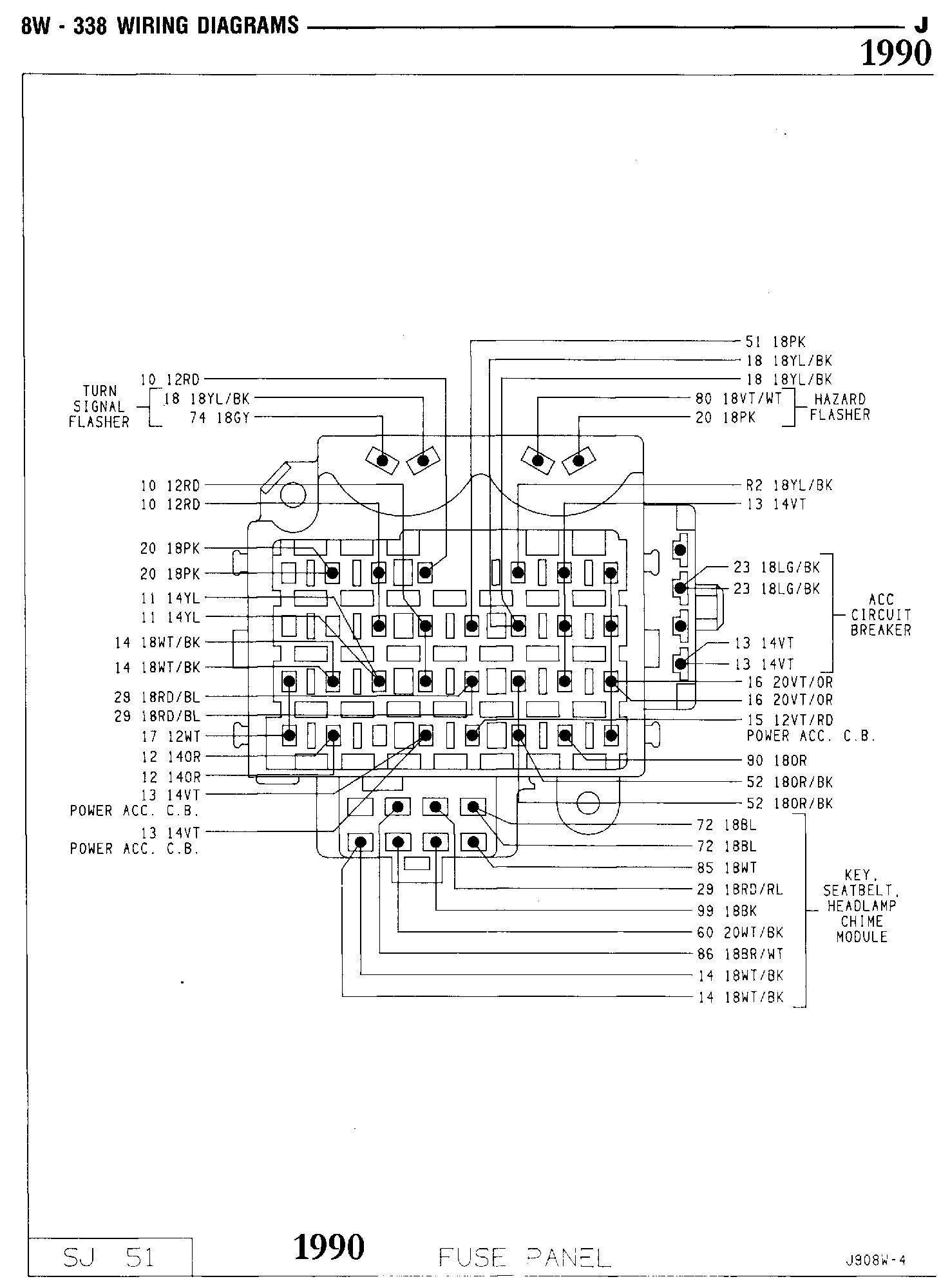

FusePanel-8W_Page-51
 Fuse Panel Rear

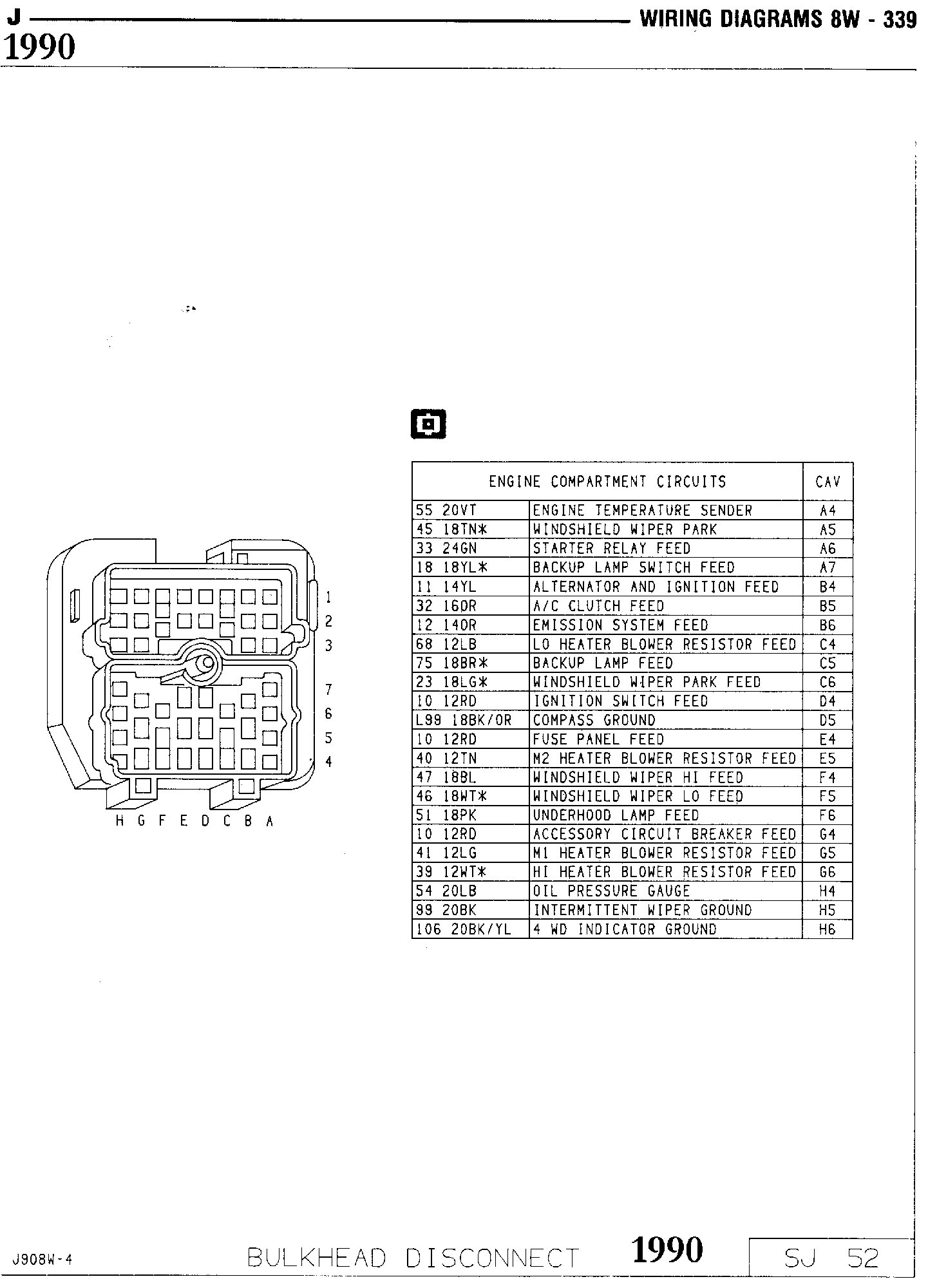

BulkheadDisconnect-8W_Page-52
 Bulkhead Disconnect Eng Compartment

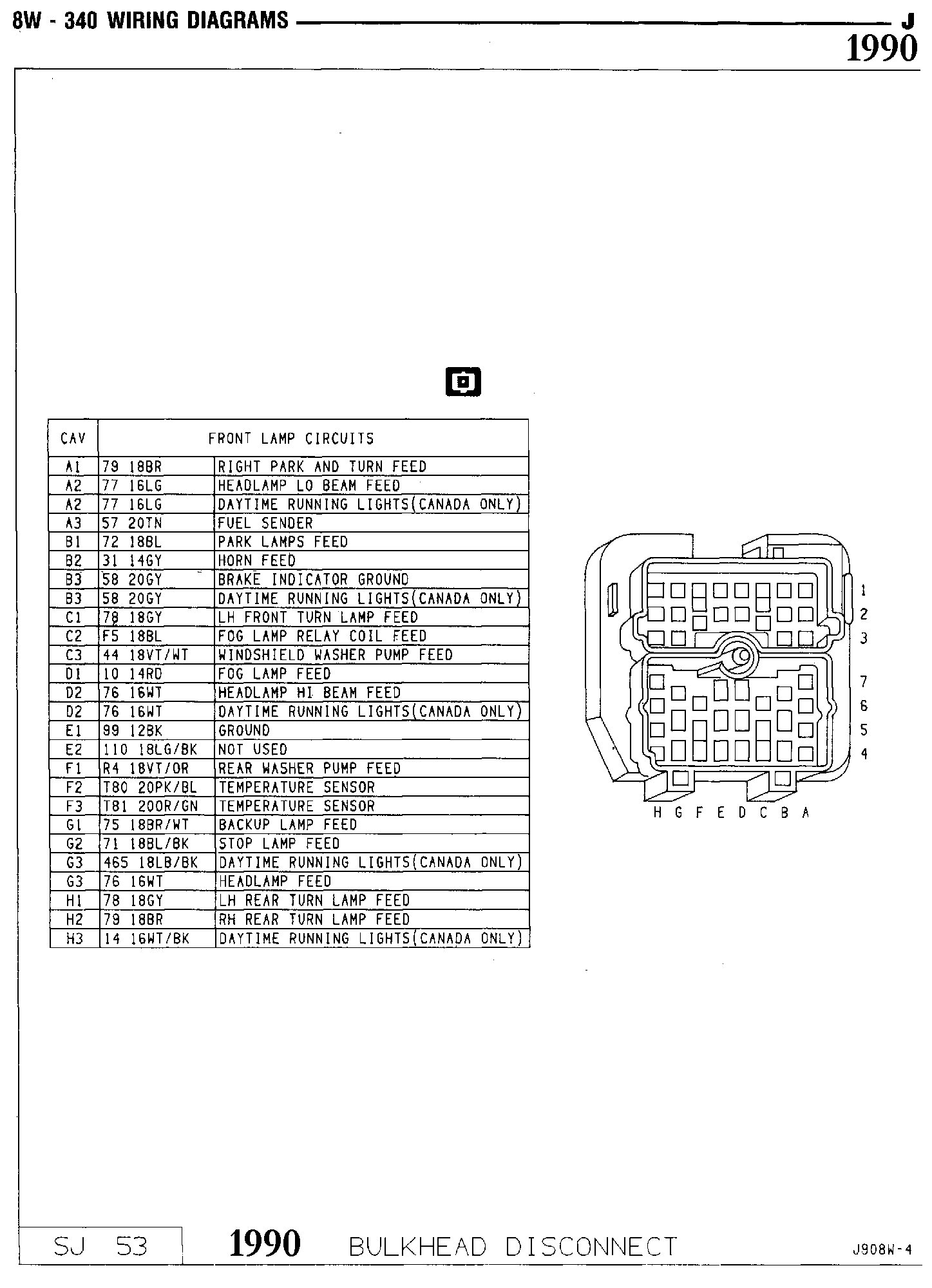

BulkheadDisconnect-8W_Page-53
 Bulkhead Disconnect Front Lamp

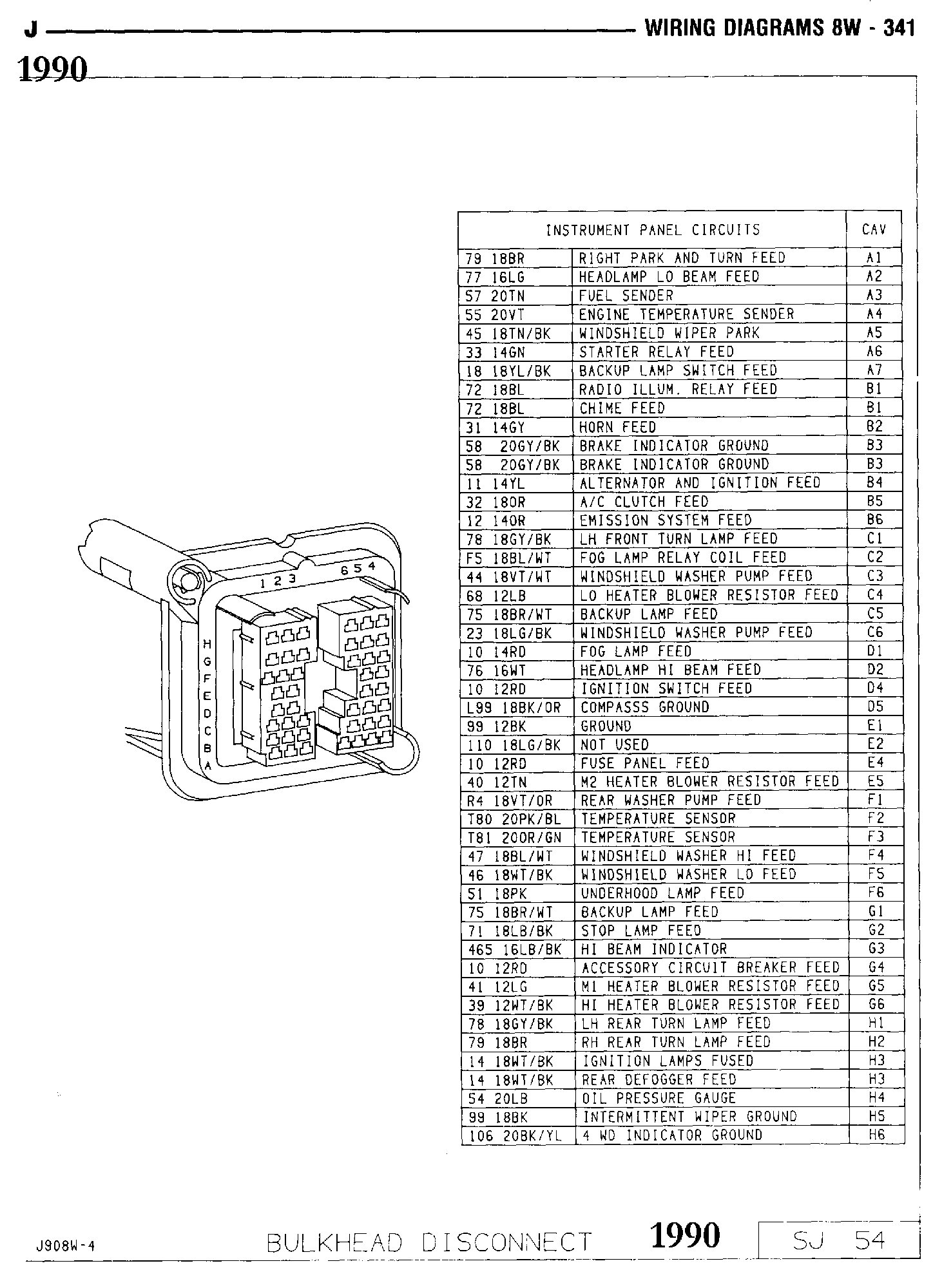

BulkheadDisconnect-8W_Page-54
 Bulkhead Disconnect Instrument Panel

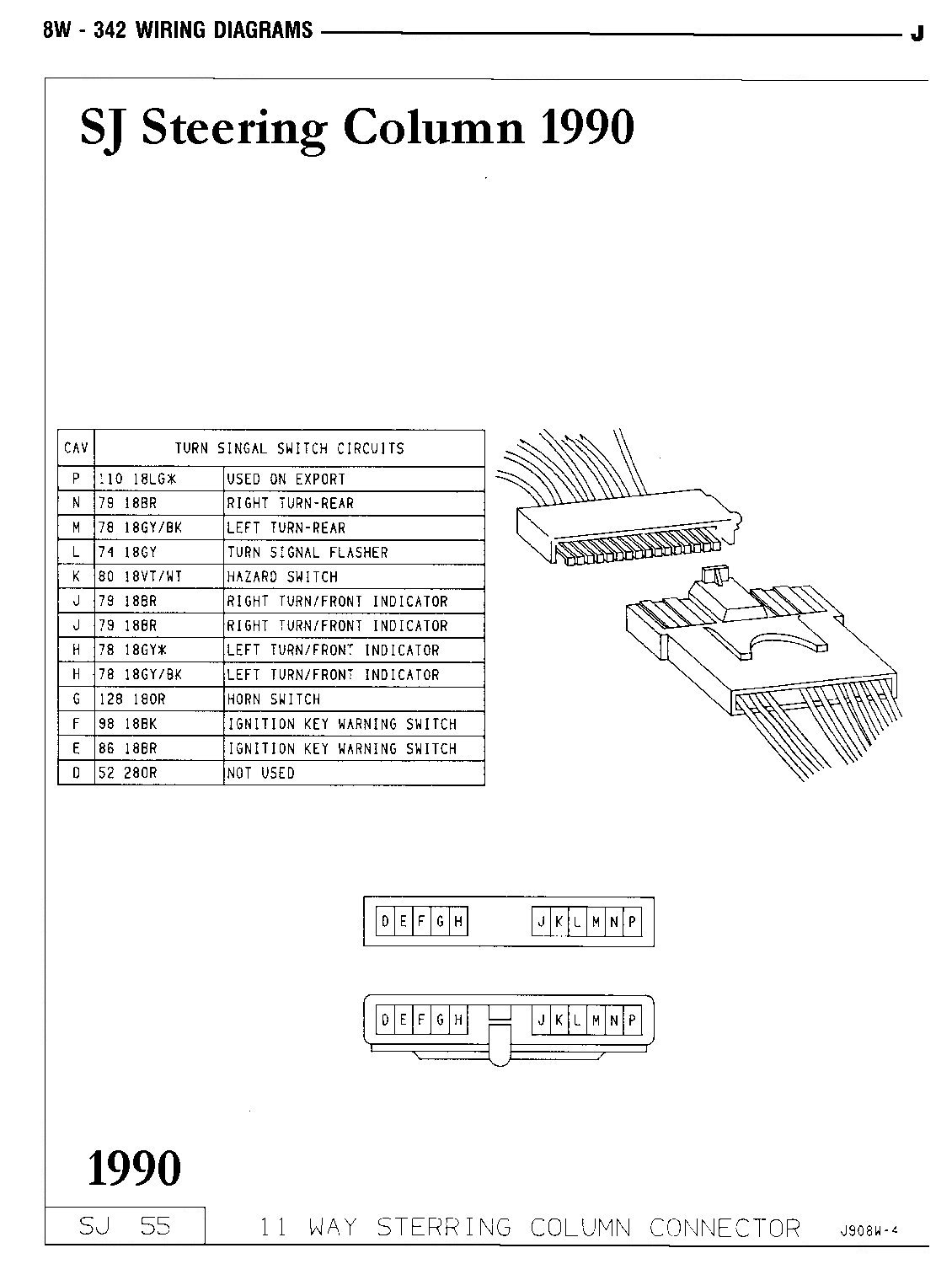

SteeringColumnConnector-8W_Page-55
 Steering Column Connector Layout
